Installation Procedure

  1. Connect the lock rod.
    2. NOTE: Refer to Fastener Notice .

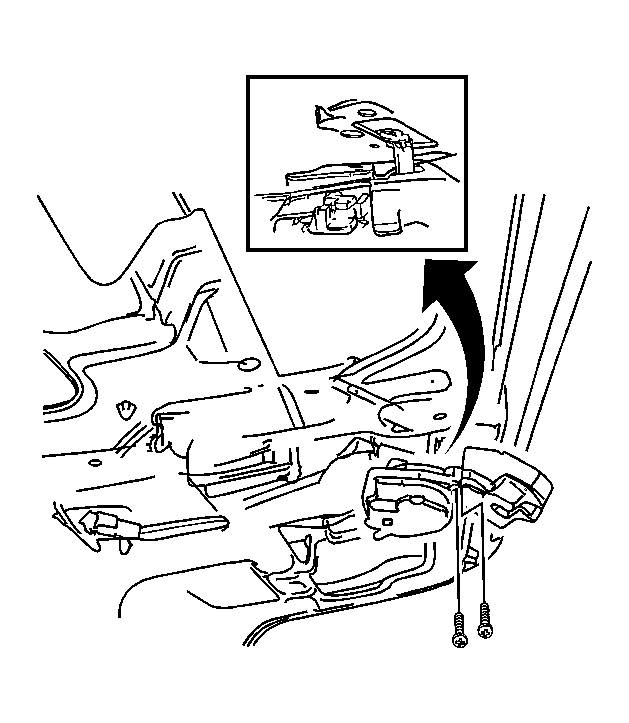

    Fig 1: View Of Rear Compartment Lock And Screws
    GM1309309Courtesy of GENERAL MOTORS CORP.
  2. Install the rear compartment lock with the screws.

    Tighten:  Tighten the rear compartment lock screws to 6 N.m (53 lb in)  .

  3. Connect the electrical connector.
  4. Install the rear compartment lock cover.
  5. Connect the negative battery cable.
