Cruise Control Schematics

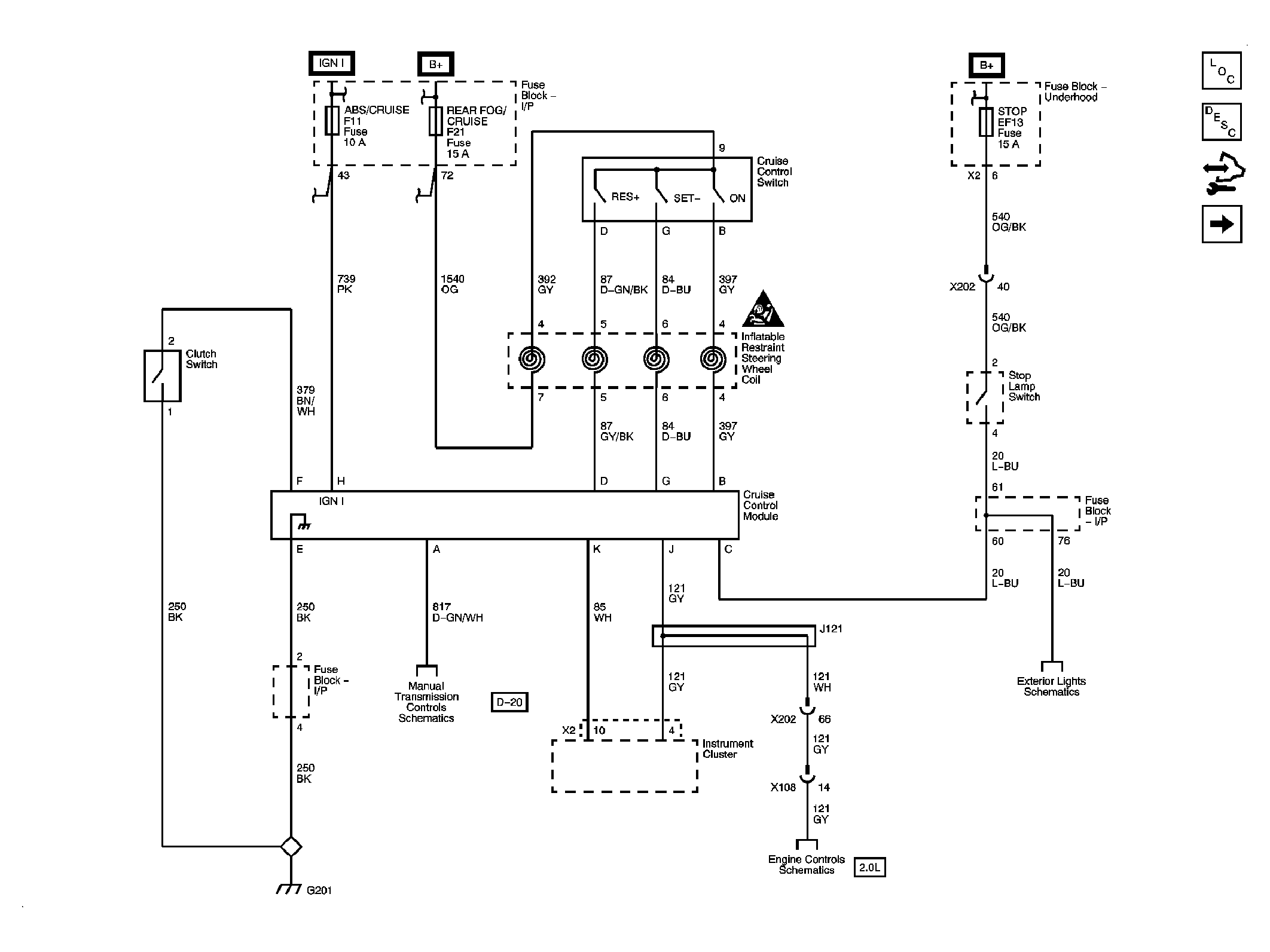

Fig 1: Manual Trans w/o Throttle Actuator Control Schematic
GM1956400Courtesy of GENERAL MOTORS CORP.

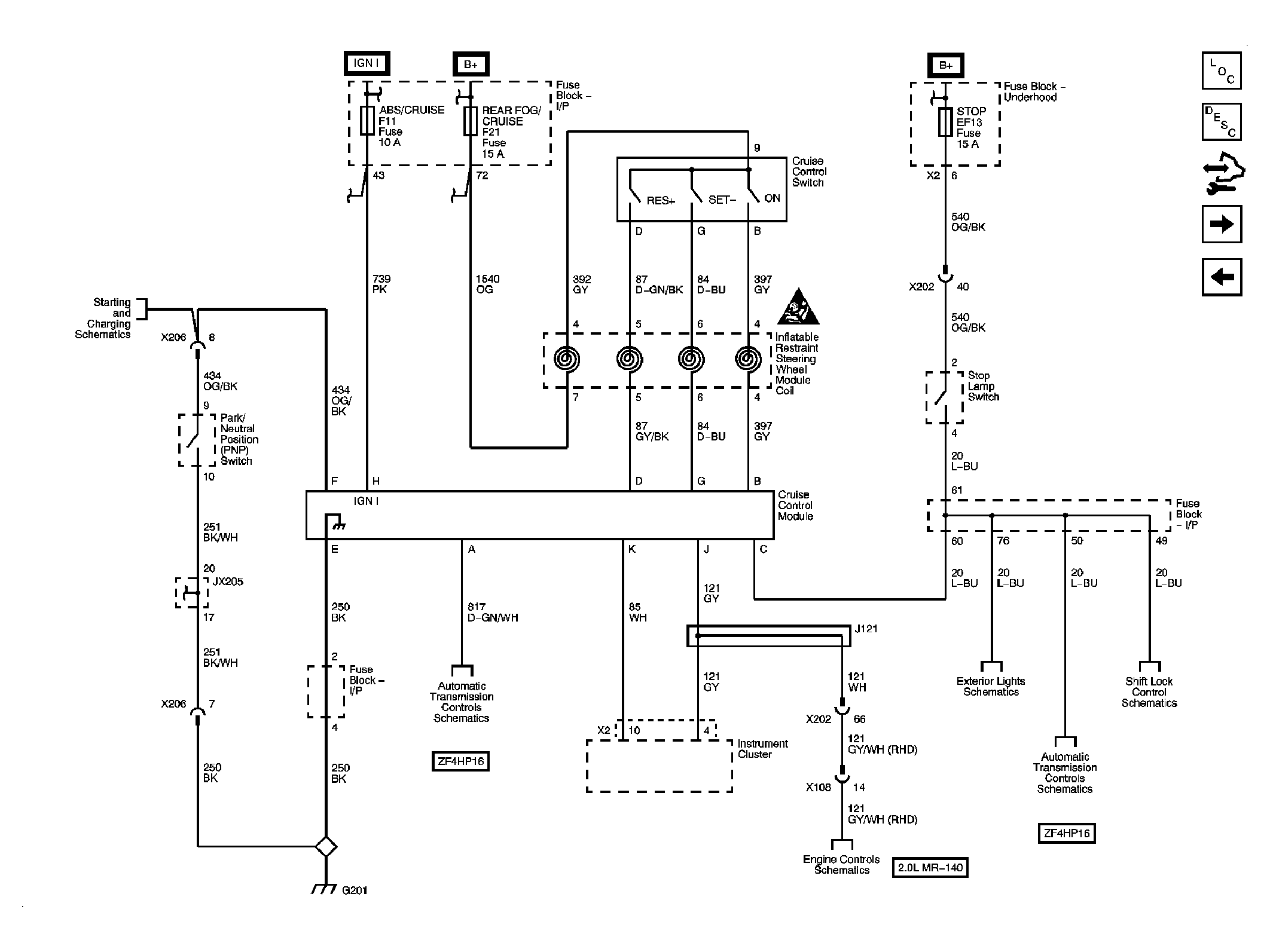

Fig 2: Automatic Trans w/o Throttle Actuator Control Schematic
GM1956402Courtesy of GENERAL MOTORS CORP.

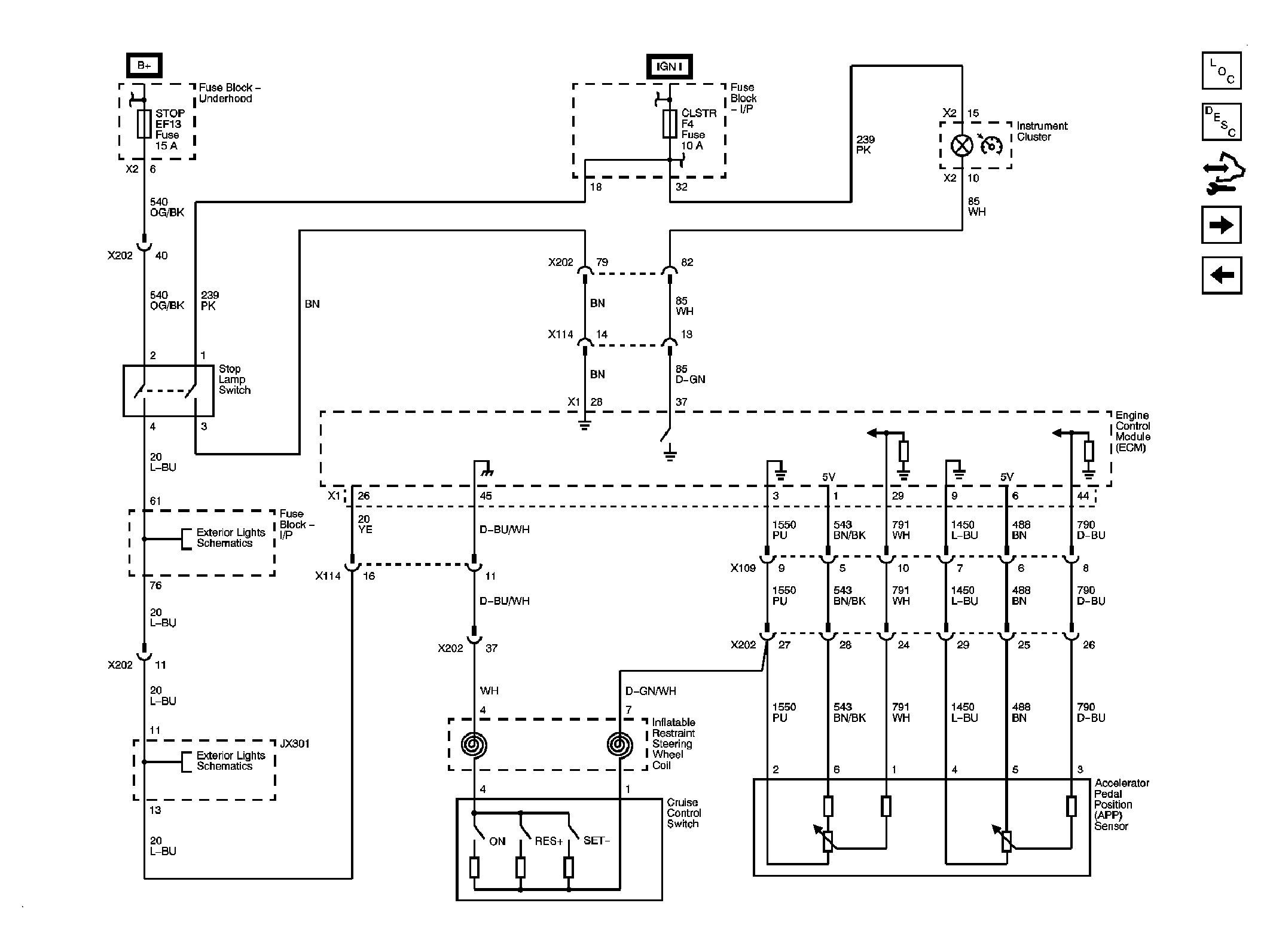

Fig 3: w/Throttle Actuator Control Schematic
GM1956403Courtesy of GENERAL MOTORS CORP.

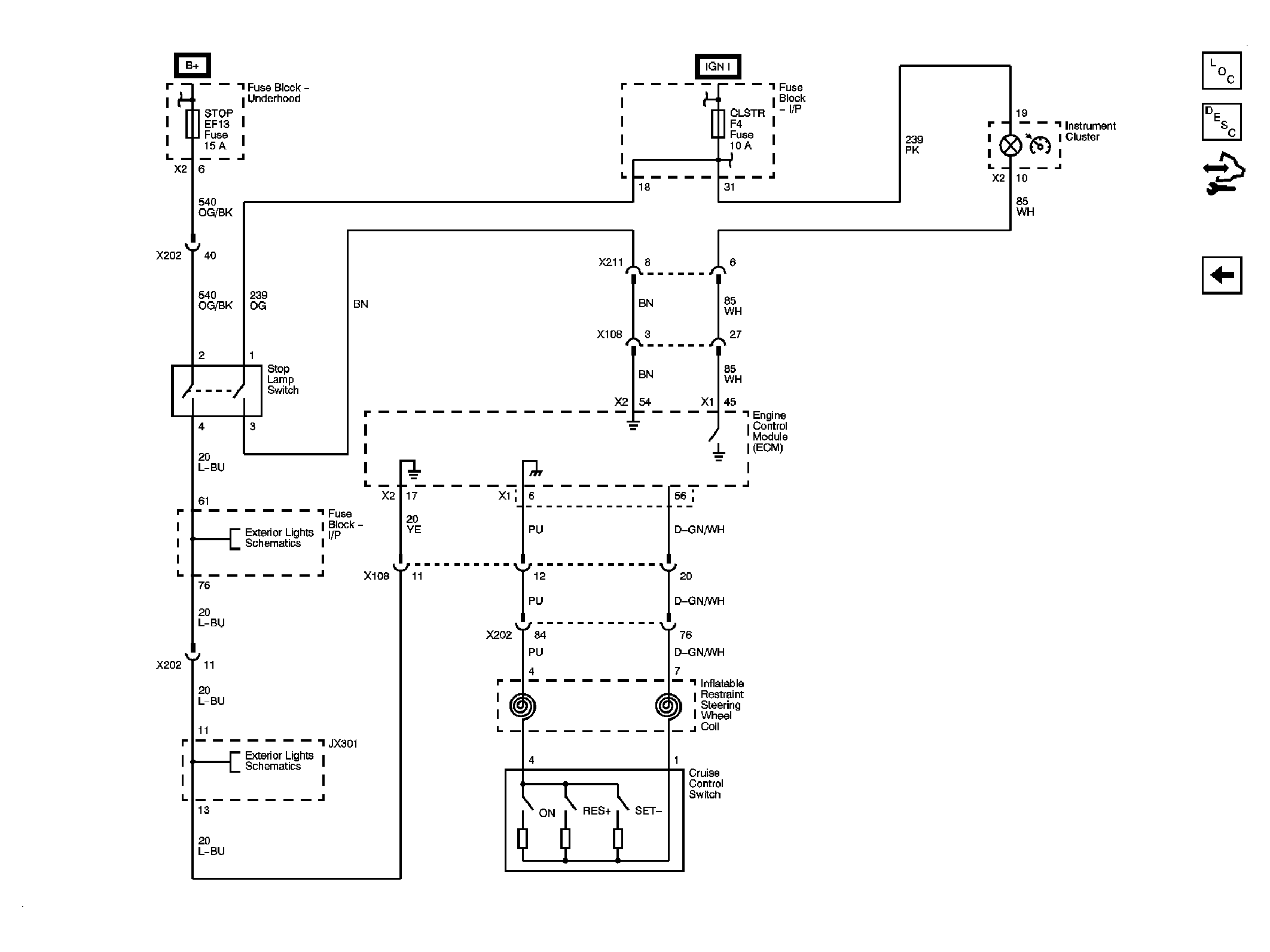

Fig 4: Diesel Cruise Control Schematic
GM1956404Courtesy of GENERAL MOTORS CORP.
