Power Distribution Schematics

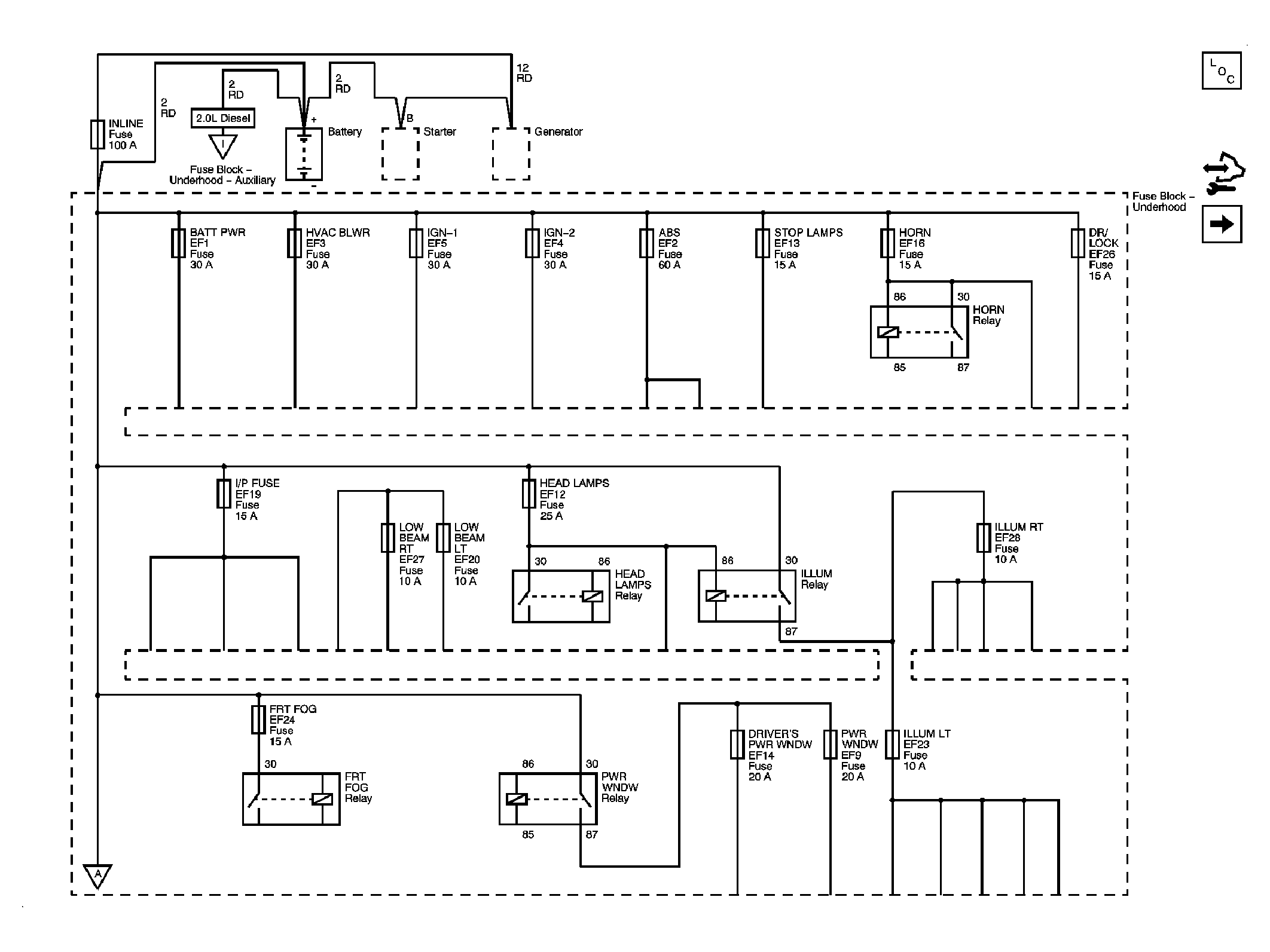

Fig 1: Fuse Block Schematic - Underhood B+ Bus, 1 of 3

GM1963081

Courtesy of GENERAL MOTORS CORP.

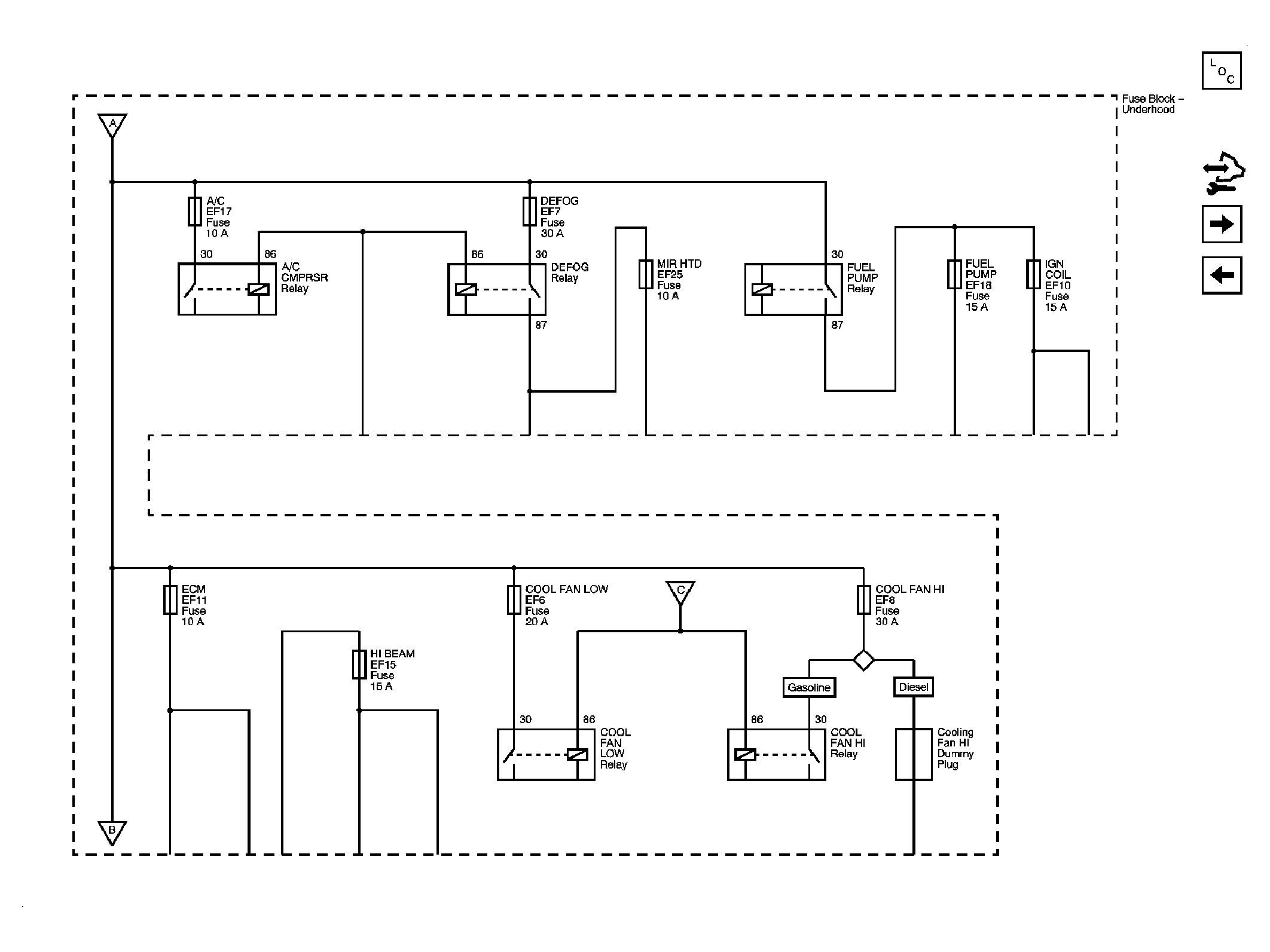

Fig 2: Fuse Block Schematic - Underhood B+ Bus, 2 of 3

GM1963088

Courtesy of GENERAL MOTORS CORP.

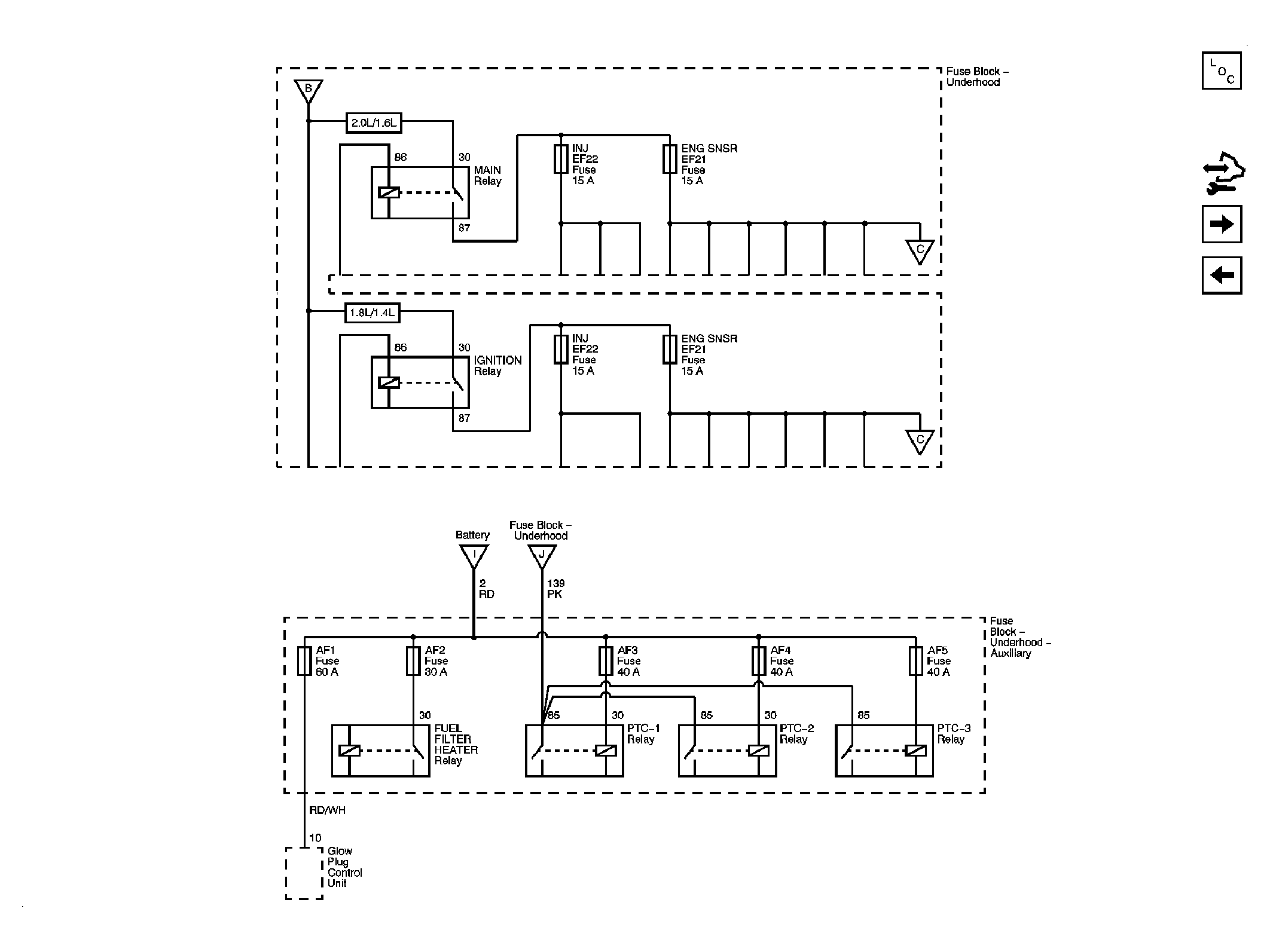

Fig 3: Fuse Block Schematic - Underhood B+ Bus, 3 of 3 and Auxiliary Fuse Block

GM1963102

Courtesy of GENERAL MOTORS CORP.

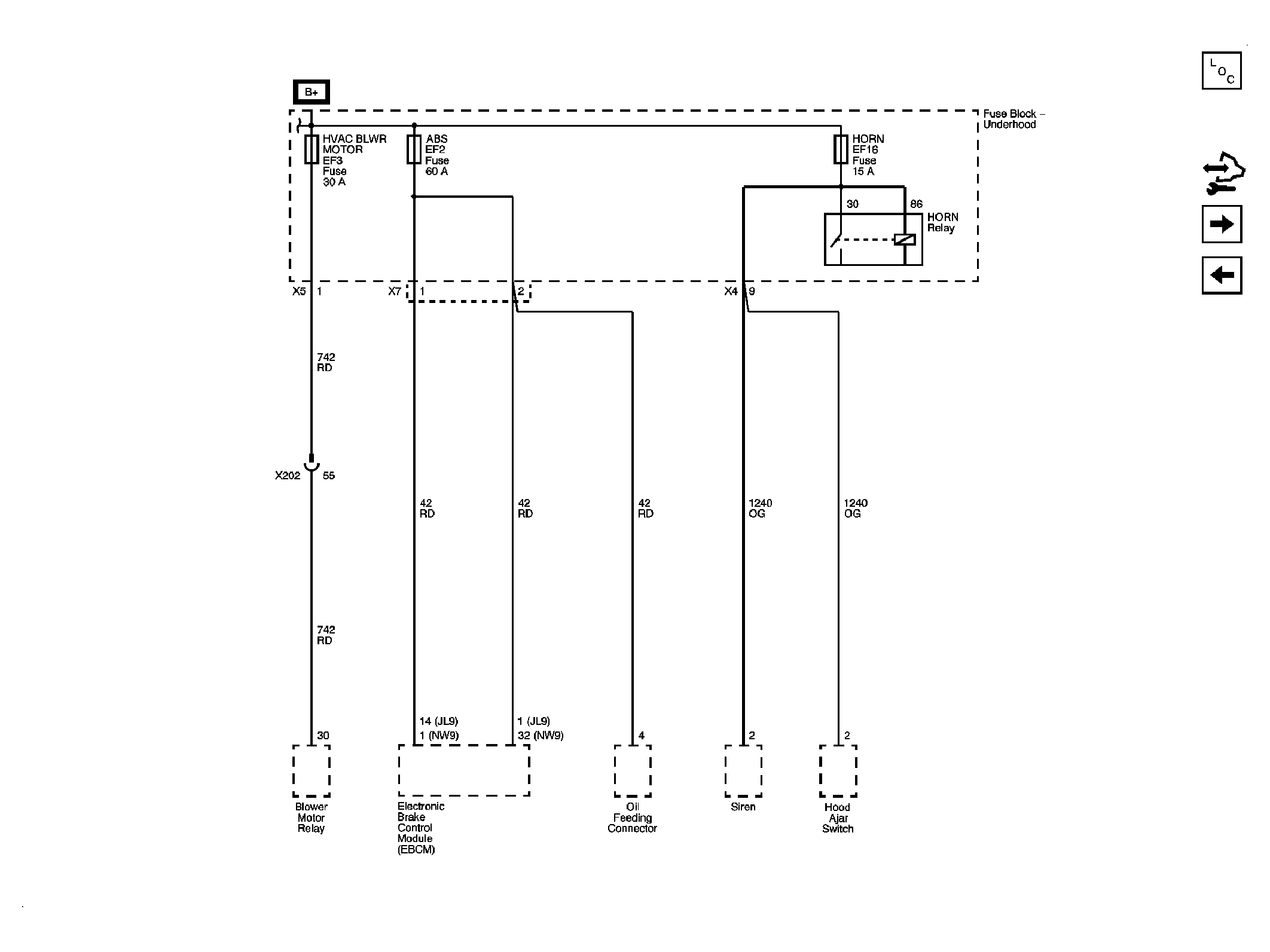

Fig 4: Fuse Block Schematic - Underhood HVAC BLWR, ABS and HORN Fuses

GM1963110

Courtesy of GENERAL MOTORS CORP.

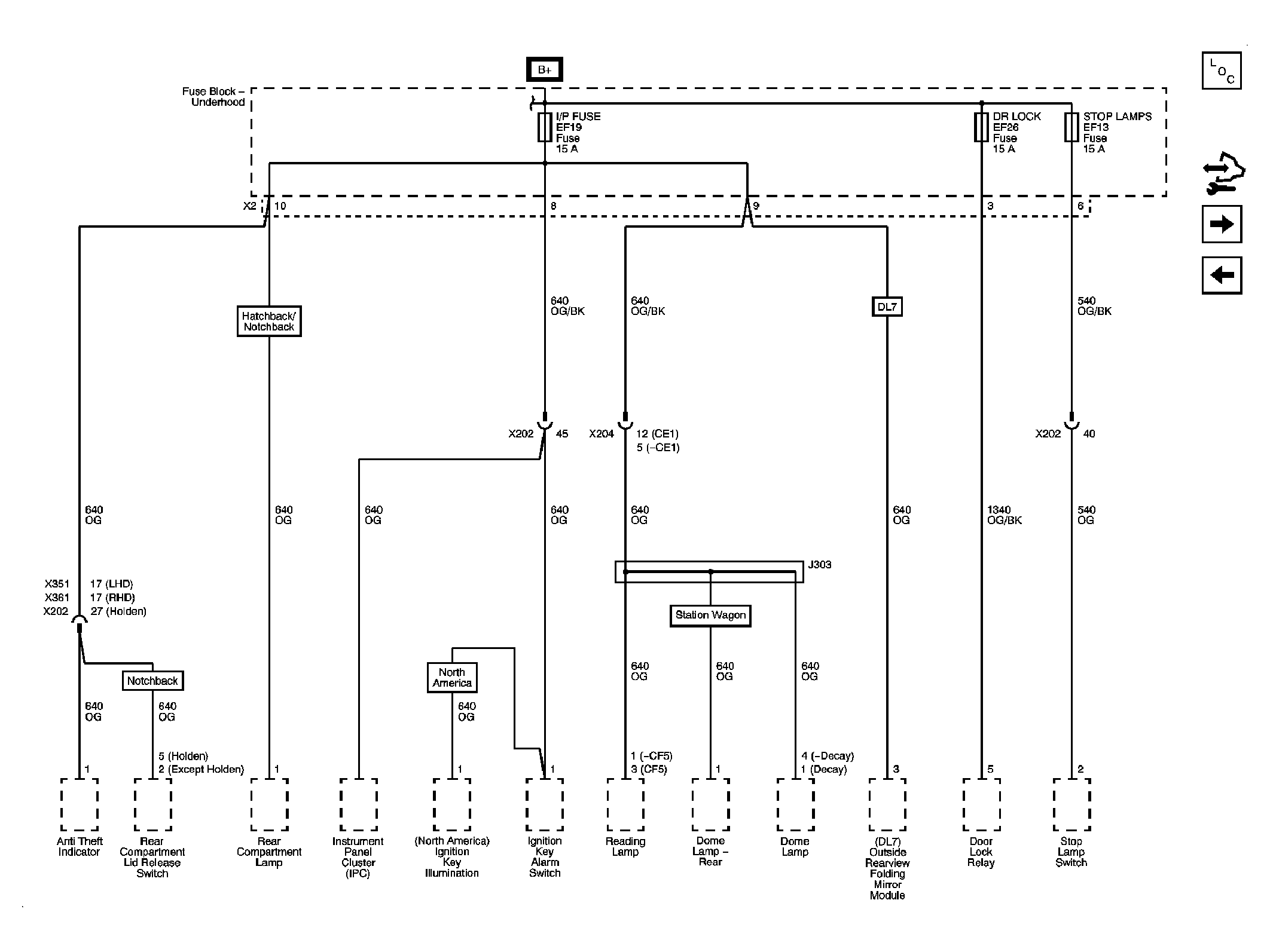

Fig 5: Fuse Block Schematic - Underhood IP FUSE, DR LOCK and STOP LAMPS Fuses

GM1963119

Courtesy of GENERAL MOTORS CORP.

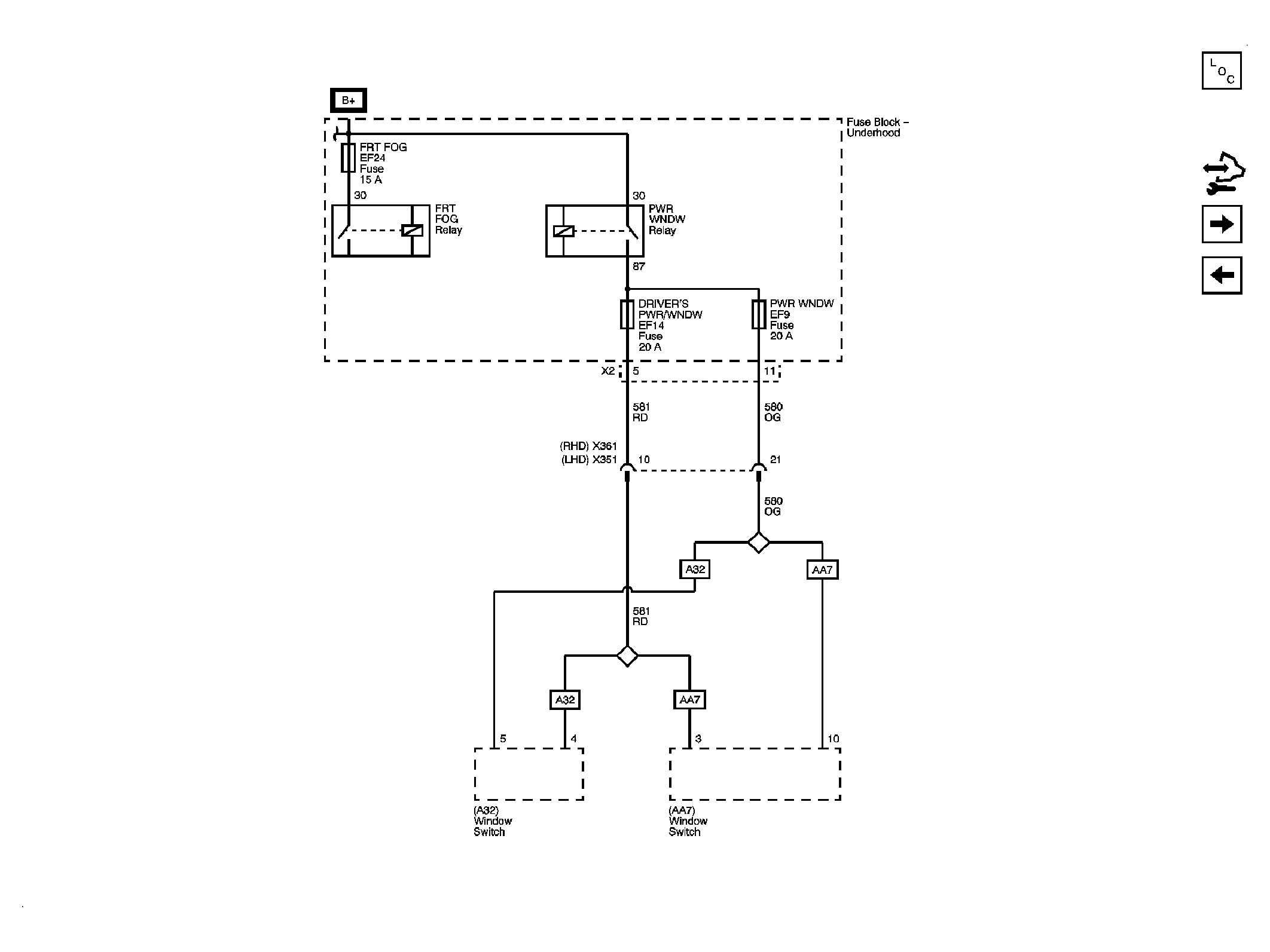

Fig 6: Fuse Block Schematic - Underhood DRIVER'S PWR/WNDW and PWR WNDW Fuses

GM1963126

Courtesy of GENERAL MOTORS CORP.

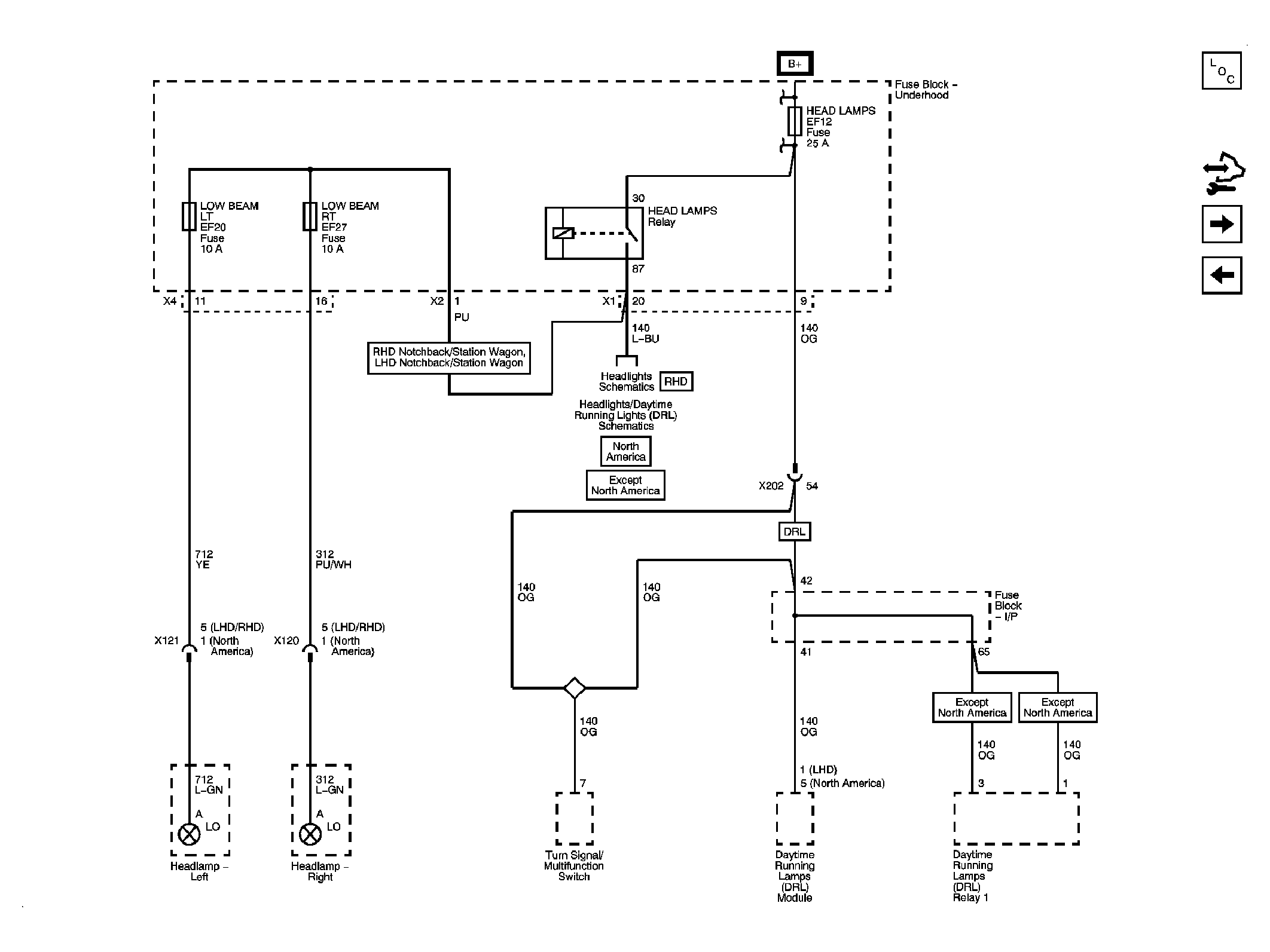

Fig 7: Fuse Block Schematic - Underhood HEAD LAMPS, LOW BEAM LT, LOW BEAM RT Fuses and HEAD LAMPS Relay

GM1963139

Courtesy of GENERAL MOTORS CORP.

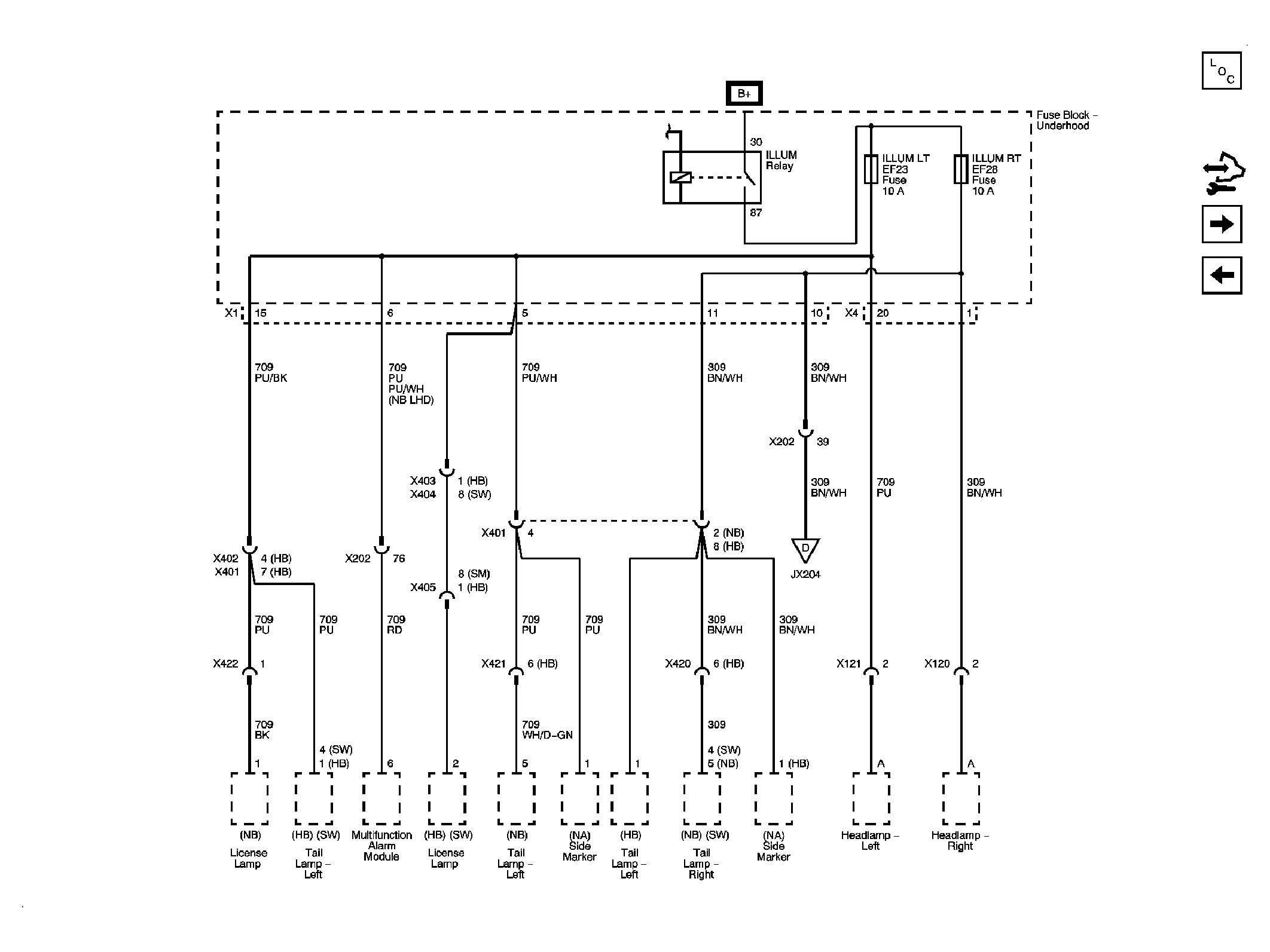

Fig 8: Fuse Block Schematic - Underhood ILLUM LT, ILLUM RT Fuses and ILLUM Relay

GM1963149

Courtesy of GENERAL MOTORS CORP.

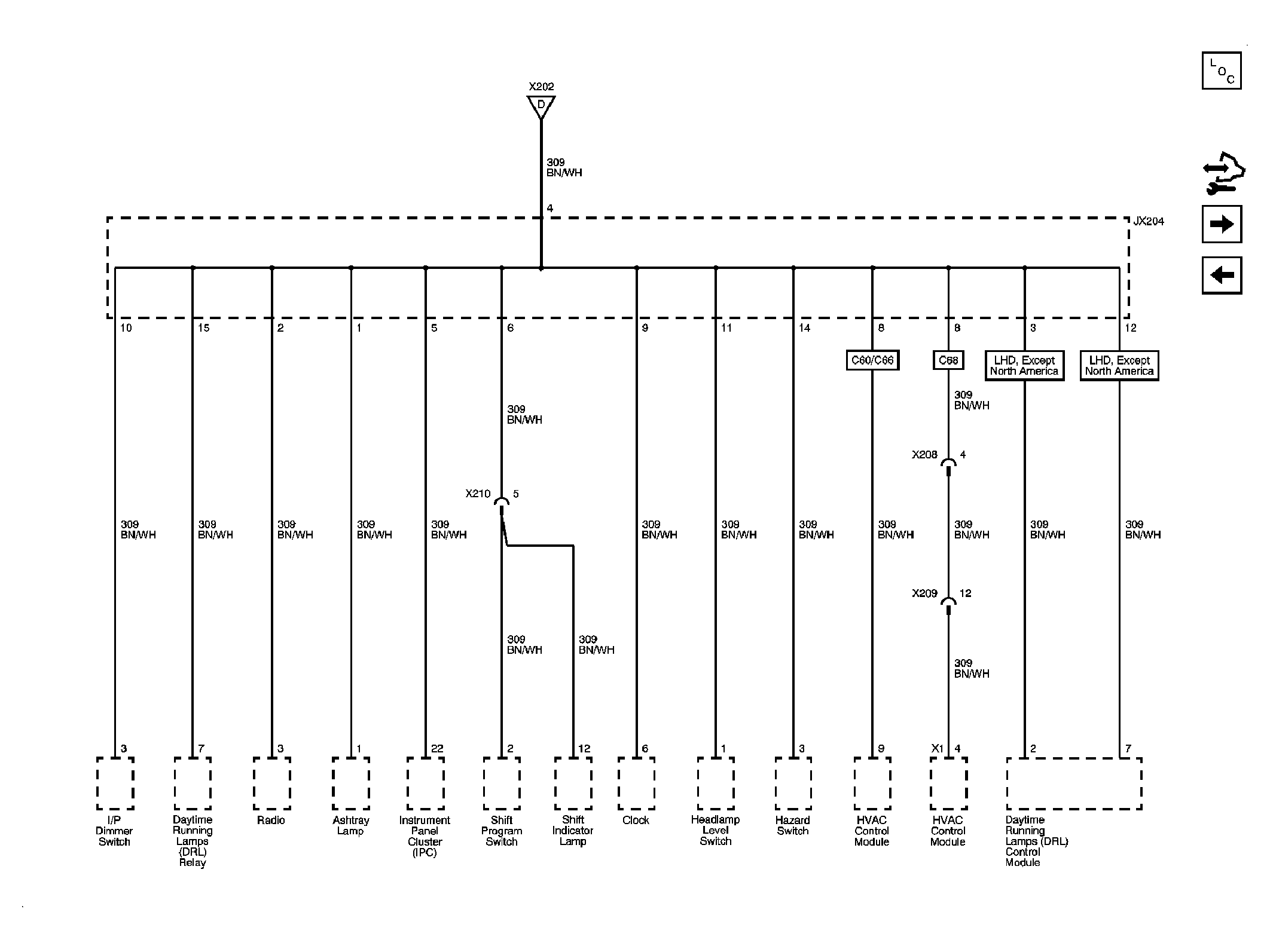

Fig 9: JX204 Schematic

GM1963158

Courtesy of GENERAL MOTORS CORP.

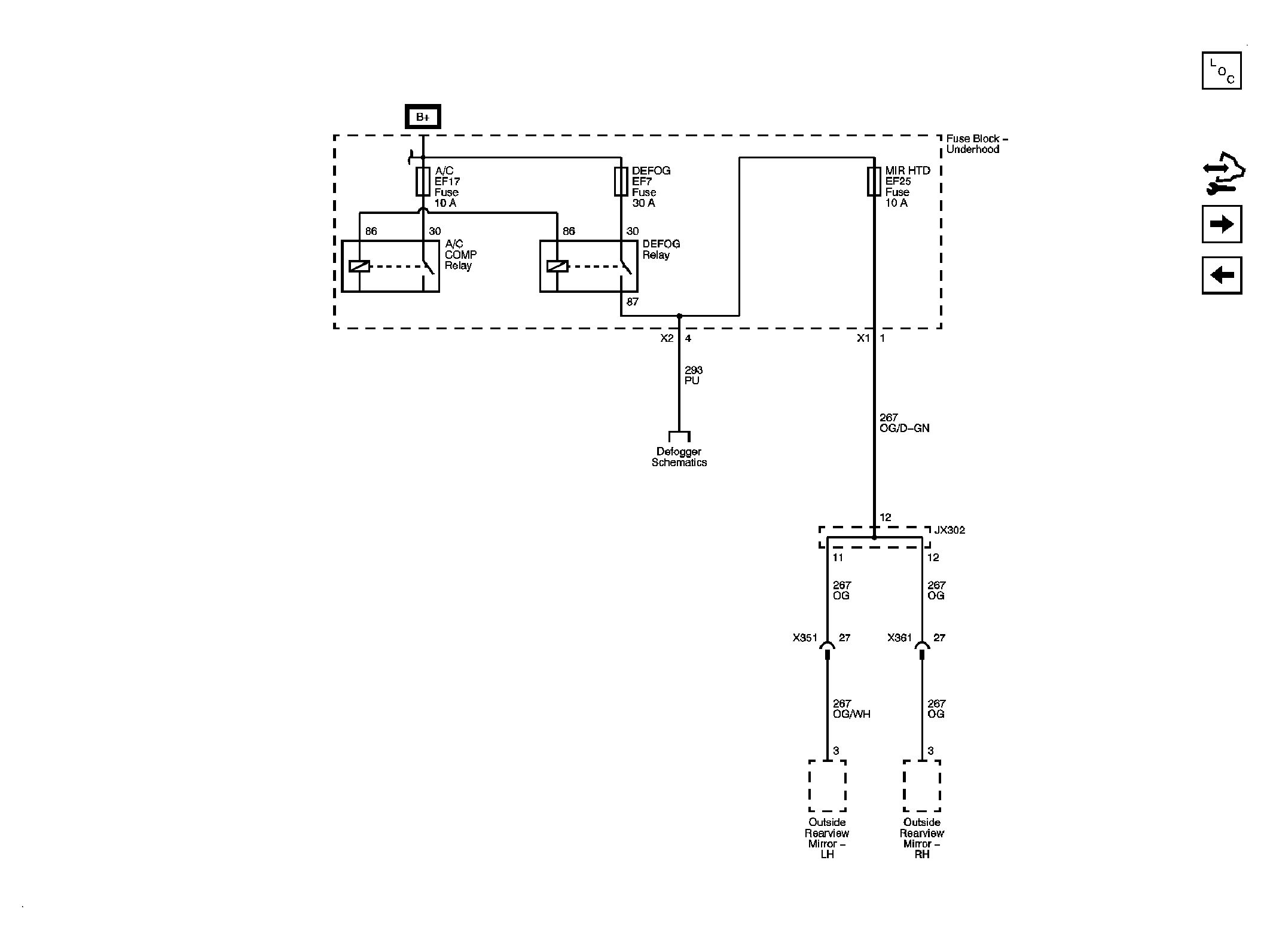

Fig 10: Fuse Block Schematic - Underhood A/C, DEFOG, and MIR HTD Fuses

GM1963171

Courtesy of GENERAL MOTORS CORP.

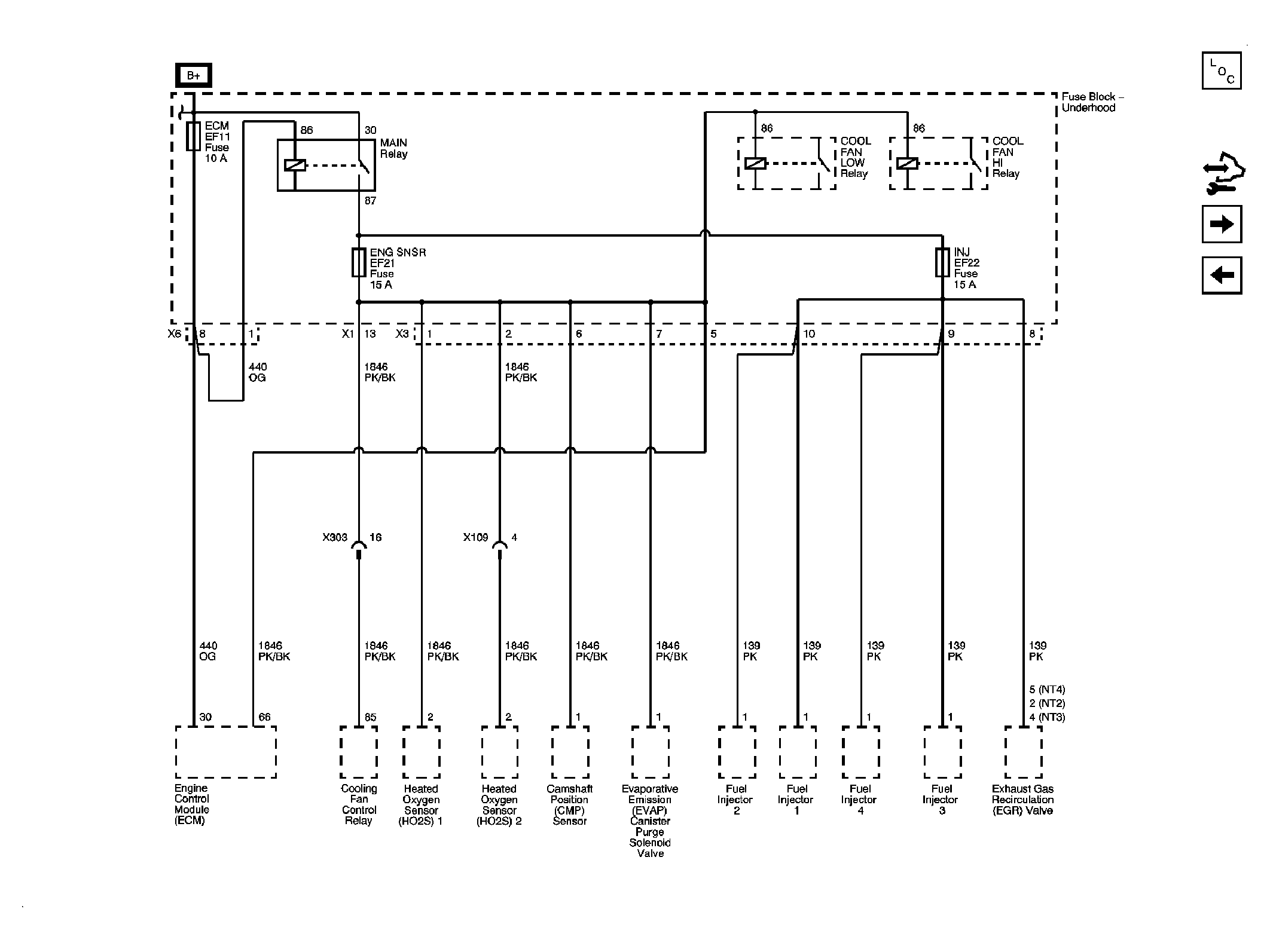

Fig 11: Fuse Block Schematic - Underhood MAIN Relay, ECM, ENG SNSR, and INJ Fuses - 1.6L

GM1963183

Courtesy of GENERAL MOTORS CORP.

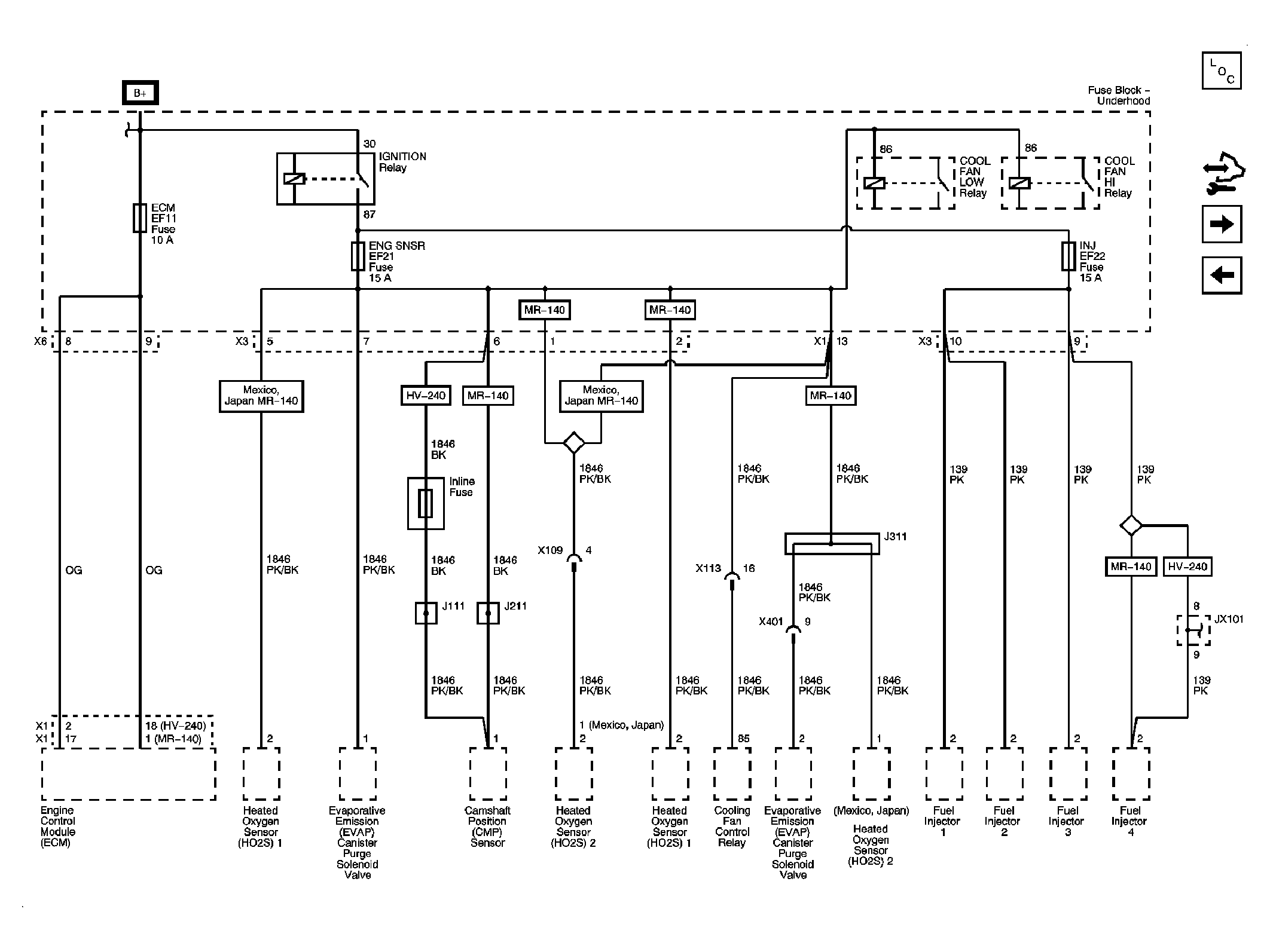

Fig 12: Fuse Block Schematic - Underhood IGNITION Relay, ECM, ENG SNSR, and INJ Fuses - 1.4L, 1.8L

GM1963203

Courtesy of GENERAL MOTORS CORP.

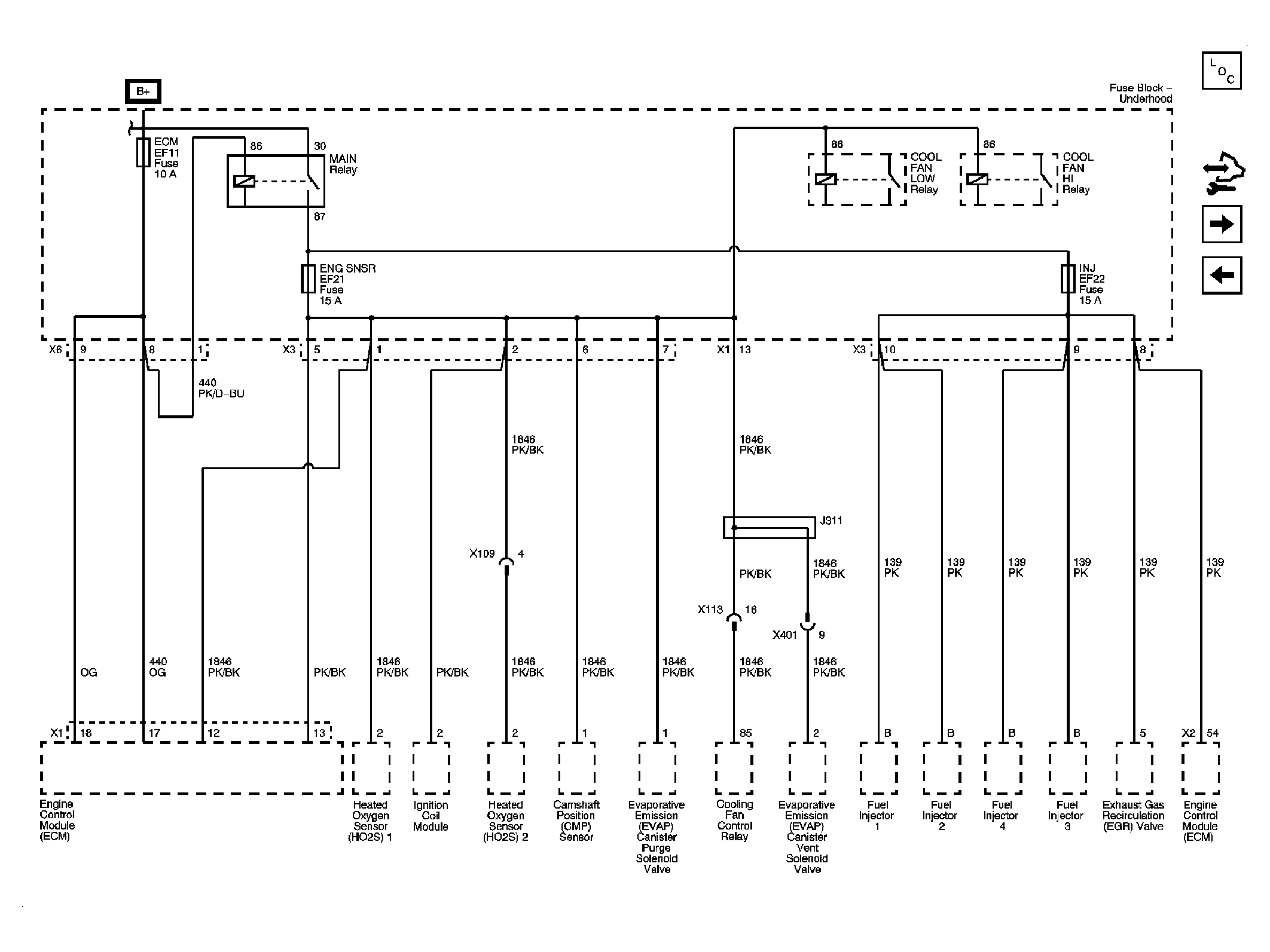

Fig 13: Fuse Block Schematic - Underhood MAIN Relay, ECM, ENG SNSR, and INJ Fuses - 2.0L (L34)

GM1963229

Courtesy of GENERAL MOTORS CORP.

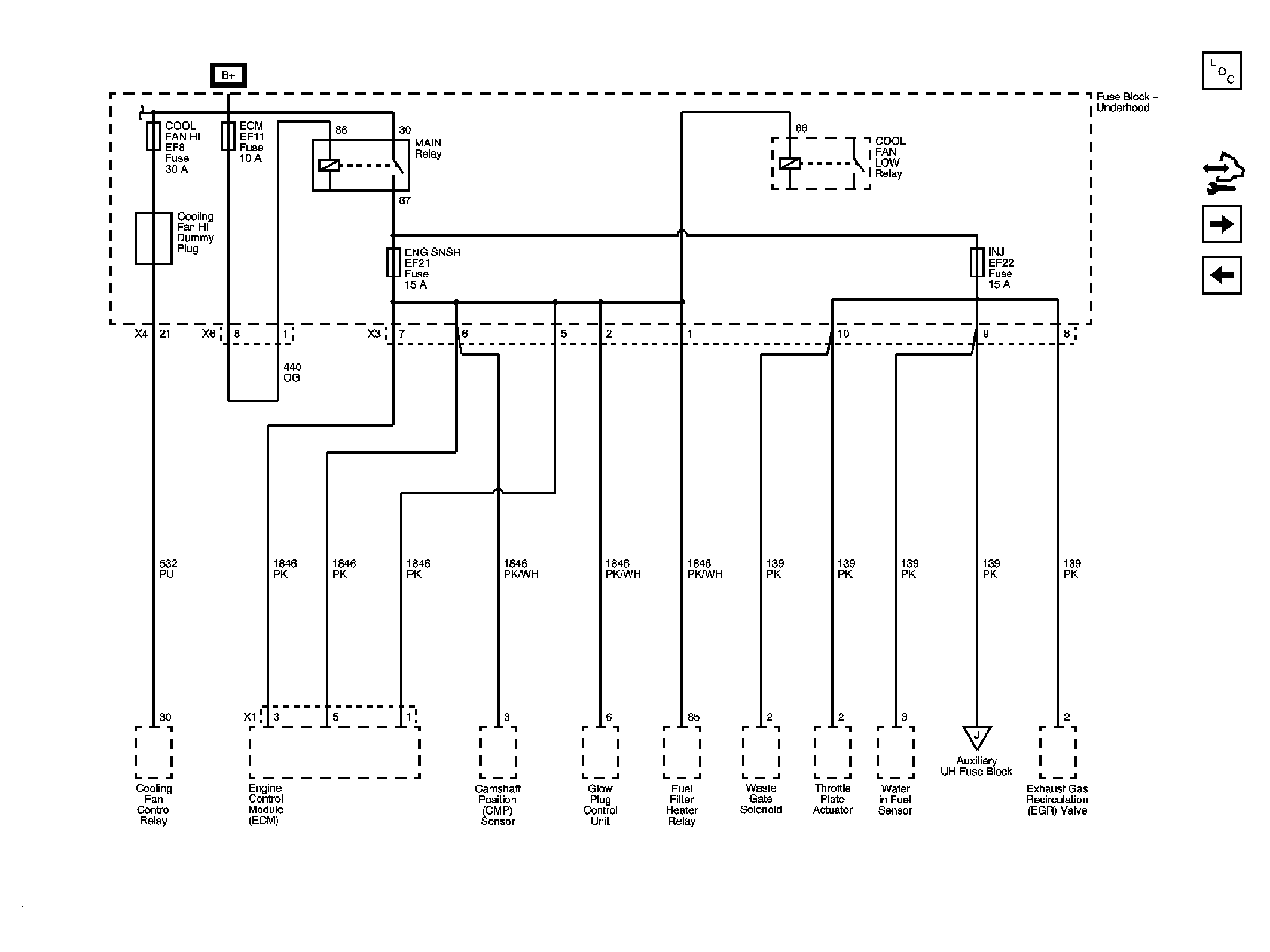

Fig 14: Fuse Block Schematic - Underhood MAIN Relay, COOL FAN HI, ECM, ENG SNSR and INJ Fuses - 2.0L Diesel

GM1963240

Courtesy of GENERAL MOTORS CORP.

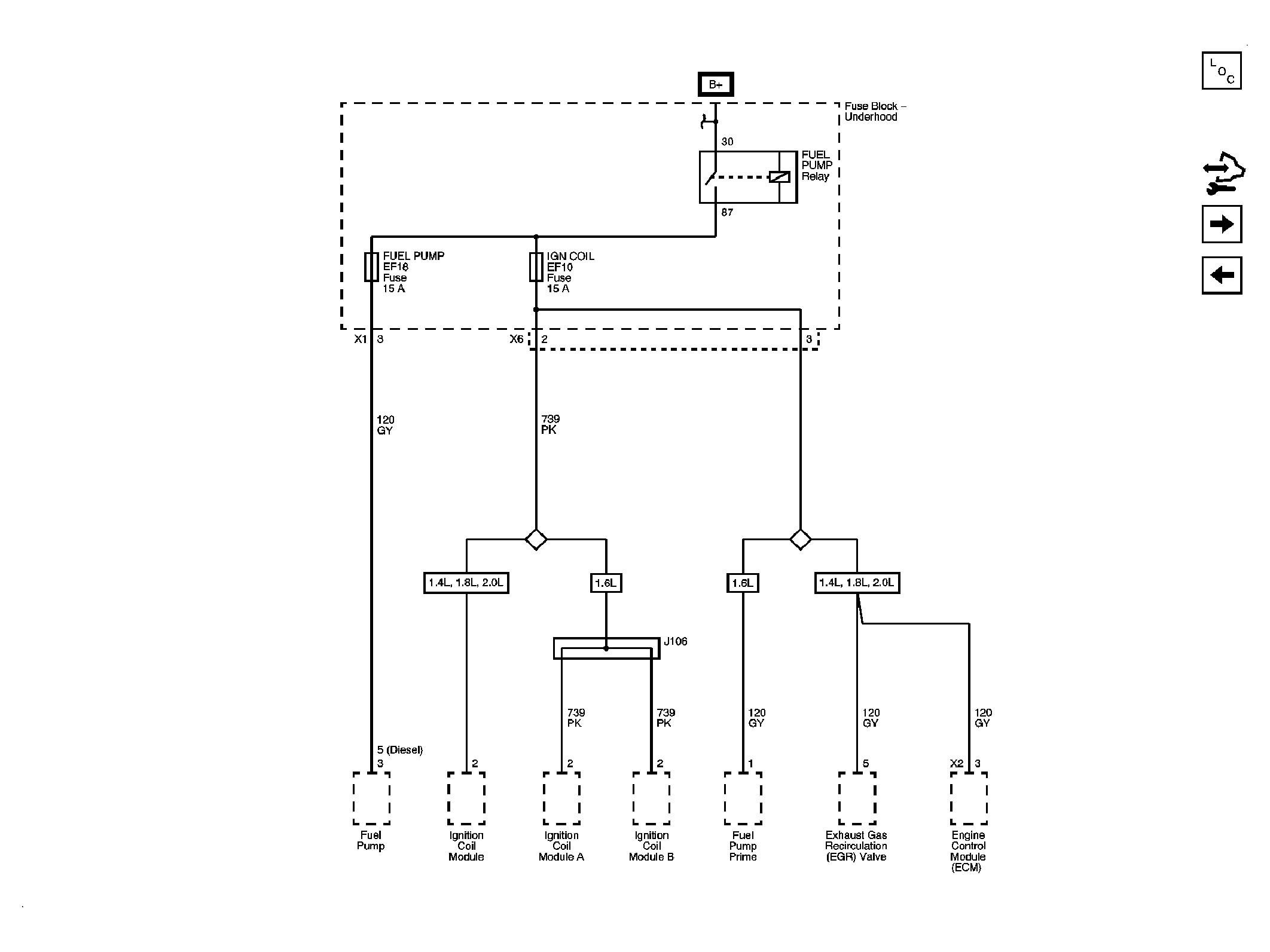

Fig 15: Fuse Block Schematic - Underhood FUEL PUMP Relay and FUEL PUMP, IGN COIL Fuses

GM1963259

Courtesy of GENERAL MOTORS CORP.

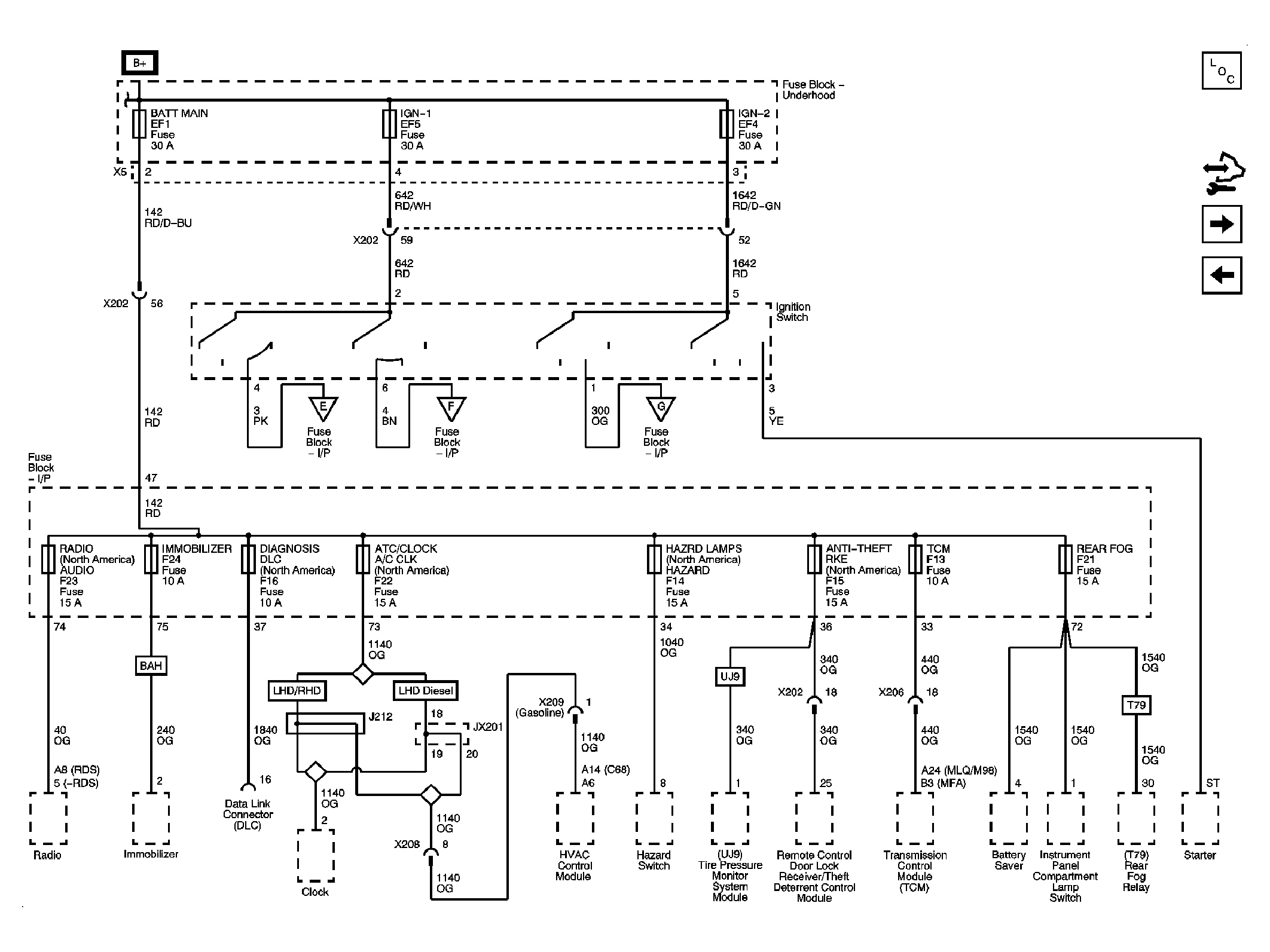

Fig 16: Fuse Block Schematic - Underhood BATT MAIN, IGN 1 and IGN 2 Fuses, Ignition Switch, Fuse Block - I/P RADIO, IMMOBILIZER, DLC, A/C CLK, HAZARD, RKE, TCM, and REAR FOG Fuses

GM1963287

Courtesy of GENERAL MOTORS CORP.

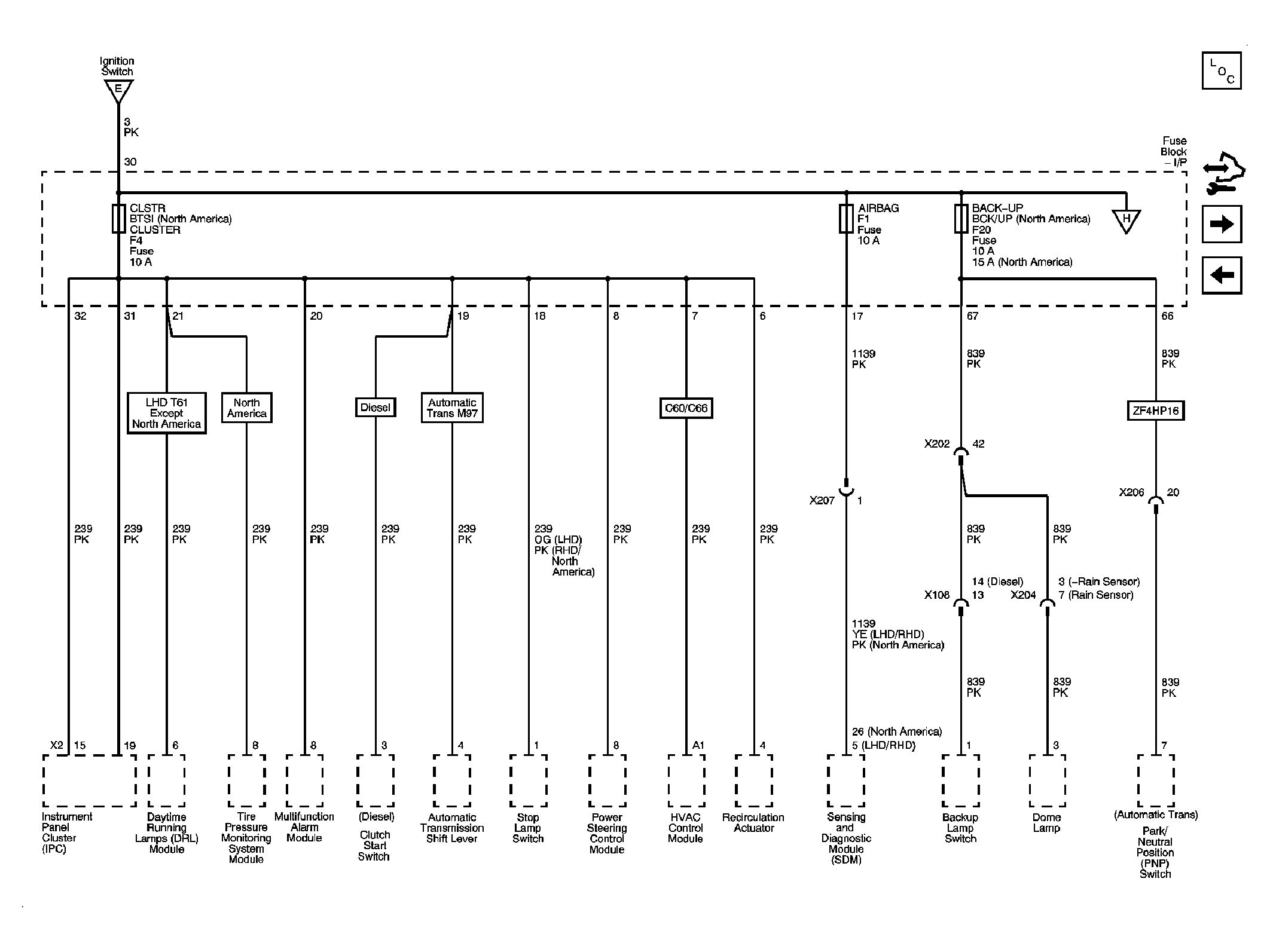

Fig 17: Fuse Block Schematic - I/P CLSTR, AIRBAG, BCK/UP Fuses

GM1963292

Courtesy of GENERAL MOTORS CORP.

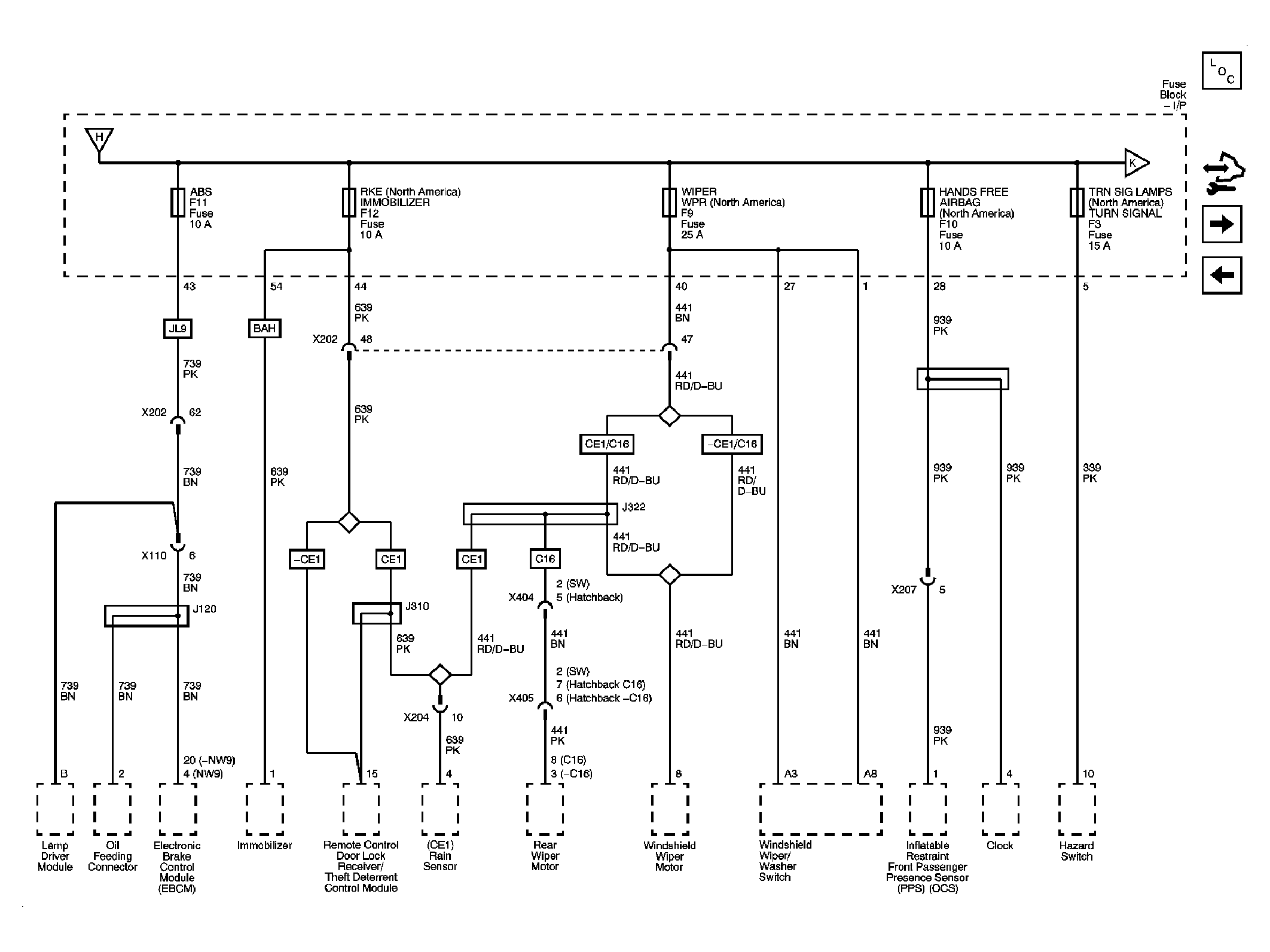

Fig 18: Fuse Block Schematic - I/P ABS, IMMOBILIZER, WPR, TRN SIG LAMPS Fuses

GM1963295

Courtesy of GENERAL MOTORS CORP.

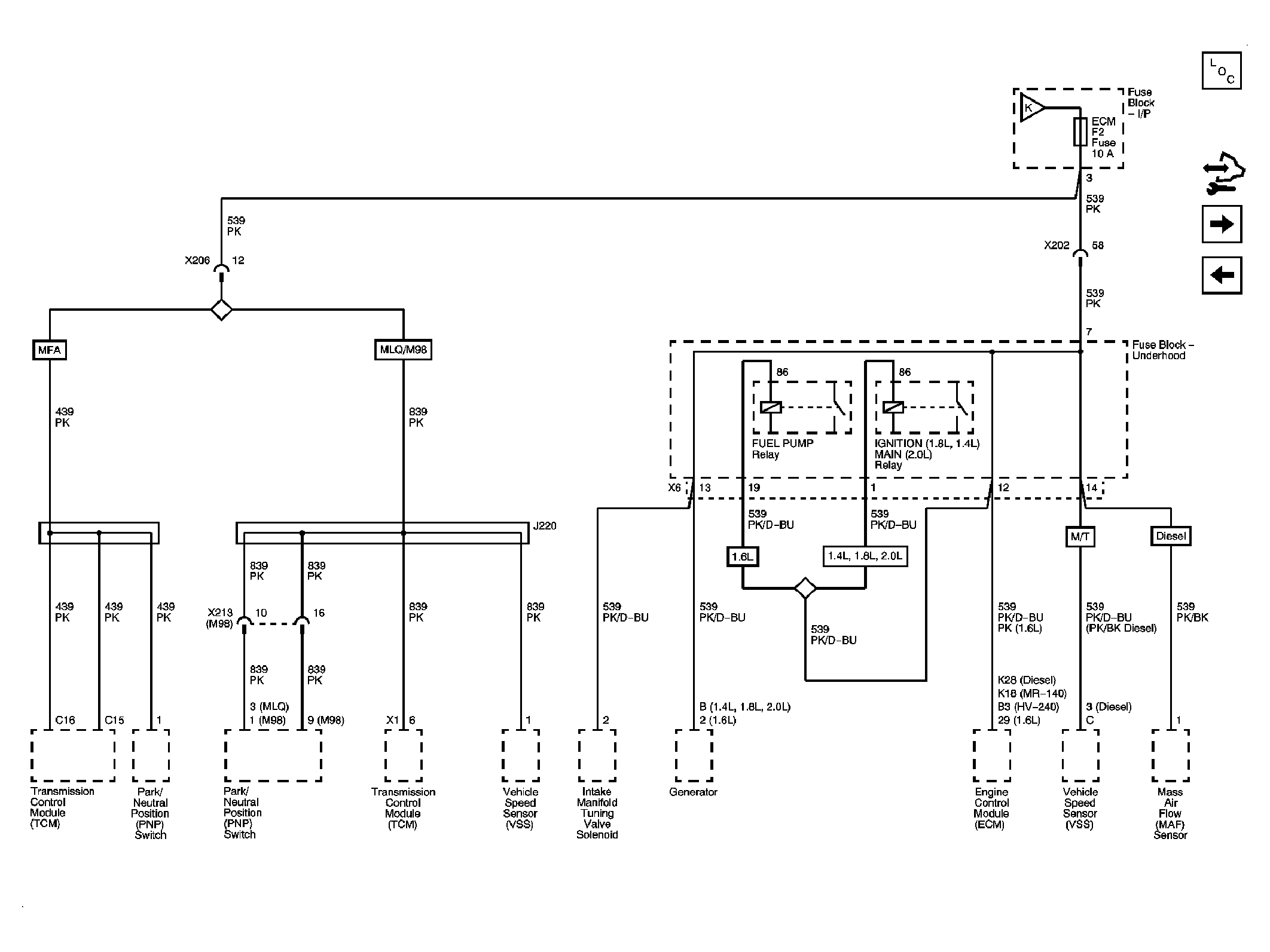

Fig 19: Fuse Block Schematic - I/P ECM Fuse

GM1963441

Courtesy of GENERAL MOTORS CORP.

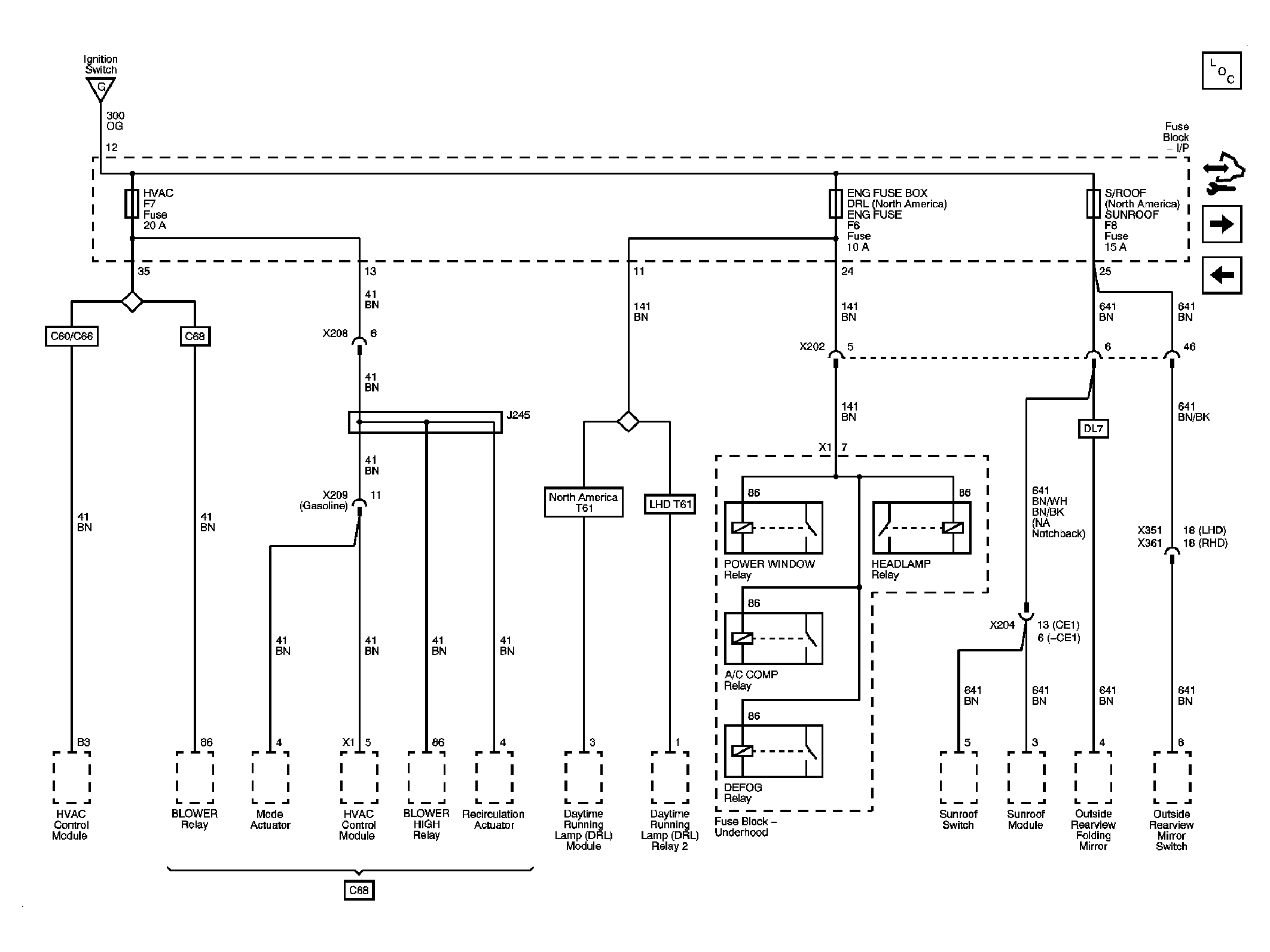

Fig 20: Fuse Block Schematic - I/P HVAC and S/ROOF Fuses

GM1963450

Courtesy of GENERAL MOTORS CORP.

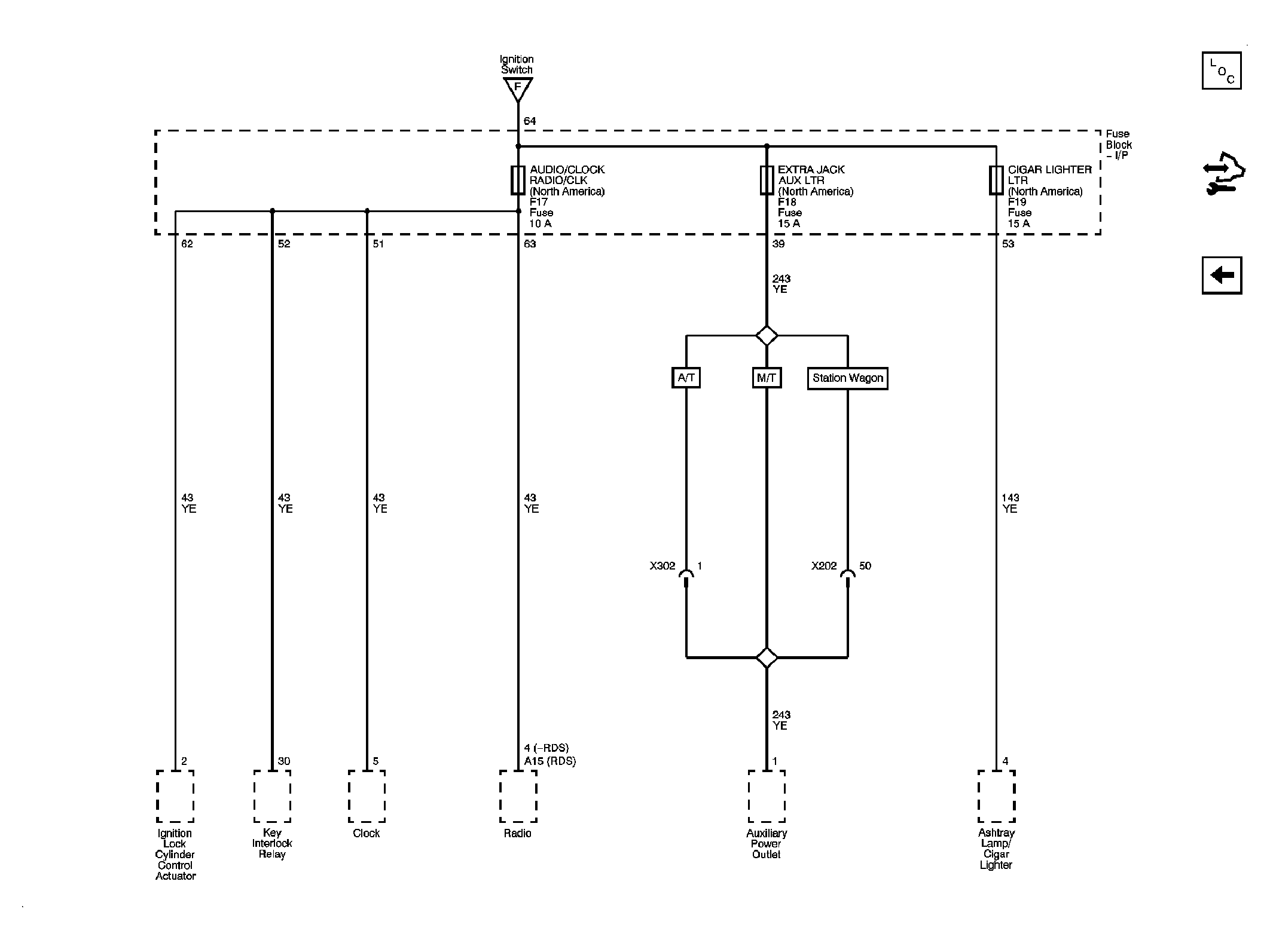

Fig 21: Fuse Block Schematic - I/P RADIO/CLK, AUX LTR, LTR Fuses

GM1963458

Courtesy of GENERAL MOTORS CORP.
