Installation Procedure

  1. Connect the lock release cable.
    2. NOTE: Refer to Fastener Notice .

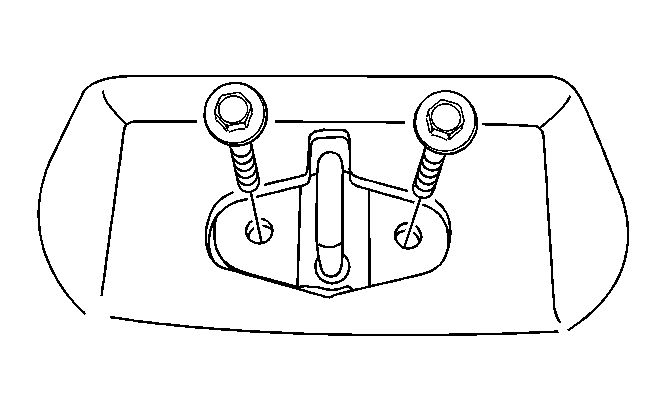

    Fig 1: View Of Liftgate Lock Striker And Bolts
    GM1309307Courtesy of GENERAL MOTORS CORP.
  2. Install the lock striker with the bolts.

    Tighten:  Tighten the rear compartment lock striker bolts to 20 N.m (15 lb ft)  .

  3. Install the rear compartment lower cover. Refer to Rear Compartment Trim Panel Replacement .
