Installation Procedure

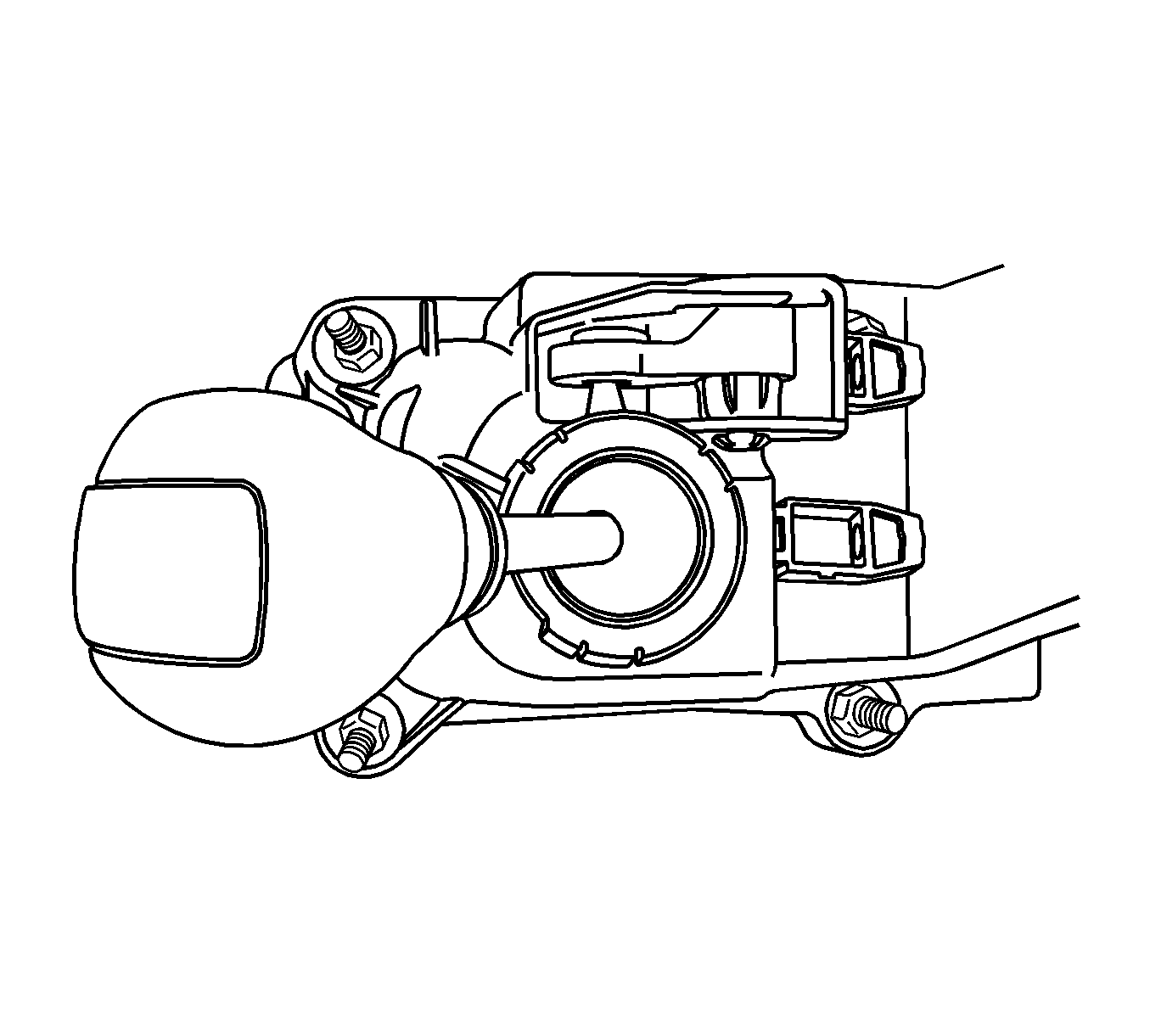

    Fig 1: View Of Shift Control Lever And Housing
    GM1824325Courtesy of GENERAL MOTORS CORP.
  1. Install the shift control lever housing.
    2. NOTE: Refer to Fastener Notice .
  2. Install the nuts to the shift control lever housing.

    Tighten:  Tighten the shift control lever housing bolts to 8 N.m(71 lb in)  .

  3. Connect the shift cables to the shift control lever housing, and adjust the cable.
  4. Install the shift control cables to the vehicle.
    5. IMPORTANT: Ensure that the shift control cable pass-through grommet is properly seated and the grommet arrow is pointing up.

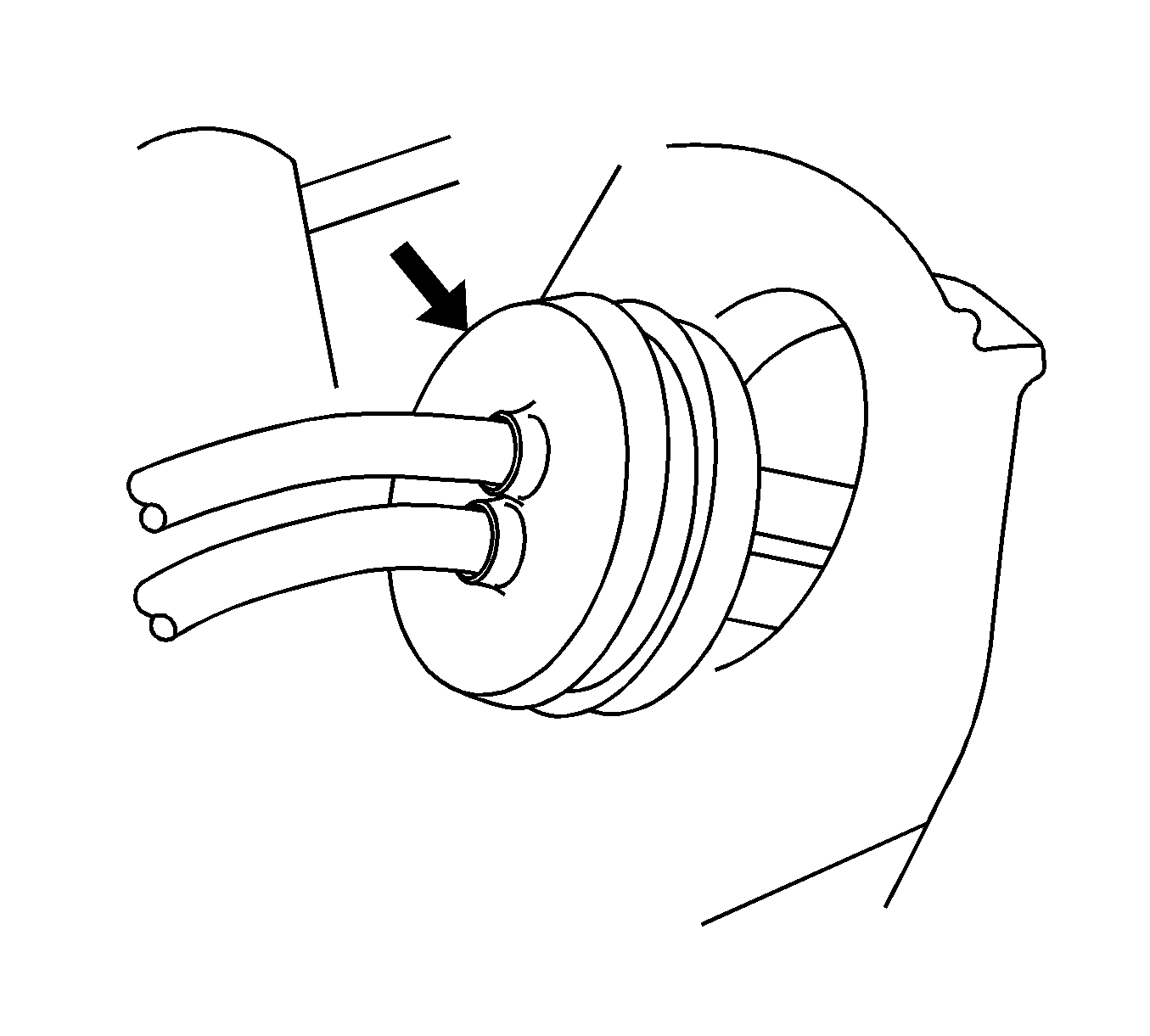

    Fig 2: View Of Dash Panel Grommet
    GM1785633Courtesy of GENERAL MOTORS CORP.
  5. Install the grommet from the dash panel.

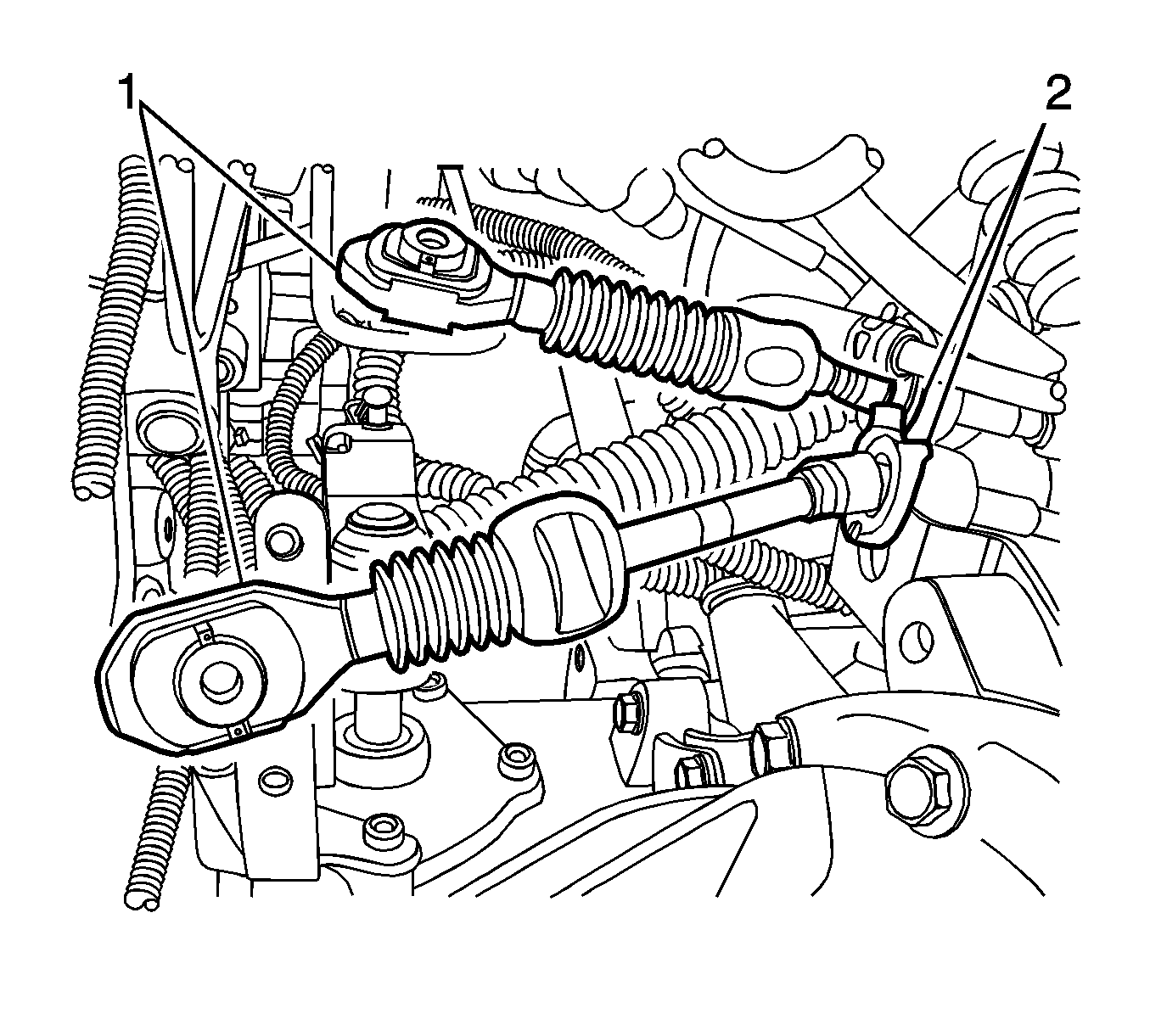

    6. Fig 3: View Of Shift Control Cables And Bracket
    GM1824328Courtesy of GENERAL MOTORS CORP.
  6. Install the cables (2) to the shift control cable bracket.
  7. Install the shift control cables (1) to the transaxle.
  8. Position the transaxle into Neutral.

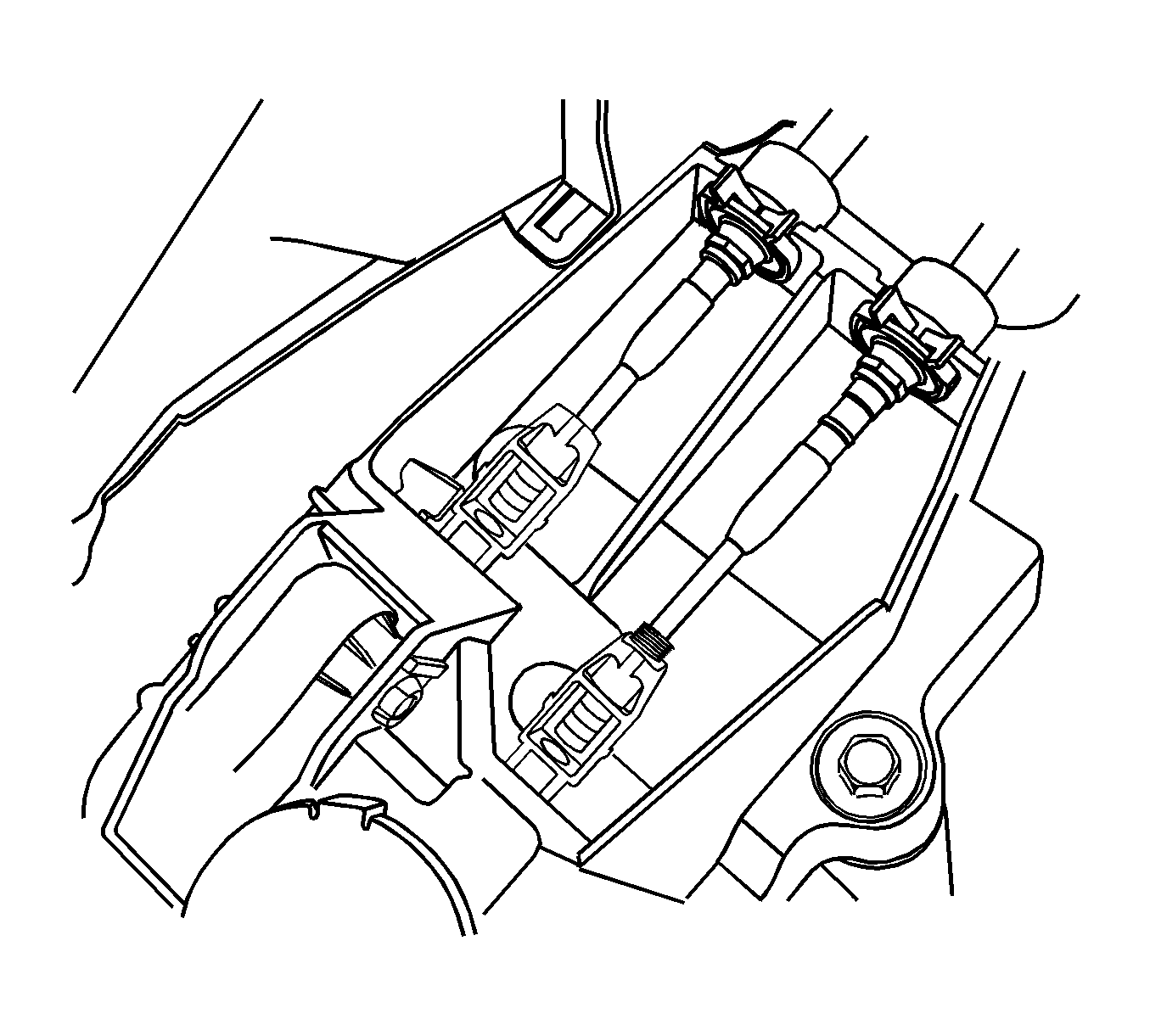

    9. Fig 4: View Of Shift Control Cables And Lever Housing Bracket
    GM1824329Courtesy of GENERAL MOTORS CORP.
  9. Install the shift control cables to the shift control lever housing bracket.
  10. Position the shift lever into Neutral.

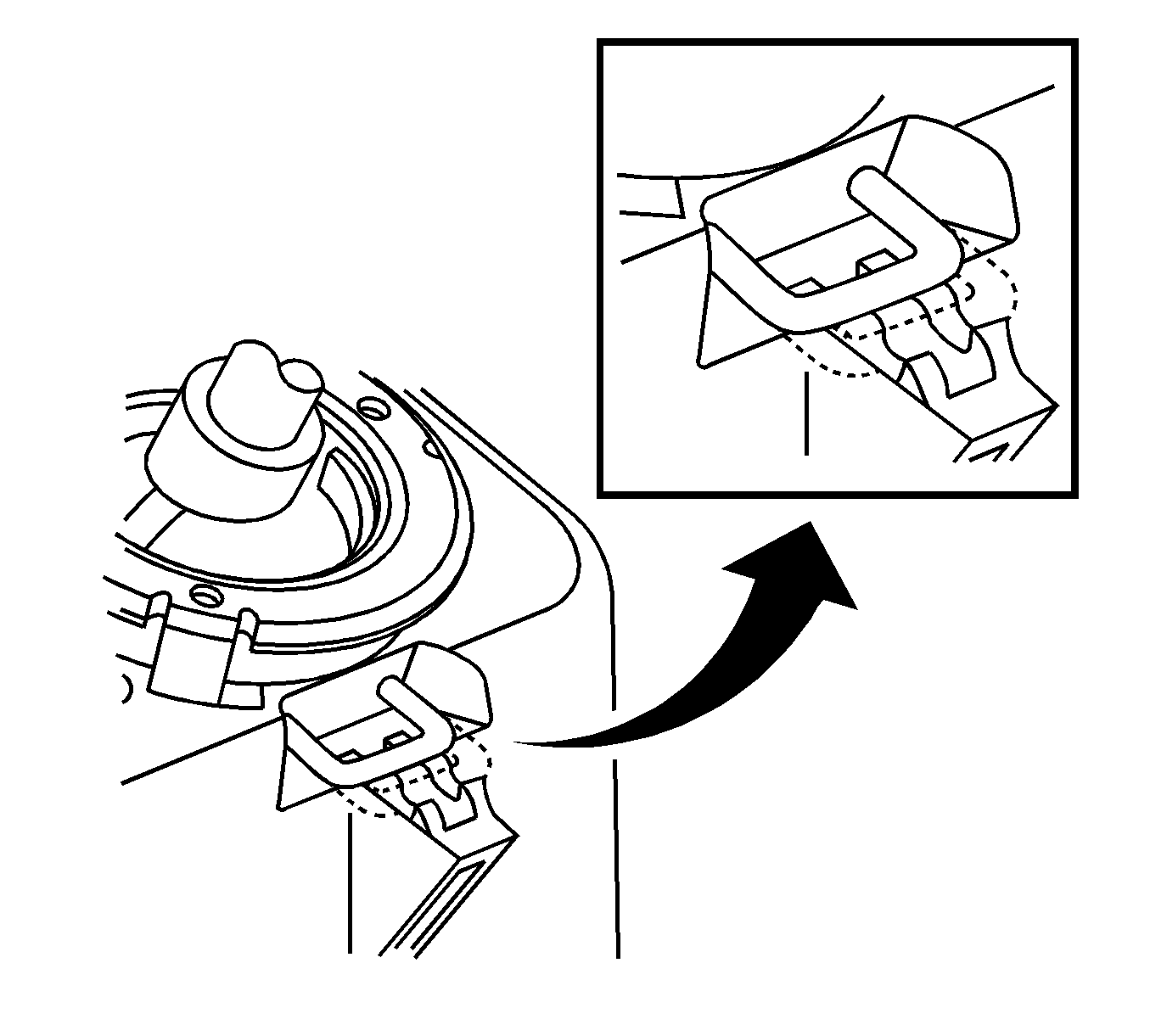

    11. Fig 5: Identifying Neutral Lock Pin
    GM1785642Courtesy of GENERAL MOTORS CORP.
  11. With the shift cable ends in the adjusters, adjust the cables by pushing the neutral lock pin. Move the shifter slightly to center the neutral lock pin.

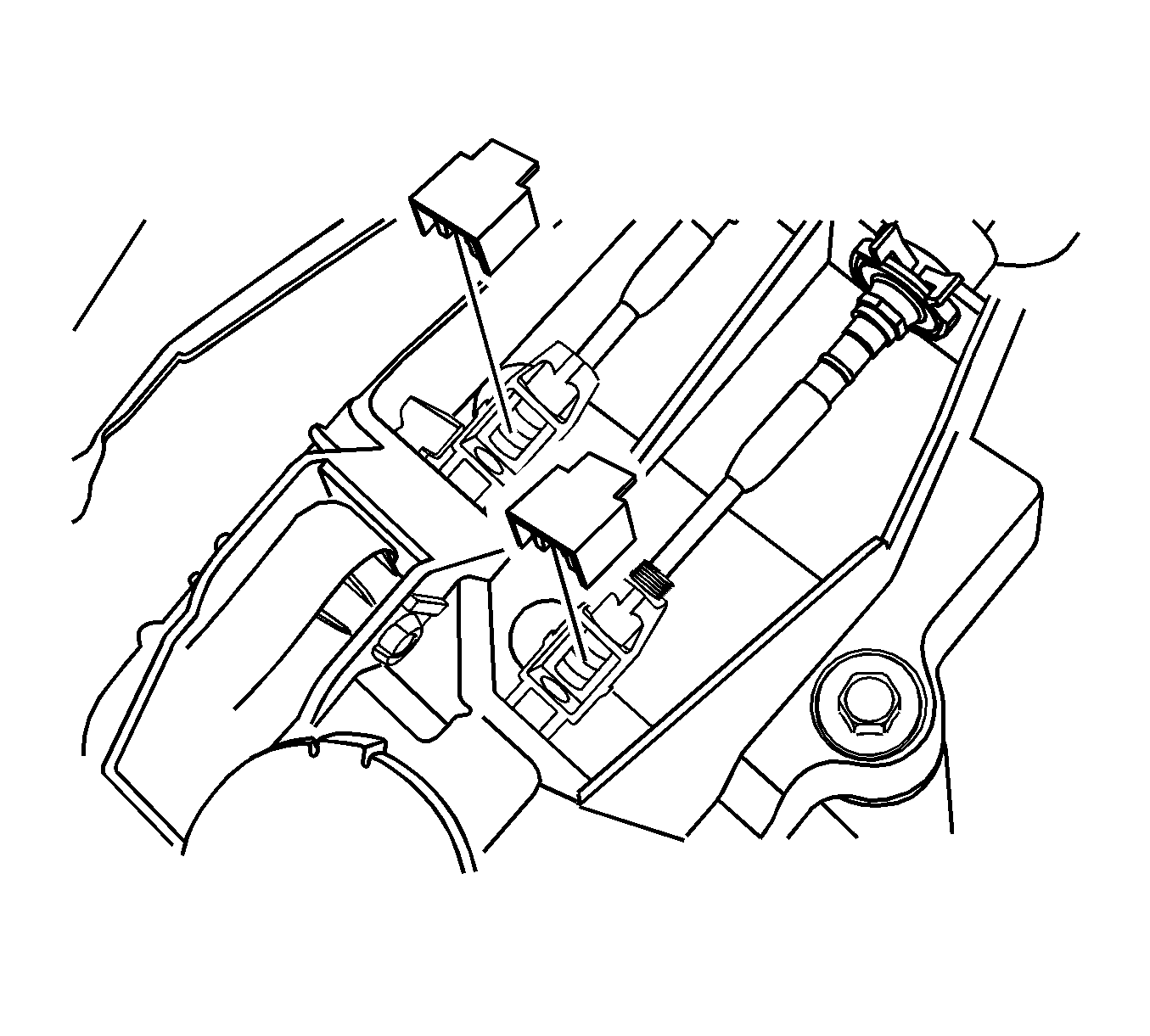

    12. Fig 6: Identifying Shift Control Cable Adjust Lock
    GM1824334Courtesy of GENERAL MOTORS CORP.
  12. Press and lock the shift control cable adjust locks.
  13. Pull the neutral lock pin to the original position.
  14. Install the console. Refer to Front Floor Console Replacement .
  15. Connect the negative battery cable.
