Transmission Component Location

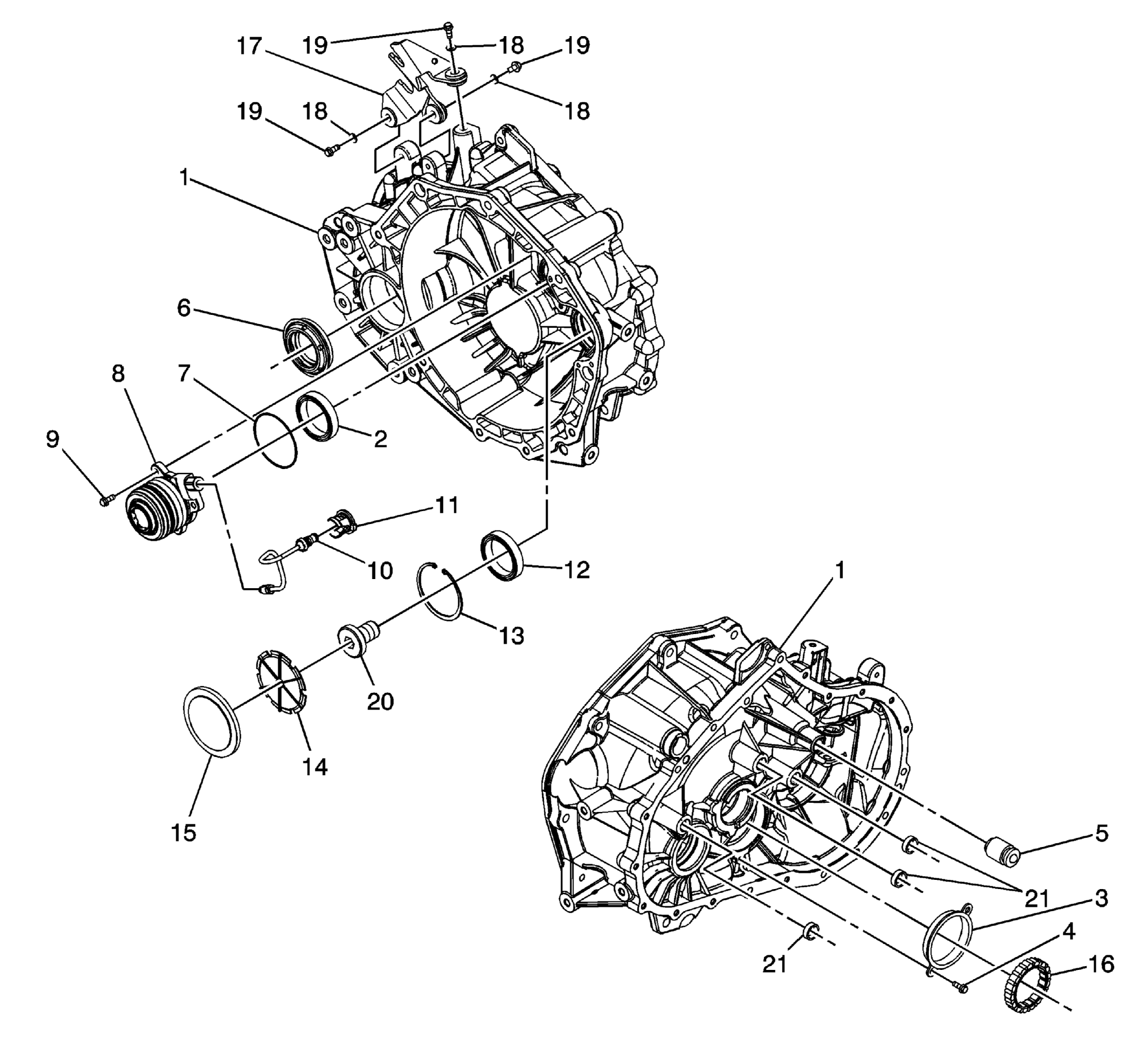

Fig 1: Identifying Clutch Housing Components
GM1824309Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Clutch Housing
1 Clutch Housing
2 Roller Bearing
3 Outer Roller Bearing
4 Bolt
5 Manual Shaft Detent
6 Shaft Seal Ring
7 O-Ring
8 Concentric Slave Cylinder
9 Bolt
10 Concentric Slave Cylinder Pipe
11 Bushing
12 Groove Ball Bearing
13 Ring
14 Oil Pipe
15 Sealing Plug
16 Roller Bearing
17 Cable Bracket
18 Washer
18 Washer
18 Washer
19 Bolt
19 Bolt
19 Bolt
20 Retainer Plug
21 Bushing
21 Bushing

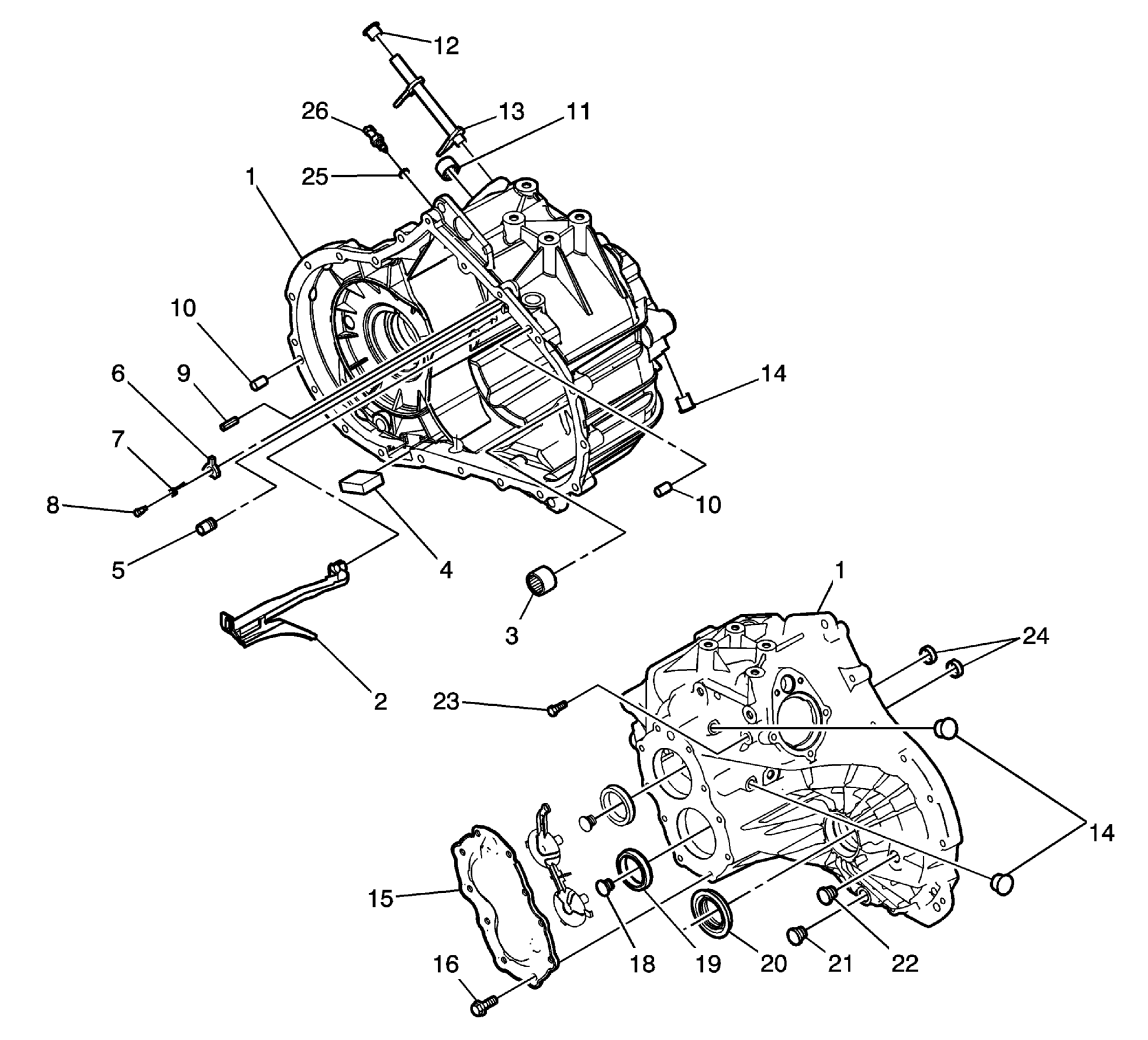

Fig 2: Identifying Transaxle Housing Components
GM1824311Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Transaxle Housing
1 Transaxle Housing
2 Drain Channel
3 Bearing
4 Magnet
5 Screw
6 Reverse Shifting Blocker
7 Torsion Spring
8 Pin
9 Coiled Pin
10 Dowel Pin
10 Dowel Pin
11 Needle Sleeve
12 Bushing
13 Idle Shift Rail
14 Manual Shaft Detent
14 Manual Shaft Detent
15 Transaxle Rear Cover
16 Bolt
17 Oil Pipe
18 Retainer Plug
19 Groove Ball Bearing
20 Shaft Seal Ring
21 Fluid Drain Plug
22 Fluid Level Check Plug
23 Shift Guide Bolt
24 Bushing
25 Washer
26 Backup Lamp Switch

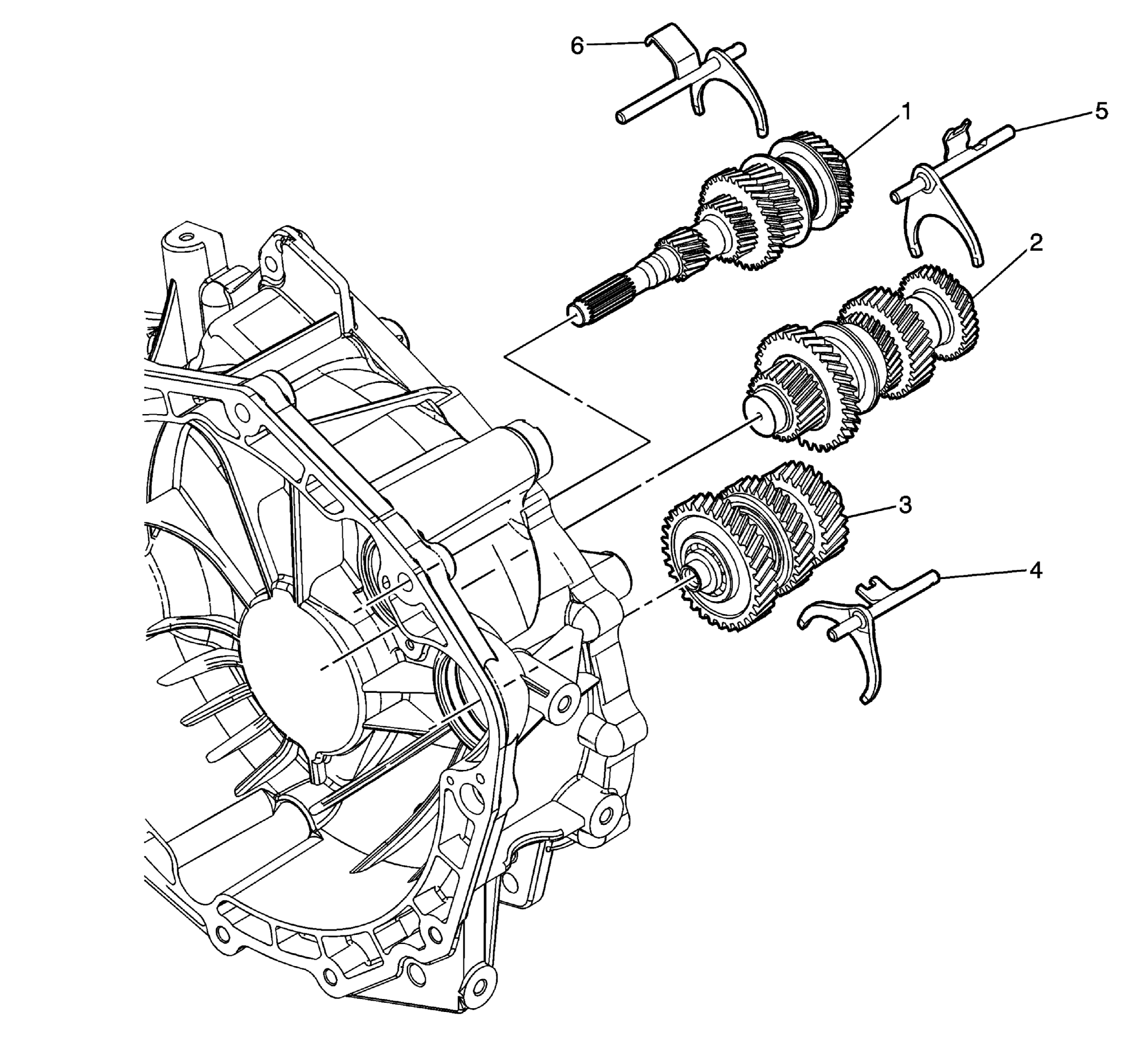

Fig 3: View Of Shaft Assembly And Shift Fork
GM1824312Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Input Shaft Assembly
2 Output Shaft Assembly
3 Interm Shaft Assembly
4 1st/2nd Shift Fork
5 5th/Reverse Shift Fork
6 3rd/4th Shift Fork

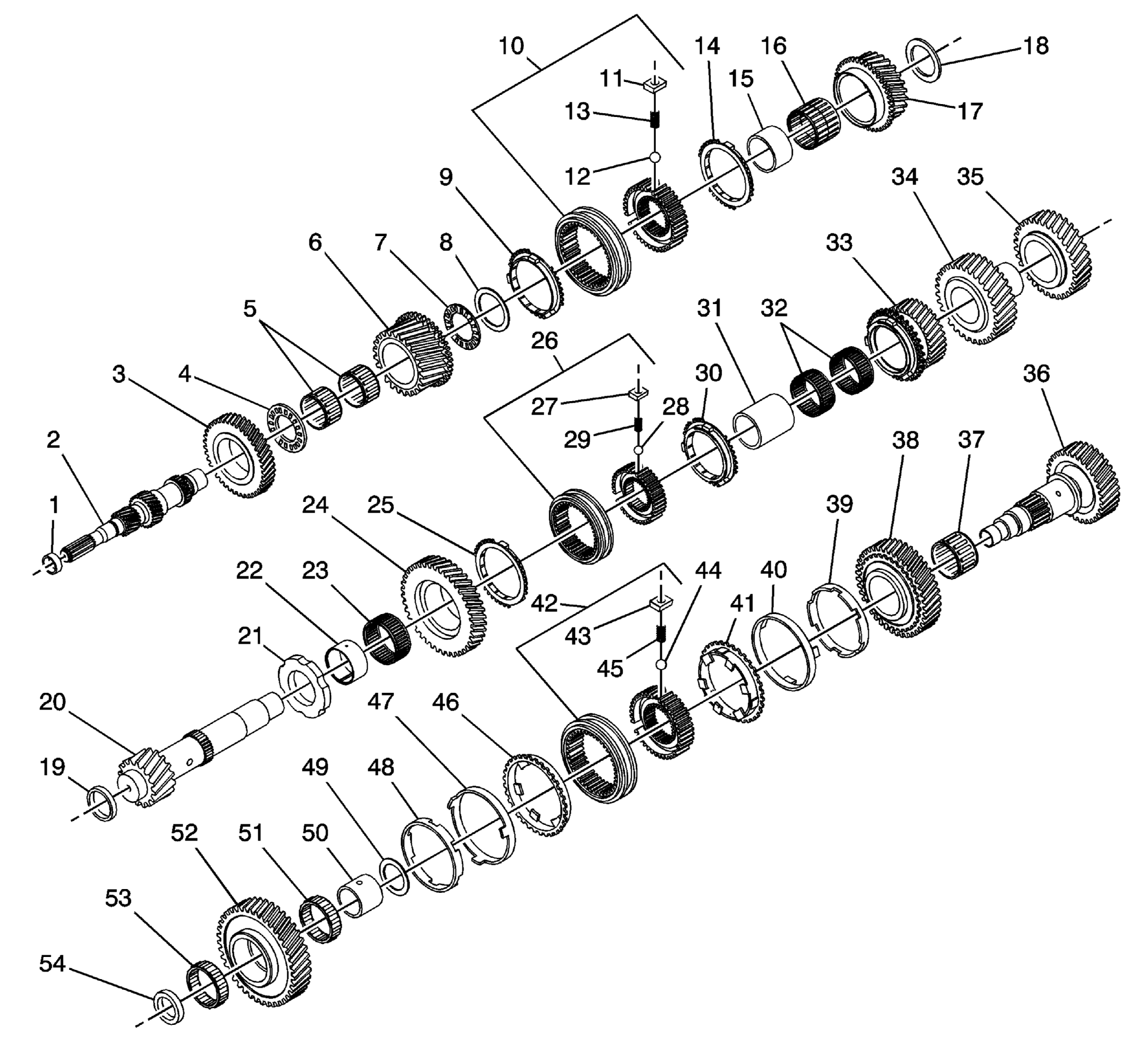

Fig 4: Identifying Shaft Components
GM1824314Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sleeve Bearing
2 Input Shaft
3 5th Gear
4 Thrust Bearing
5 Needle Bearing
6 3rd Speed Gear
7 Thrust Bearing
8 Thrust Washer
9 3rd Gear Blocking Ring
10 3rd/4th Synchronizer Assembly
11 Synchronizer Key
12 Ball
13 Compression Spring
14 4th Gear Blocking Ring
15 Bearing Collar
16 Needle Bearing
17 4th Speed Gear
18 Thrust Washer
19 Bearing Blocker Ring
20 Output Shaft
21 Thrust Washer
22 Bearing Collar
23 Needle Bearing
24 Reverse Gear
25 Reverse Blocking Gear
26 5th/Reverse Synchronizer Assembly
27 Synchronizer Key
28 Ball
29 Compressing Spring
30 5th Gear Blocking Ring
31 Bearing Collar
32 Needle Bearing
33 5th Speed Gear
34 3rd Gear
35 4th Gear
36 Interm Shaft
37 Needle Bearing
38 2nd Speed Gear
39 2nd Gear Inner Core
40 2nd Gear Blocking Ring
41 2nd Gear Outer Cone
42 1st/2nd Synchronizer Assembly
43 Synchronizer Key
44 Ball
45 Compression Spring
46 1st Gear Outer Cone
47 1st Gear Blocking Ring
48 1st Inner Cone
49 Thrust Washer
50 Bearing Collar
51 Roller Bearing
52 1st Speed Gear
53 Roller Bearing
54 Thrust Washer

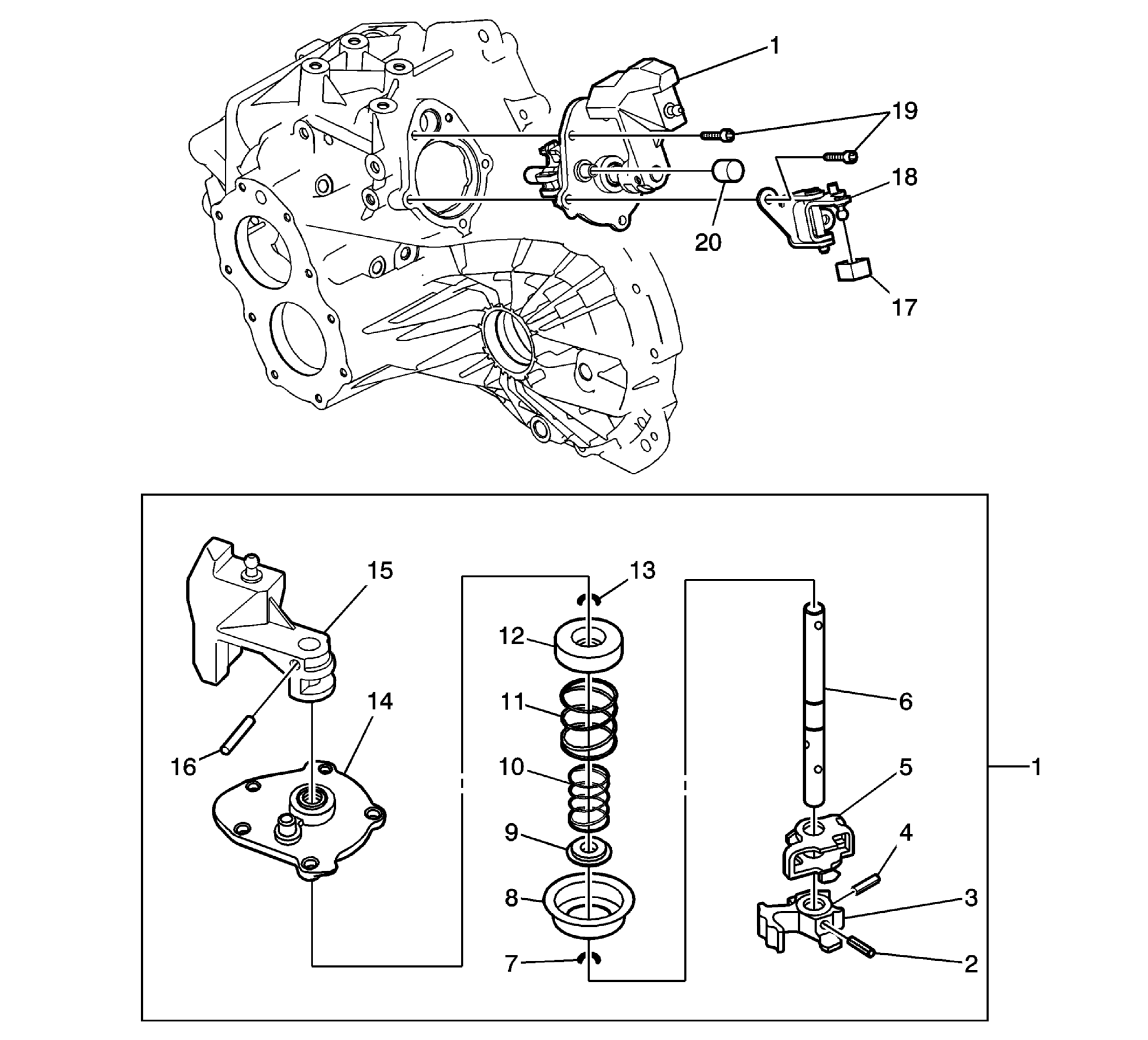

Fig 5: Identifying Shift Shaft Components
GM1824316Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Shift Shaft Assembly
2 Coiled Pin
3 Shift Finger
4 Coiled Pin
5 Shift Interlock
6 Shift Rod
7 Snap Ring
8 Outer Spring Seat
9 Angle Disc
10 1st/2nd Pressure Spring
11 5th/Reverse Pressure Spring
12 Inner Spring Seat
13 Snap Ring
14 Gear Shift Cover
15 Shift Lever
16 Coiled Pin
17 Sliding Key
18 Select Control Lever
19 Bolt
20 Vent Cap

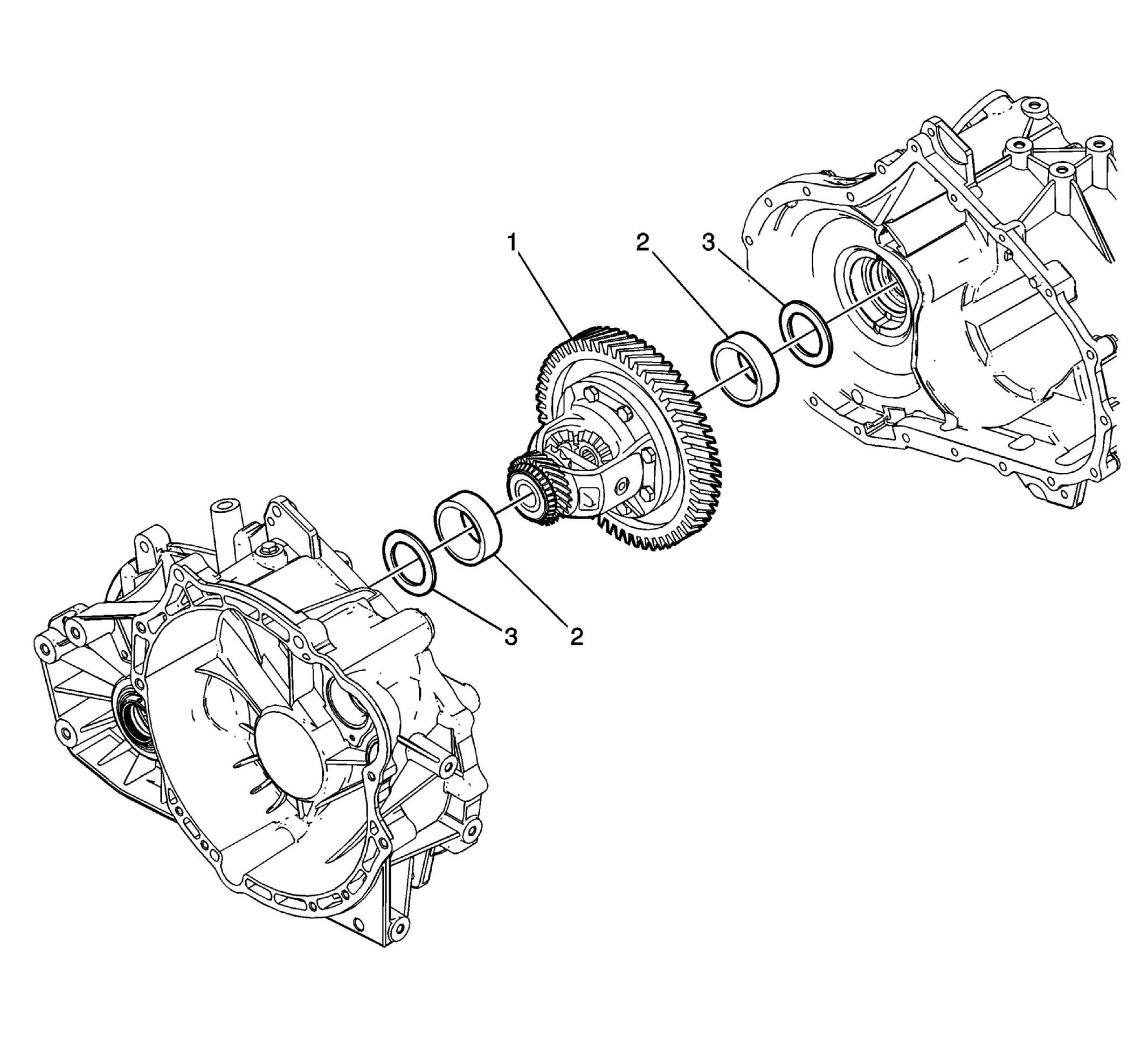

Fig 6: Identifying Differential Gear Components
GM1824317Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Differential Gear
2 Differential Bearing Race
2 Differential Bearing Race
3 Shim
3 Shim

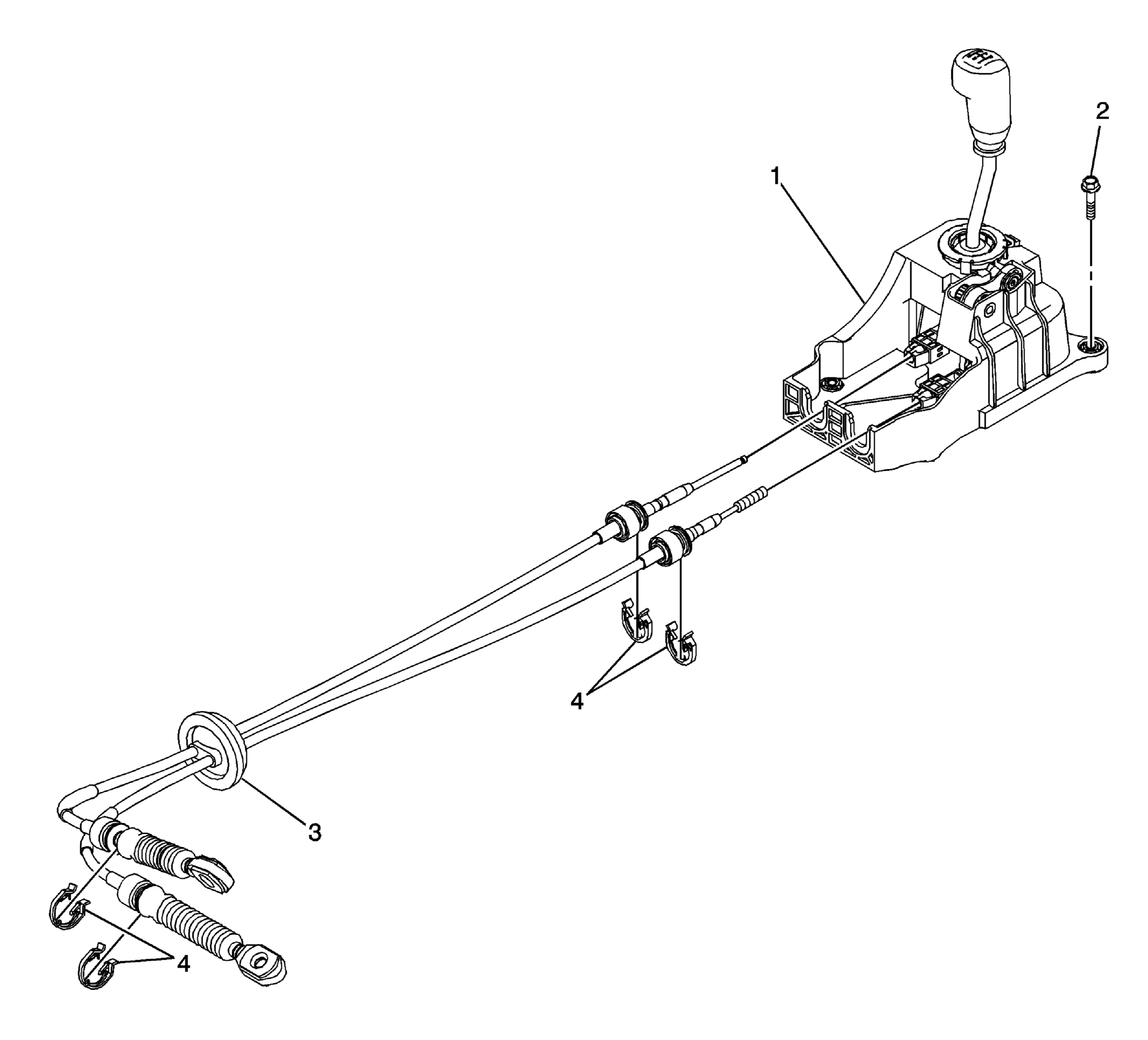

Fig 7: Identifying Gear Shift Control Components
GM1862074Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Shift Control Lever Housing
2 Bolt
3 Shift Control Cable
4 Clip
