Removal Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Remove the tire from the wheel. Refer to Tire Mounting and Dismounting .

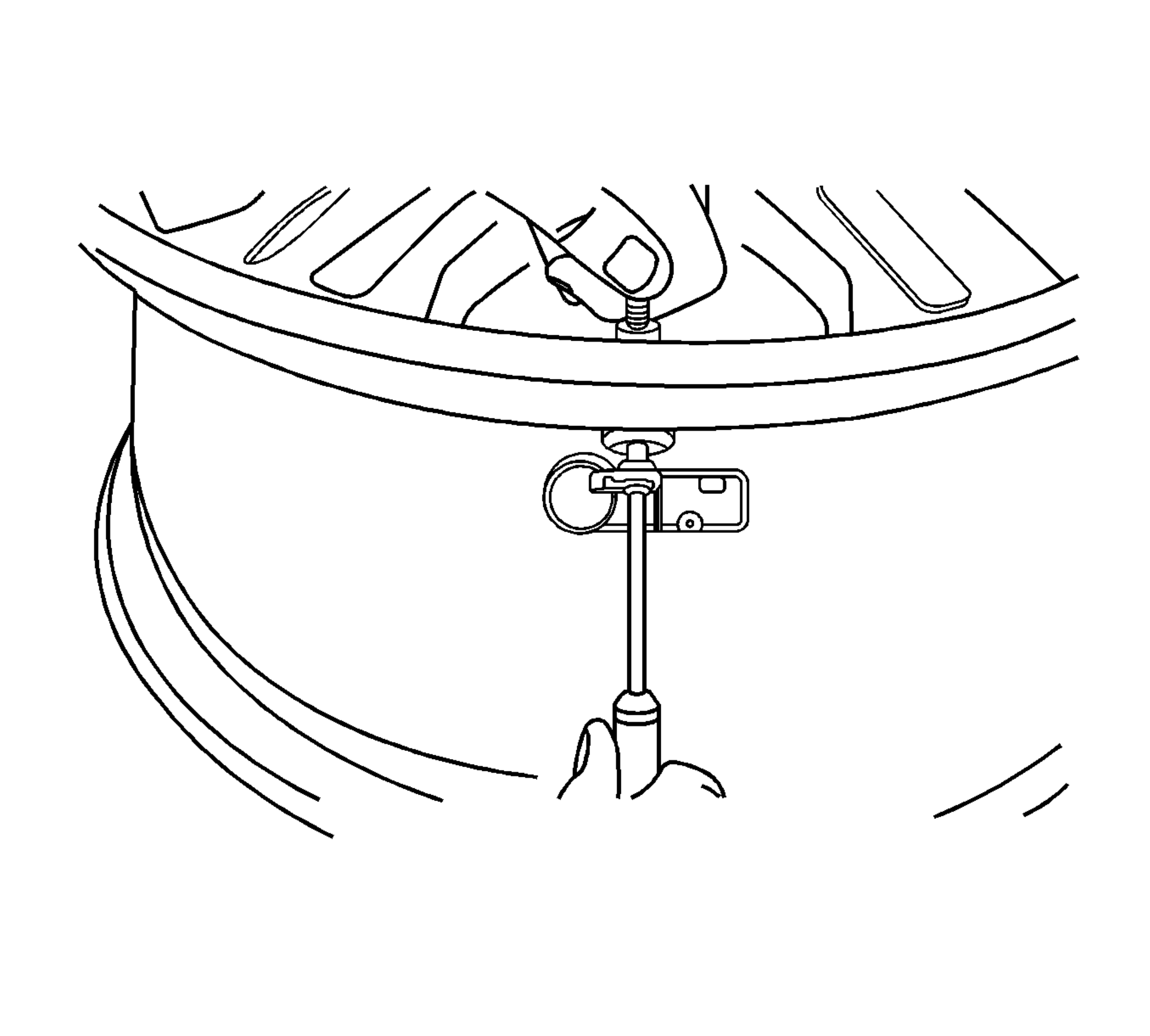

    4. Fig 1: Removing Tire Pressure Sensor From Valve
    GM1854138Courtesy of GENERAL MOTORS CORP.
  4. Remove the tire pressure sensor from the valve using a TORX driver.
  5. Remove the valve.
