Removal Procedure

    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Remove the console. Refer to Front Floor Console Replacement .
  3. Disconnect the shift control cables from the shift control lever housing.

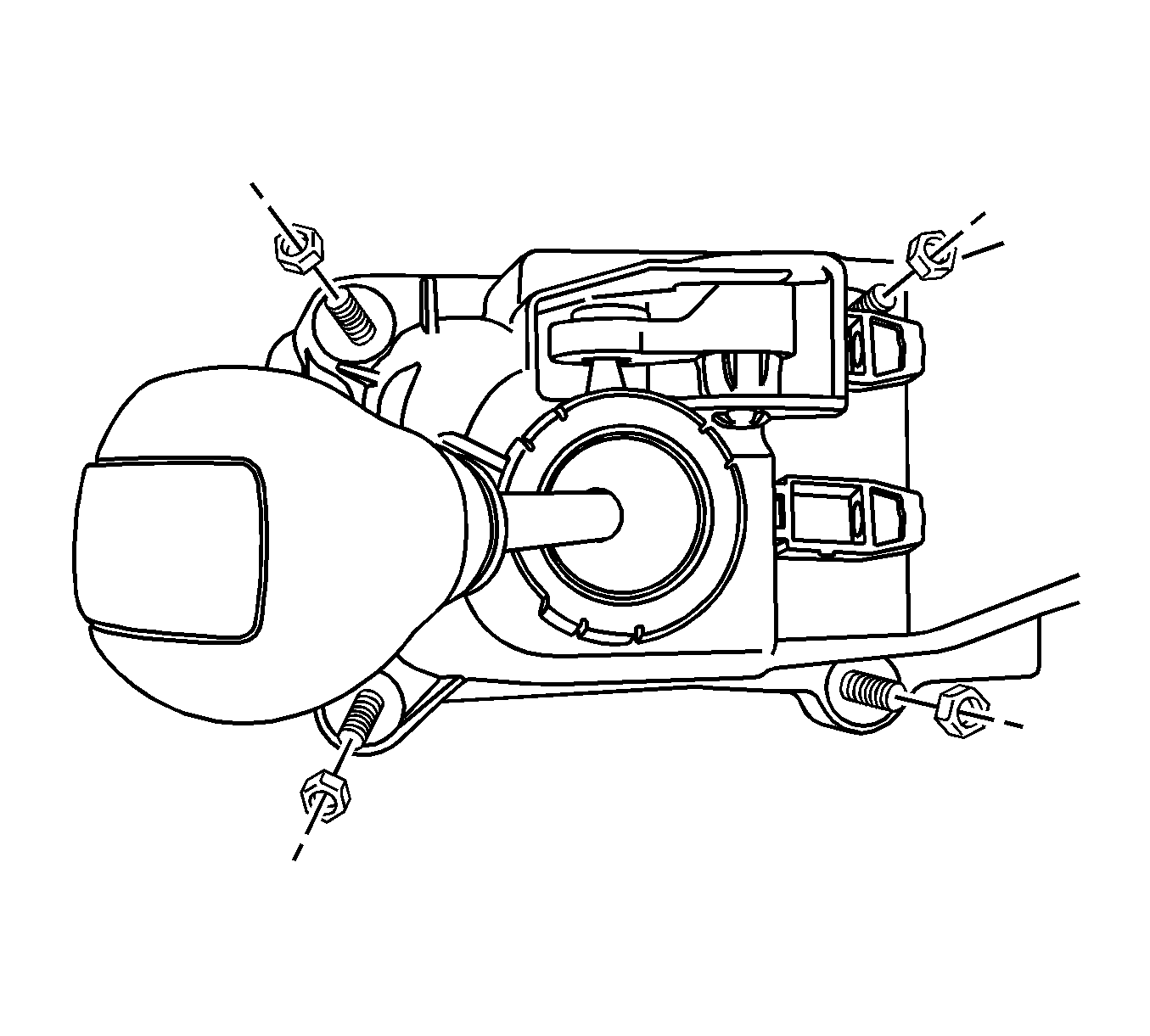

    4. Fig 1: View Of Shift Control Lever Housing And Nuts
    GM1824324Courtesy of GENERAL MOTORS CORP.
  4. Remove the nuts from the shift control lever housing.
  5. Remove the shift control lever housing.

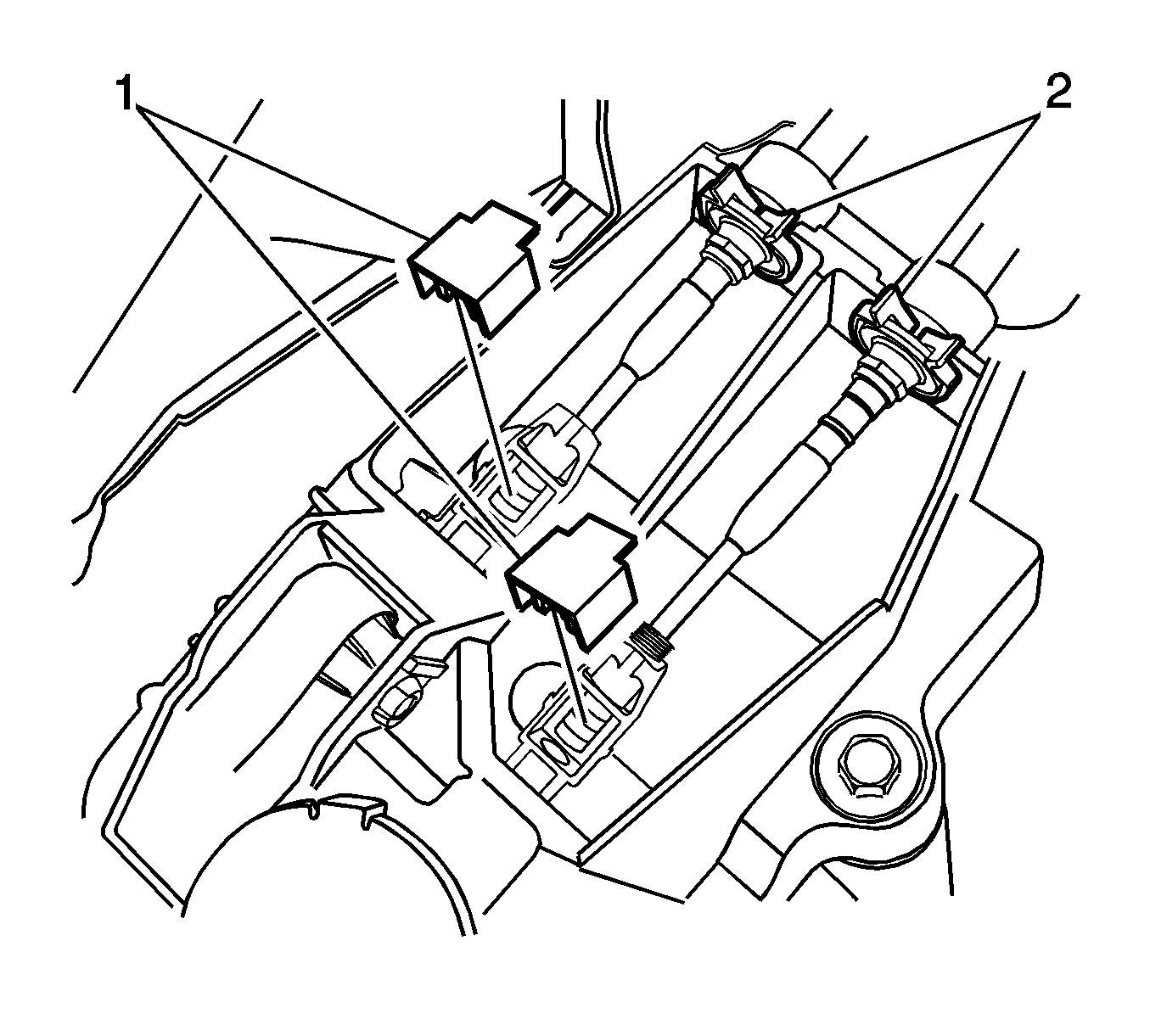

    6. Fig 2: View Of Shift Control Cables And Adjustment Locks
    GM1824326Courtesy of GENERAL MOTORS CORP.
  6. Remove the shift control cable adjust locks (1).
  7. Remove the shift control cables (2) from the shift control lever housing bracket.
  8. Disconnect the shift control cables from the shift control adjusters.
    9. Fig 3: View Of Shift Control Cables And Bracket
    GM1824328Courtesy of GENERAL MOTORS CORP.
  9. Remove the shift control cables (1) from the transaxle using a suitable tool.
  10. Remove the cables (2) from the shift control cable bracket.
    11. Fig 4: View Of Dash Panel Grommet
    GM1785633Courtesy of GENERAL MOTORS CORP.
  11. Remove the grommet from the dash panel.
  12. Remove the shift control cables from the vehicle.
