Removal Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .

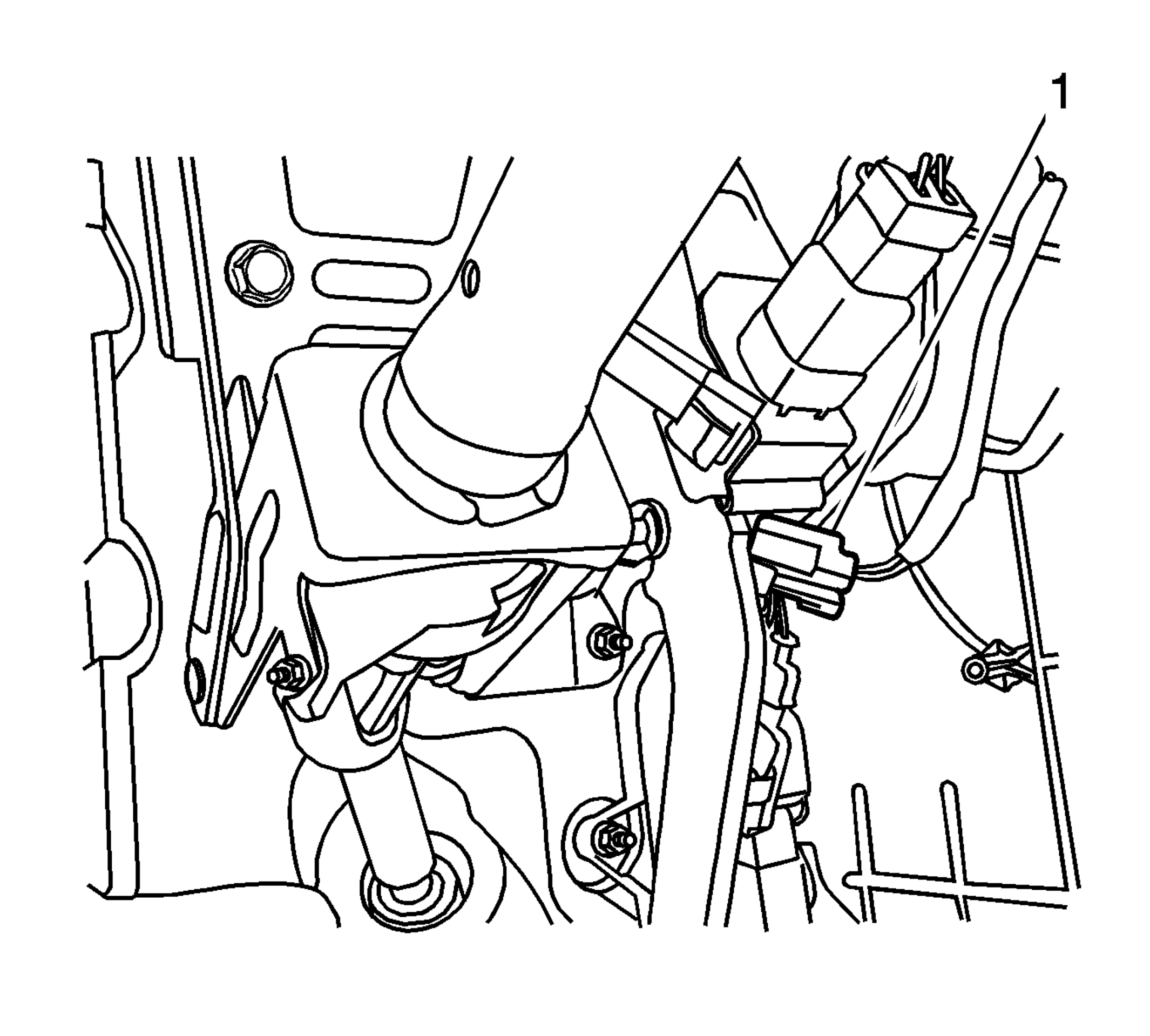

    2. Fig 1: Identifying Speed Sensitive Steering Electrical Connector
    GM1975334Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the steering wheel position sensor electrical connector (1) on the steering column.
  3. Remove the steering column from the vehicle. Refer to Steering Column Replacement .

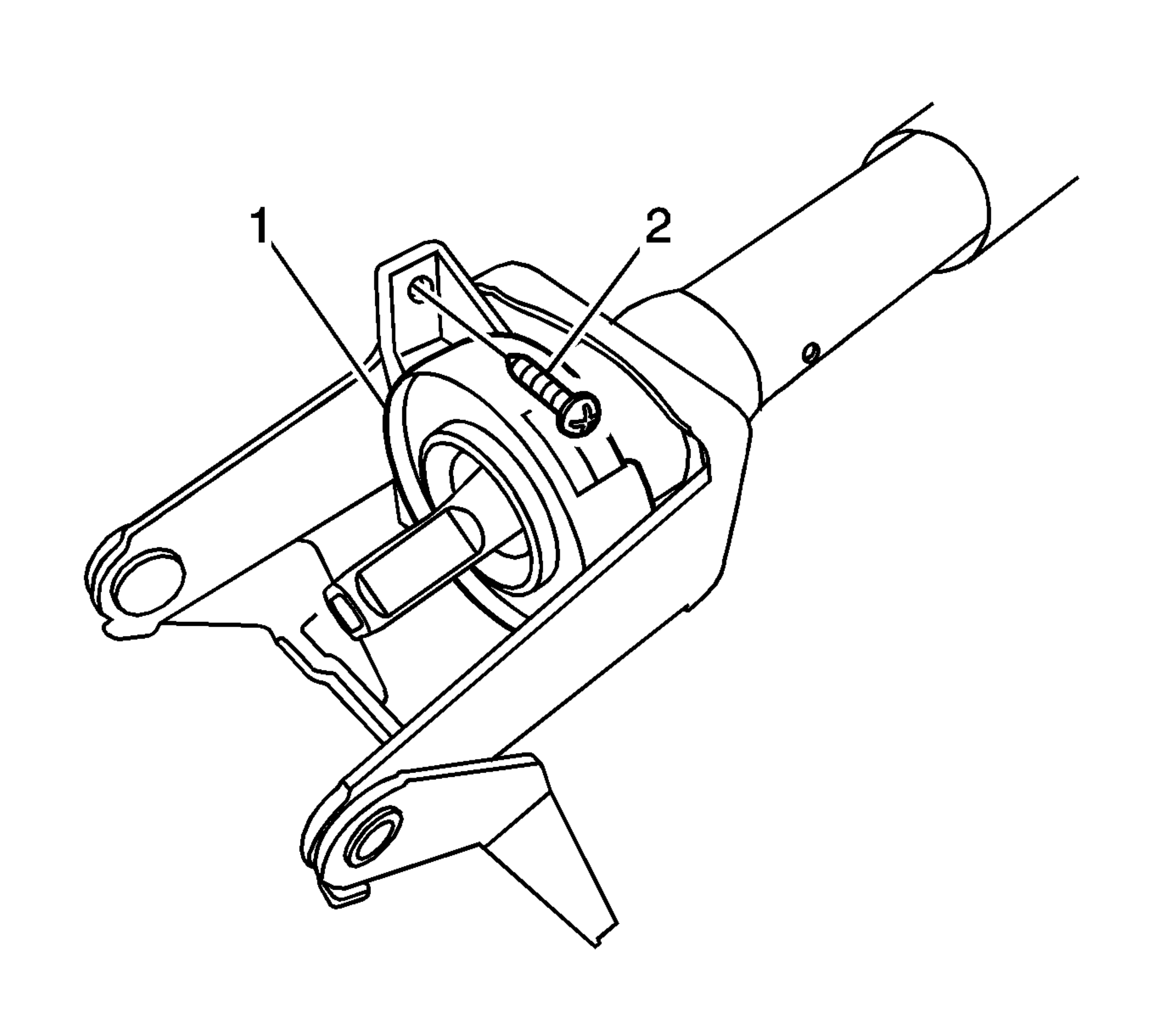

    4. Fig 2: Identifying Steering Wheel Position Sensor And Screw
    GM1975337Courtesy of GENERAL MOTORS CORP.
  4. Remove the screw (2) from the steering wheel position sensor (1).
  5. Remove the steering wheel position sensor by pulling the sensor downward from the steering column shaft.
