Removal Procedure

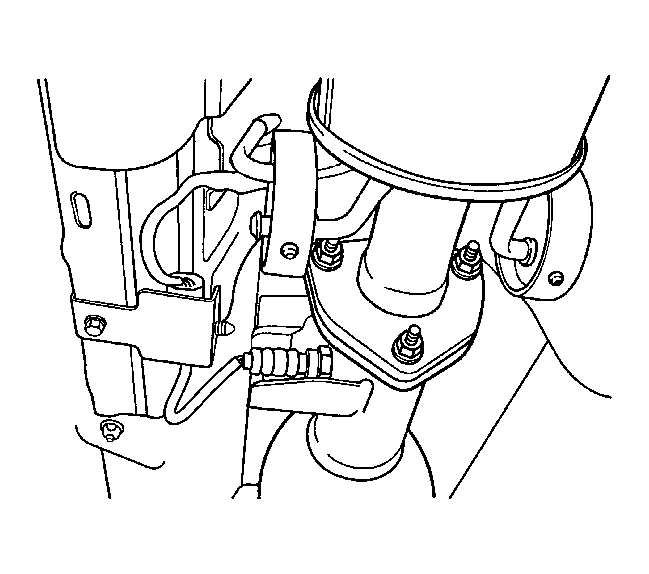

    Fig 1: View Of Heated Oxygen Sensor 2 (HO2S)
    GM1376133Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Disconnect the electrical connector.
  3. Remove the rear heated oxygen sensor (HO2S) 2.
