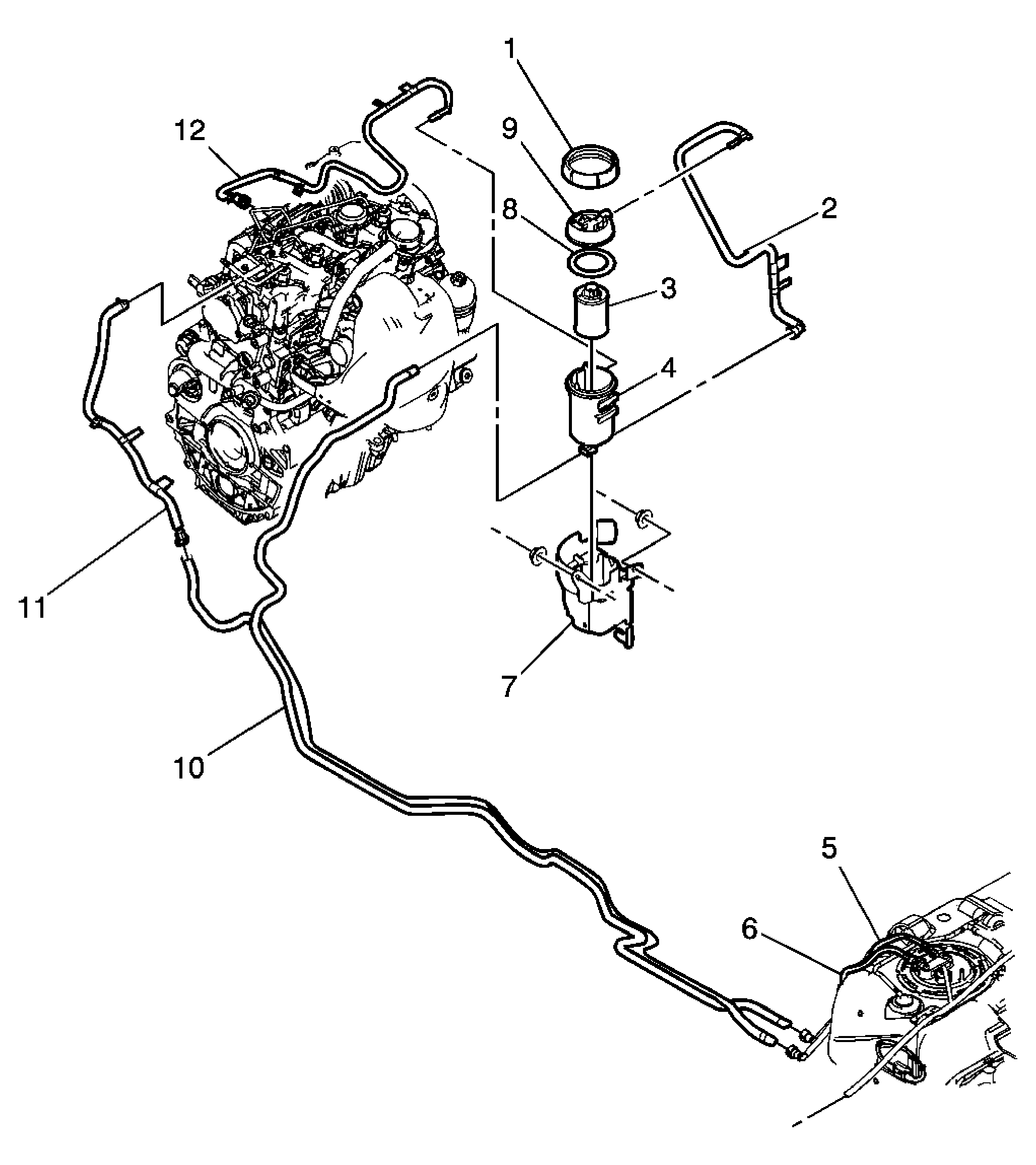

Fuel Hose/Pipes Routing Diagram
| Callout | Component Name |
|---|---|
| 1 | Fuel Filter Element Lock Ring |
| 2 | Fuel Feed Hose |
| 3 | Fuel Filter Element |
| 4 | Water Sensor |
| 5 | Fuel Feed Hose At Tank |
| 6 | Fuel Return Hose At Tank |
| 7 | Fuel Filter Bracket |
| 8 | Fuel Filter Element Seal |
| 9 | Fuel Heater and Temperature Sensor |
| 10 | Fuel Return Pipe |
| 11 | Fuel Return Hose |
| 12 | Fuel Feed Hose |
