Installation Procedure

    NOTE: Refer to Fastener Notice .

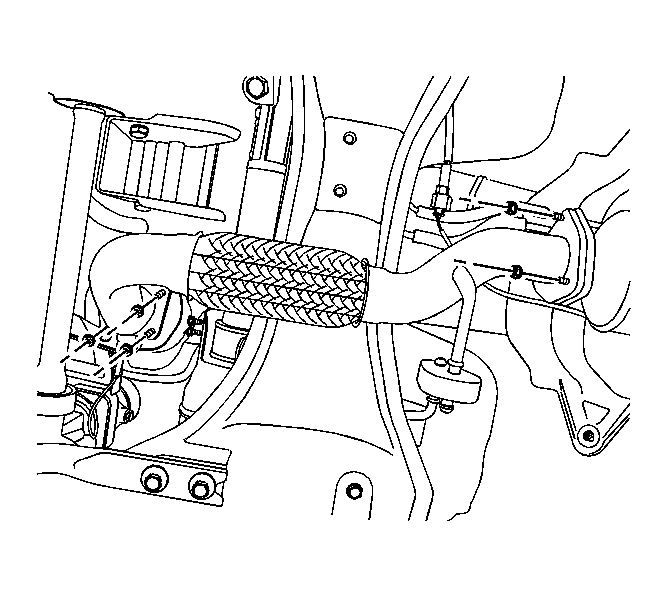

    Fig 1: View Of Front Exhaust Pipe And Attachment Points
    GM1863818Courtesy of GENERAL MOTORS CORP.
  1. Install the exhaust front pipe.

    Tighten:  Tighten the exhaust front pipe nuts to 40 N.m (29.5 lb ft)  .

  2. Install the rubber hanger.

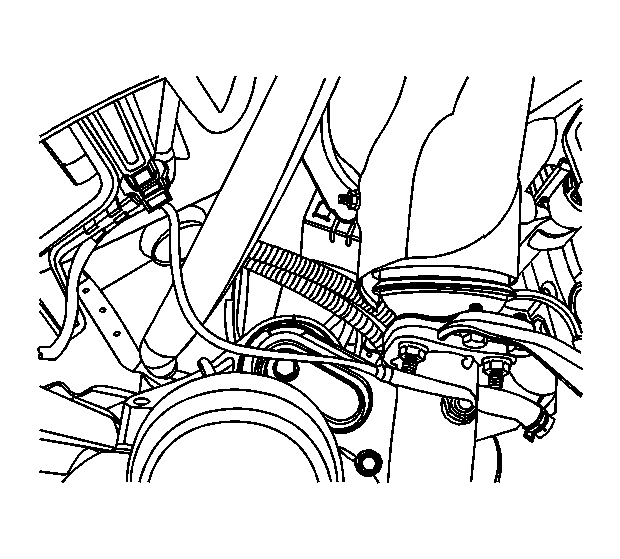

    3. Fig 2: Locating Exhaust Gas Temperature Sensor Connector
    GM1820485Courtesy of GENERAL MOTORS CORP.
  3. Connect the exhaust gas temperature sensor/connector.
  4. Connect the negative battery cables.
