Installation Procedure

    NOTE: Refer to Fastener Notice .

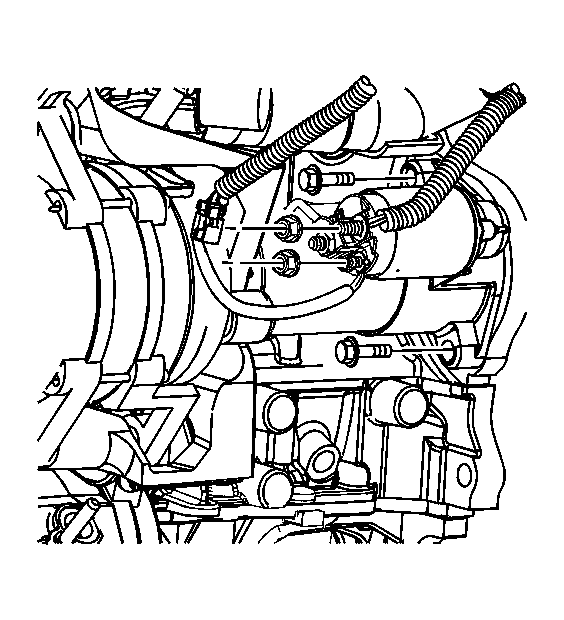

    Fig 1: View Of Starter Solenoid, Battery Lead Wire And Mounting Bolts
    GM1821745Courtesy of GENERAL MOTORS CORP.
  1. Install the starter mounting bolts.

    Tighten:  Tighten the starter-to-engine block mounting bolt to 45 N.m (33.2 lb ft)  .

  2. Install the starter solenoid nut.

    Tighten:  Tighten the starter solenoid terminal-to-battery lead wire nut to 15 N.m (11 lb ft)  .

    3. Fig 2: View Of Engine Cover And Fasteners
    GM1962428Courtesy of GENERAL MOTORS CORP.
  3. Install the engine cover. Refer to Engine Cover Replacement .
  4. Connect the negative battery cable.
