Removal Procedure

    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the battery negative cable.
  2. Remove the engine cover. Refer to Engine Cover Replacement .

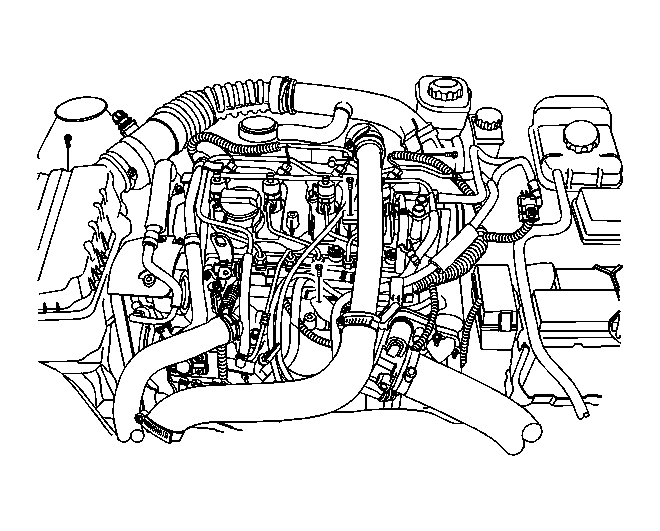

    Fig 1: Identifying Charge Air Cooler Inlet Hoses And Fasteners
    GM1962615Courtesy of GENERAL MOTORS CORP.
  3. Remove the charge air cooler inlet hoses. Refer to Charge Air Cooler Inlet Pipe and Outlet Pipe Replacement .

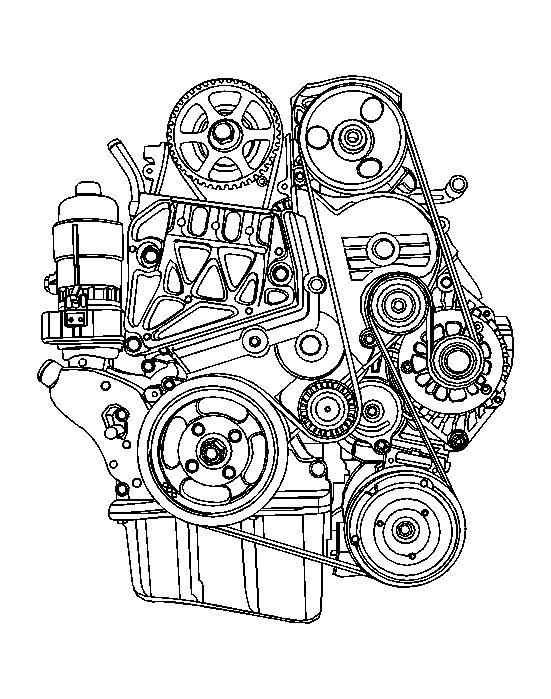

    4. Fig 2: Identifying Accessory Belt
    GM1821742Courtesy of GENERAL MOTORS CORP.
  4. Remove the accessory belt. Refer to Drive Belt Replacement .
    5. Fig 3: View Of EGR Vacuum Tank
    GM1962618Courtesy of GENERAL MOTORS CORP.
  5. Remove the EGR vacuum tank.
    6. Fig 4: View Of Generator Bolts
    GM1821743Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the generator connector.
  7. Remove the generator B+ wiring harness.
  8. Remove the generator.
