Installation Procedure

  1. Install the battery tray.
    2. NOTE: Refer to Fastener Notice .
    Fig 1: Identifying Battery Tray Retaining Bolts
    GM1962551Courtesy of GENERAL MOTORS CORP.
  2. Install the battery tray lower retaining bolts.

    Tighten:  Tighten the battery tray bolts to 20 N.m (15 lb ft)  .

    3. Fig 2: View Of Upper Battery Tray Bolts
    GM1962549Courtesy of GENERAL MOTORS CORP.
  3. Install the battery tray upper retaining bolts.

    Tighten:  Tighten the battery tray bolts to 10 N.m (89 lb in)  .

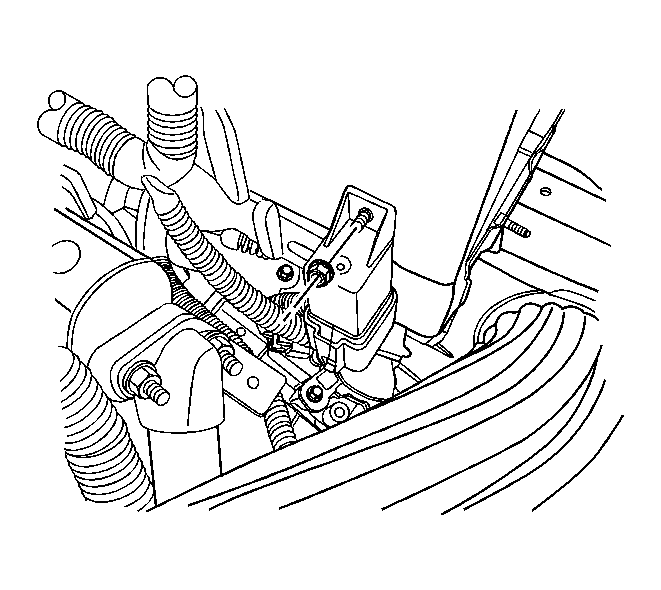

    4. Fig 3: Identifying Glow Plug Fuse Box
    GM1962548Courtesy of GENERAL MOTORS CORP.
  4. Install the glow plug control unit.
  5. Install the glow plug fuse block.

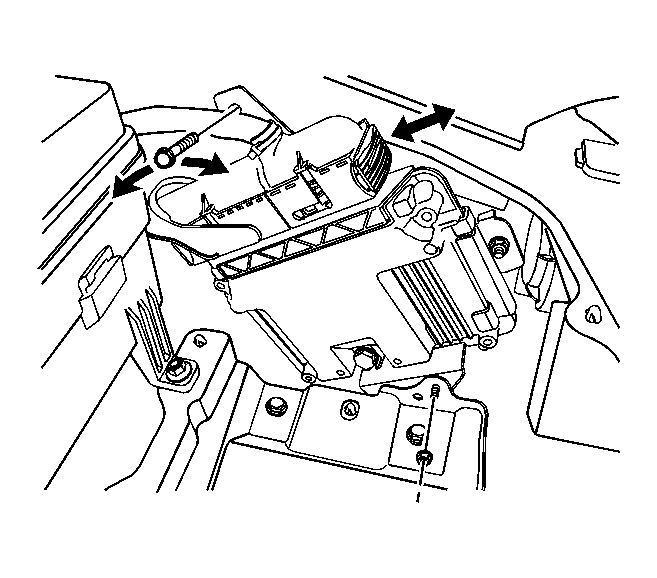

    6. Fig 4: Identifying ECM
    GM1962547Courtesy of GENERAL MOTORS CORP.
  6. Install the ECM. Refer to Engine Control Module Replacement .

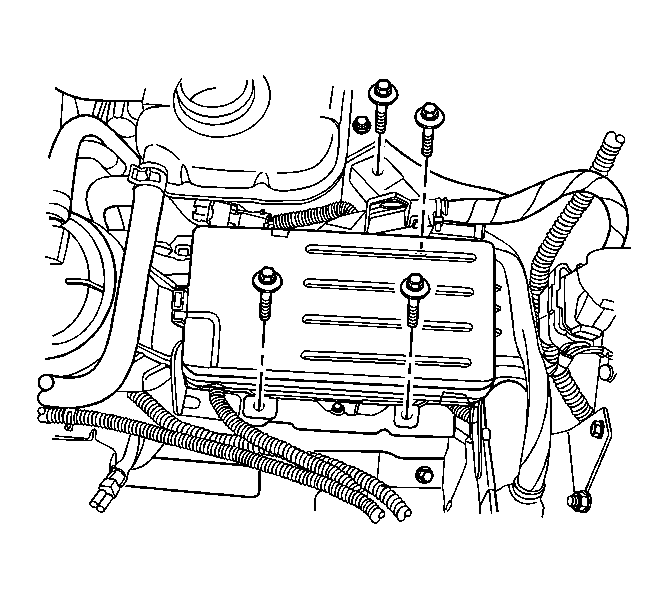

    7. Fig 5: View Of Engine Fuse Block And Screws
    GM1962546Courtesy of GENERAL MOTORS CORP.
  7. Install the engine fuse block.

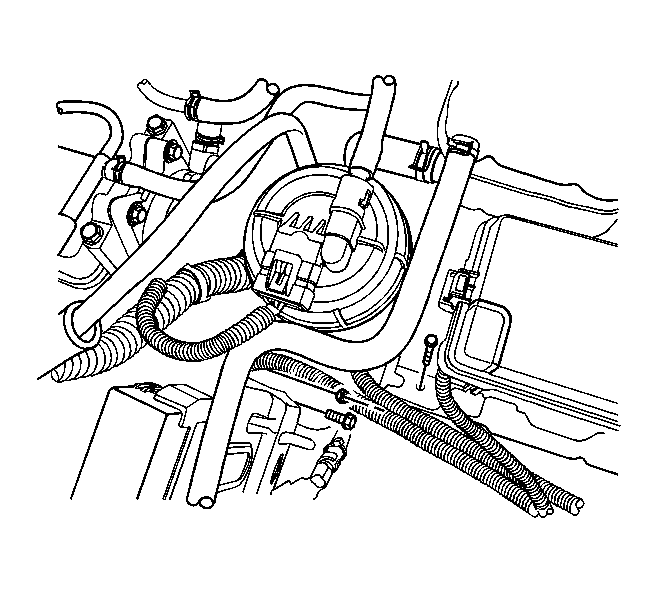

    8. Fig 6: View Of Fuel Filter Assembly
    GM1962545Courtesy of GENERAL MOTORS CORP.
  8. Install the fuel filter assembly. Refer to Fuel Filter Replacement .
    9. Fig 7: View Of Battery Hold Down Bar, Bracket And Nuts
    GM1962544Courtesy of GENERAL MOTORS CORP.
  9. Install the battery. Refer to Battery Replacement .
