Tire Pressure Monitoring System Schematics

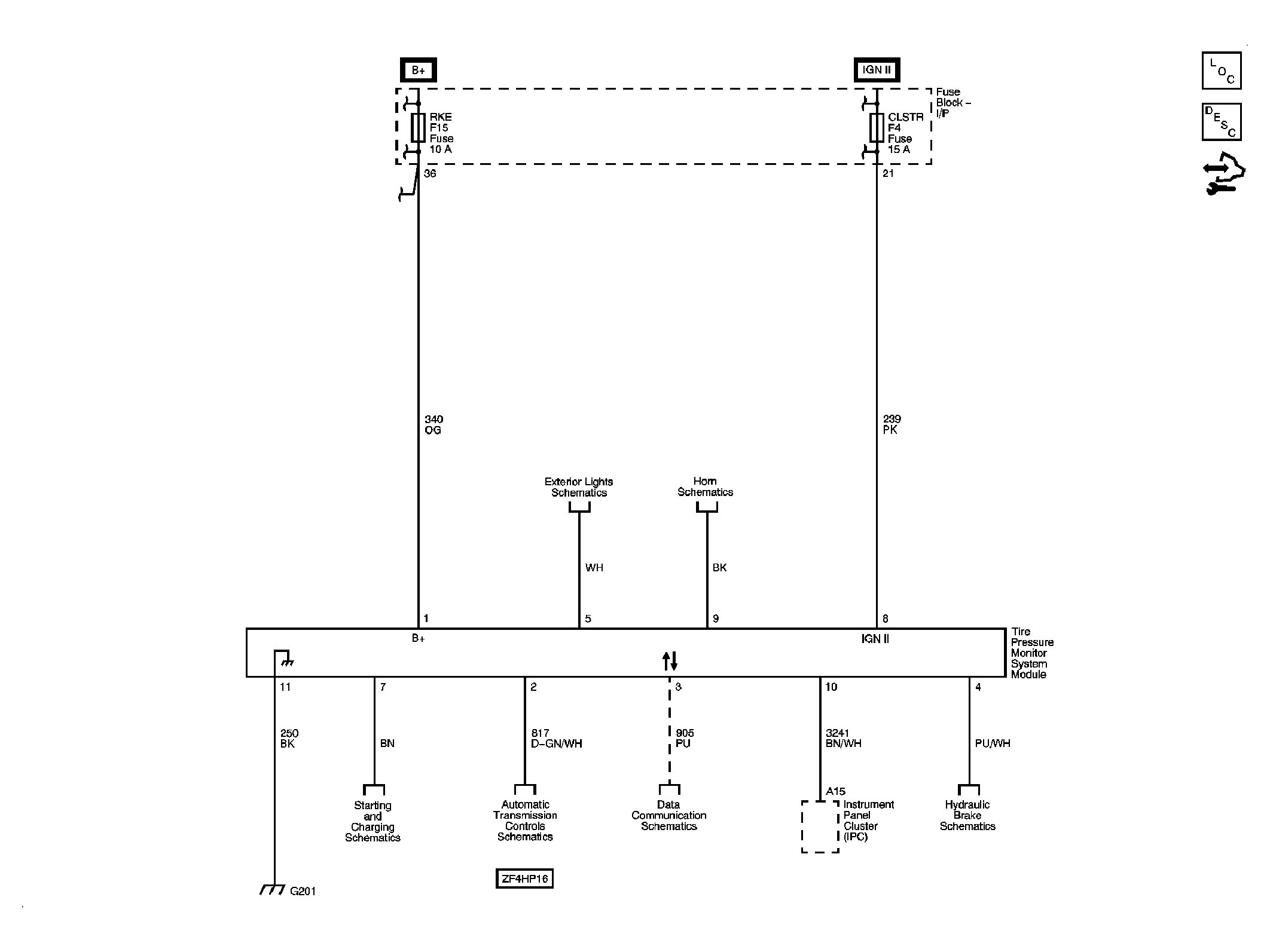

Fig 1: Tire Pressure Monitoring System Schematic

GM1956227

Courtesy of GENERAL MOTORS CORP.
