Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|

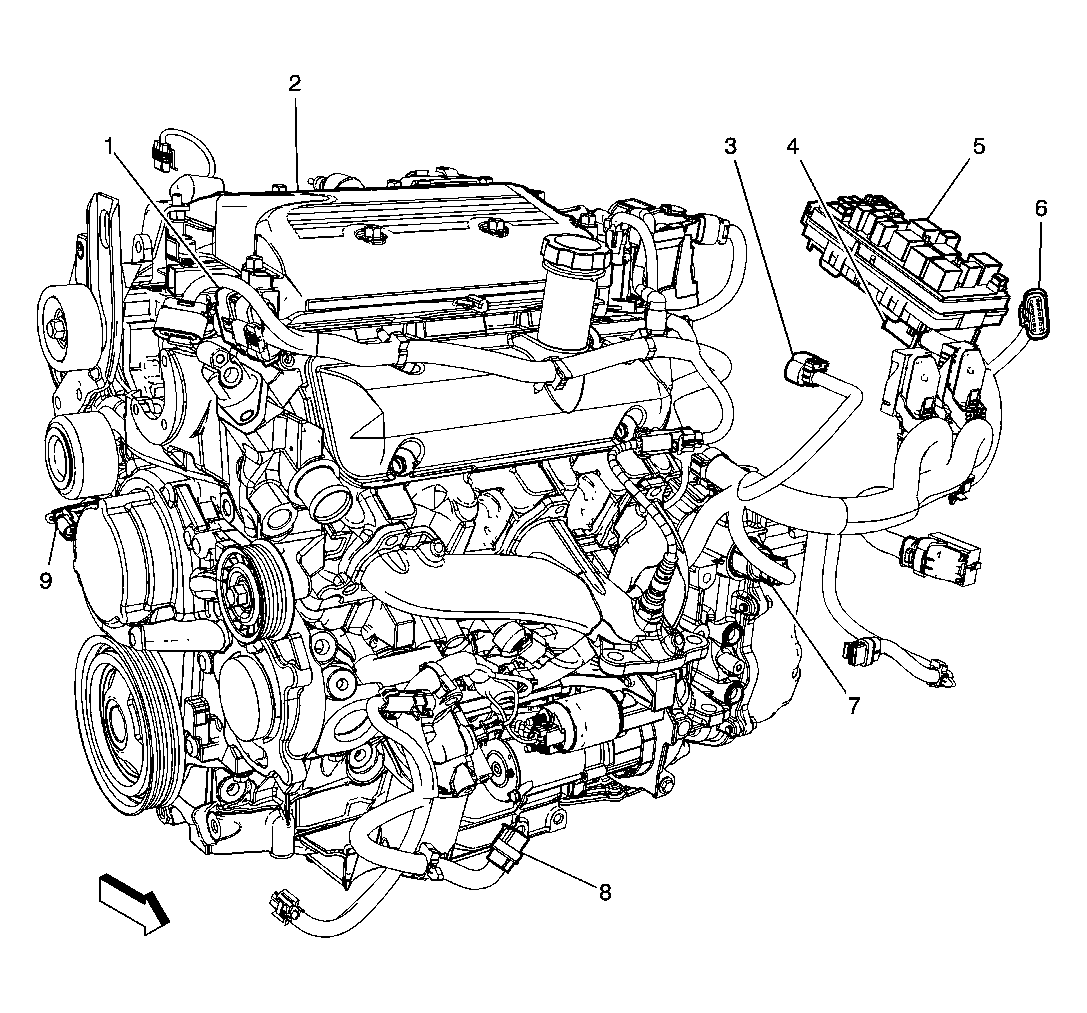

| X100 (Black, 20 Pin) (7) | Left rear of engine. See Figure. |

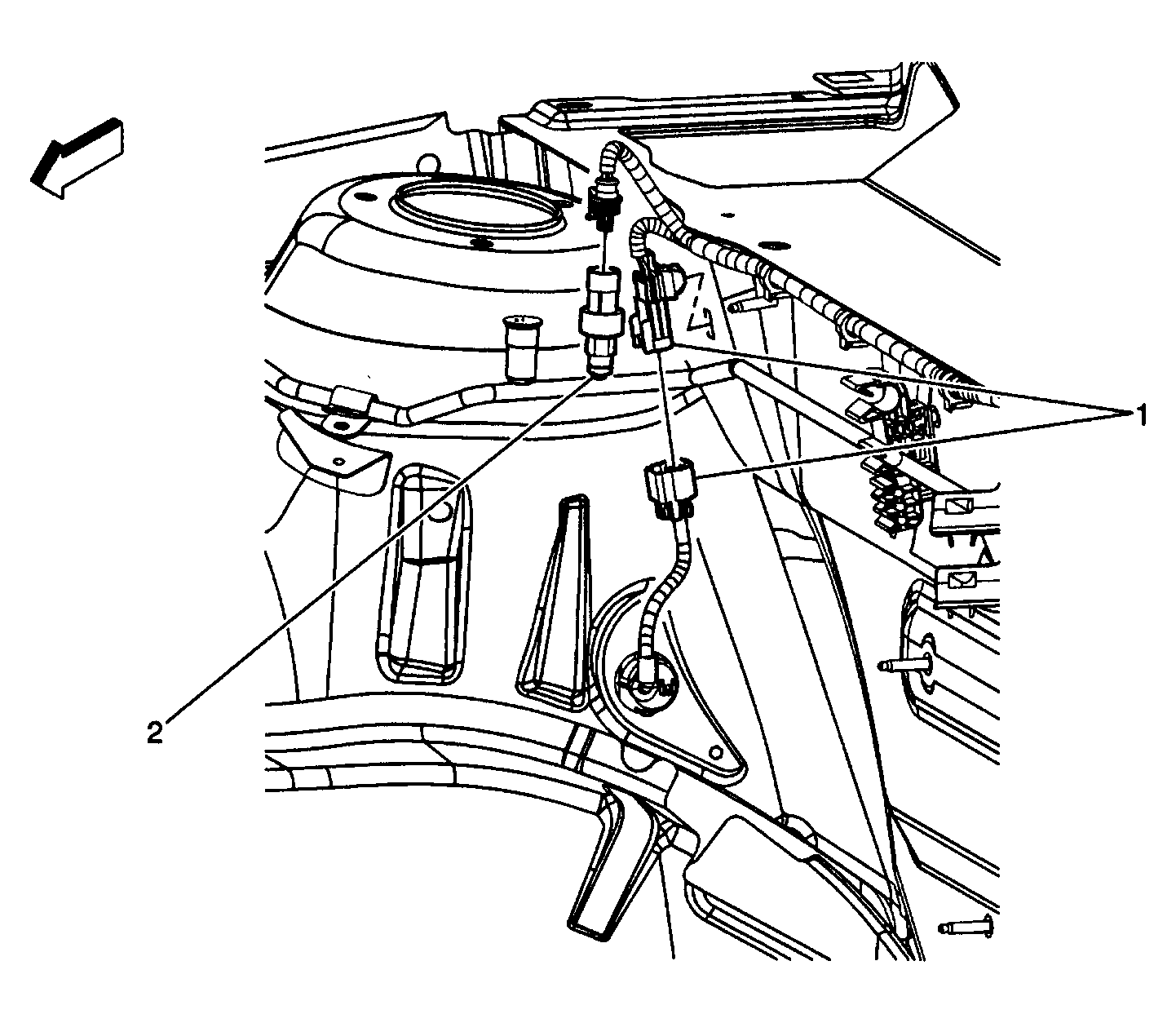

| X101 (Black, 2 Pin) (4) | Behind left front strut tower. See Figure. |

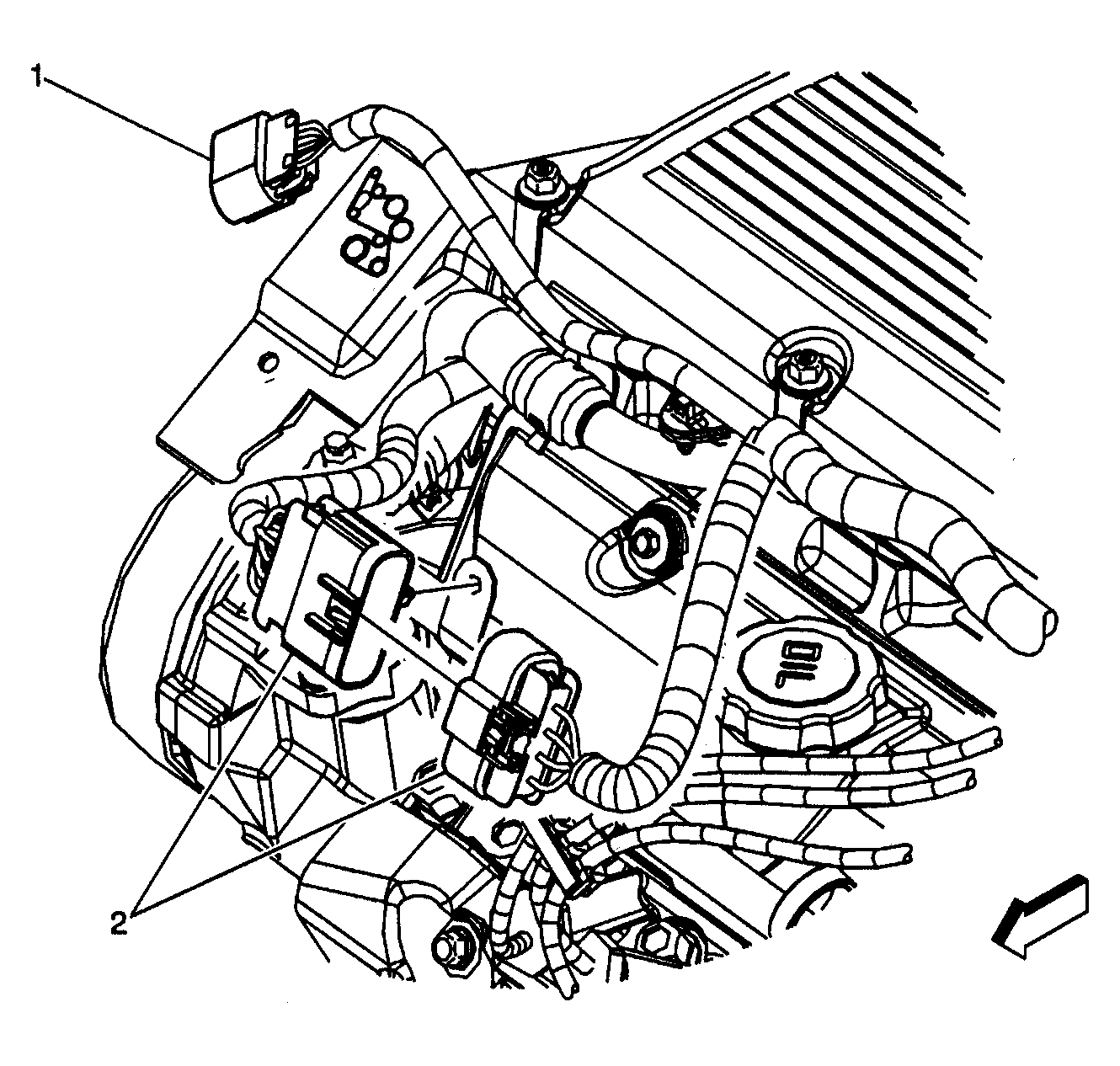

| X102 (Black, 2 Pin) (1) | On left side of engine. See Figure. |
| X103 (Black, 8 Pin) (3) | Left rear of engine. See Figure. |

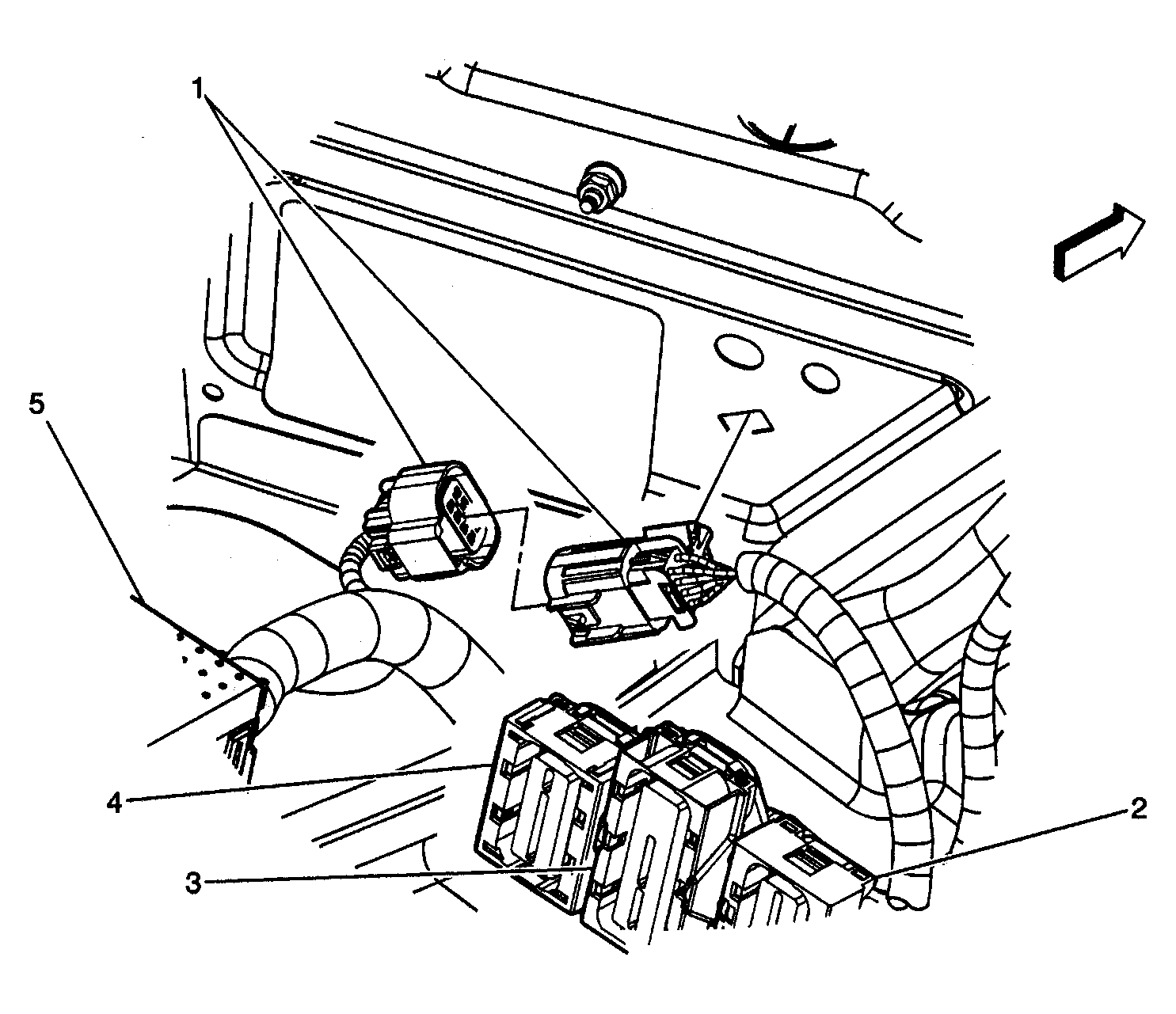

| X108 (2.2L) (Black, 8 Pin) (1) | Left front of engine compartment, front of PCM. See Figure. |
| X108 (3.5L) (Black, 16 Pin) (1) | Left front of engine compartment, front of PCM. See Figure. |

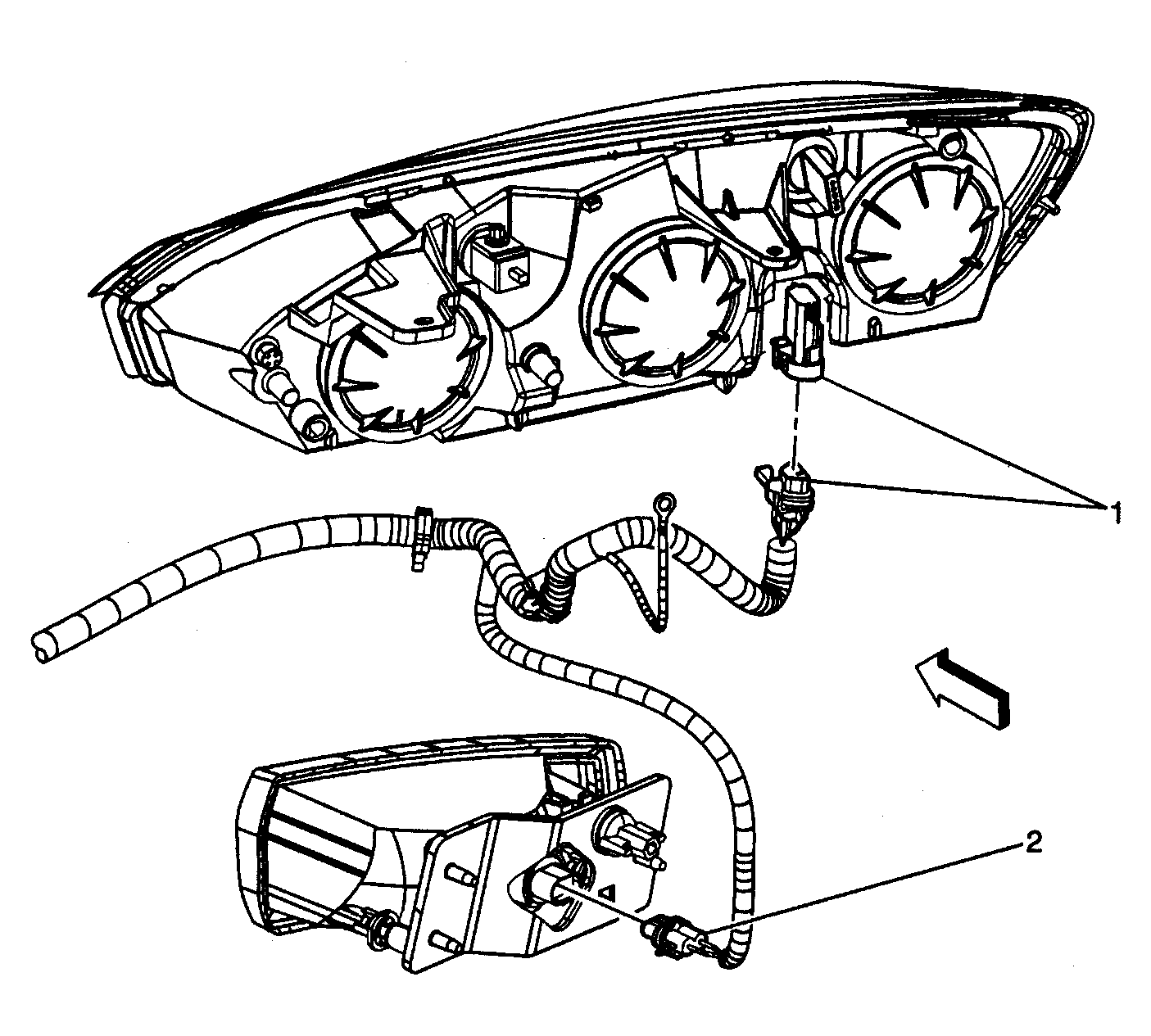

| X109 (White, 5 Pin) (1) | At left headlight. See Figure. |
| X110 (White, 5 Pin) (1) | At right headlight. See Figure. |

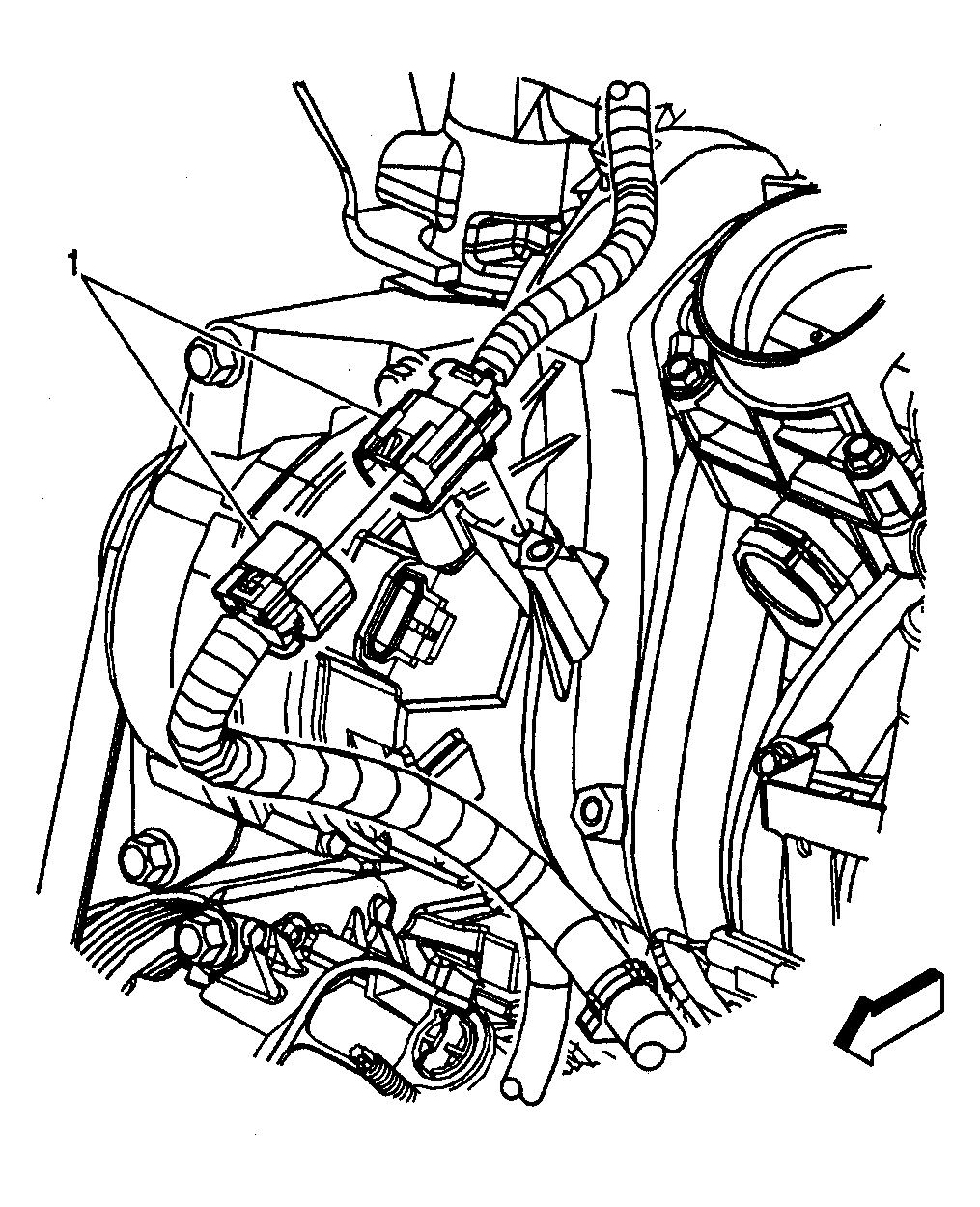

| X130 (2.2L) (Black, 8 Pin) (1) | Left front of engine. See Figure. |
| X130 (3.5L) (Black, 16 Pin) (2) | Top left side of engine. See Figure. |

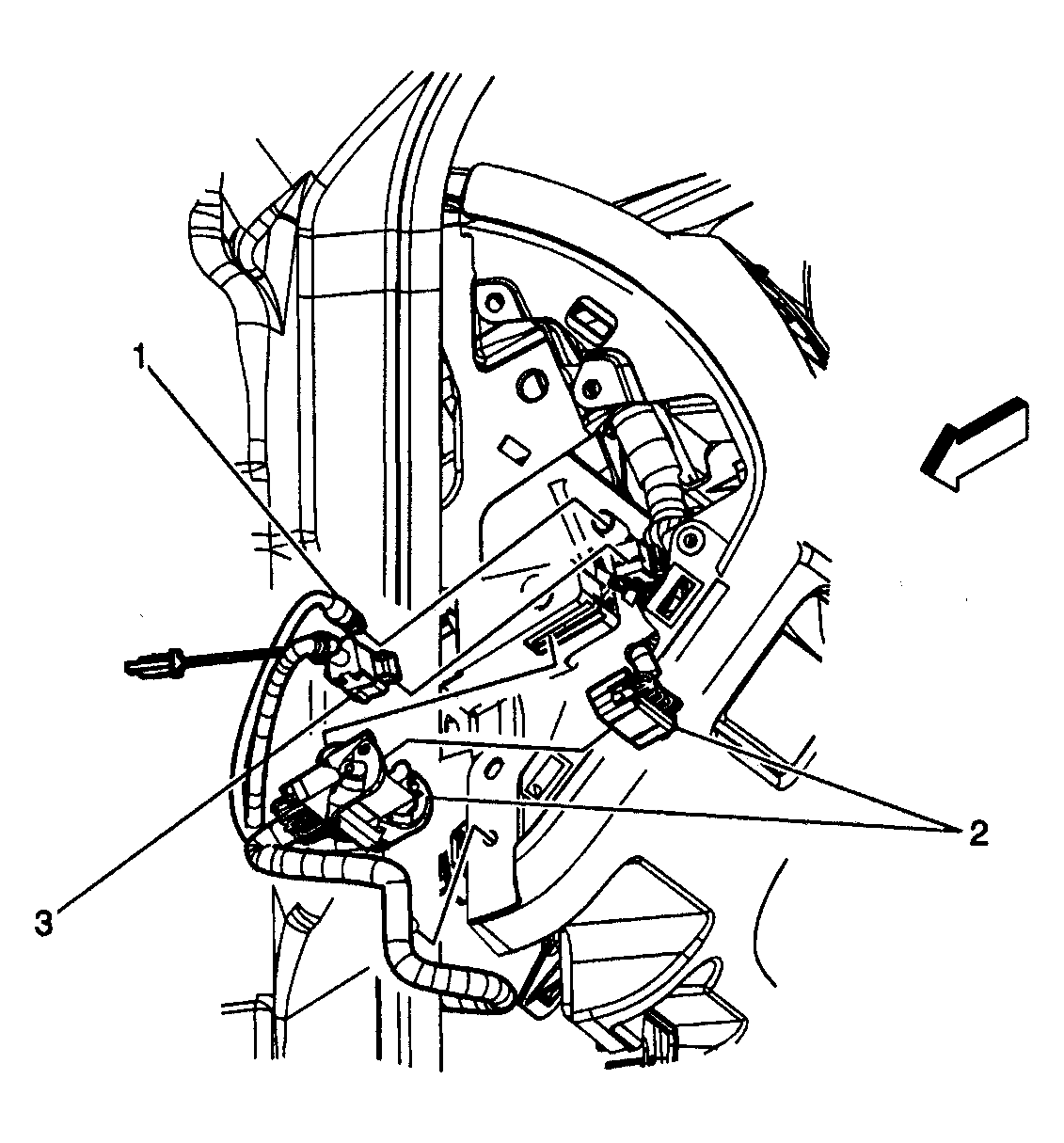

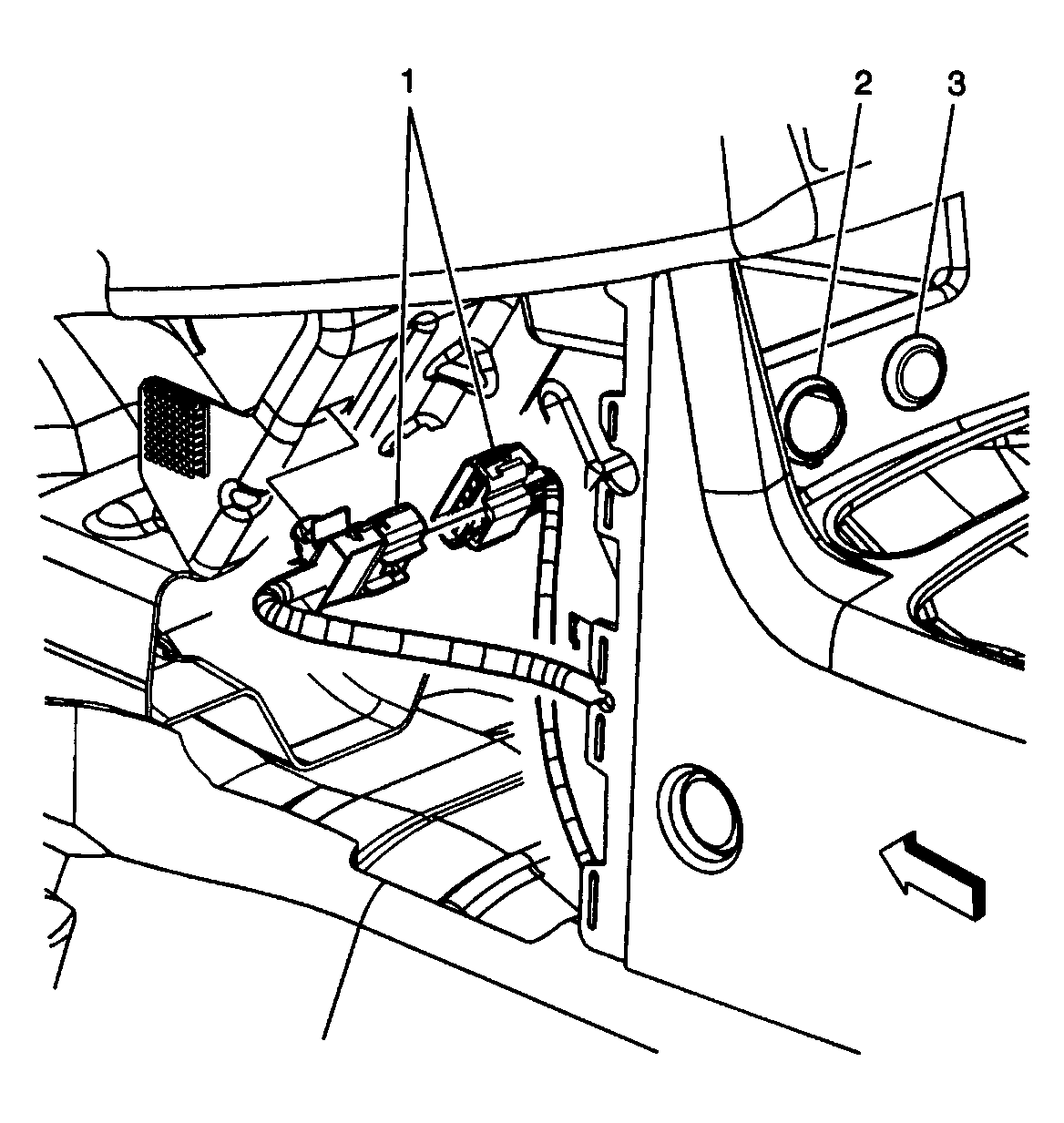

| X206 (Light Gray, 22 Pin) (2) | Behind left dash panel. See Figure. |
| X207 (Light Gray, 22 Pin) (6) | Behind right dash access panel. See Figure. |
| X208 (Yellow, 4 Pin) (3) | Behind left dash access panel. See Figure. |

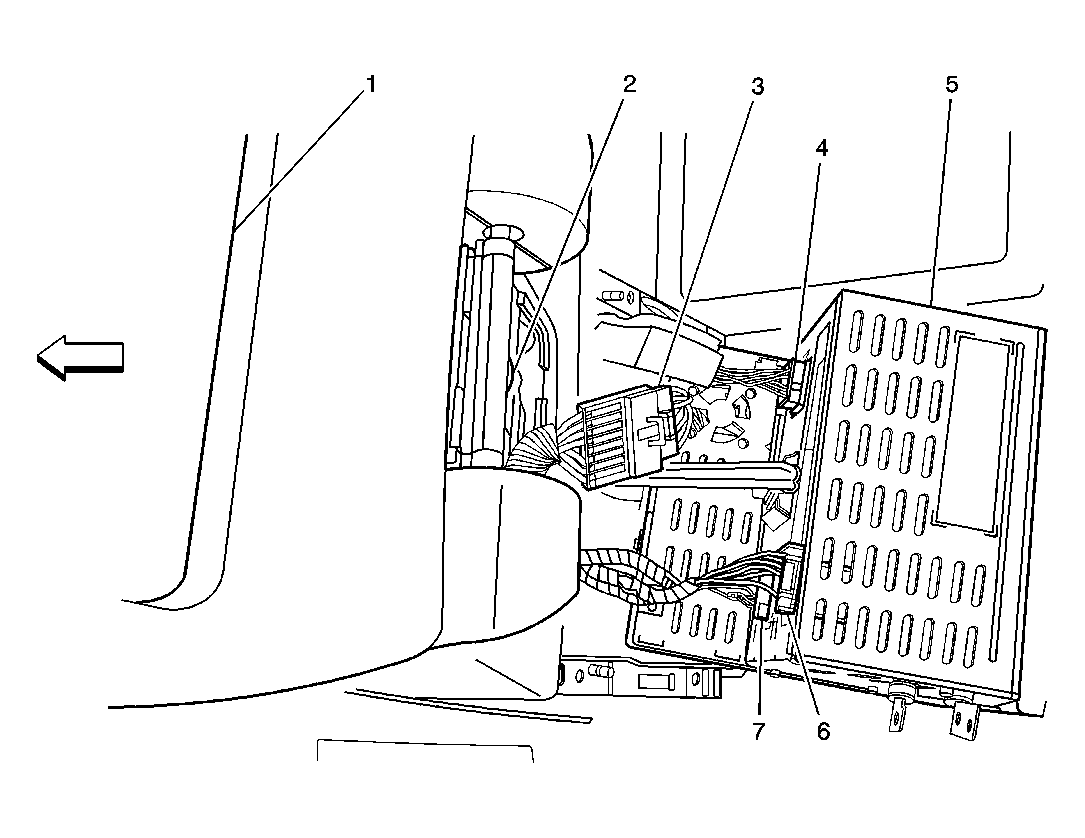

| X214 (W/ DVD) (Black, 30 Pin) (1) | Behind center console. See Figure. |
| X214 (W/O DVD) (Black, 5 Pin) (1) | Behind center console. See Figure. |

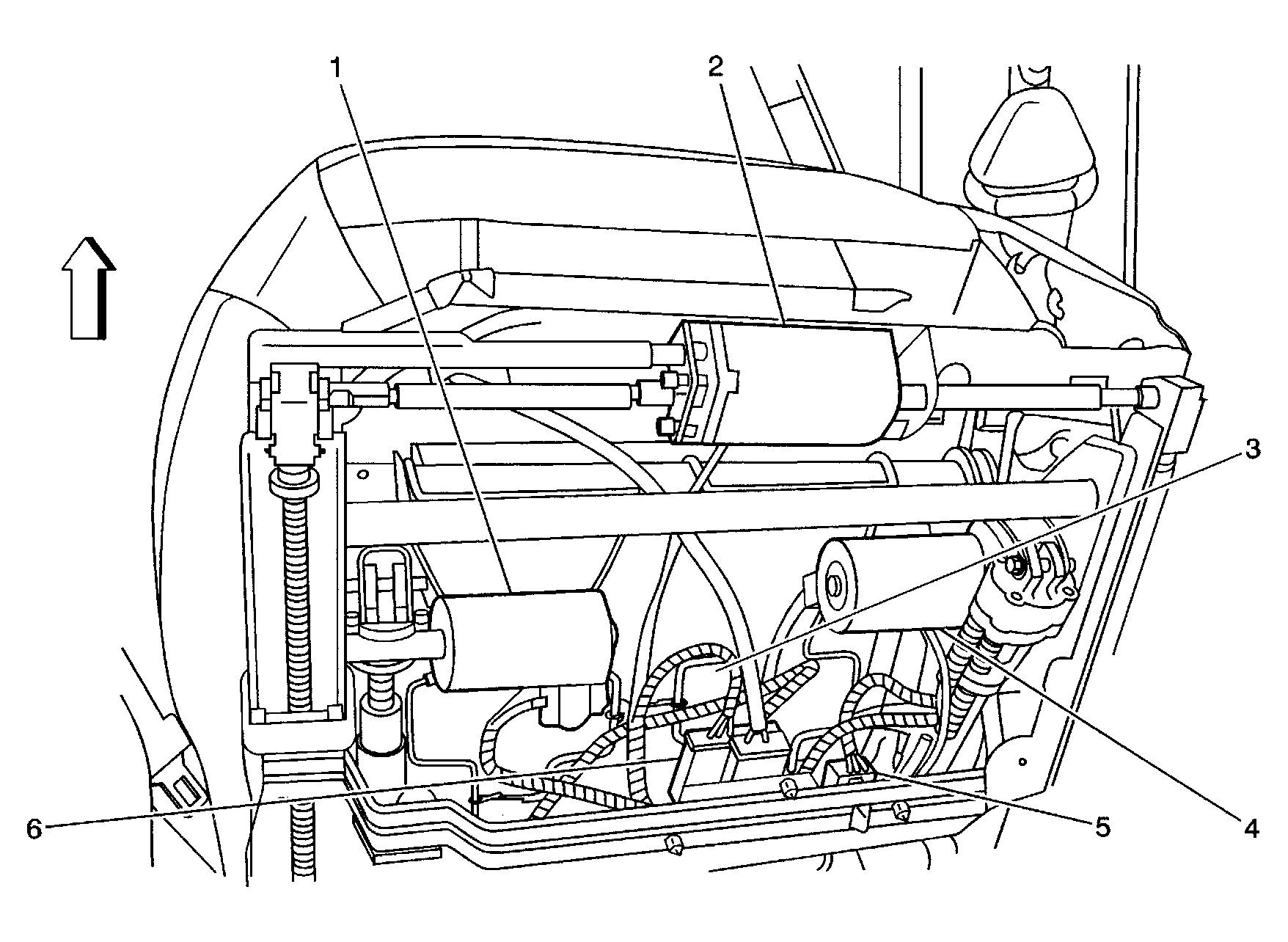

| X300 (Black, 12 Pin) (5) | Under right rear corner of driver's seat. See Figure. |
| X308 (Yellow, 2 Pin) | Under driver's seat. |
| X309 (Yellow, 2 Pin) | Under front passenger's seat. |

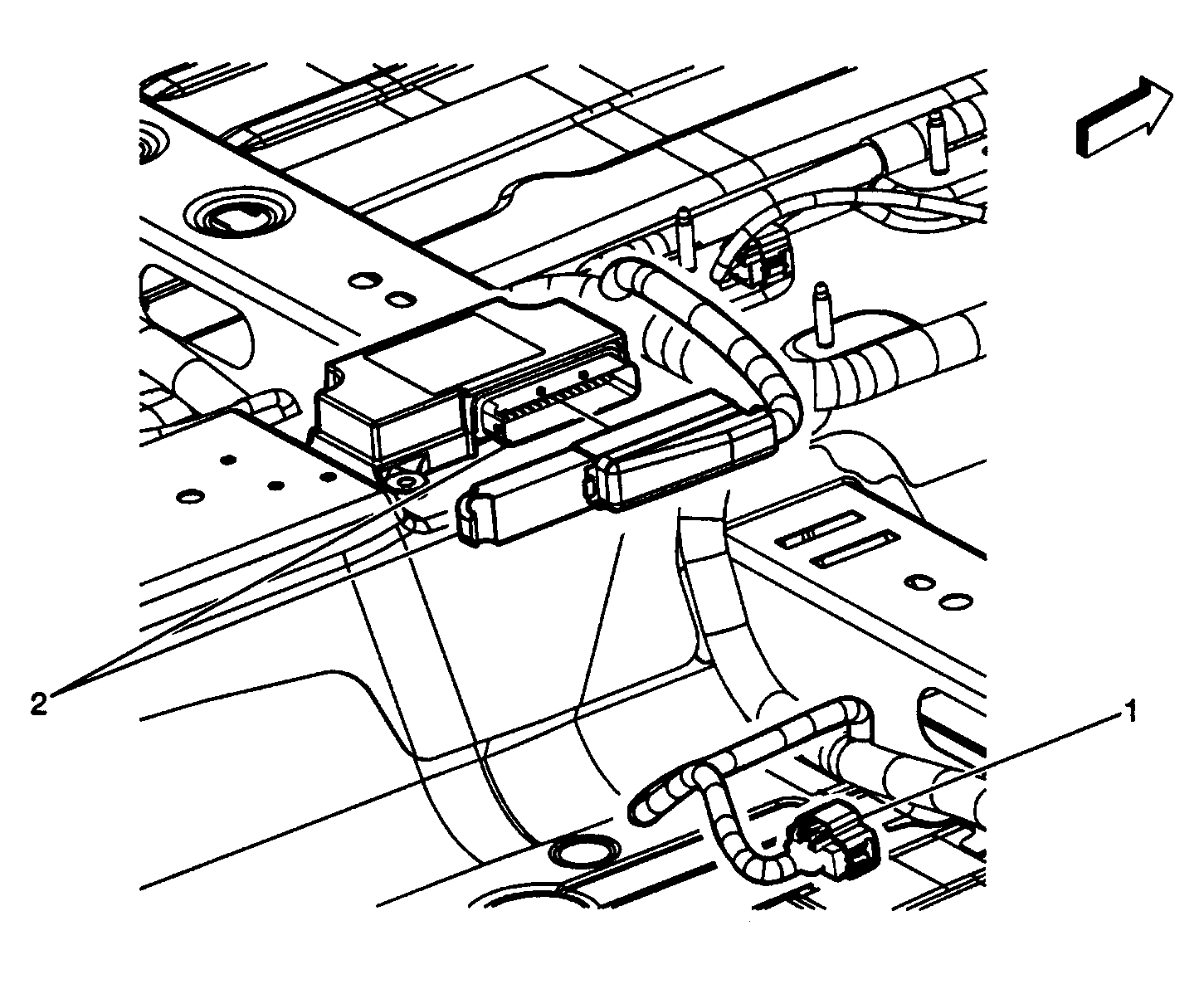

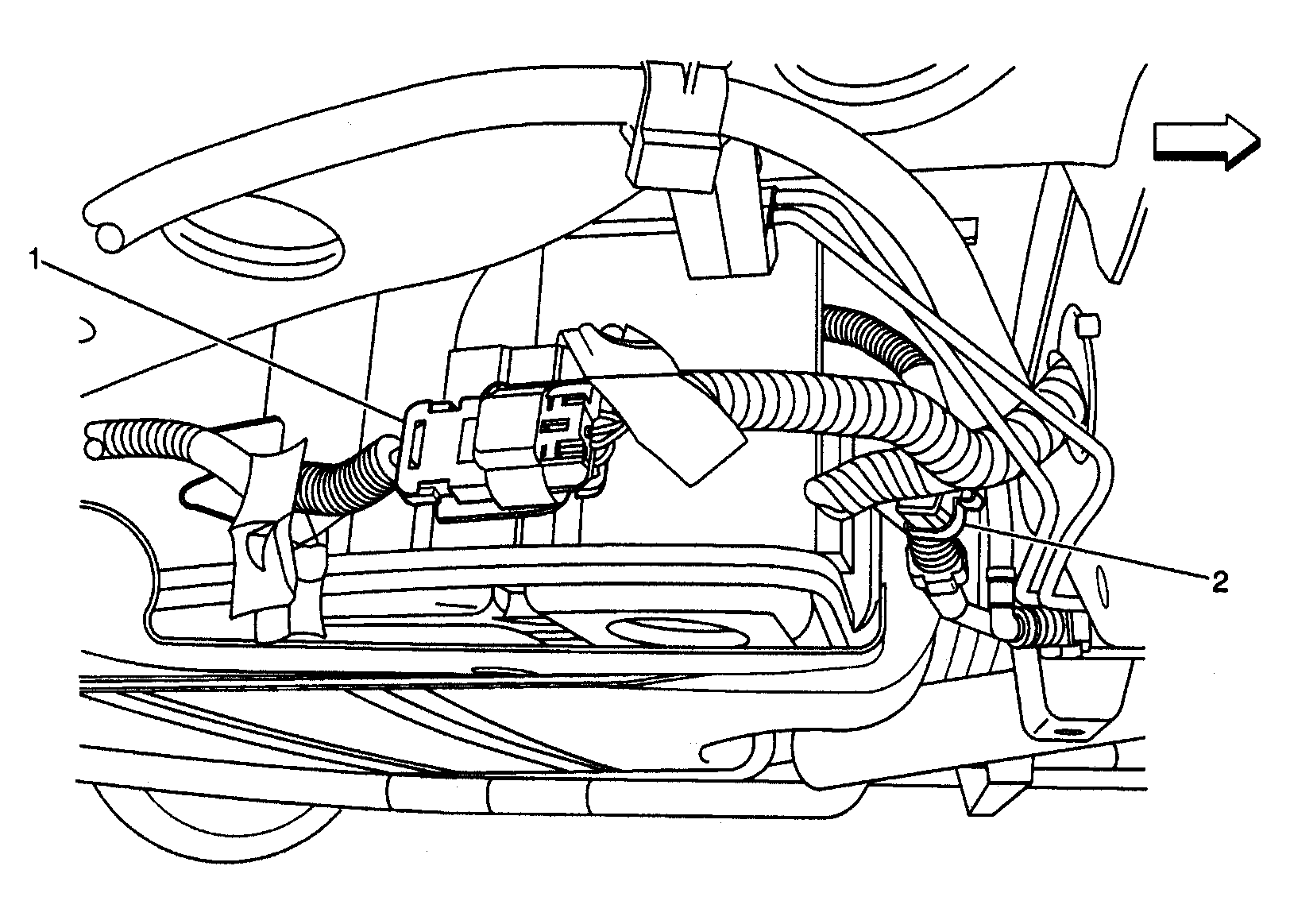

| X310 (Black, 12 Pin) (1) | Under front passenger seat. See Figure. |
| X315 (Black, 8 Pin) (3) | In rear of floor console, at DVD screen hinge. See Figure. |

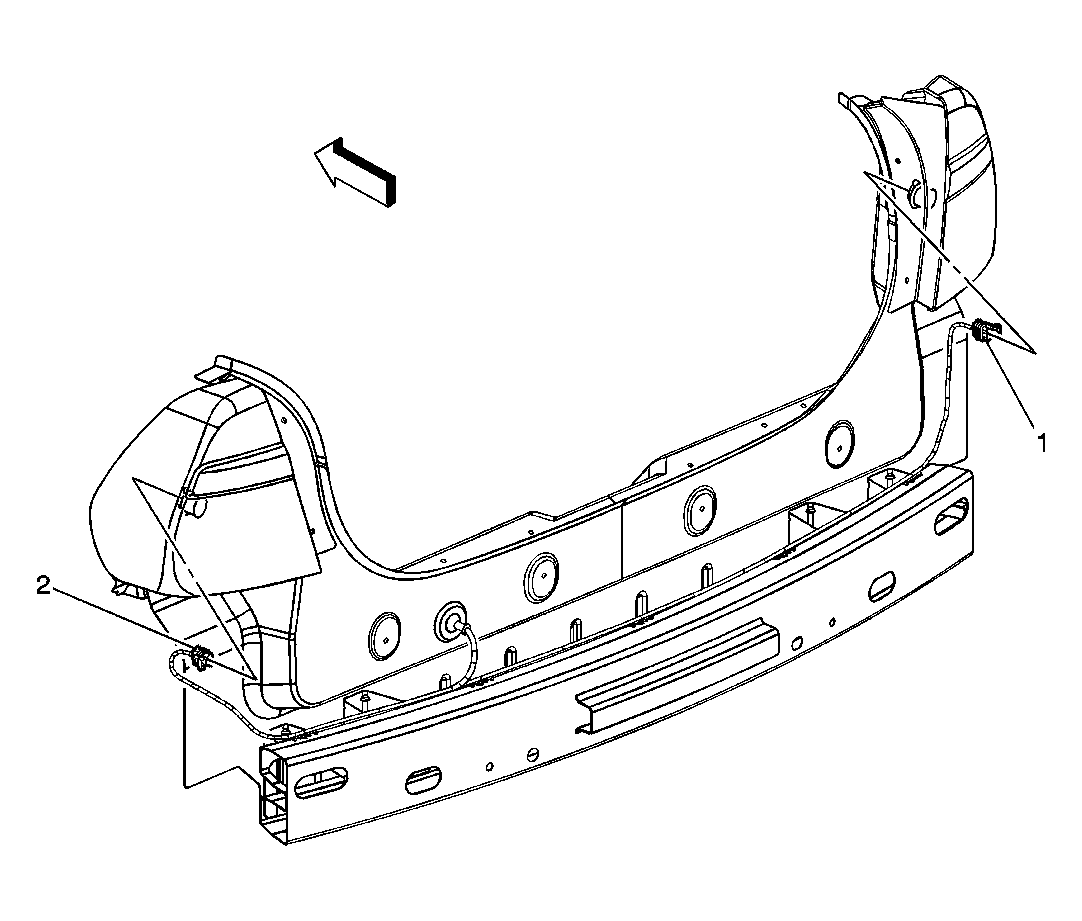

| X401 (Black, 4 Pin) (2) | Behind left rear taillamp assembly. See Figure. |
| X402 (Black, 4 Pin) (1) | Behind right rear taillamp assembly. See Figure. |
| X403 (Black, 4 Pin) (1) | Under right rear of vehicle, attached to side of vapor canister. See Figure. |
| X413 (Black, 10 Pin) (2) | Under right rear of vehicle, side of vapor canister. See Figure. |

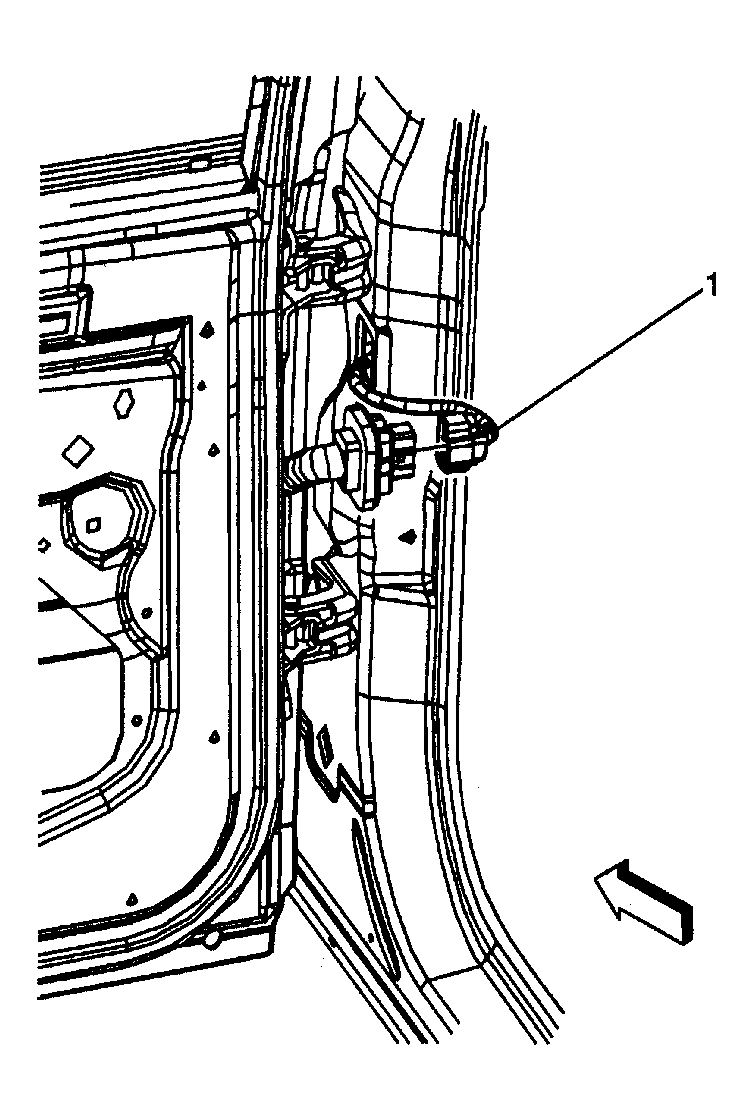

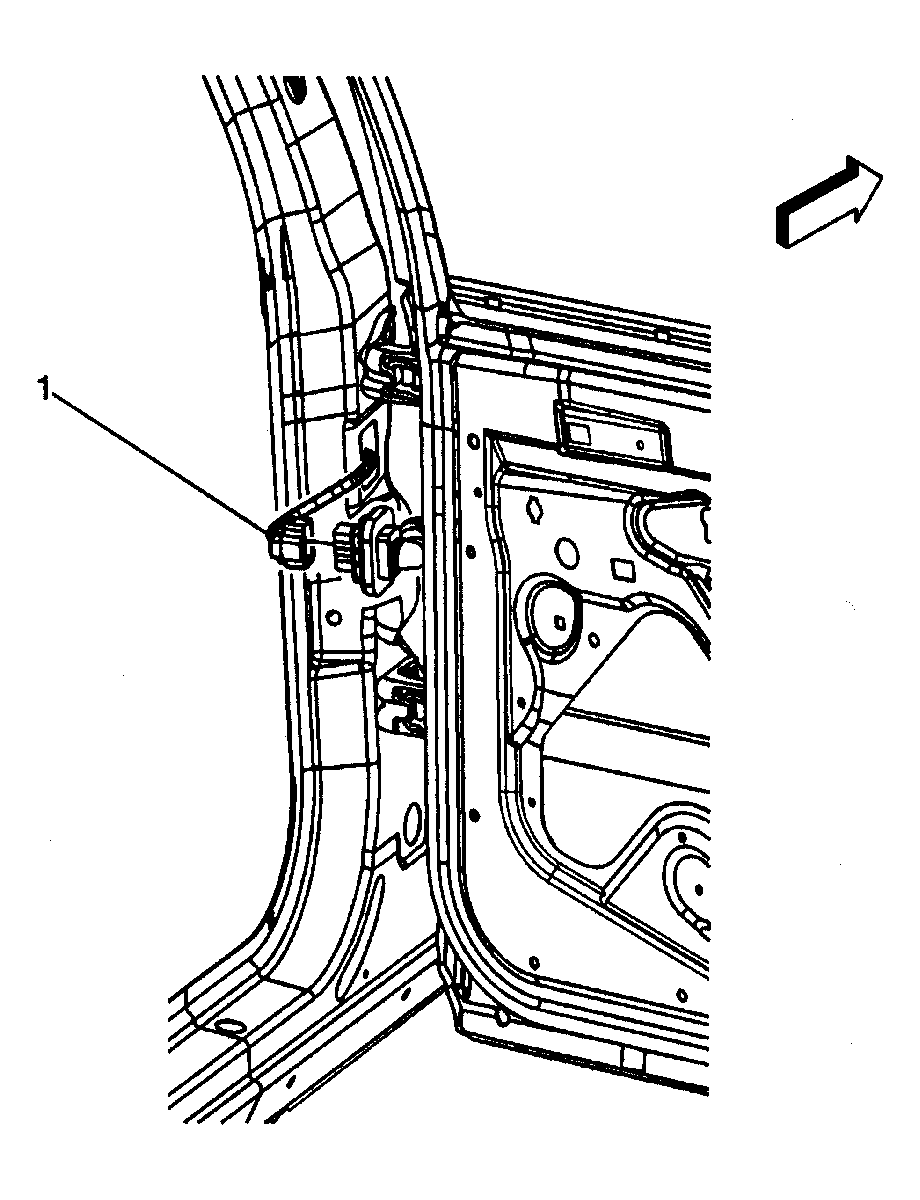

| X500 (Gray, 40 Pin) (1) | Left door jamb. See Figure. |
| X600 (Gray, 40 Pin) (1) | Right front door jamb. See Figure. |

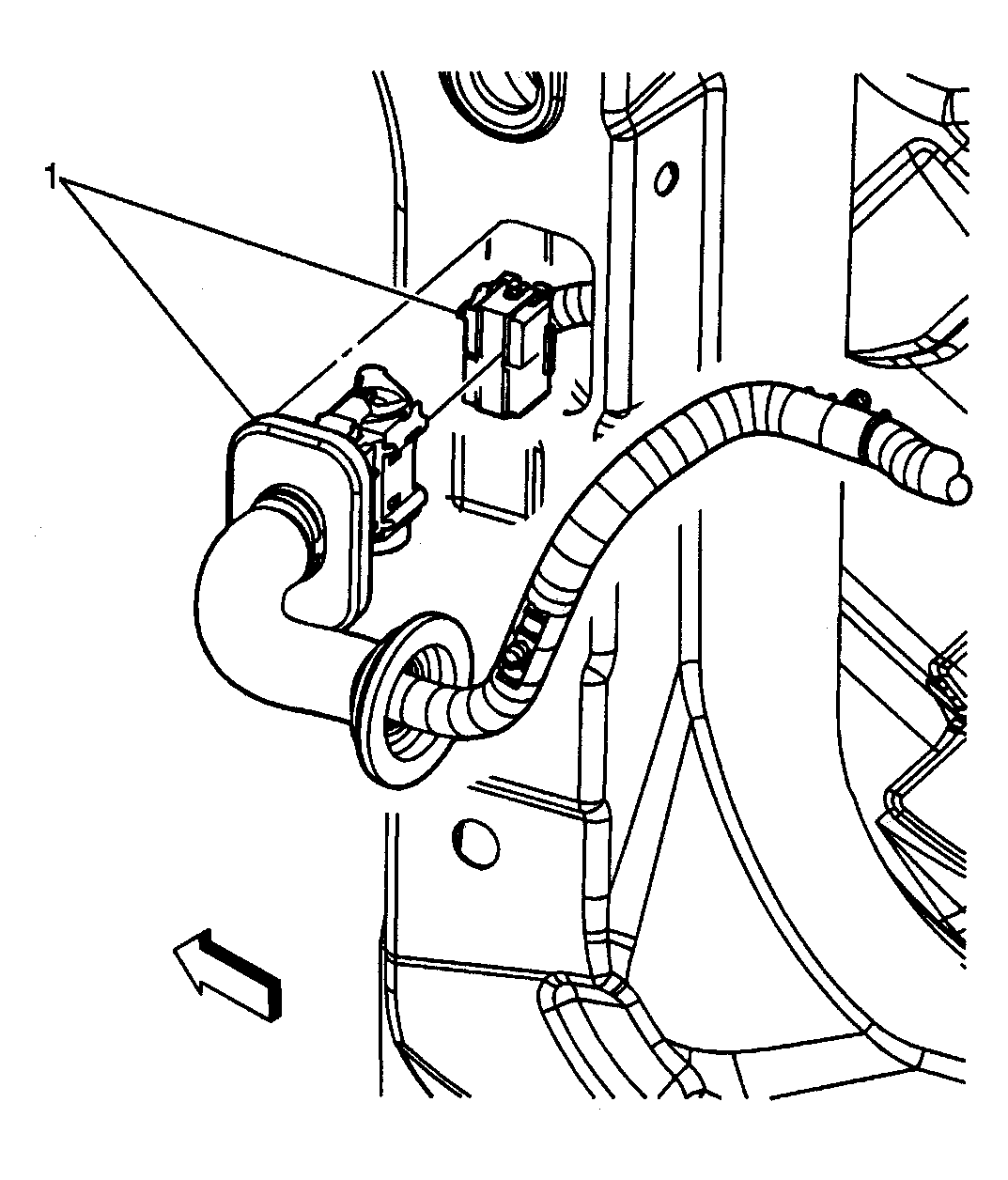

| X700 (Black, 14 Pin) (1) | Left rear door jamb. See Figure. |

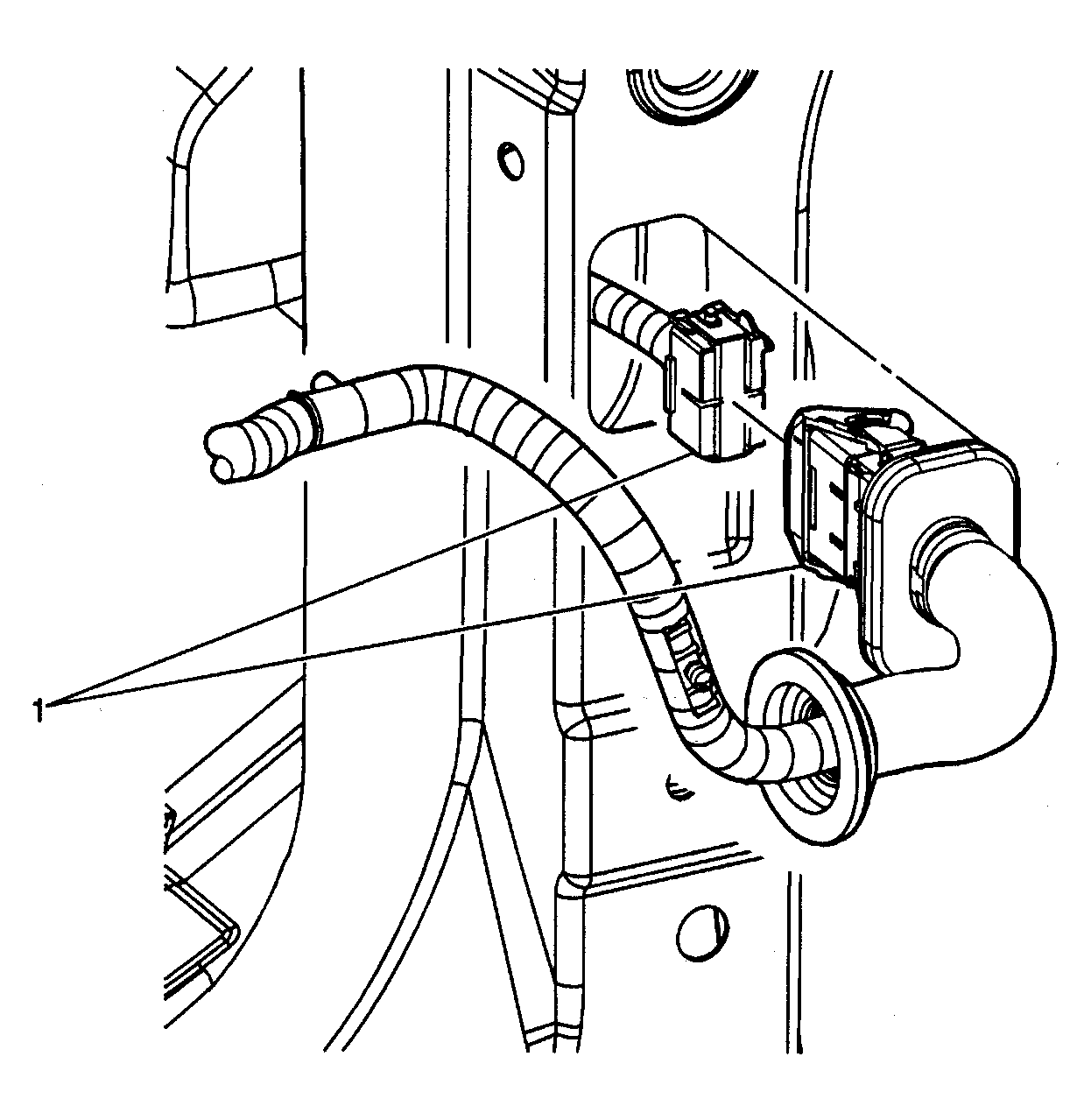

| X800 (Black, 14 Pin) (1) | Right rear door jamb. See Figure. |
