Passenger Compartment/Roof Component Views

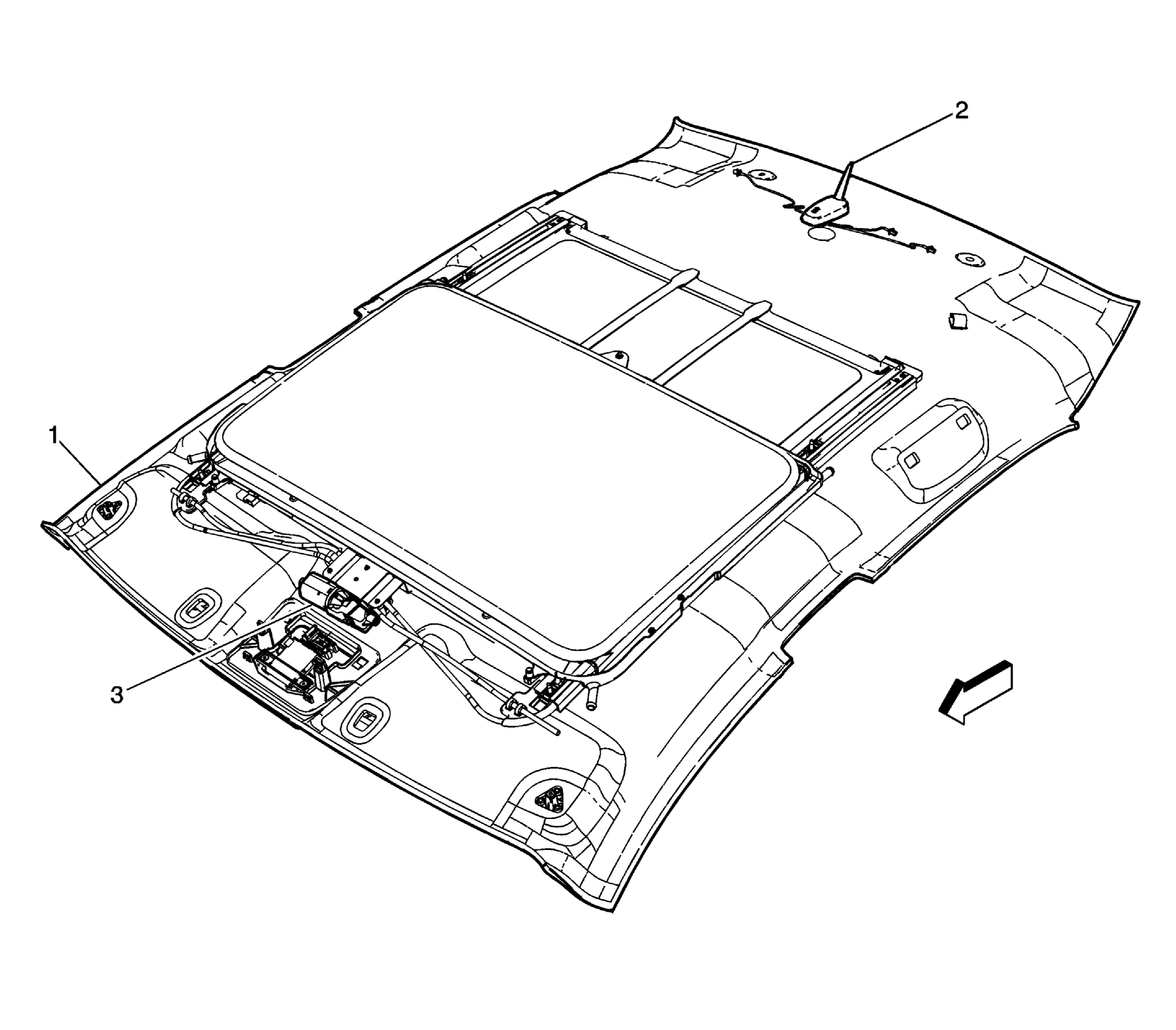

Fig 1: Headliner Components - Top View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner
2	Cellular and Digital Radio Antenna (UE1/U2K)
3	Sunroof Motor (CF5)

Fig 2: Identifying Headliner Components (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner
2	Dome/Reading Lamp
3	Garage Door Opener (UG1)
4	Sunroof Switch (CF5)

Fig 3: Identifying Left Side Windshield Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left A-Pillar
2	Remote Control Door Lock Receiver Windshield Antenna (AP3/AP8)

Fig 4: Above Front Windshield Connector Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vanity Mirror Lamp - Left Connector
2	Left Sunshade
3	Right Sunshade
4	Vanity Mirror Lamp - Right Connector
5	Vanity Mirror Lamp - Right
6	Inside Rearview Mirror
7	Vanity Mirror Lamp - Left

Fig 5: View Of Base Of Left A-Pillar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Left front Tweeter (UQ3)

Fig 6: View Of Base Of Right A-Pillar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Right Front Tweeter (UQ3)

Fig 7: View Of Roof Rail Air Bags (AY1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof Rail Module - Right
2	Roof Rail Module - Left
3	Drivers Seat

Fig 8: View Of Forward Headliner (9C1, 9C3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Reading lamp Assembly

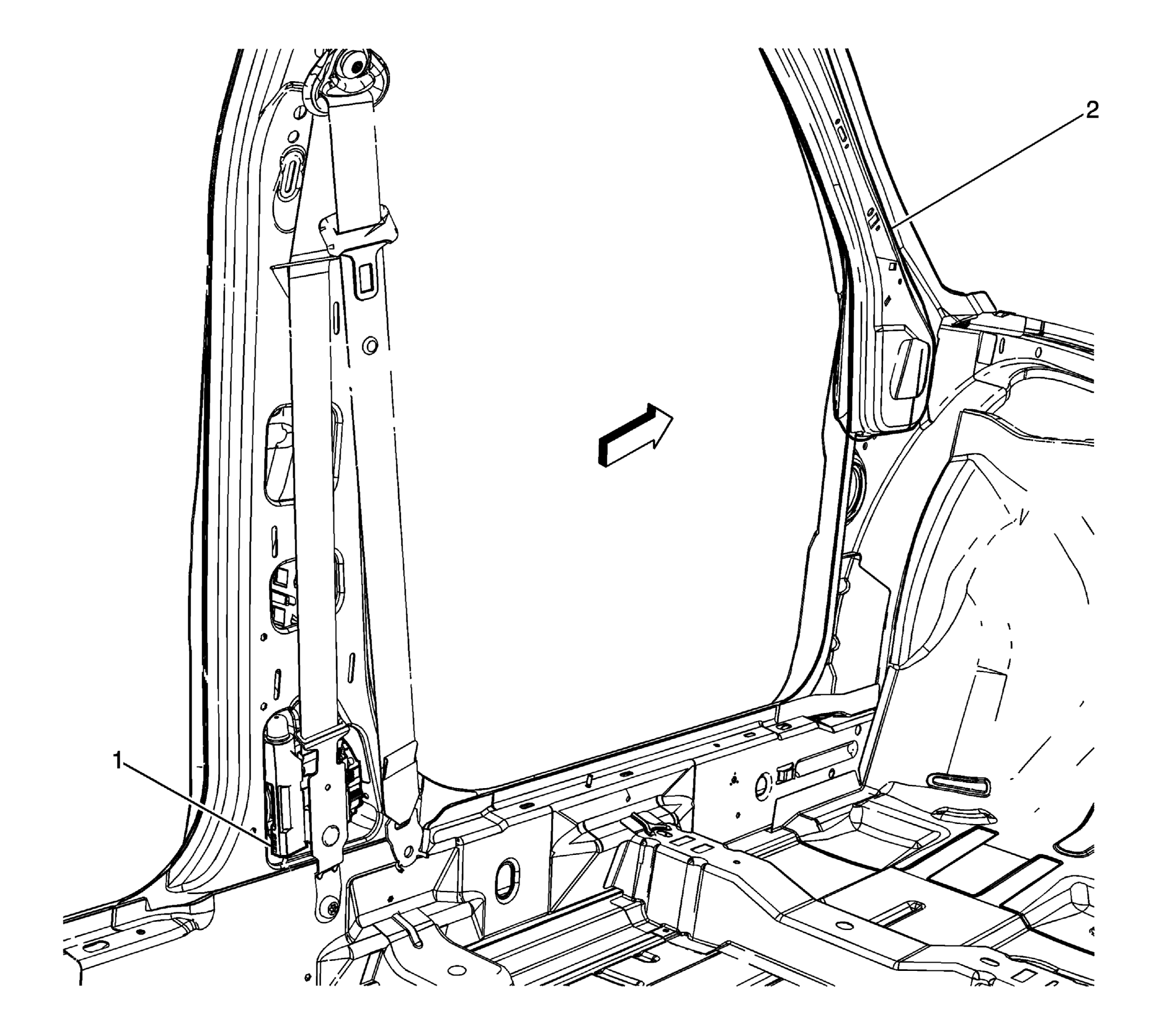

Fig 9: Identifying left B-Pillar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - Left
2	Left A-Pillar

Fig 10: Left Front Seat Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch - Driver

Fig 11: View Of Front Seat Airbag Inlines

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch-Passenger
2	Passenger
3	X314
4	Seat Belt Switch-Driver
5	Inflatable Restraint Side Impact Module-Left
6	X312
7	Driver Seat
8	Inflatable Restraint Side Impact Module-Right

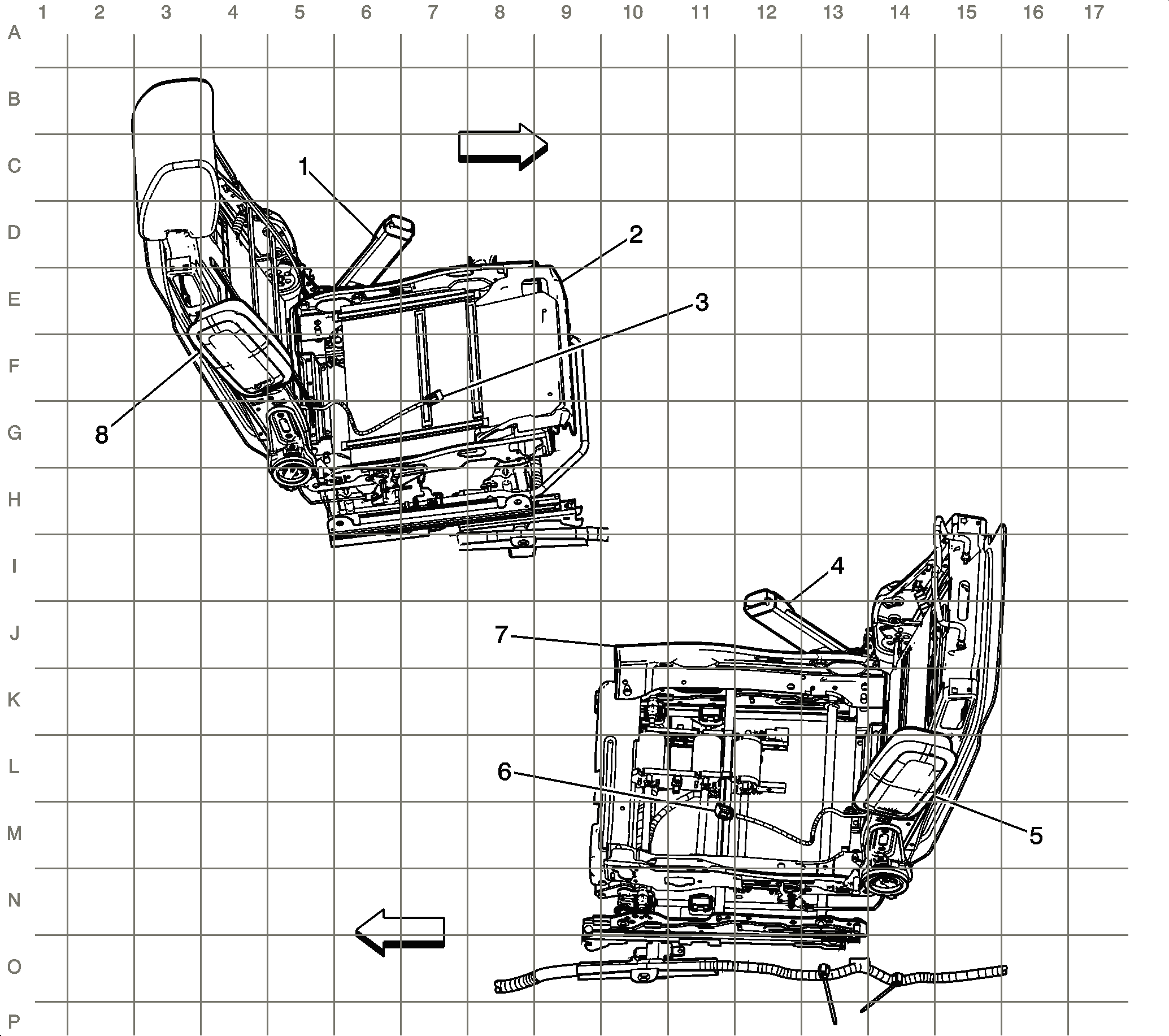

Fig 12: Identifying Driver Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Recline Motor - Driver (AH5)
2	Heated Seat Element - Driver - Back (KA1)
3	Seat Adjuster Switch - Driver
4	Heated Seat Control Module (KA1)
5	Horizontal Motor (Part of the Seat Adjuster Motor Assembly - Driver)
6	Front Vertical Motor (Part of the Seat Adjuster Motor Assembly - Driver)
7	Rear Vertical Motor (Part of the Seat Adjuster Motor Assembly - Driver)
8	Heated Seat Element - Driver - Seat (KA1)

Fig 13: View Of Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Passenger - Back (KA1)
2	Seat Belt Switch - Passenger
3	Seat Belt Tension Sensor - Passenger
4	Seat Belt Tension Sensor - Passenger, Connector
5	Rear Vertical Motor (Part of the Seat Adjuster Motor Assembly - Passenger)
6	Front Vertical Motor (Part of the Seat Adjuster Motor Assembly - Passenger)
7	Horizontal Motor (Part of the Seat Adjuster Motor Assembly - Passenger)
8	Inflatable Restraint Front Passenger Presence System (PPS) Module
9	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
10	Seat Adjuster Switch - Passenger (AG2)
11	Heated Seat Element - Passenger - Seat (KA1)

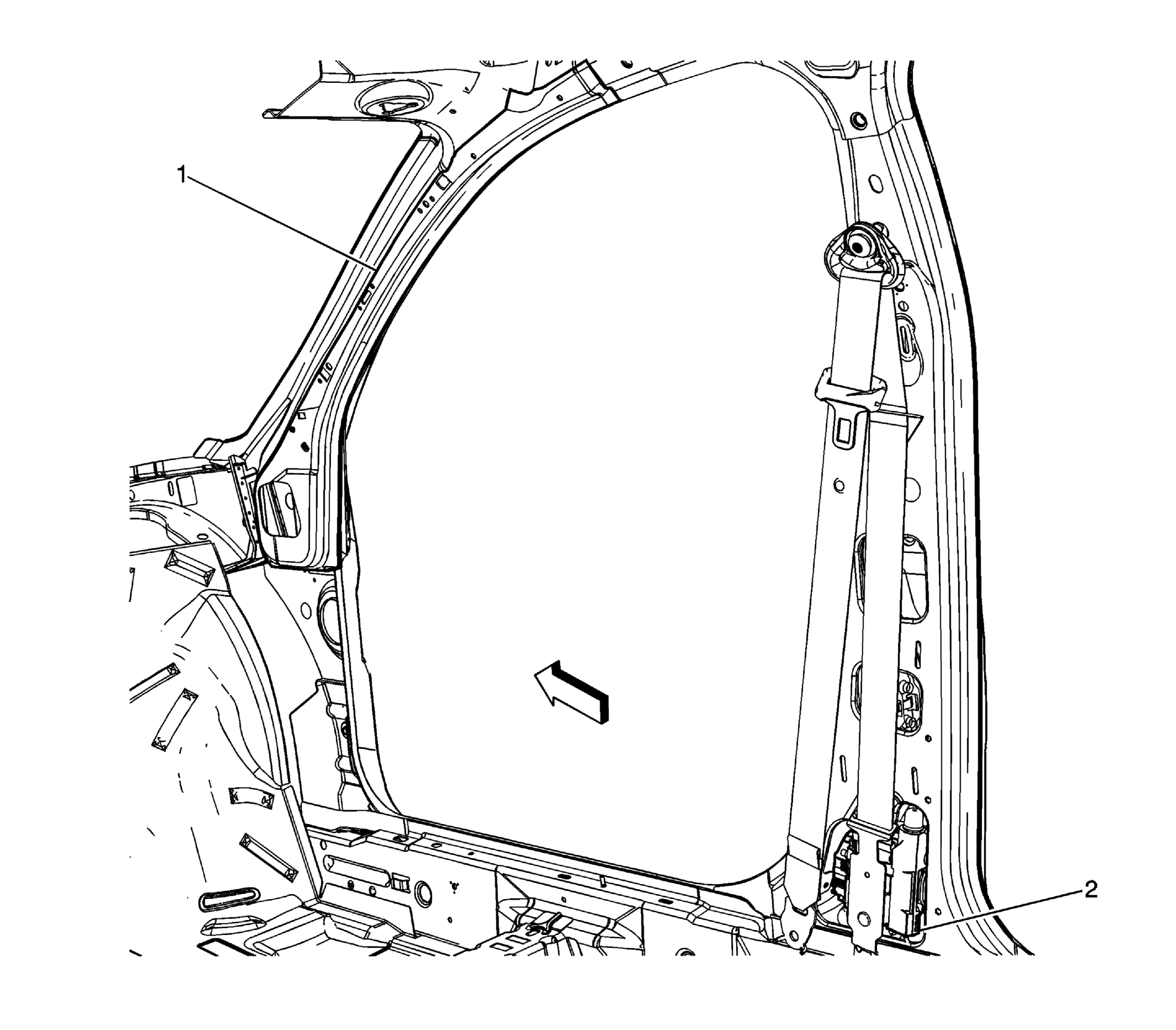

Fig 14: Driver Seat Components Right B-Pillar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right A-Pillar
2	Seat Belt Pretensioner - Right

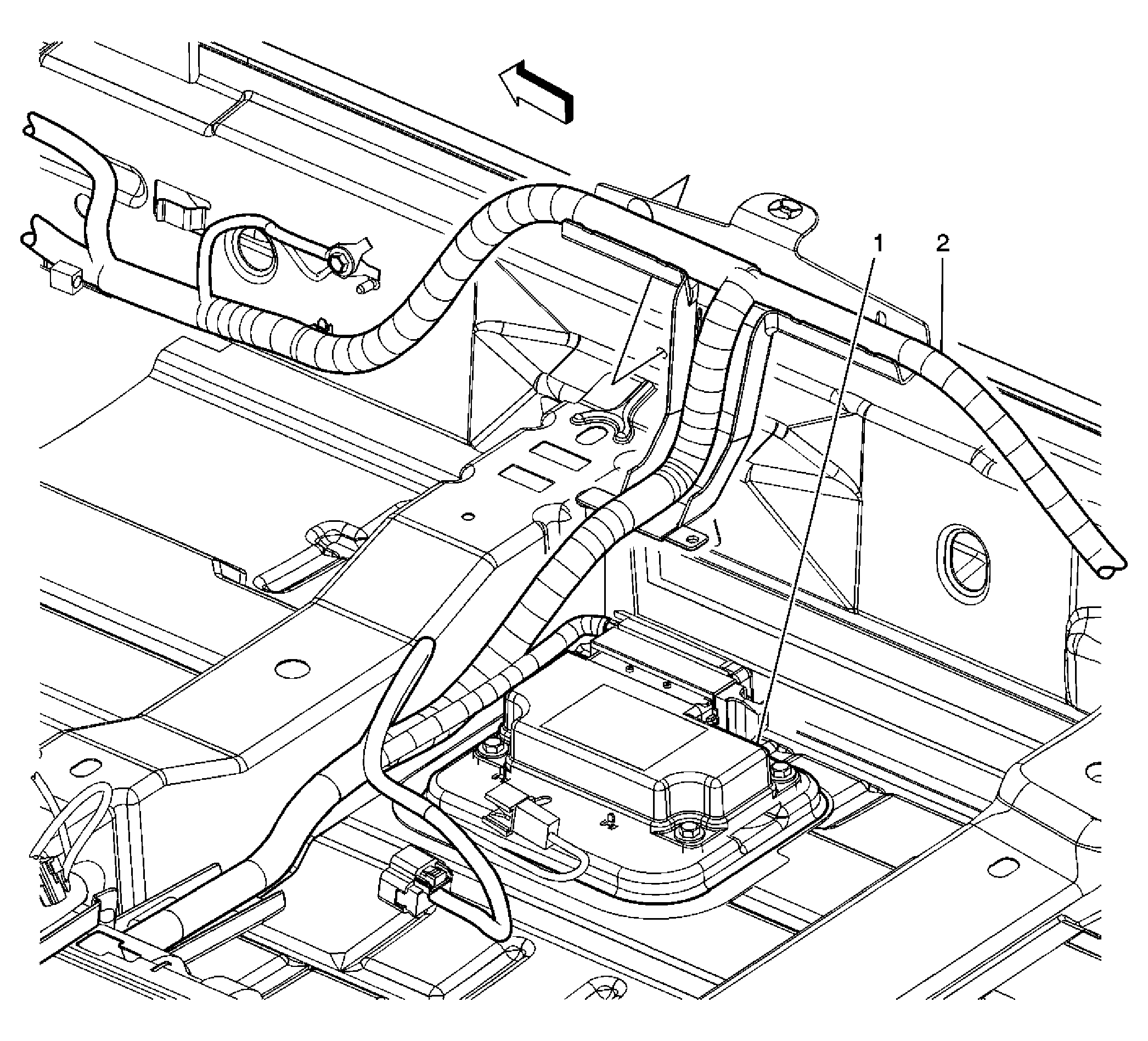

Fig 15: View Of Components Under Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Sensing and Diagnostic Module (SDM)
2	Front Passenger Floor Panel

Fig 16: Locating Radio & Speaker Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Audio Amplifier (UQ3)
2	Speaker - Left Rear
3	Speaker - Left Front Door
4	Speaker - Left Front Tweeter (UQ3)
5	Radio
6	Speaker - Right Front Tweeter (UQ3)
7	Speaker - Right Front Door
8	Speaker - Right Rear

Fig 17: View Above Rear Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Rear C-Pillar
2	Radio Antenna Module
3	Rear Seat

Fig 18: Locating Components On Package Shelf (9C1, 9C3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Emergency Vehicle Rear Window Panel Lamp - Left (9C1/9C3)
2	Emergency Vehicle Rear Window Panel Lamp - Right (9C1/9C3)
