Luggage Compartment/Rear of Vehicle Component Views

Fig 1: View Under Rear Package Shelf

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Left Rear
2	Audio Amplifier
3	Rear Compartment Courtesy Lamp
4	Speaker - Right Rear

Fig 2: Identifying Left Side of Rear Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Interface Module (VCIM) (UE1)
2	Vehicle Communication Interface Module (VCIM) Battery (UE1)
3	Terminator Resistor (UE1)

Fig 3: Right Front Of Rear Compartment Component View (w/T53)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X409
2	Emergency Vehicle Rear Compartment Lid Lamps Relay

Fig 4: View Right Side Of Luggage Compartment

Courtesy of GENERAL MOTORS CORP.

Fig 5: View Of Rear Compartment Lid (9C1, 9C3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Emergency Vehicle Rear Compartment Lid Lamp - Left (T53)
2	Emergency Vehicle Rear Compartment Lid Lamp - Right (T53)

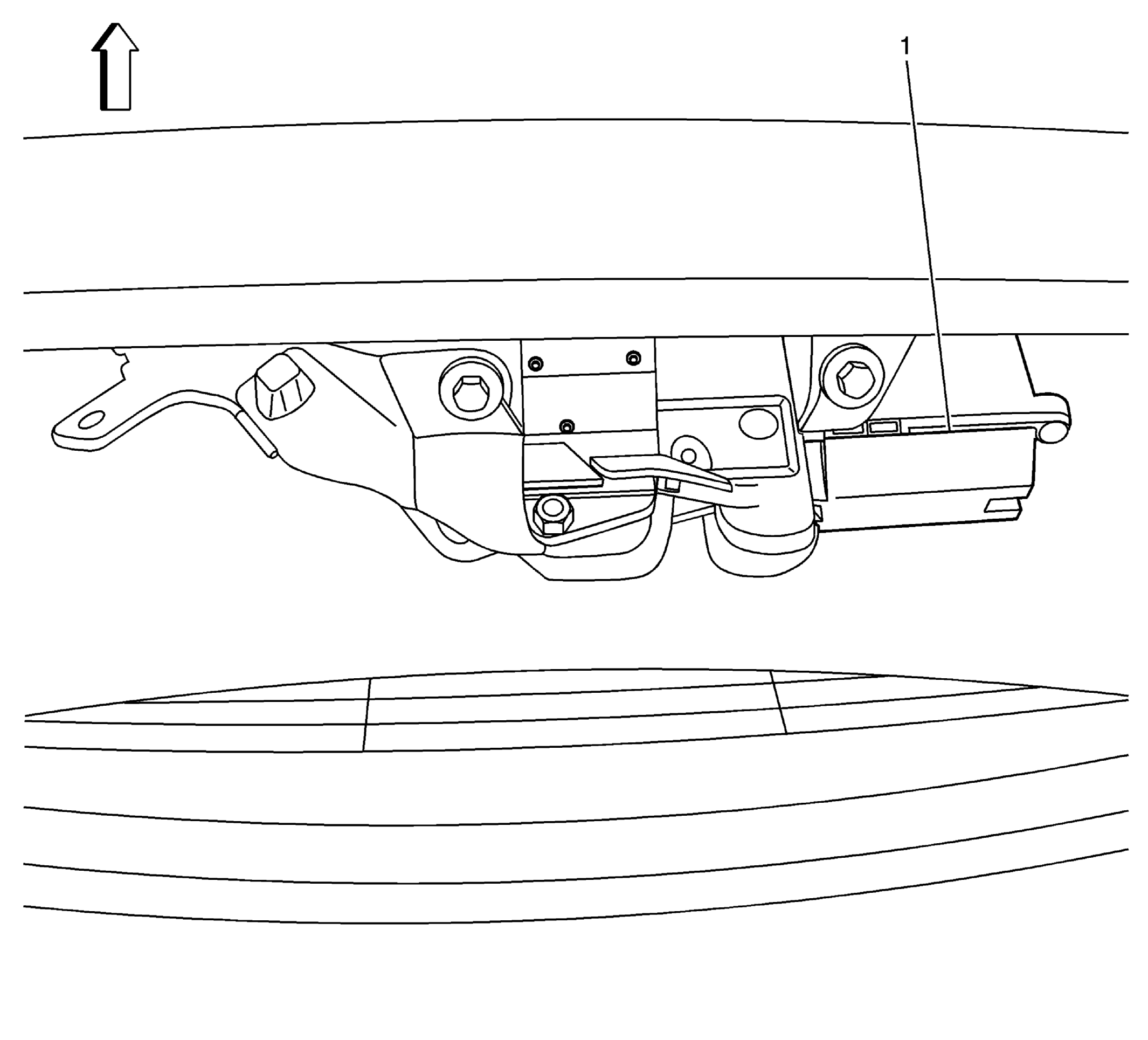

Fig 6: View Of Rear Center Deck Lid Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Release Actuator

Fig 7: Identifying Rear Of Vehicle (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Radio Rear Window Antenna
3	Tail/Stop and Turn Signal Lamp - Right
4	Tail Lamp - Right
5	Backup Lamp - Right
6	License Lamp
7	Center High Mounted Stop Lamp (CHMSL)
8	Backup Lamp - Left
9	Tail Lamp - Left
10	Tail/Stop and Turn Signal Lamp - Left
