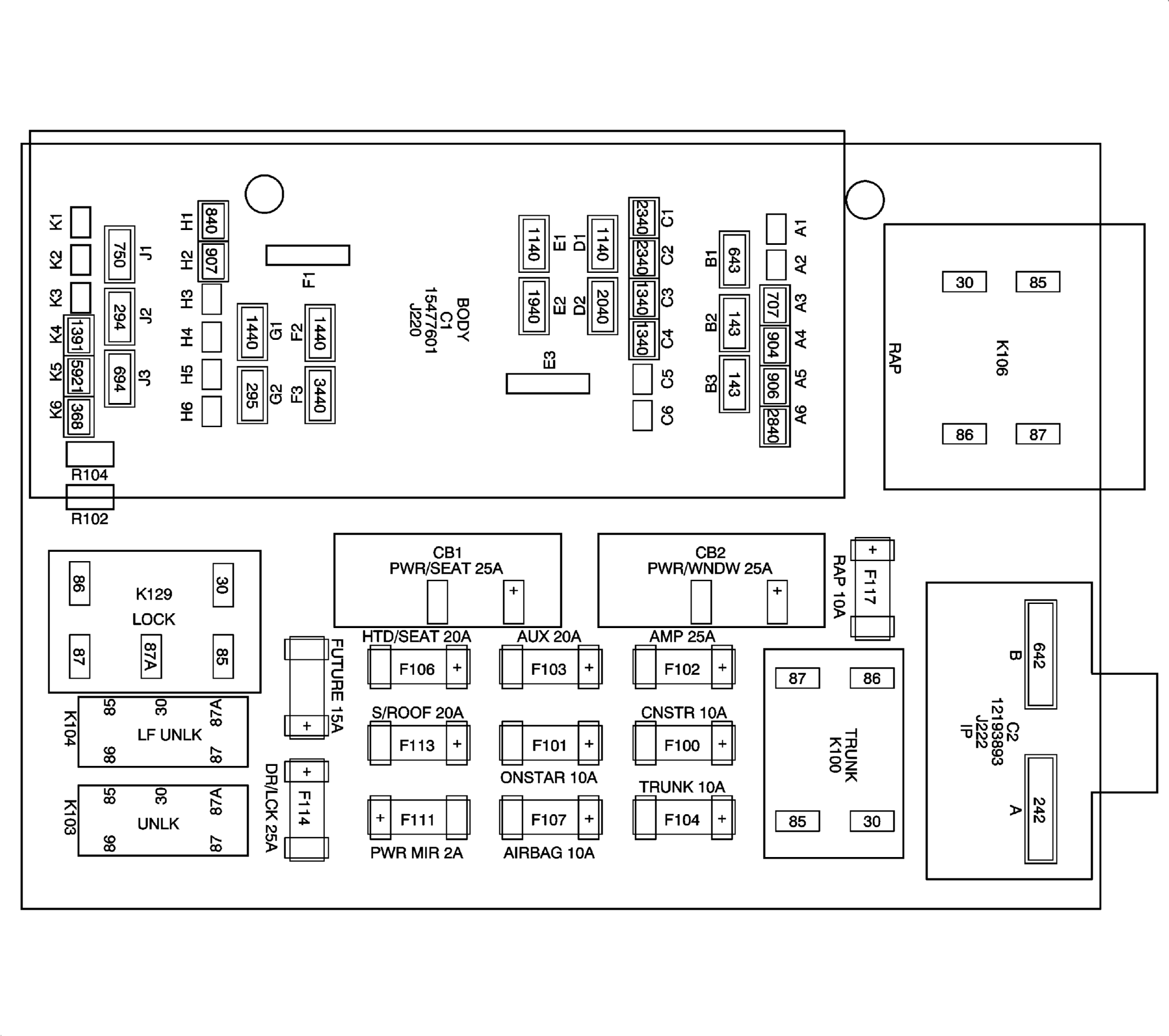

Home >> Chevrolet >> 2008 >> Impala SS >> Repair and Diagnosis >> Quick Lookups >> Electrical Component Locations >> Wiring Systems And Power Management - Component Views & Component Connector End Views >> Electrical Center Identification Views >> Fuse Block - I/P Top View
