Vehicle Speed Sensor (VSS)

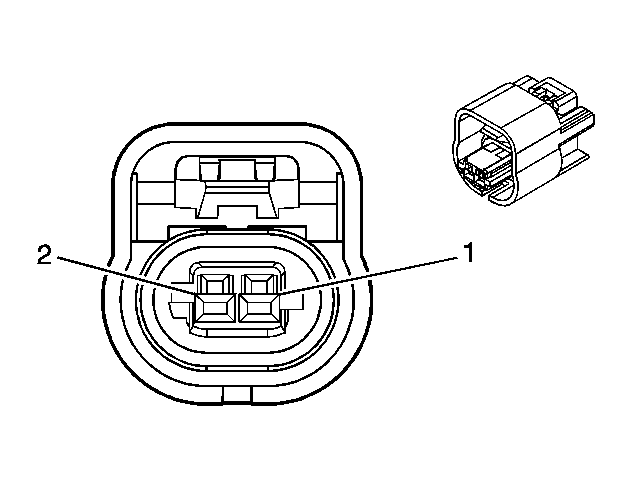

Fig 1: Vehicle Speed Sensor (VSS) Connector End View
GM1537469Courtesy of GENERAL MOTORS CORP.
Vehicle Speed Sensor (VSS)

Pin Wire Circuit Function
1 0.35 PU 401 Signal Low - Front
2 0.35 YE 400 Signal High - Front
Connector Part Information
  • OEM: 15336004
  • Service: 15306187
  • Description: 2-Way F GT 150 Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 15326267/19
  • Core/Insulation Crimp: E/4
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
