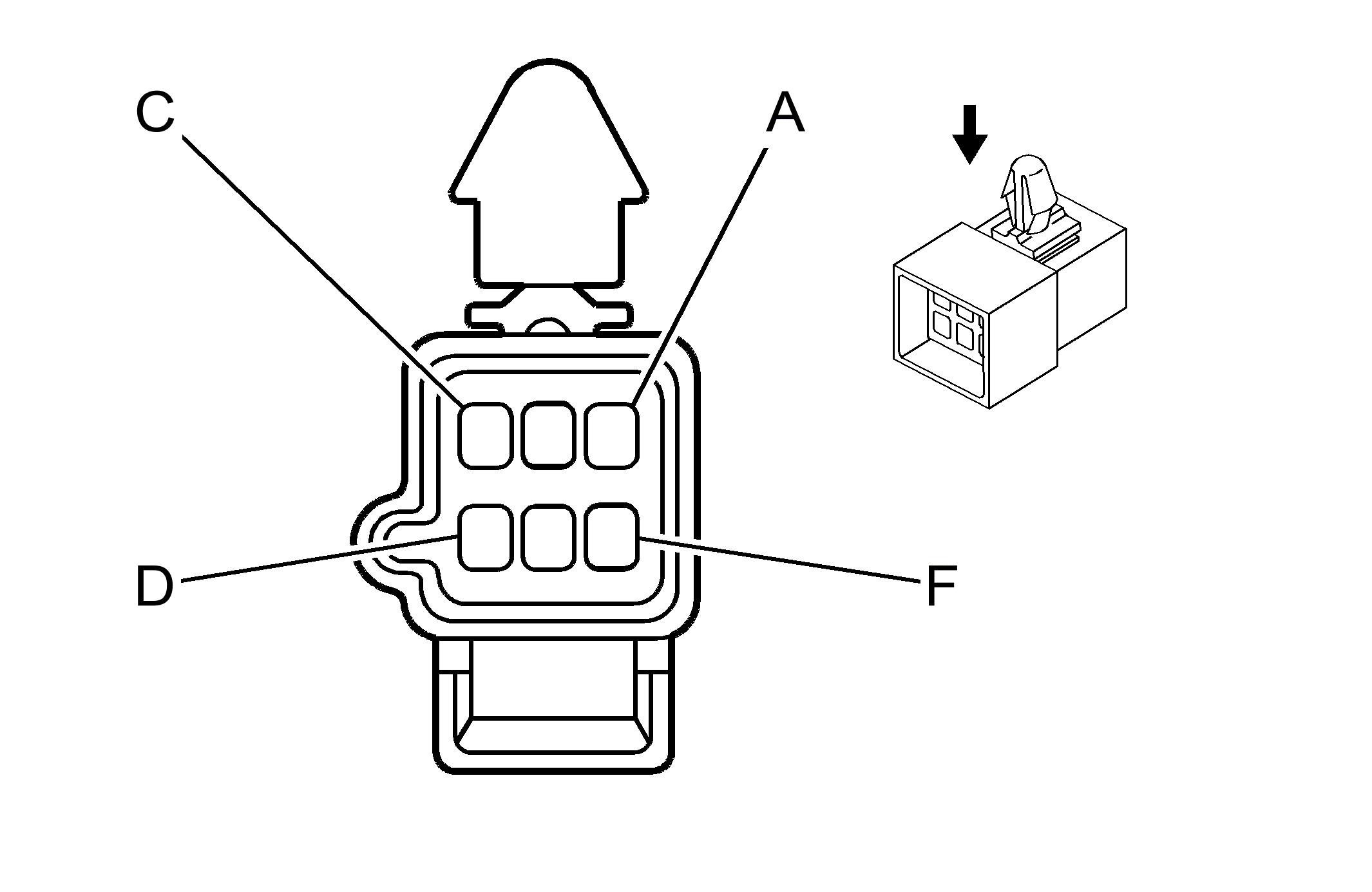

Outside Rearview Mirror - Driver
Courtesy of GENERAL MOTORS CORP. Outside Rearview Mirror - Driver
| Pin |
Wire |
Circuit |
Function |
| A |
0.5 WH |
81 |
Driver Mirror Motor Right Control |
| B |
0.5 L-GN |
89 |
Driver Mirror Motor Down Control |
| C |
0.5 TN |
329 |
Driver Mirror Motor Supply Voltage |
| D |
- |
- |
Not Used |
| E |
0.5 BK |
550 |
Ground |
| F |
0.5 OG |
267 |
Heated Mirror Element Supply Voltage |
Connector Part Information
- OEM: 12065781
- Service: 12101876
- Description: 6-Way M Metri-Pack 150 Series (GY)
|
Terminal Part Information
- Terminal/Tray: 12047581/2
- Core/Insulation Crimp: E/C
- Release Tool/Test Probe: 12094429/J-35616-3 (GY)
|
