Headlamp - Low Beam - Right

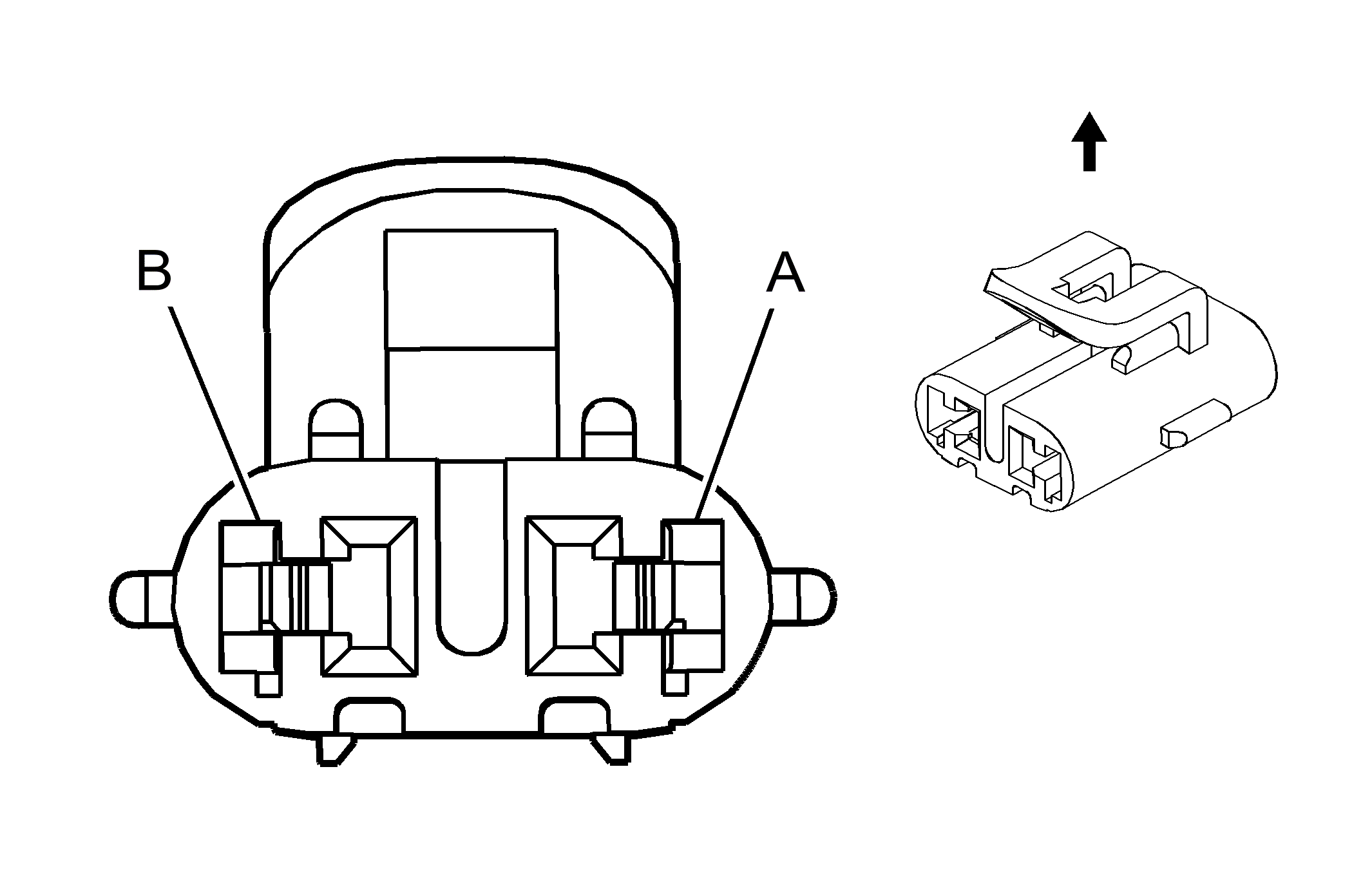

Fig 1: Headlamp - Low Beam - Right Connector End View
GM1717009Courtesy of GENERAL MOTORS CORP.
Headlamp - Low Beam - Right

Pin Wire Circuit Function
A 0.8 GN 312 Right Headlamp Low Beam Supply Voltage
B 0.8 BK 1250 Ground
Connector Part Information
  • OEM: H11
  • Service: See Catalog
  • Description: 2-Way F (WH)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
