Circuit Breaker 3 (SEO 9C1/9C3)

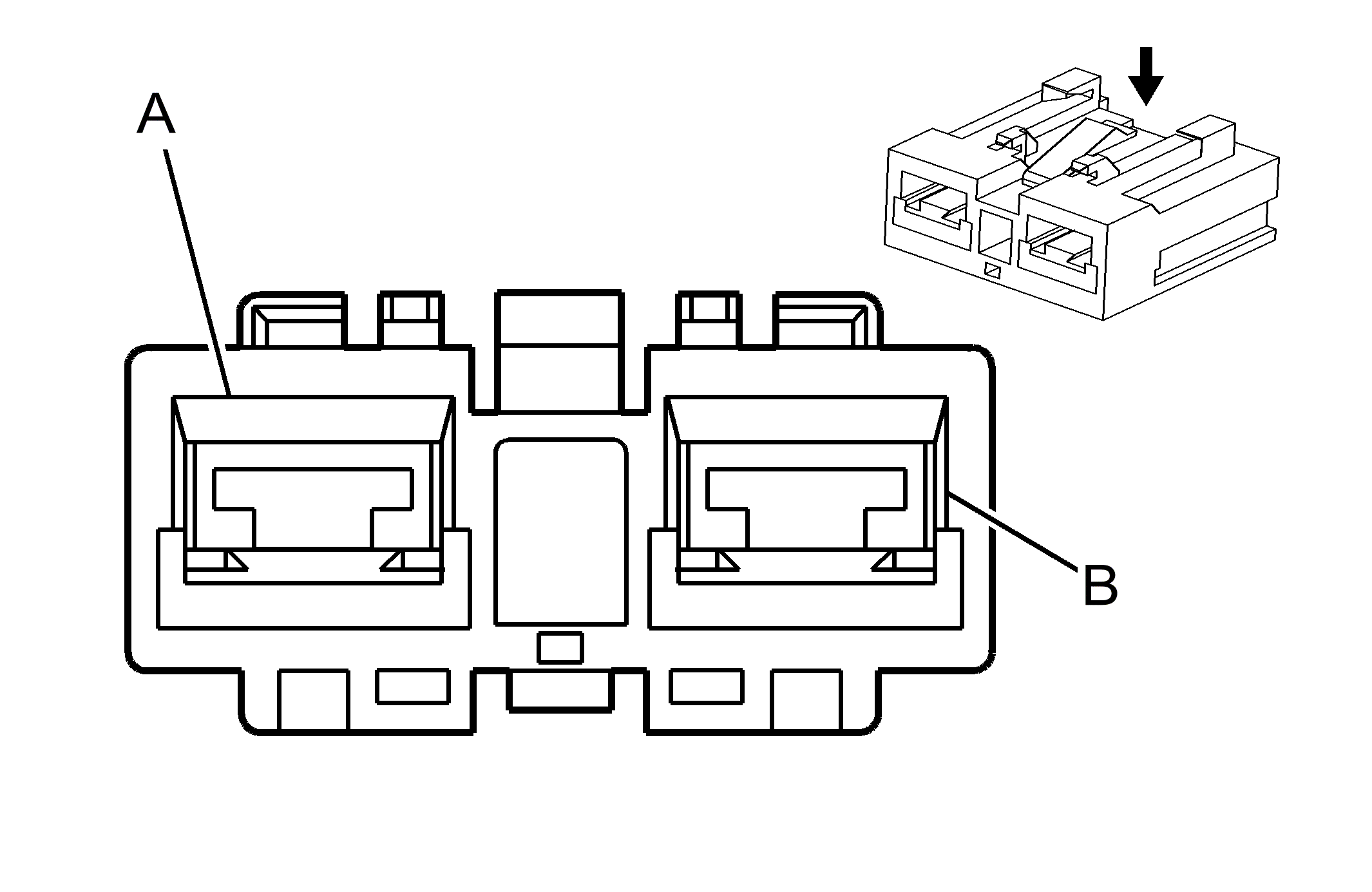

Fig 1: Circuit Breaker 3 (SEO 9C1/9C3) Connector End View
GM1673492Courtesy of GENERAL MOTORS CORP.
Circuit Breaker 3 (SEO 9C1/9C3)

Pin Wire Circuit Function
A 5 RD/BK 402 Battery Positive Voltage
B 5 RD/WH 3740 Battery Positive Voltage
Connector Part Information
  • OEM: 12110057
  • Service: 12110057
  • Description: 2-Way F MAXI (BK)
Terminal Part Information
  • Terminal/Tray: 12110127/19
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: 12150860/J-35616-44 (YE)
