Sunroof Switch Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

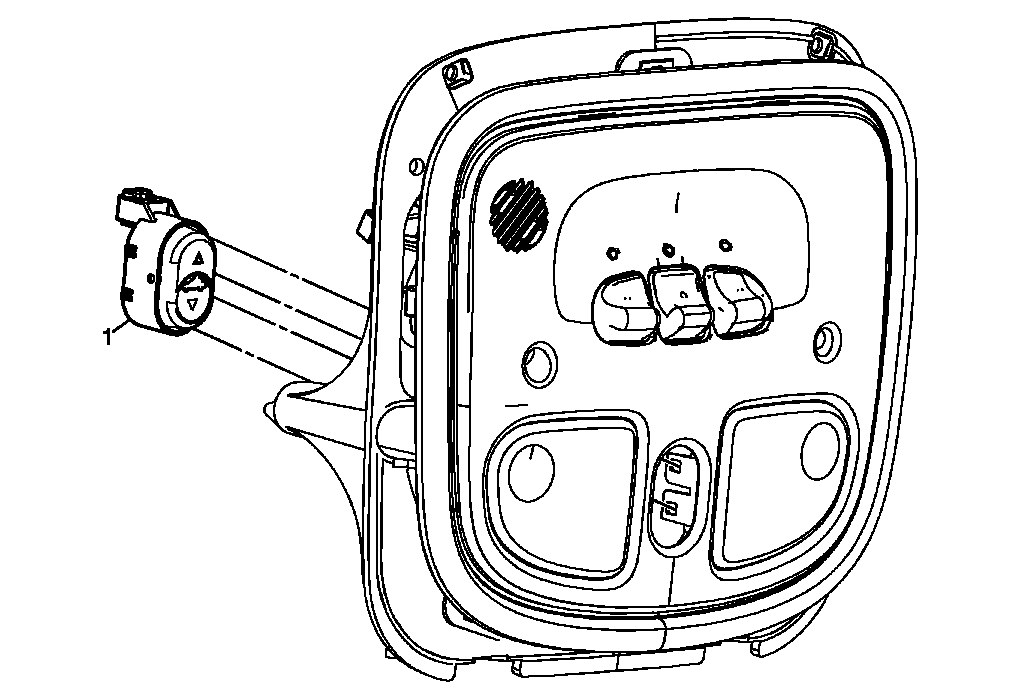

Fig 1: Identifying Sunroof Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the overhead console. Refer to Roof Console Replacement .
1	Sunroof Switch Procedure Unsnap the switch from the console. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure:
Remove the overhead console. Refer to Roof Console Replacement .

Sunroof Switch

Procedure

Unsnap the switch from the console.
Disconnect the electrical connector.
