Power Moding Schematics

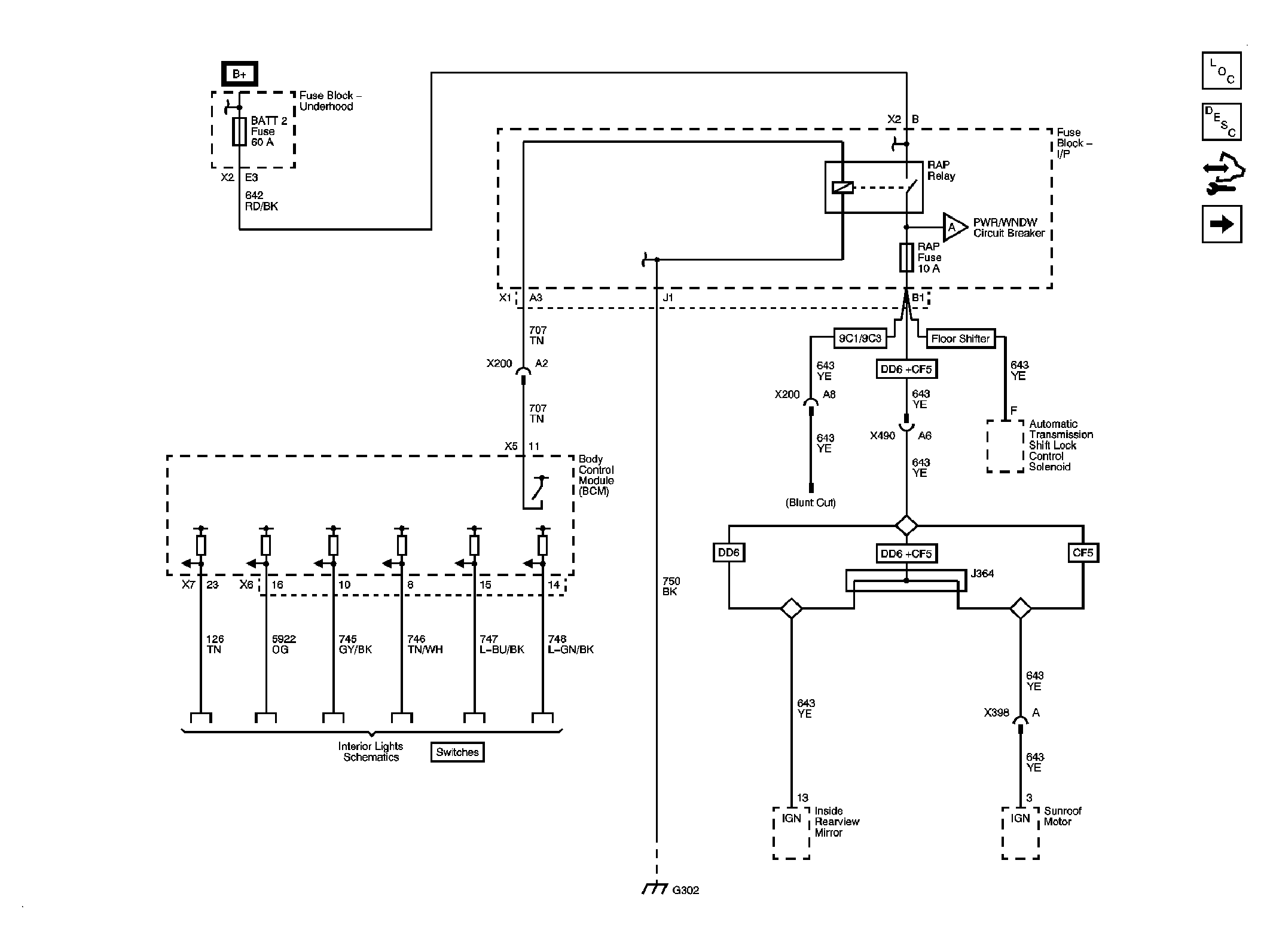

Fig 1: Retained Accessory Power - RAP Fuse Circuits Schematic
GM1888426Courtesy of GENERAL MOTORS CORP.
Fig 2: Retained Accessory Power - Power Window Circuits Schematic
GM1888429Courtesy of GENERAL MOTORS CORP.
