Installation Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

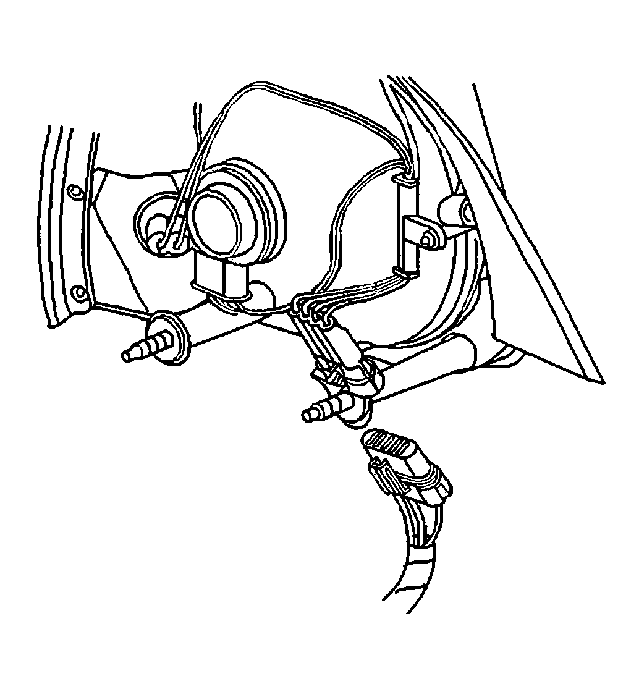

    Fig 1: Tail Lamp Electrical Connector (Monte Carlo)
    GM458223Courtesy of GENERAL MOTORS CORP.
  1. Install the bulb to the tail lamp socket.
  2. Install the bulb to the sidemarker lamp socket.
  3. Install the sidemarker lamp socket, turning clockwise.
  4. Install the tail lamp socket, turning clockwise.
    NOTE: Note the correct routing of the electrical wiring. Failure to reinstall the wiring properly could result in damage to the wiring.

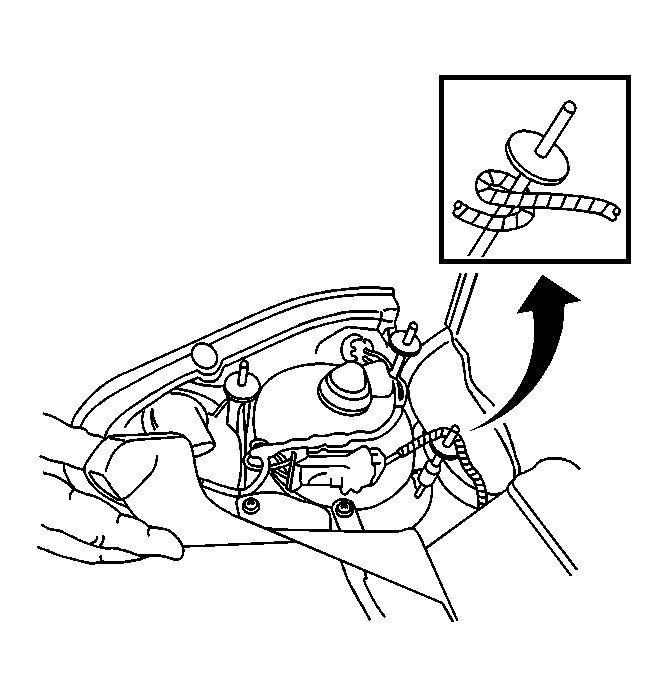

    5. Fig 2: Tail Lamp Electrical Wiring
    GM738424Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connector to the tail lamp.

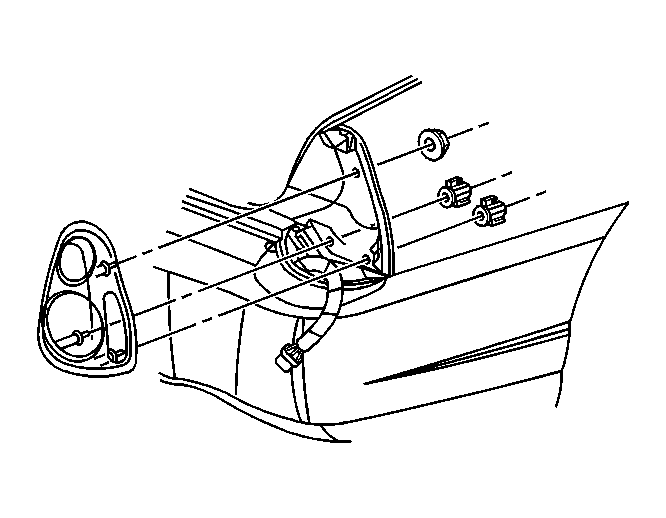

    6. Fig 3: Tail Lamp & Components (Monte Carlo)
    GM458222Courtesy of GENERAL MOTORS CORP.
  6. Install the tail lamp to the rear body panel
  7. Install the lower wingnuts to the tail lamp.
  8. Pull back the rear compartment trim panel to the tail lamp.
  9. Install the upper wingnut to the tail lamp.
  10. Close the rear compartment.
