Radio Replacement
WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

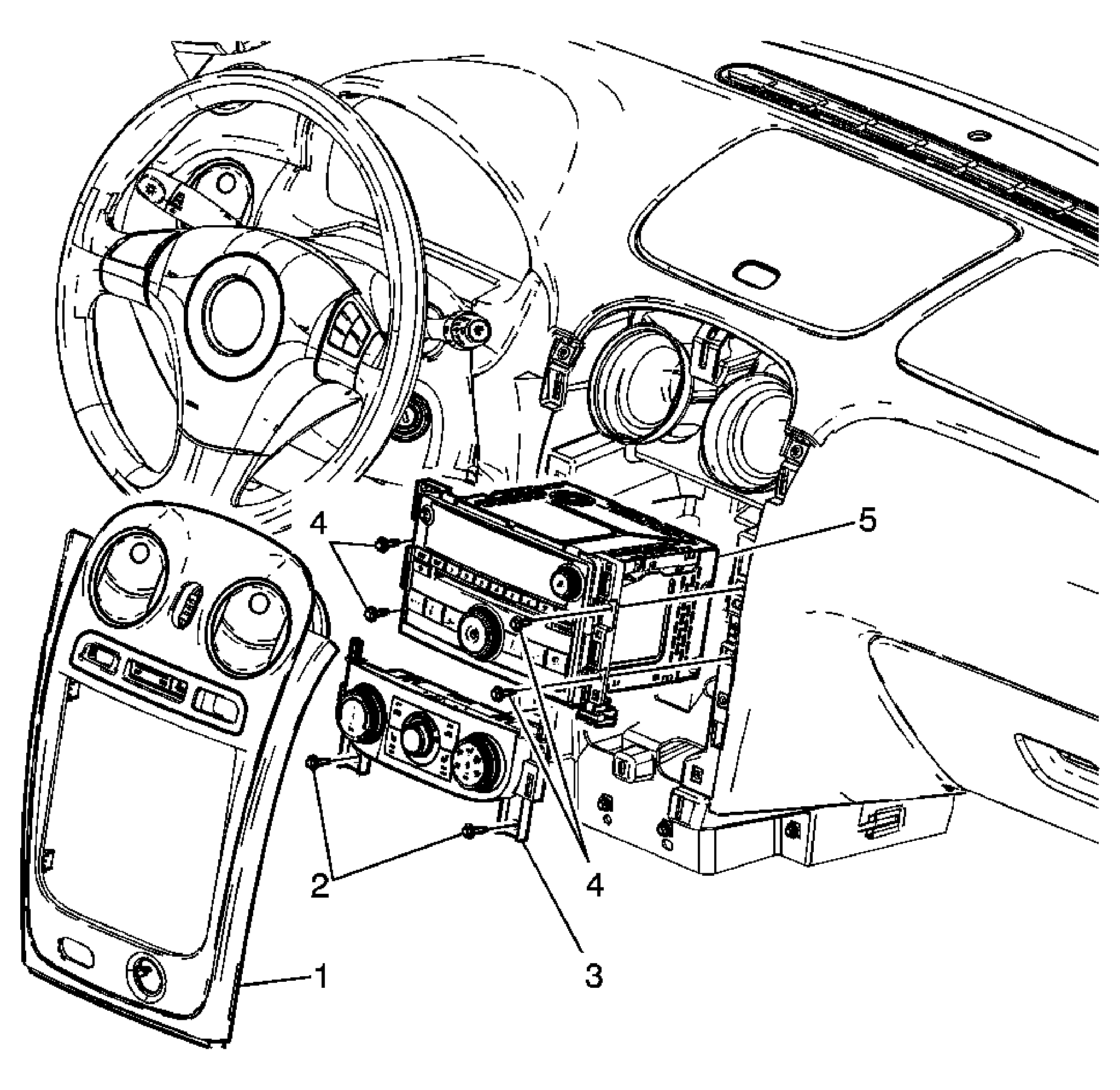

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front floor console. Refer to Front Floor Console Replacement . |
|
| 1 | Instrument Panel Accessory Trim Plate Assembly Tip: Pull away from the instrument panel to disengage the retainers and disconnect the electrical connectors. |
| 2 | Heater and A/C Control Assembly Screws (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 3 | Heater and A/C Control Assembly Tip: Disconnect the electrical connector. |
| 4 | Radio Assembly Screw (Qty: 4) Tighten: 2 N.m (18 lb in) |
| 5 | Radio Assembly Tip:
|
