Radio Front Side Door Speaker Replacement
WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

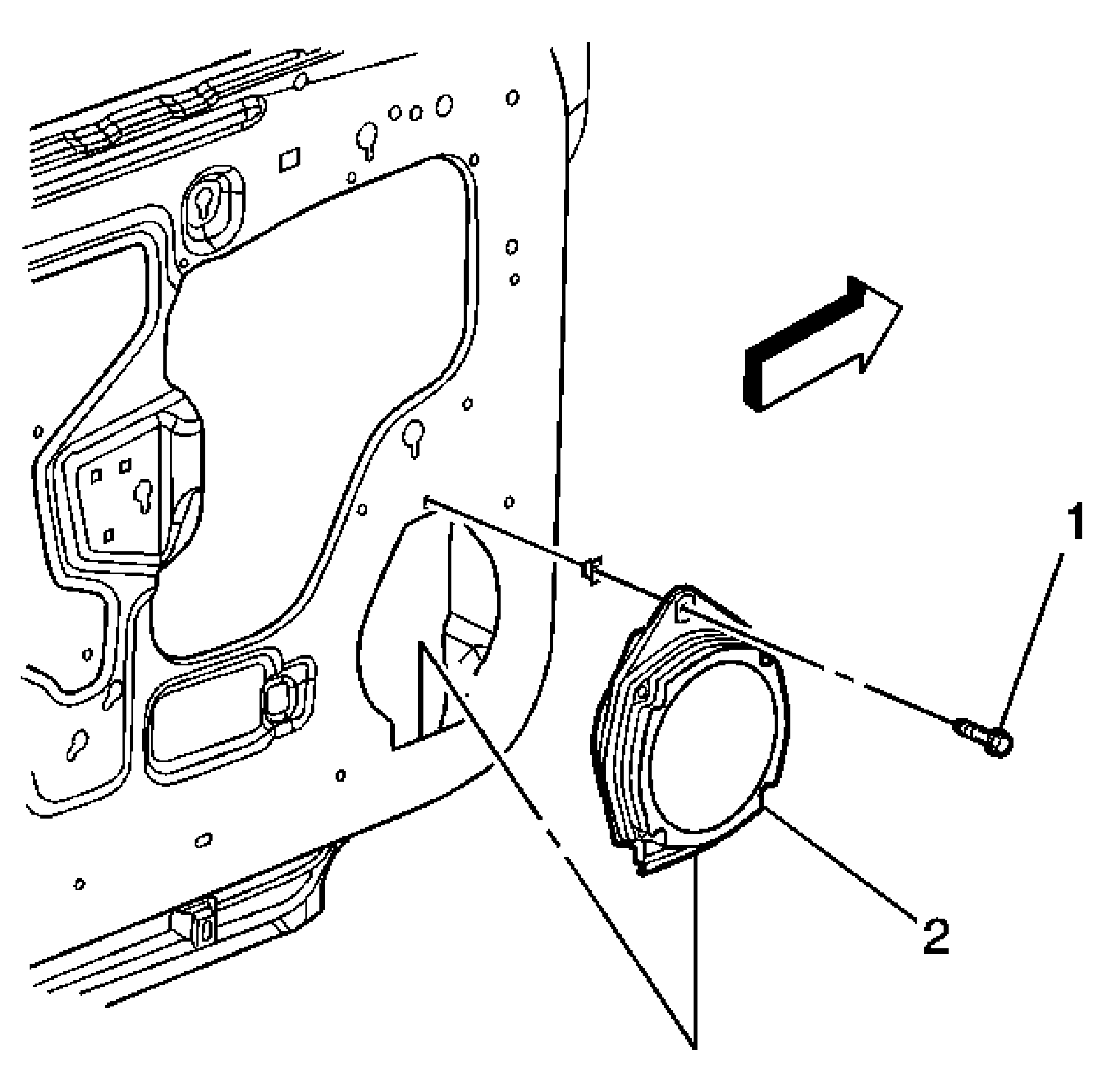

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front door inner trim panel. Refer to Front Side Door Trim Panel Replacement . |
|
| 1 | Front Door Speaker Screw
CAUTION:
Refer to Fastener Caution
.
Tighten: 3 N.m (25 lb in) |
| 2 | Front Door Speaker |
