Radio Antenna Replacement
WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

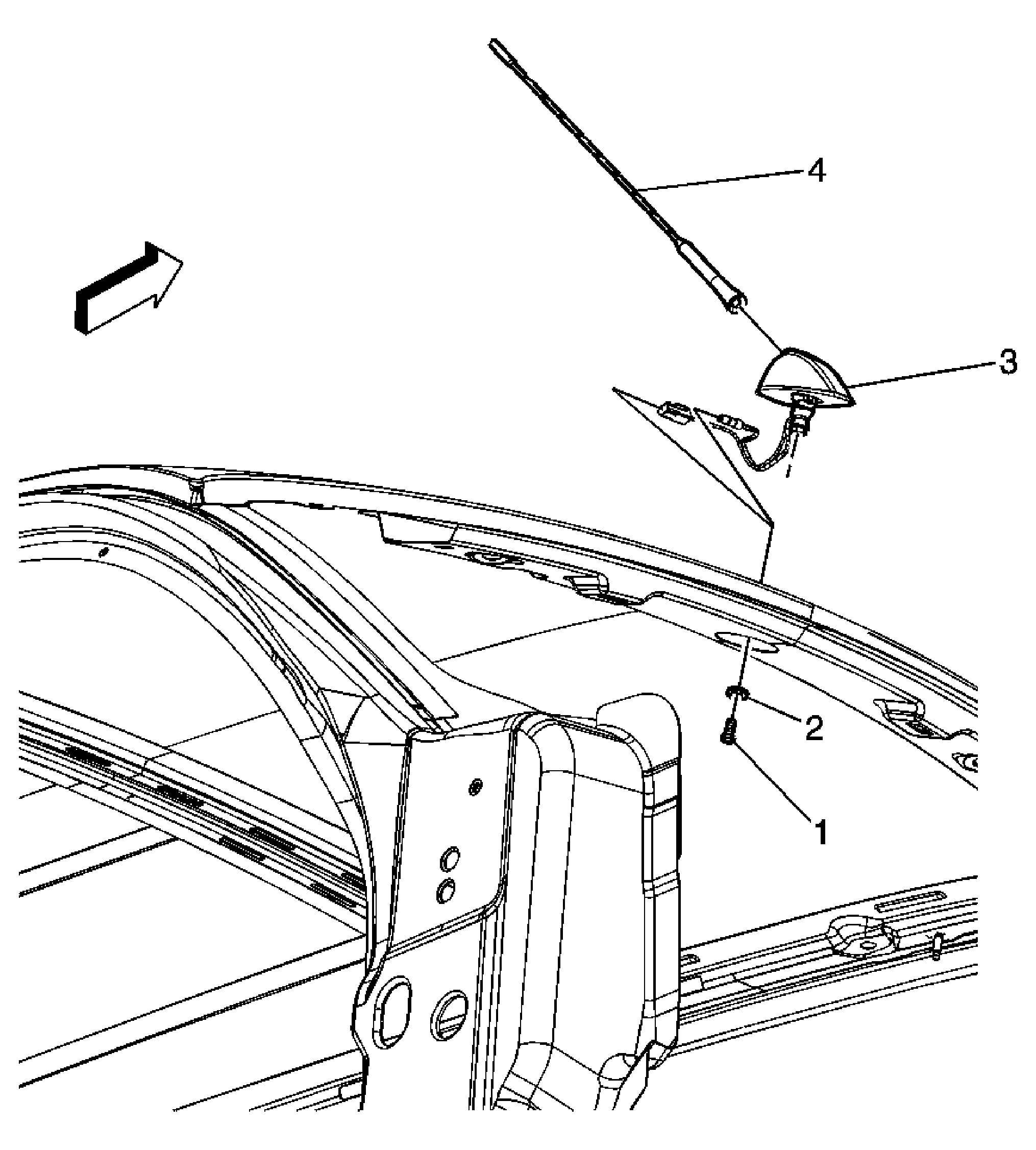

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Lower the front of the headliner. Refer to Headlining Trim Panel Replacement . |
|
| 1 | Radio Antenna Bolt
CAUTION:
Refer to Fastener Caution
.
Tighten: 9 N.m (80 lb in) |
| 2 | Radio Antenna Assembly Expansion Sleeve |
| 3 | Radio Antenna Assembly Tip: Disconnect the antenna cable. |
| 4 | Fixed Mast Antenna |
