Front Upper Speaker Replacement
WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

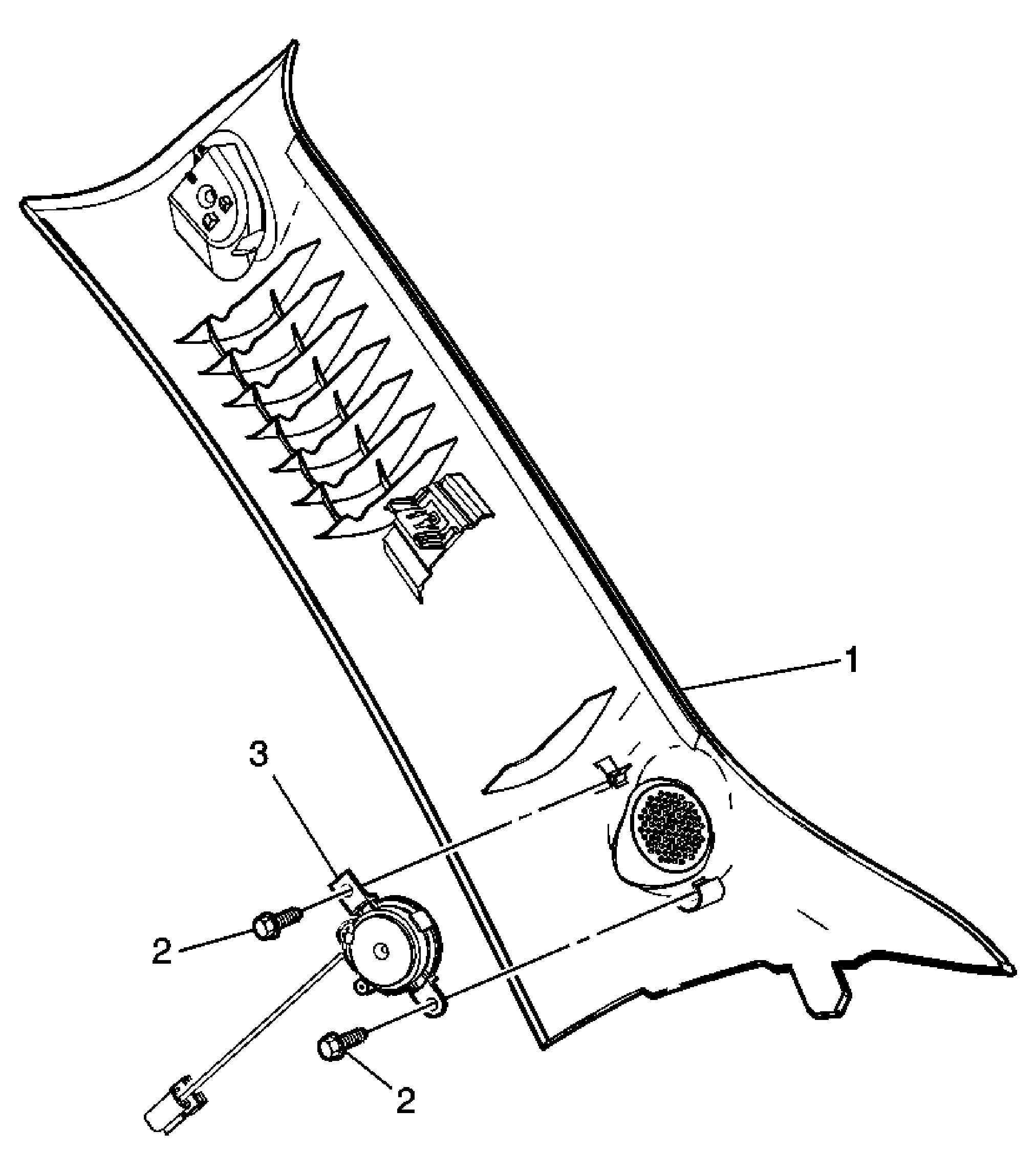

| Callout | Component Name |
|---|---|
| 1 | Windshield Side Garnish Molding Refer to Windshield Garnish Molding Replacement . |
| 2 | Radio Speaker Windshield Side Garnish Molding Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 3 | Radio Windshield Side Garnish Molding Speaker Assembly |
