Luggage Compartment/Rear of Vehicle Component Views

Fig 1: RR Of The Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)
2	Vehicle Communication Interface Module (VCIM) (UE1)
3	G403
4	Battery Current Sensor
5	Battery
6	Inline Fuse - 50 AMP

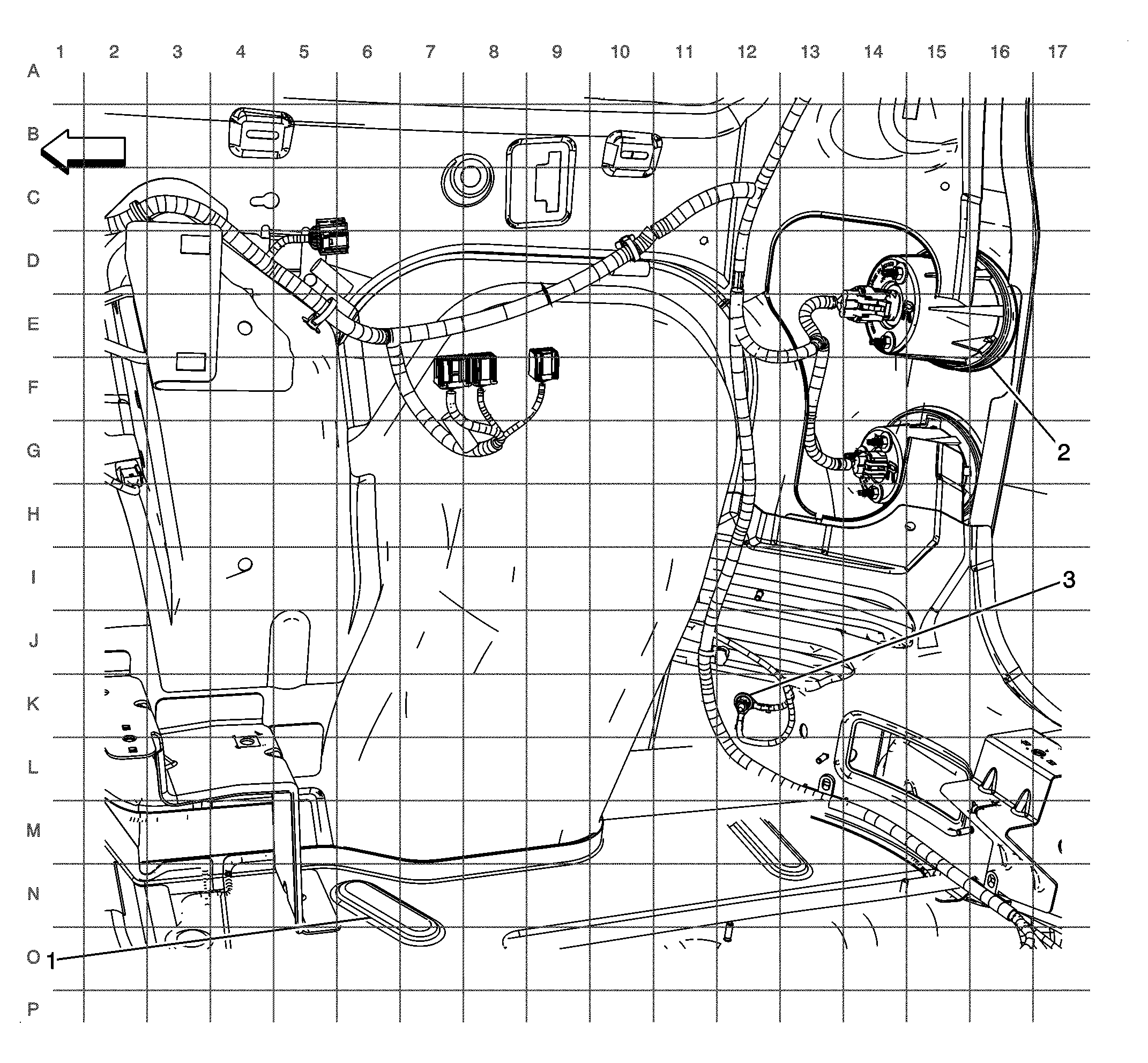

Fig 2: G402

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Floor Panel
2	Tail / Stop and Turn Signal Lamp - Right
3	G402

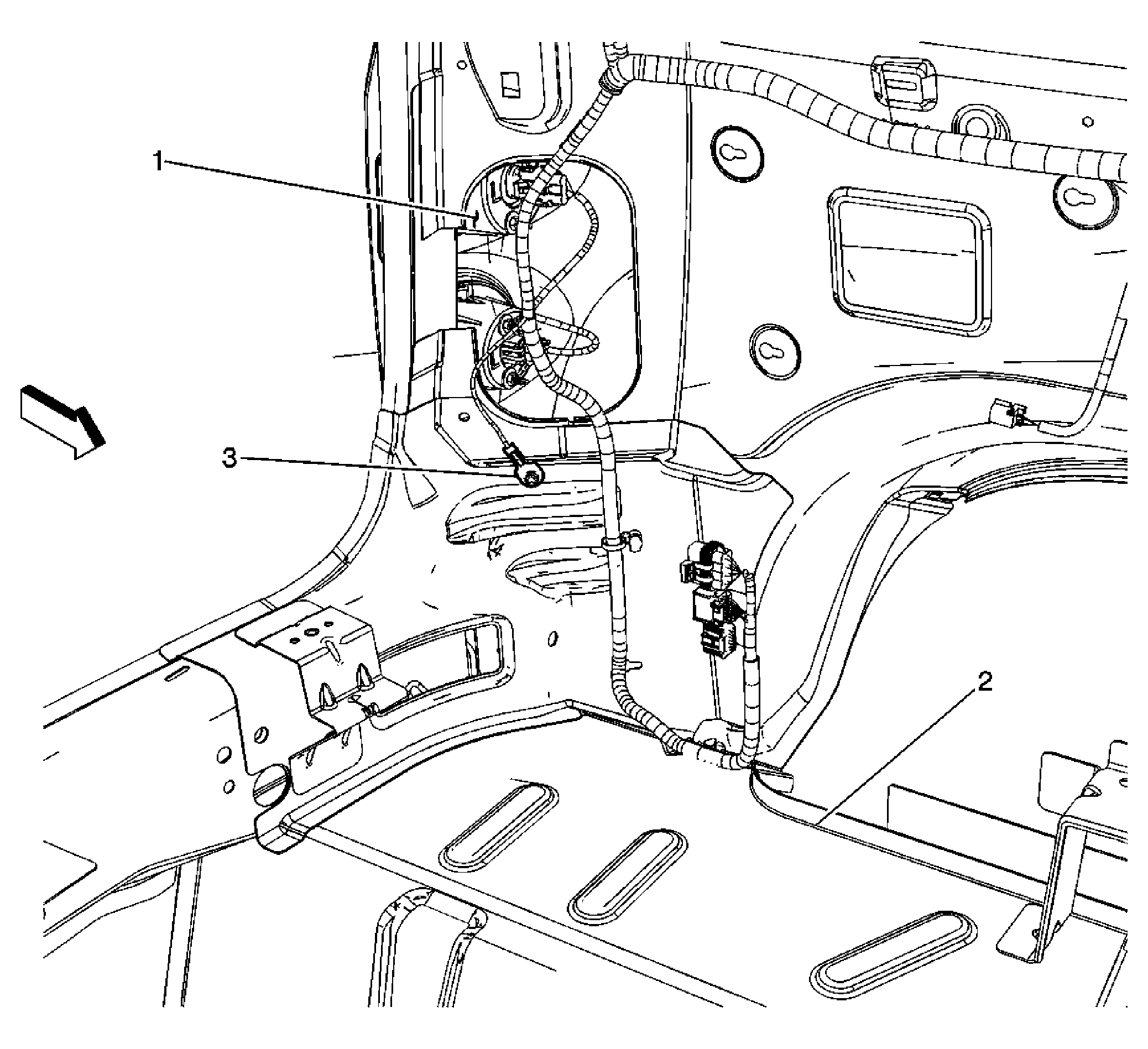

Fig 3: G401

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail / Stop and Turn Signal Lamp - Left
2	Floor Pan
3	G401

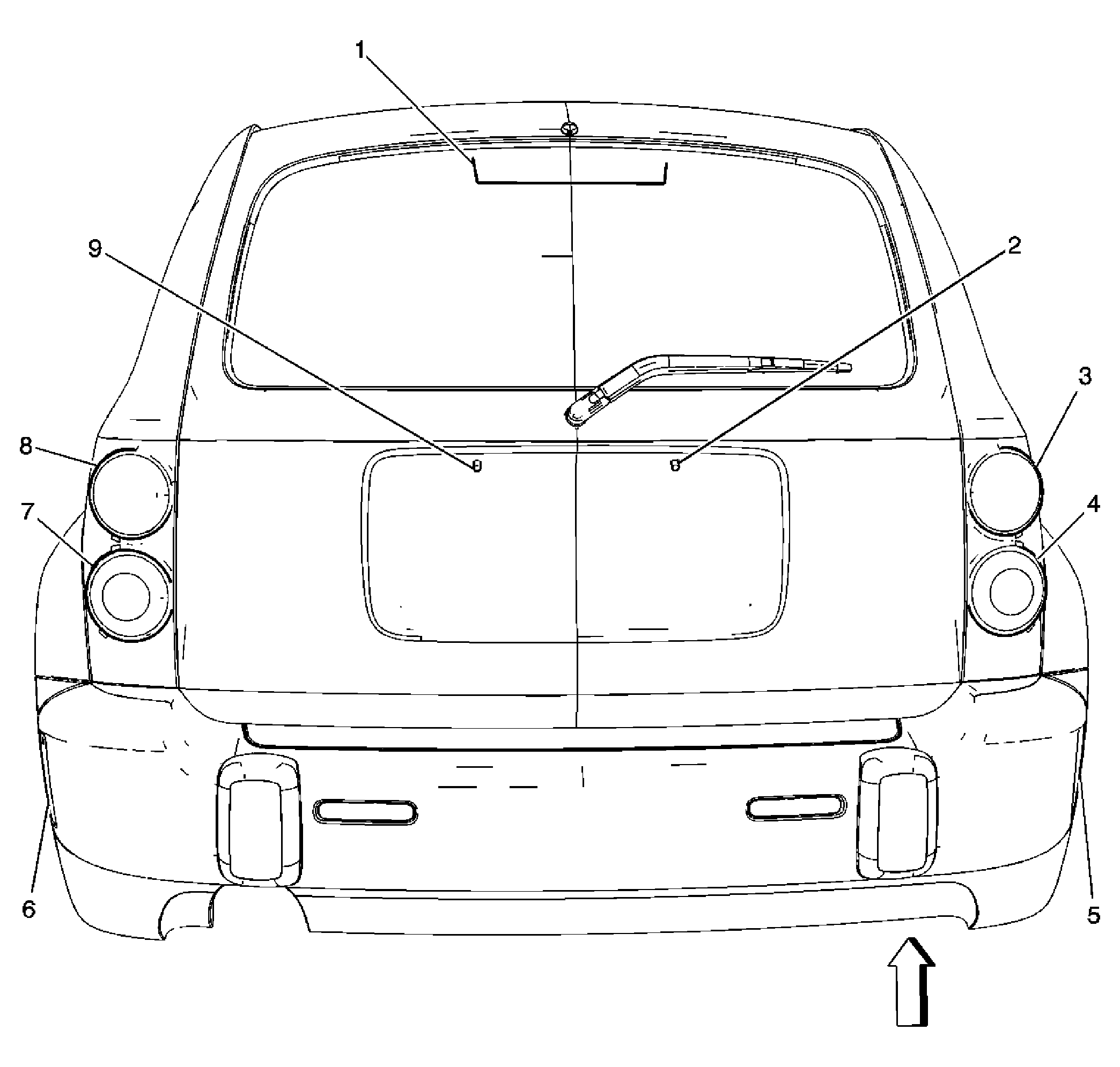

Fig 4: Rear Of The Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center high Mounted Stop Lamp (CHMSL)
2	License Lamp - Right
3	Tail / Stop and Turn Signal Lamp - Right
4	Backup Lamp - Right
5	Marker Lamp - Right Rear
6	Marker Lamp - Left Rear
7	Backup Lamp - Left
8	Tail / Stop and Turn Signal Lamp - Left
9	License Lamp - Left

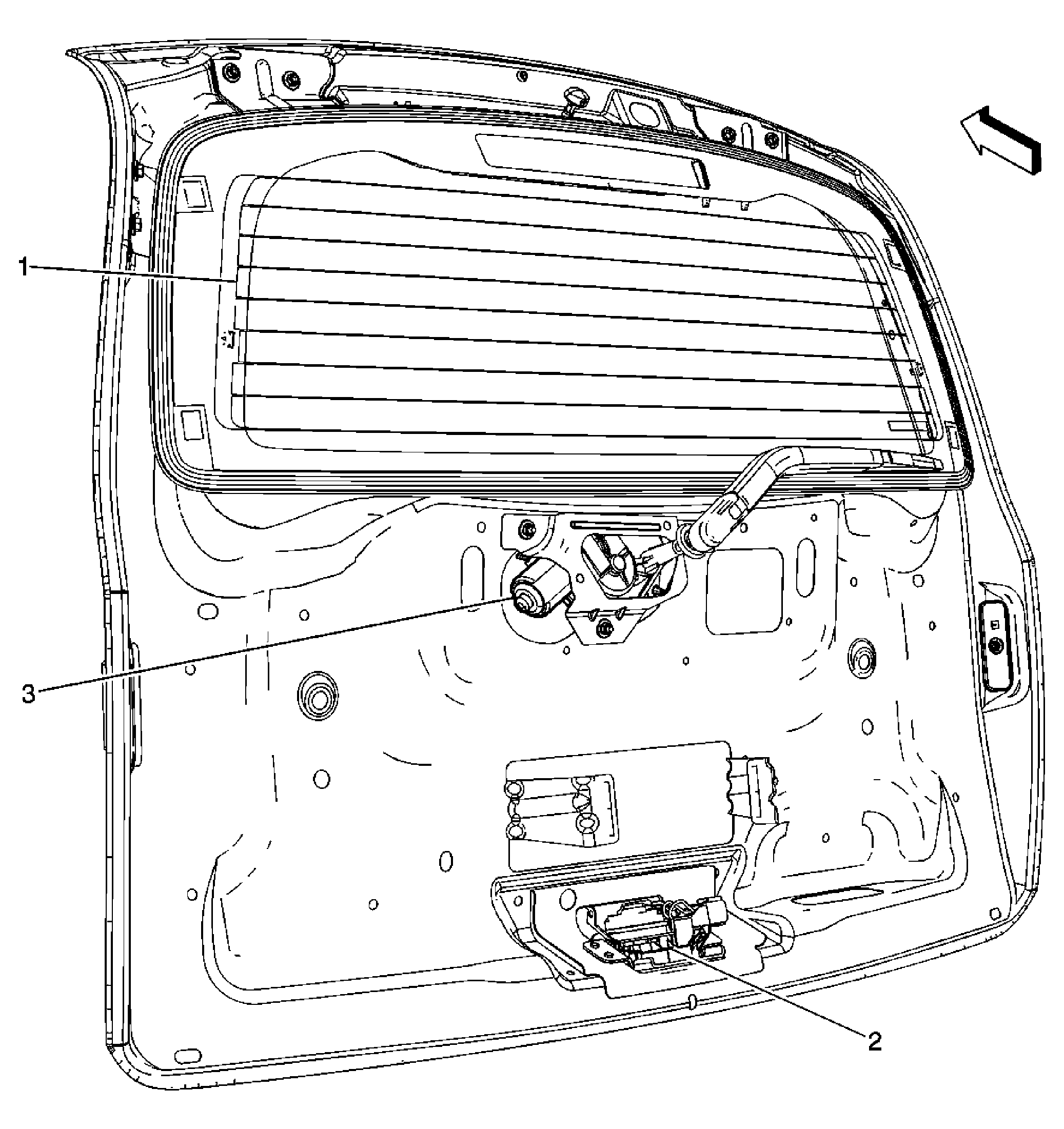

Fig 5: Liftgate Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Door Latch - Liftgate
3	Rear Window Wiper Motor

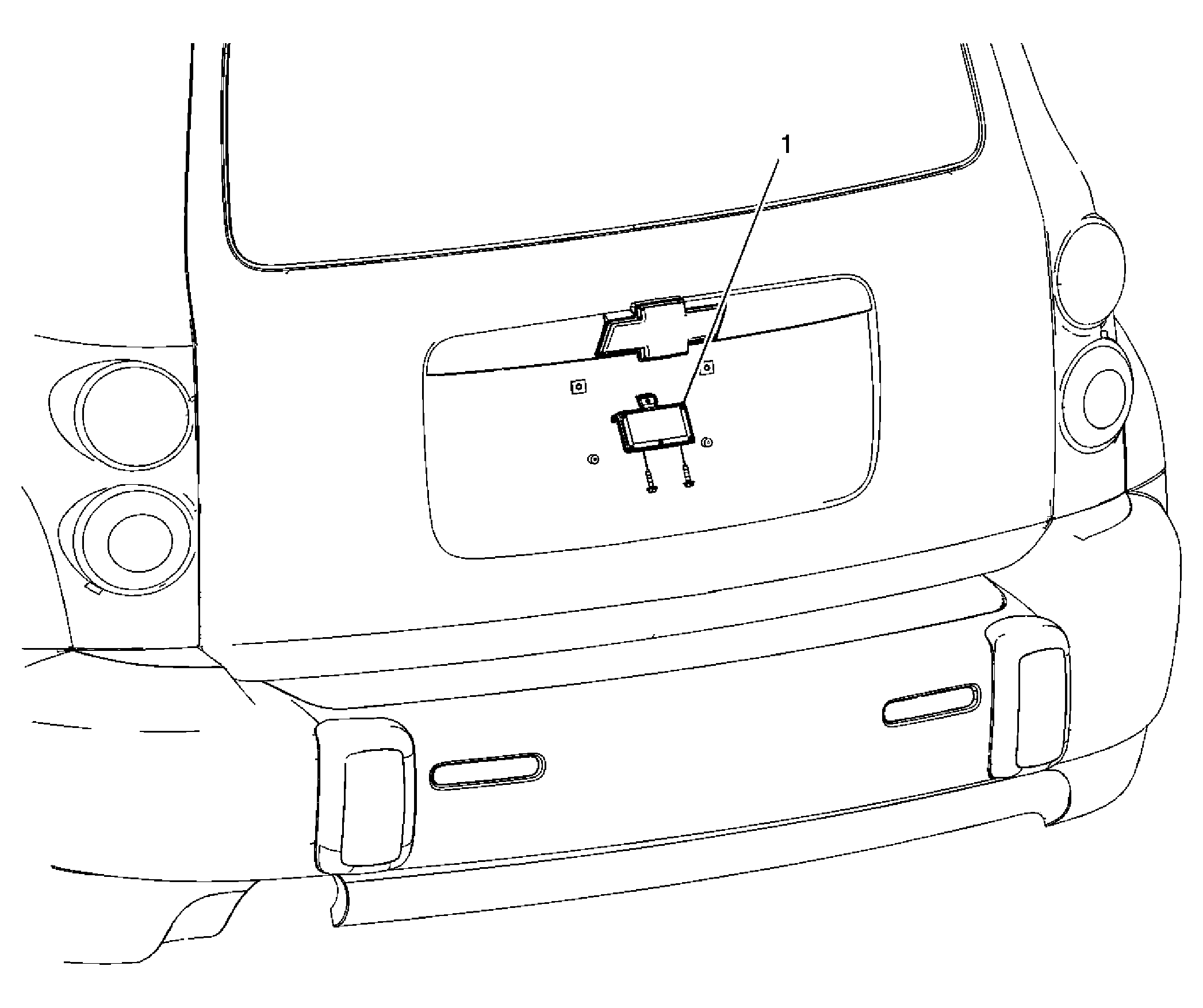

Fig 6: Liftgate Release Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate Release Switch

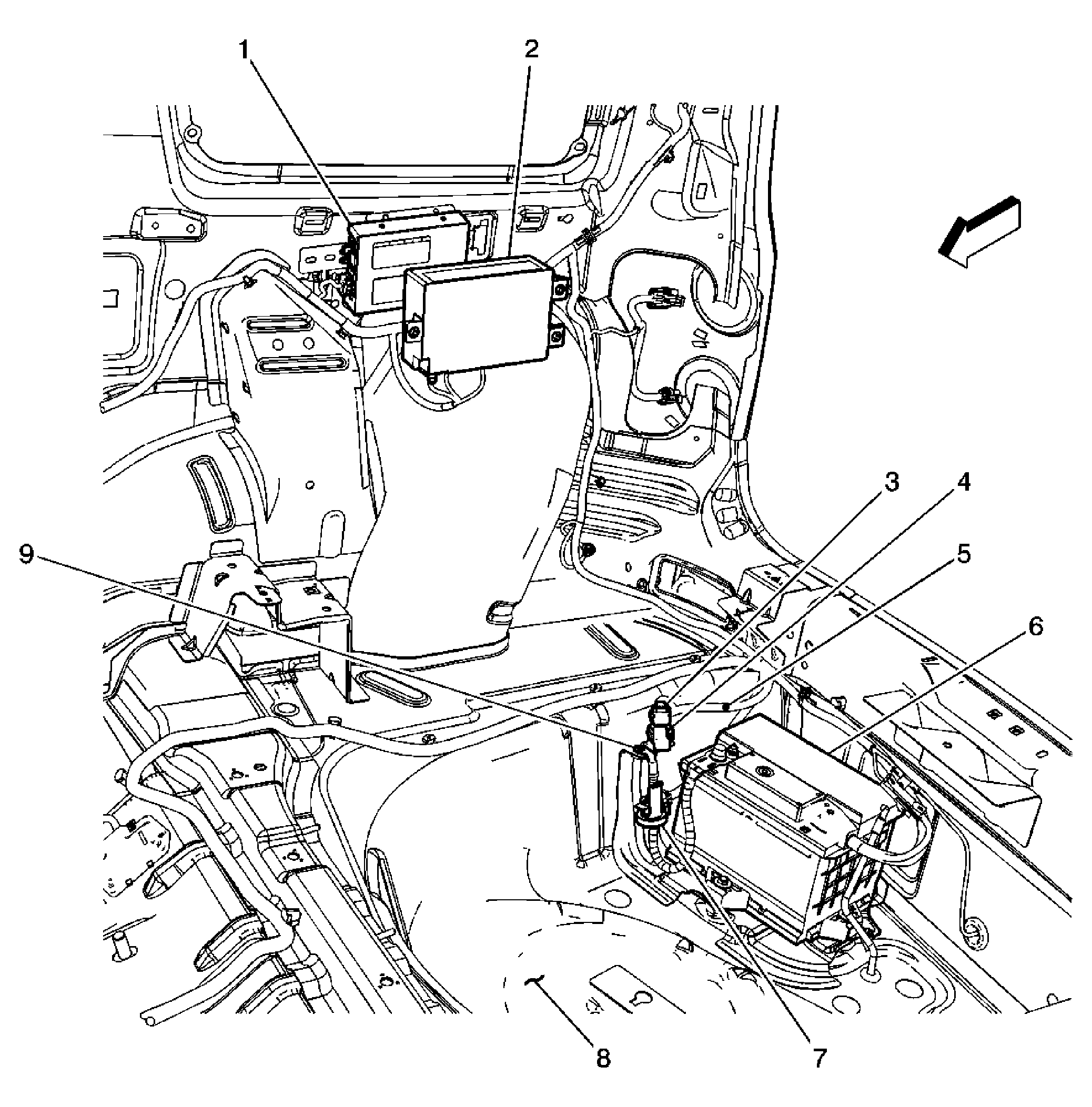

Fig 7: RR Of The Passenger Compartment (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)
2	Vehicle Communication Interface Module (VCIM) (UE1)
3	VCIM fuse Holder - 10AMP (UE1)
4	BCM Fuse holder - 50AMP
5	J411 (UE1)
6	Battery
7	Battery Current Sensor
8	Floor Panel
9	G403

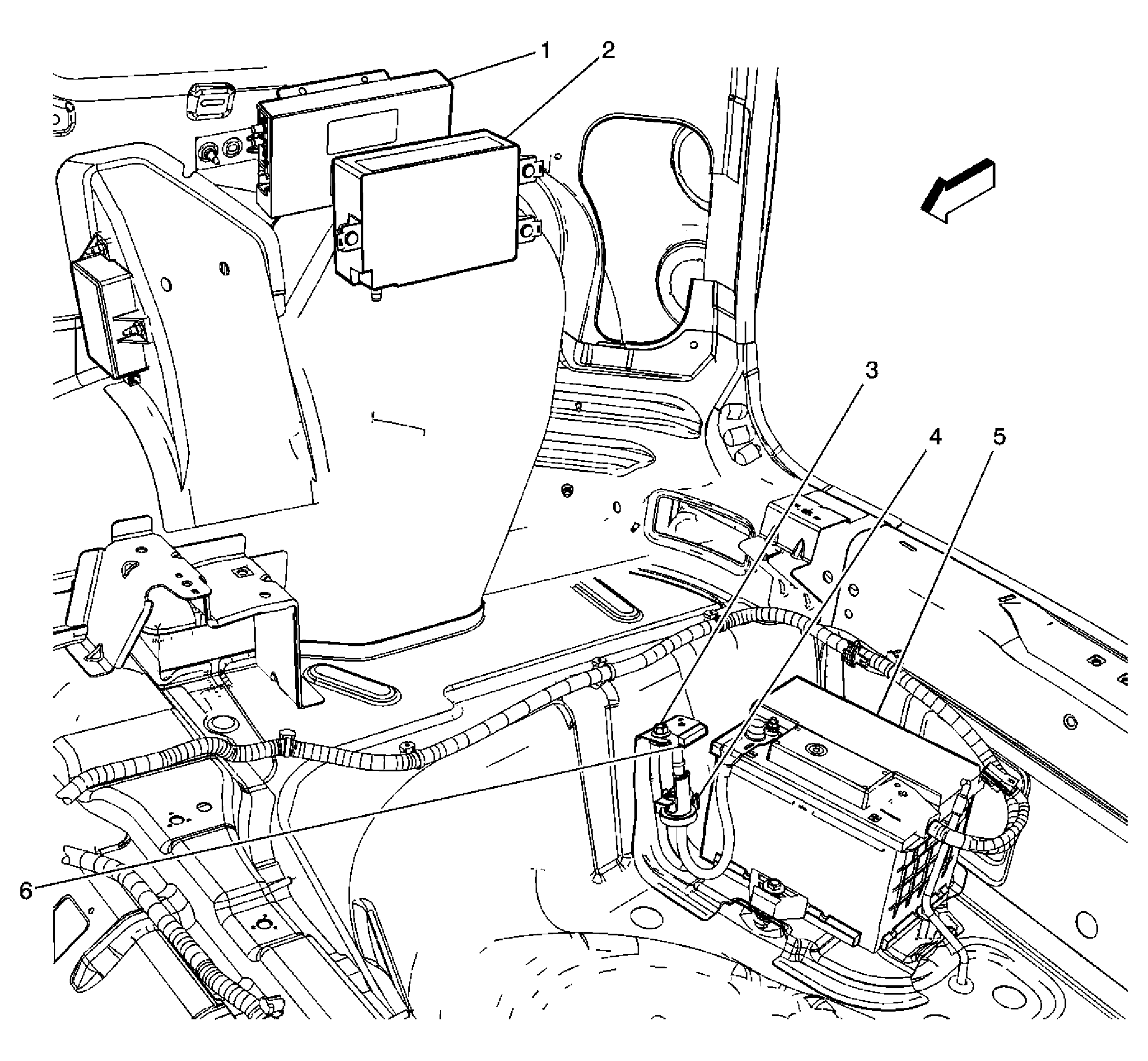

Fig 8: RR Of The Passenger Compartment (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)
2	Vehicle Communication Interface Module (VCIM) (UE1)
3	G403
4	Battery Current Sensor
5	Battery
6	BCM Fuse Holder - 50 AMP

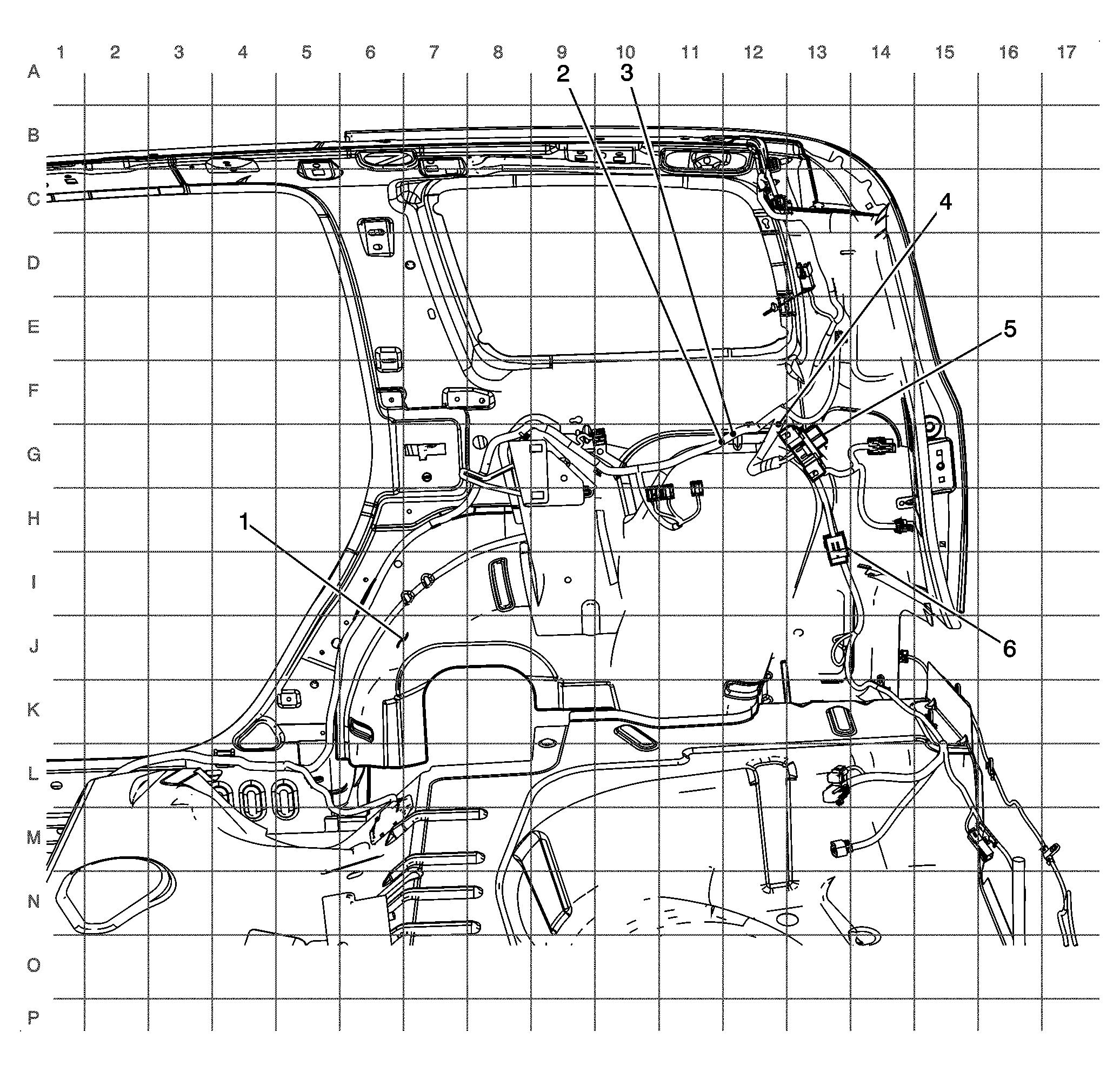

Fig 9: Right Rear Cargo Area (Panel Van)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Well - Right Rear
2	J319 (Panel Van)
3	J321 (Panel Van)
4	J320 (Panel Van)
5	Fuse Block - Rear Access Panel (Panel Van)
6	X406 (Commercial Accessory Power)

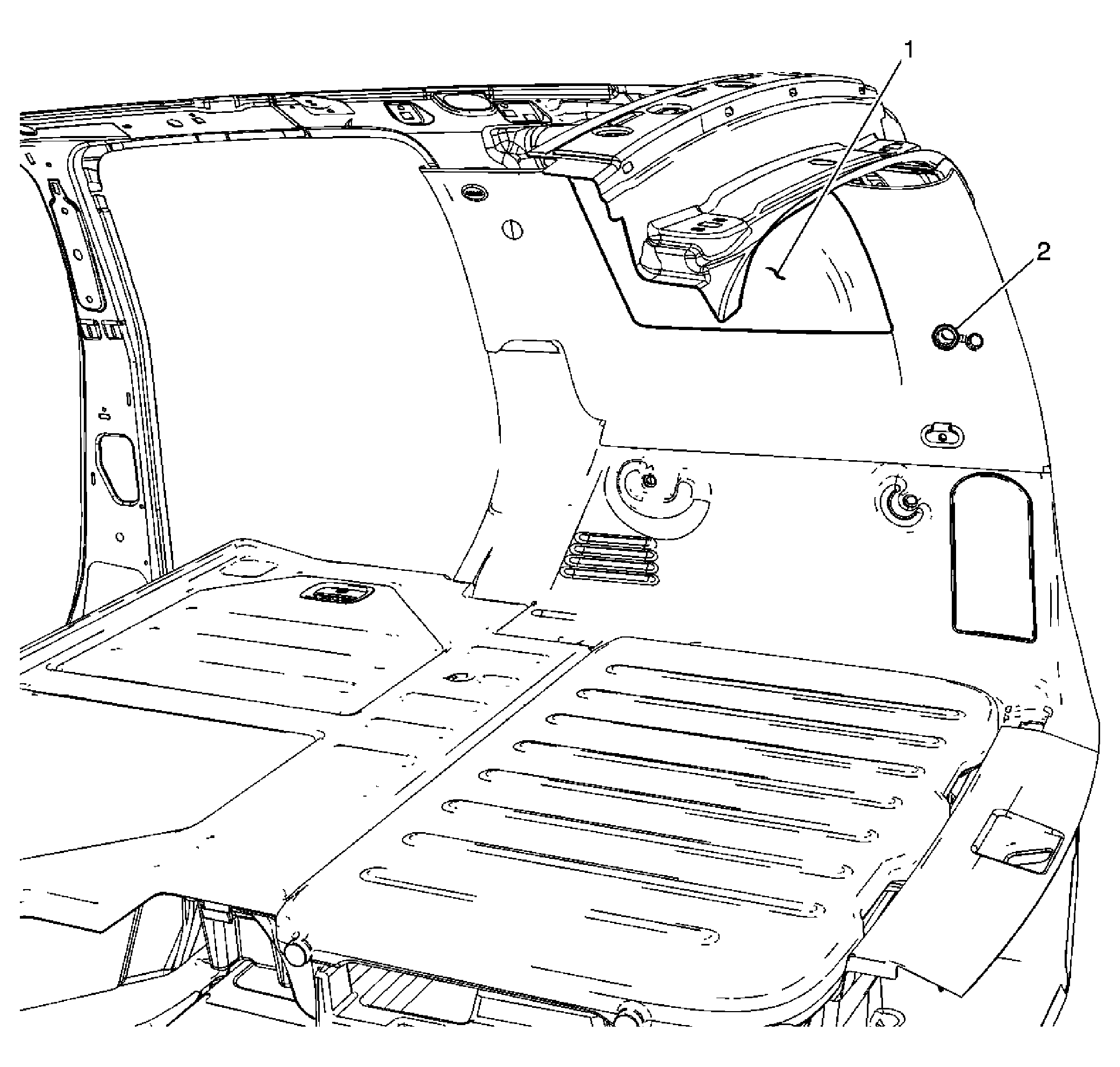

Fig 10: Auxiliary Power Outlet - Rear (Panel Van)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Quarter Window - Right Rear Panel
2	Auxiliary Power Outlet - Rear
