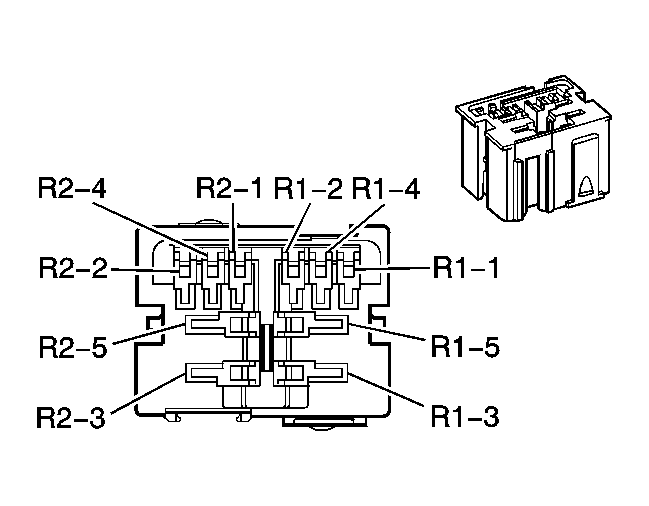

Underhood Relay Block (Wire Entry) (Panel Van)
Courtesy of GENERAL MOTORS CORP. Underhood Relay Block (Wire Entry) (Panel Van)
| Pin |
Wire |
Circuit |
Function |
| R1-1 |
0.35 L-GN/WH |
5702 |
Door Latch Motor Control |
| R1-2 |
0.35 BK |
1250 |
Ground |
| R1-3 |
0.8 BN |
6156 |
Rear Access Panel Relay Control - Left Rear |
| R1-4 |
- |
- |
Not Used |
| R1-5 |
0.35 BK |
1250 |
Ground |
| R2-1 |
0.35 WH |
5065 |
CHMSL Relay Coil Control |
| R2-2 |
0.35 BK/WH |
1251 |
Ground |
| R2-3 |
0.35 RD/WH |
140 |
Battery Positive Voltage |
| R2-4 |
- |
- |
Not Used |
| R2-5 |
0.5 L-BU |
20 |
Stop Lamp Switch Signal |
Connector Part Information
- OEM: E-1588
- Service: See Catalog
- Description: 10-Way F (BK)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
