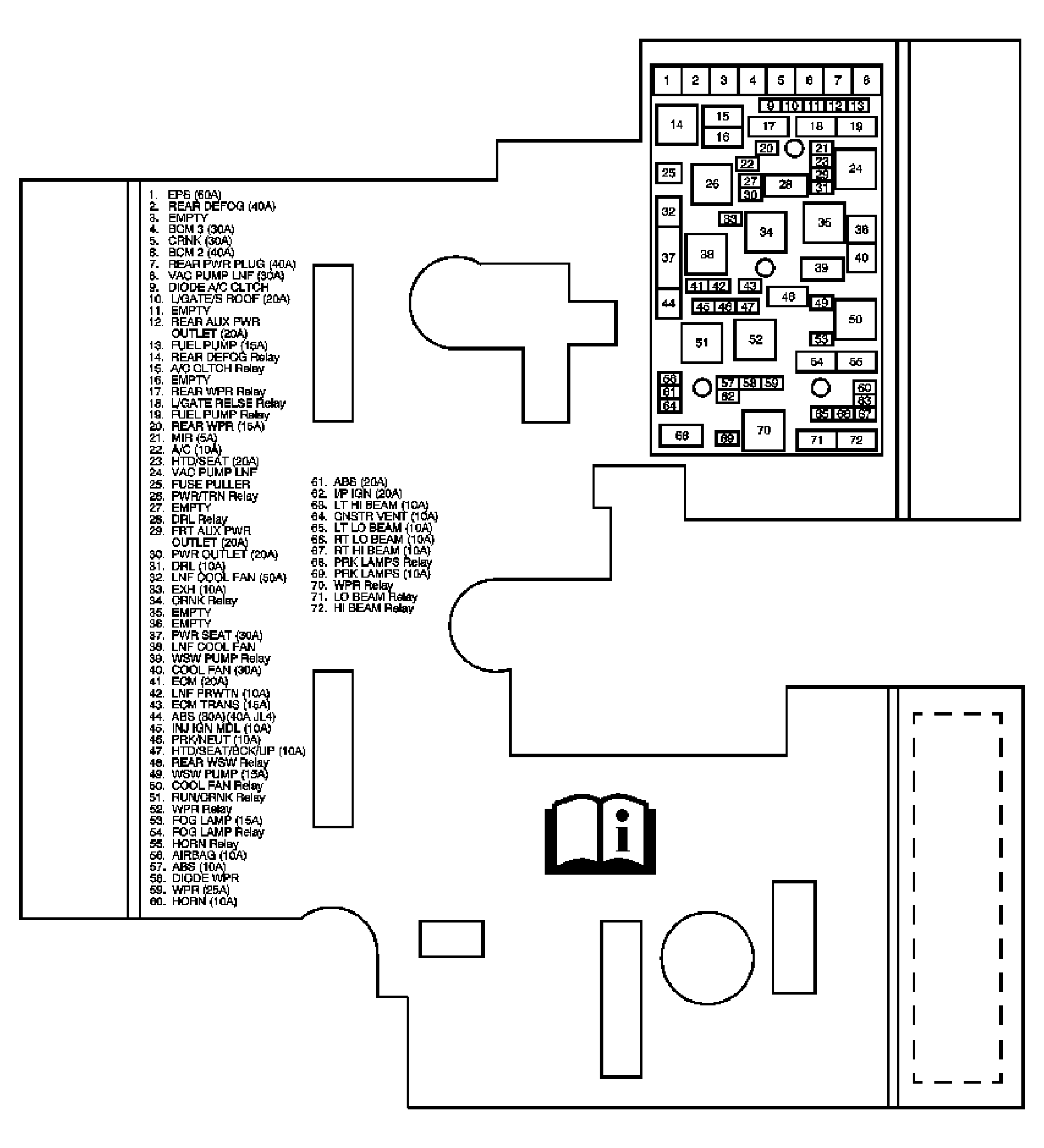

Fuse Block - Underhood Label
Fuse Block - Underhood Label Usage
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | EPS | 60A | Electronic Power Steering (EPS) Control Module |
| 2 | REAR DEFOG | 40A | Rear Window Defog Relay |
| 3 | - | - | Not Used |
| 4 | BCM 3 | 30A | Body Control Module |
| 5 | CRNK | 30A | Crank Relay |
| 6 | BCM 2 | 40A | Body Control Module |
| 7 | REAR PWR PLUG | 40 | Rear Power Plug (Panel Van) |
| - | - | Not Used (without Panel Van) | |
| 8 | VAC PUMP LNF | 30A | LNF Engine |
| 9 | DIODE A/C CLTCH | - | A/C Compressor Clutch |
| 10 | L-GATE/S-ROOF | 20A | Liftgate Release Relay and Sunroof Module |
| 11 | - | - | Not Used |
| 12 | REAR AUX PWR OUTLET | 20 | Rear Auxiliary Power Outlet (Panel Van) |
| - | - | Not Used (without Panel Van) | |
| 13 | FUEL PUMP | 15A | Fuel Pump Relay |
| 14 | REAR DEFOG Relay | - | Rear Window Defogger Grid |
| 15 | A/C CLTCH Relay | - | A/C Compressor Clutch Diode and A/C Compressor Clutch |
| 16 | - | - | Not Used |
| 17 | REAR WPR Relay | - | Rear Window Wiper Motor |
| 18 | L/GATE RELSE Relay | - | Door Latch - Liftgate |
| 19 | FUEL PUMP Relay | - | Fuel Pump and Sender Assembly |
| 20 | REAR WPR | 15A | Rear Wpr Relay |
| 21 | MIR | 5A | Outside Rearview Mirror Switch |
| 22 | A/C | 10A | A/C Clutch Relay |
| 23 | HTD/SEAT | 20A | Heated Seat Control Module Passenger and Heated Seat Control Module Driver |
| 24 | VAC PUMP LNF Relay | - | LNF Engine |
| 25 | Fuse Puller | - | Fuse Puller |
| 26 | PWR/TRN Relay | - | ECM Fuse, INJ IGN MOD Fuse, EXH Fuse and A/C CLTCH Relay |
| 27 | - | - | Not Used |
| 28 | DRL Relay | - | DRL Fuse (-LNF) |
| 29 | FRT AUX PWR OUTLET | 20A | Cigar Lighter and Data Link Connector |
| 30 | PWR OUTLET | 20A | Auxiliary Power Outlet Console |
| 31 | DRL | 10A | LT LO BEAM Fuse and Headlamp - Left (-LNF) |
| 32 | LNF COOL FAN | 50A | LNF Engine |
| 33 | EXH | 10A | MAF/IAT Sensor, Heated Oxygen Sensors (HO2S), Evaporative Emission (EVAP) Canister Purge Solenoid, Clutch Pedal Position (CPP) Switch |
| 34 | CRNK Relay | - | Starter |
| 35-36 | - | - | Not Used |
| 37 | PWR SEAT | 30A | Lumbar Adjuster Switch - Driver and Seat Adjuster Switch - Driver |
| 38 | LNF COOL FAN Relay | - | LNF Engine |
| 39 | WSW PUMP Relay | - | Windshield Washer Fluid Pump |
| 40 | COOL FAN | 30A | Cooling Fan (-LNF) |
| 41 | ECM | 20A | Engine Control Module |
| 42 | LNF PRWTN | 10A | LNF Engine |
| 43 | ECM TRANS | 15A | Transmission Control Module, Automatic Transaxle and Engine Control Module |
| 44 | ABS | 30A (JM4) | Electronic Brake Control Module (EBCM) |
| 40A (JL4) | |||
| 45 | INJ IGN MDL | 10A | Fuel Injectors, Ignition Control Module (L61), and Ignition Coil Modules (LE5) |
| 46 | PRK/NEUT | 10A | Park Neutral Position (PNP) Switch (MN5) |
| BACK UP/LPS | 10A | Back Up Lamps (LNF/M86) | |
| 47 | HTD/SEAT/BCK/UP | 10A | Park Neutral Position (PNP) Switch (MN5), Back Up Lamp Switch (M86-LNF), and Seat Heater Control Modules |
| 48 | REAR WSW Relay | - | Windshield Washer Fluid Pump |
| 49 | WSW PUMP | 15A | Rear WSW Relay and WSW Pump Relay |
| 50 | COOL FAN Relay | - | Cooling Fan (-LNF) |
| 51 | RUN/CRANK Relay | - | I/P IGN Fuse, PRK/NEUT Fuse, ABS Fuse, ECM TRANS Fuse and BCK UP/HTD SEAT Fuse |
| 52 | WPR Relay | - | Windshield Wiper Motor Assembly |
| 53 | FOG LAMP | 15A | Fog Lamp Relay |
| 54 | FOG LAMP Relay | - | Fog Lamp - Left Front and Fog Lamp - Right Front |
| 55 | HORN Relay | - | Horn |
| 56 | AIRBAG | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM) and Body Control Module |
| 57 | ABS | 10A | Electronic Brake Control Module (EBCM) |
| 58 | DIODE WPR | - | WPR Relay |
| 59 | WPR | 25A | WPR Relays |
| 60 | HORN | 10A | Horn Relays |
| 61 | ABS | 20A | Electronic Brake Control Module (EBCM) |
| 62 | I/P IGN | 20A | Body Control Module |
| 63 | LT HI BEAM | 10A | Head Lamp - Left |
| 64 | CNSTR VENT | 10A | Evaporative Emission (EVAP) Canister Vent Solenoid Valve |
| 65 | LT LO BEAM | 10A | Head Lamp - Left |
| 66 | RT LO BEAM | 10A | Head Lamp - Right |
| 67 | RT HI BEAM | 10A | Head Lamp - Right |
| 68 | PRK LAMPS Relay | - | Tail/Stop and Turn Signal Lamps, Marker Lamps, License Lamps, and Park/Turn Signal/DRL Lamps |
| 69 | PRK LAMPS | 10A | PRK LAMPS Relay |
| 70 | WPR Relay | - | Windshield Wiper Motor Assembly |
| 71 | LO BEAM Relay | - | RT LO BEAM Fuse and LT LO BEAM Fuse |
| 72 |
HI BEAM Relay | - | RT HI BEAM Fuse and LT HI BEAM Fuse |
