Door Component Views

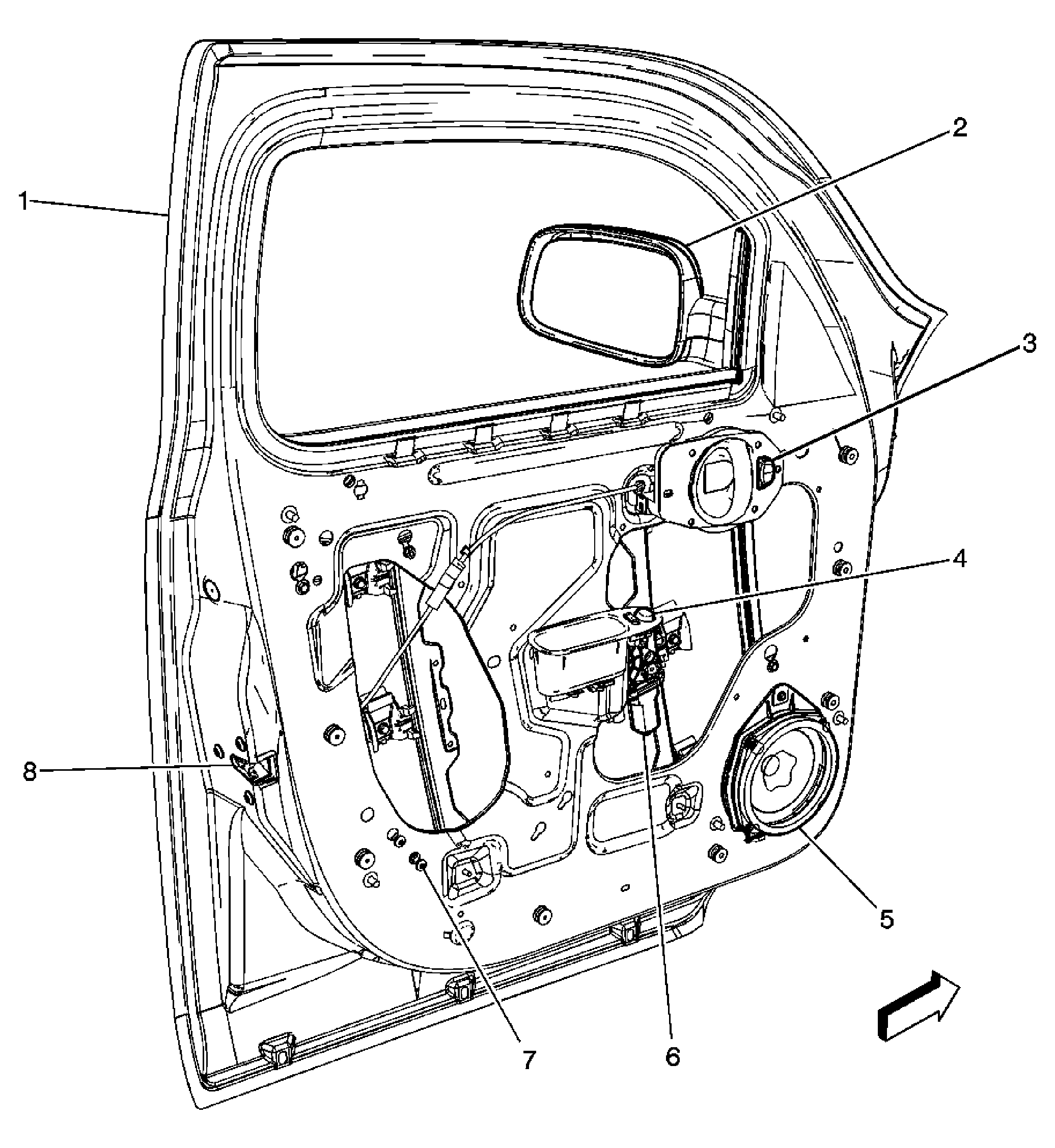

Fig 1: Driver Door Components

GM1651951

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror Motor - Driver
3	Door Lock Switch - Driver
4	Outside Rearview Mirror Switch
5	Speaker - Left Front Door
6	Window Motor - Driver
7	Inflatable Restraint Side Impact Sensor (SIS) Left (ASF)
8	Door Latch - Driver

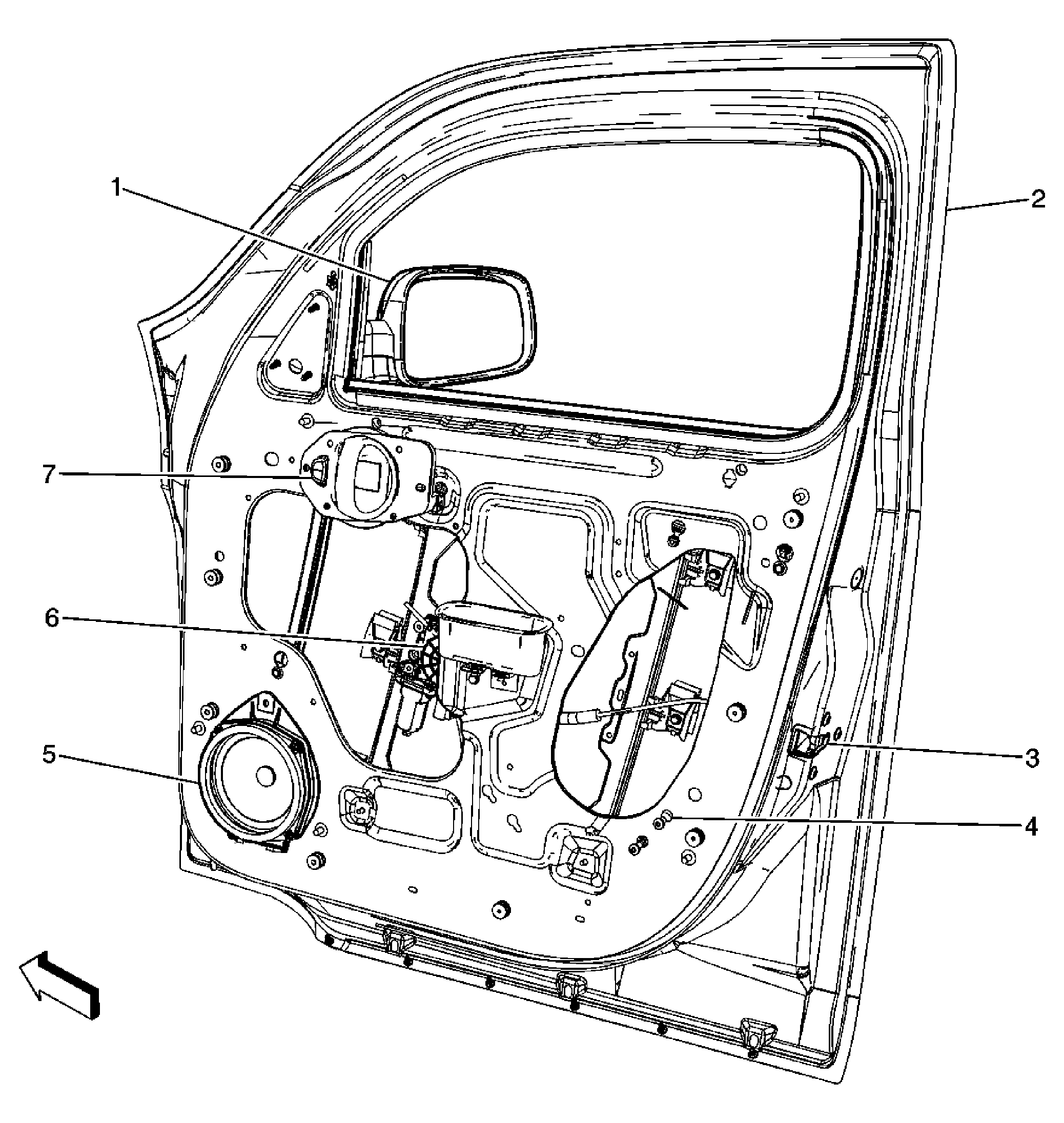

Fig 2: Passenger Door Components

GM1651956

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Motor - Passenger
2	Door Frame
3	Door Latch - Passenger
4	Inflatable Restraint Side Impact Sensor (SIS) Right (ASF)
5	Speaker - Right Front Door
6	Window Motor - Passenger
7	Door Lock Switch - Passenger

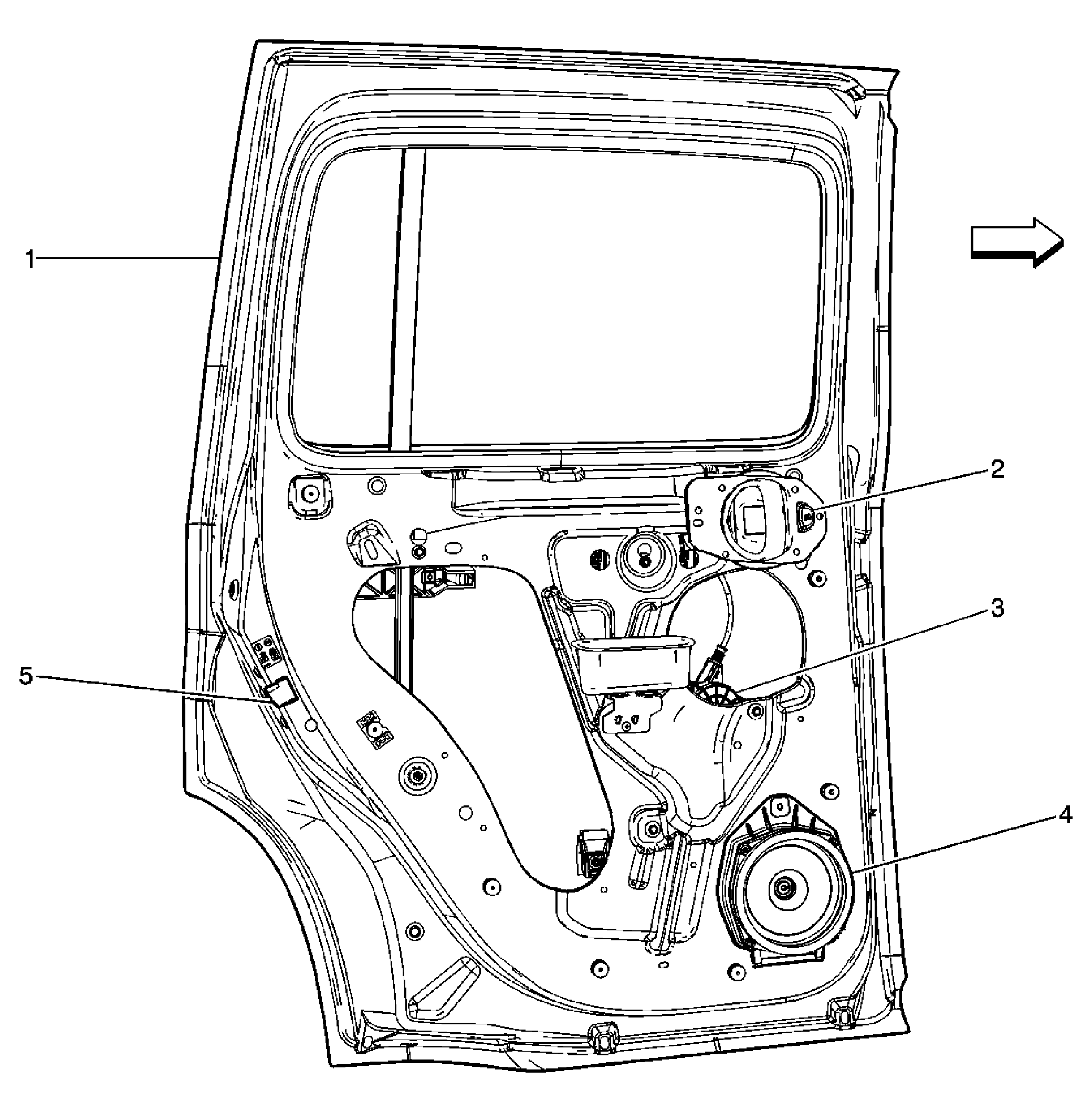

Fig 3: LR Door Components

GM1651958

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Window Switch - Left Rear (Except Panel Van)
3	Window Motor - Left Rear (Except Panel Van)
4	Speaker - Left Rear Door
5	Door Latch - Left Rear (Except Panel Van), Rear Access Panel Latch - Left Rear (Panel Van)

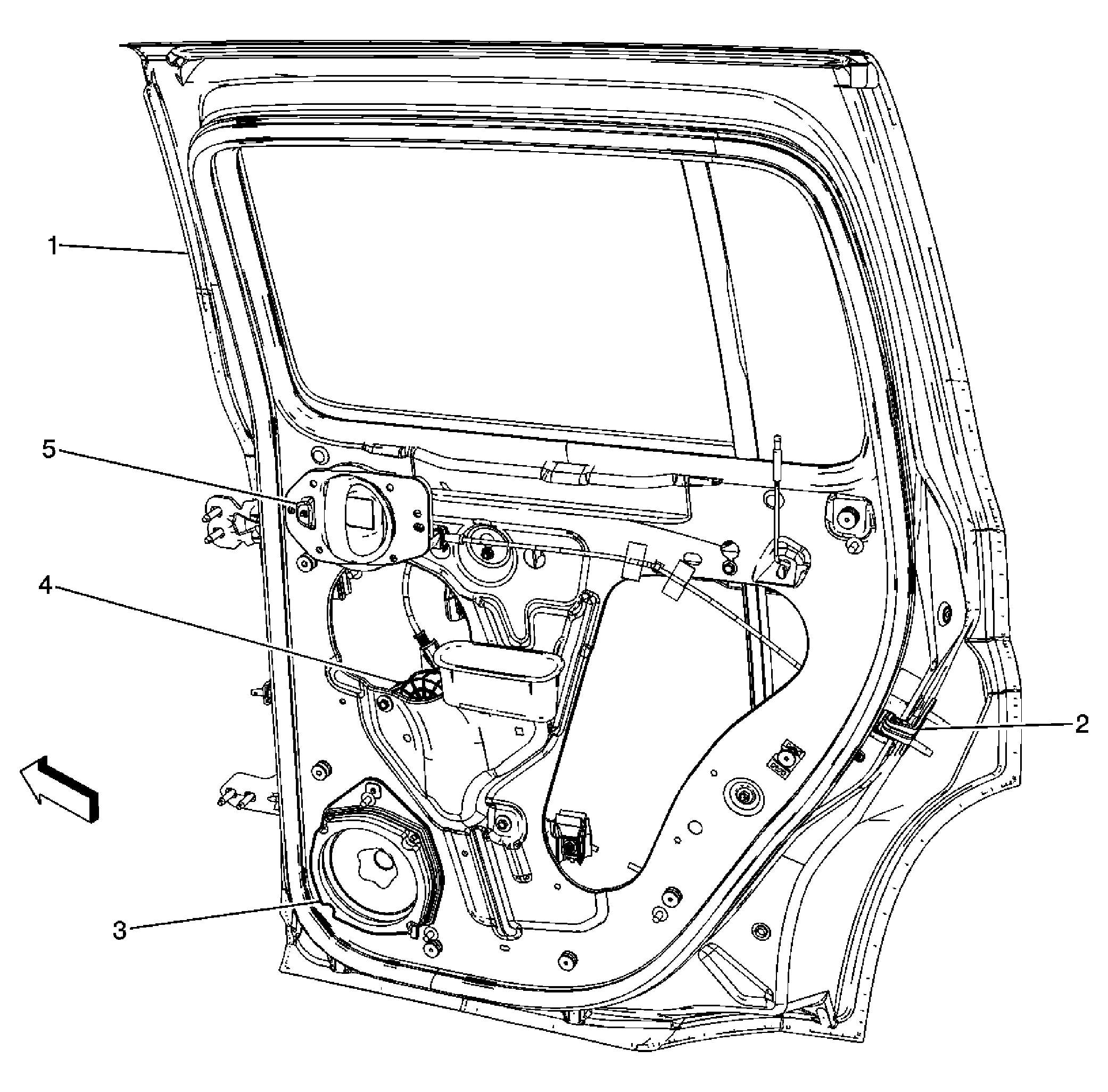

Fig 4: RR Door Components

GM1651940

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch - Right Rear (Except Panel Van), Rear Access Panel Latch - Right Rear (Panel Van)
3	Speaker - Right Rear Door
4	Window Motor - Right Rear (Except Panel Van)
5	Window Switch - Right Rear (Except Panel Van)

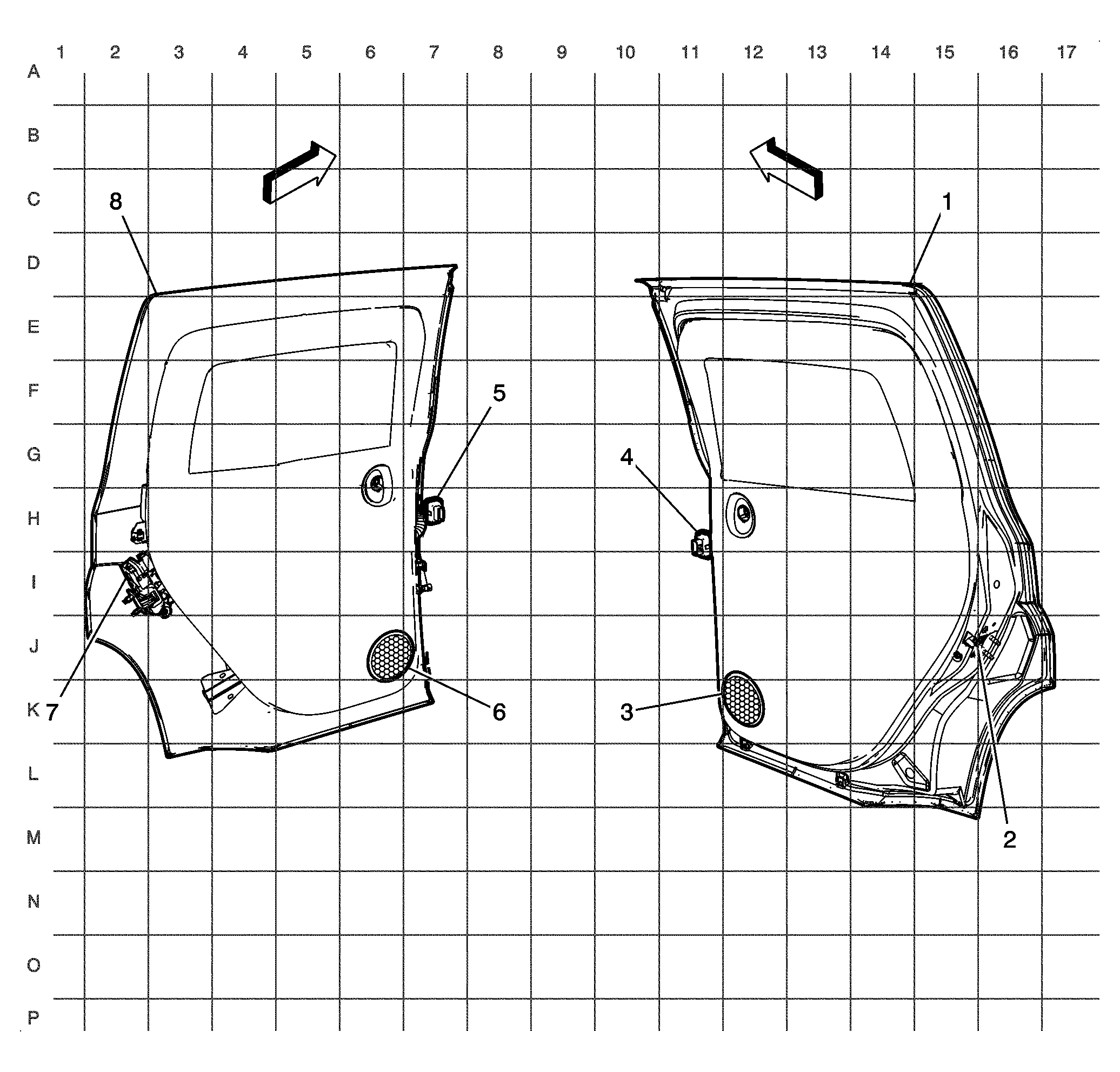

Fig 5: Rear Access Panel Components (Panel Van)

GM1863455

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Access Panel - Right Rear
2	Rear Access Panel Latch - Right Rear
3	Speaker - Right Rear
4	X310
5	X311
6	Speaker - Left Rear
7	Rear Access Panel Latch - Left Rear
8	Rear Access Panel - Left Rear
