Vehicle Speed Sensor (VSS)

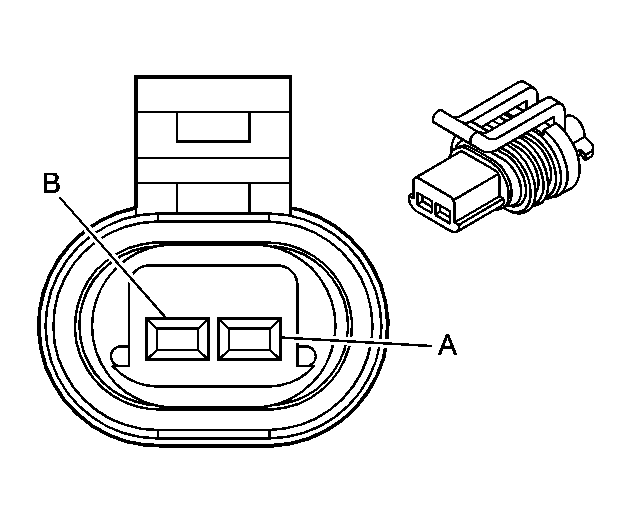

Fig 1: Vehicle Speed Sensor Connector End view
GM1544944Courtesy of GENERAL MOTORS CORP.
Vehicle Speed Sensor (VSS)

Pin Wire Circuit Function
A 0.35 PU/WH 6356 VSS Low Signal (M86)
0.35 PU 401 VSS Low Signal (MU3)
B 0.35 BN/WH 6354 VSS High Signal (M86)
0.35 YE 400 VSS High Signal (MU3)
Connector Part Information
  • OEM: 15336024
  • Service: See Catalog
  • Description: 2-Way F GT 150 Series Sealed Delphi Packard (BK)
