Tail/Stop and Turn Signal Lamp - Left

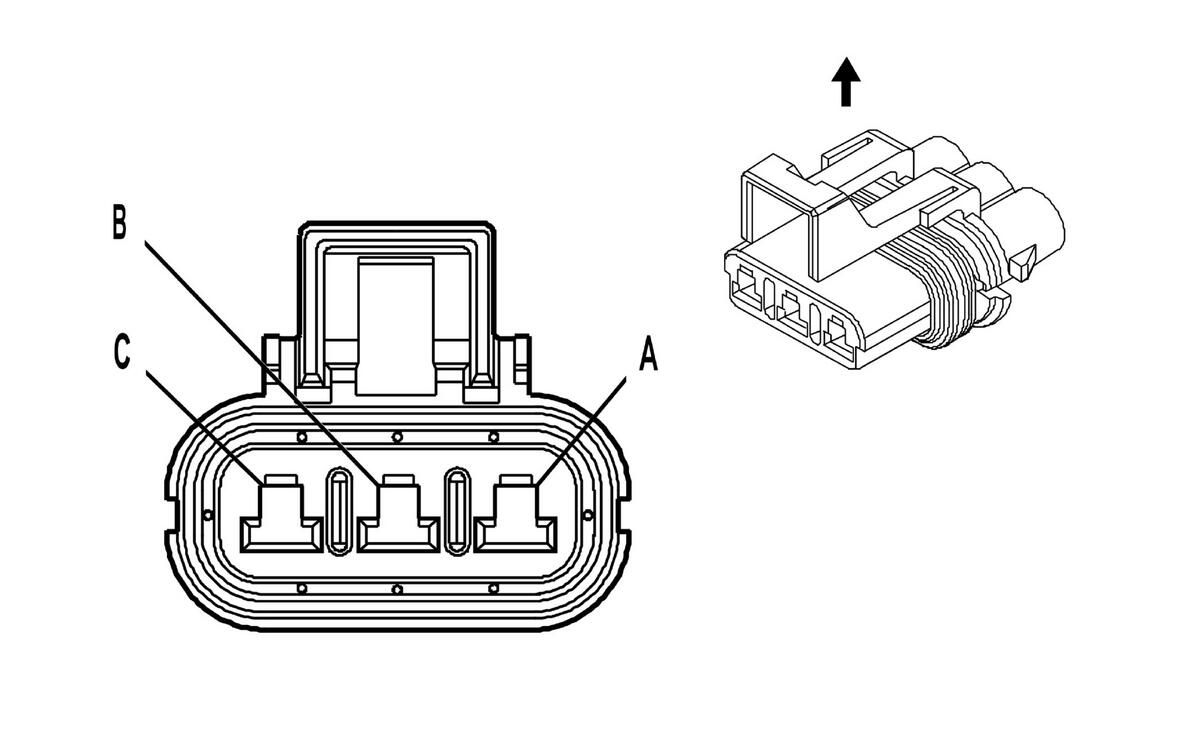

Fig 1: Tail/Stop and Turn Signal Lamp - Left Connector End View
GM847206Courtesy of GENERAL MOTORS CORP.
Tail/Stop and Turn Signal Lamp - Left

Pin Wire Circuit Function
A 0.35 YE 18 Left Rear Stop/Turn Lamp Supply Voltage
B 0.35 BN 9 Park Lamp Supply Voltage
C 0.35 BK 750 Ground
Connector Part Information
  • OEM: 12040977
  • Service: 12085492
  • Description: 3-Way F Metri-Pack 280 Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 12077411/2
  • Core/Insulation Crimp: 2/5
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
