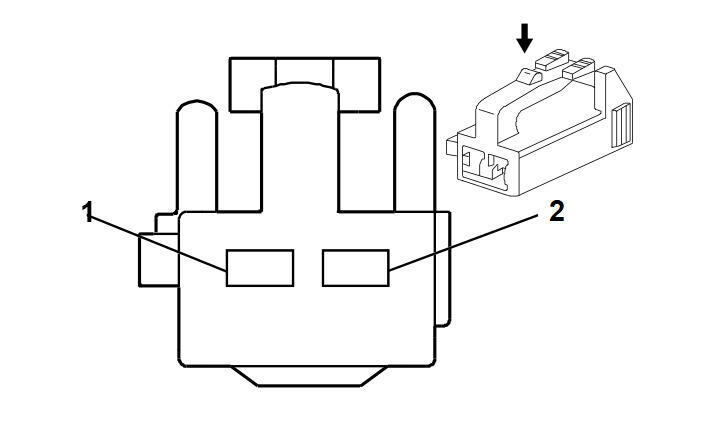

Seat Horizontal Motor - Driver (AJ6)
Courtesy of GENERAL MOTORS CORP. Seat Horizontal Motor - Driver (AJ6)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 TN |
285 |
Driver Seat Horizontal Motor Forward Control |
| 2 |
0.35 L-GN |
284 |
Driver Seat Horizontal Motor Rearward Control |
Connector Part Information
- OEM: 7283-1020
- Service: 88952826
- Description: 2-Way F 2.3 Series (WH)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
