Rear Window Wiper Motor

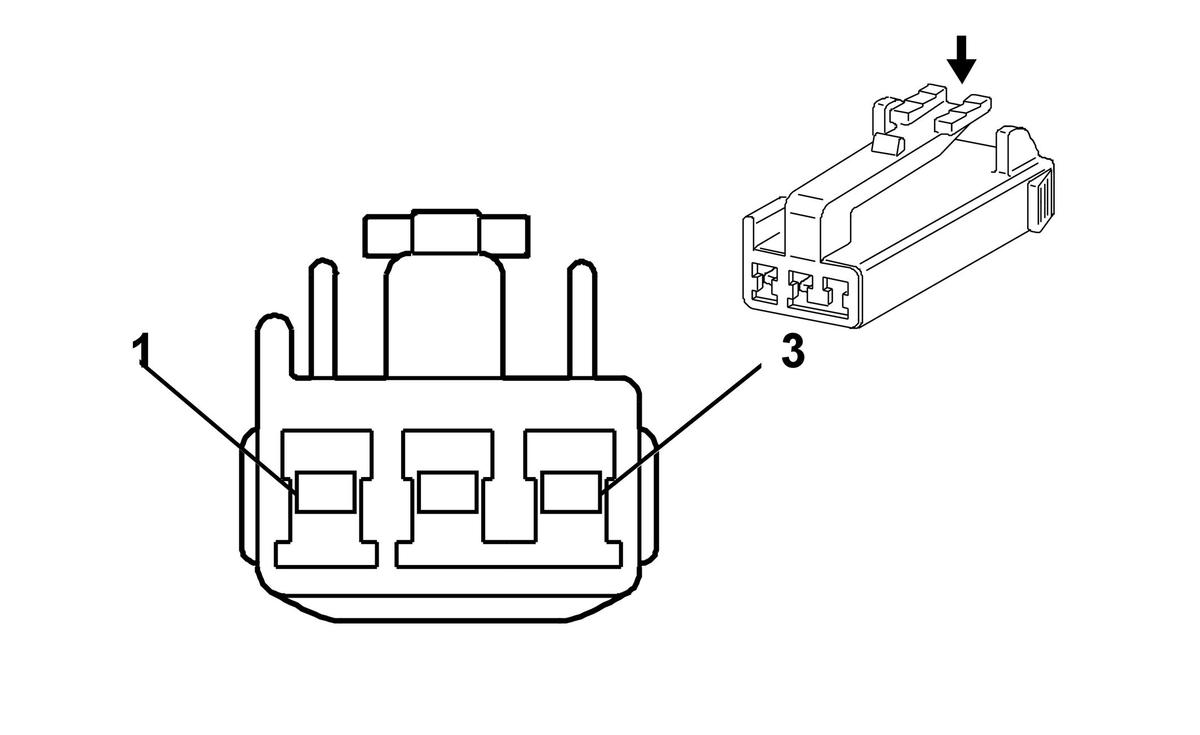

Fig 1: Rear Window Wiper Motor Connector End View
GM820083Courtesy of GENERAL MOTORS CORP.
Rear Window Wiper Motor

Pin Wire Circuit Function
1 0.35 BK 850 Ground
2 0.35 YE 5456 Rear Wiper Motor Park Signal
3 0.35 WH 393 Rear Window Wiper Motor Control
Connector Part Information
  • OEM: 7283-7433
  • Service: 88988339
  • Description: 3-Way F GT 150 Series (NA)
Terminal Part Information
  • Pins: 1, 3
  • Terminal/Tray: 7116-4021/11
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-18 (BK)
  • Pins: 2
  • Terminal/Tray: 7116-4020/11
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-18 (BK)
