Park/Turn Signal/DRL Lamp - Left Front

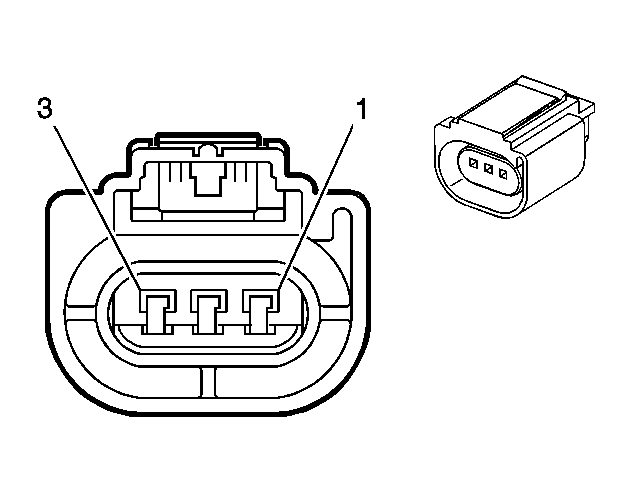

Fig 1: Park/Turn Signal/DRL Lamp - Left Front Connector End View

Courtesy of GENERAL MOTORS CORP.

Park/Turn Signal/DRL Lamp - Left Front

Pin	Wire	Circuit	Function
1	0.35 BK	250	Ground
2	0.35 BN	9	Park Lamp Supply Voltage
3	0.35 L-BU	14	Left Turn Signal Lamp Supply Voltage

Connector Part Information  OEM: 7900-1486-016 Service: 88986266 Description: 3-Way MISC (BK)

Terminal Part Information  Terminal/Tray: 7116-4102-08/9 Core/Insulation Crimp: E/1 Release Tool/Test Probe: 12094430/J-35616-2A (GY)
