Master Window Switch

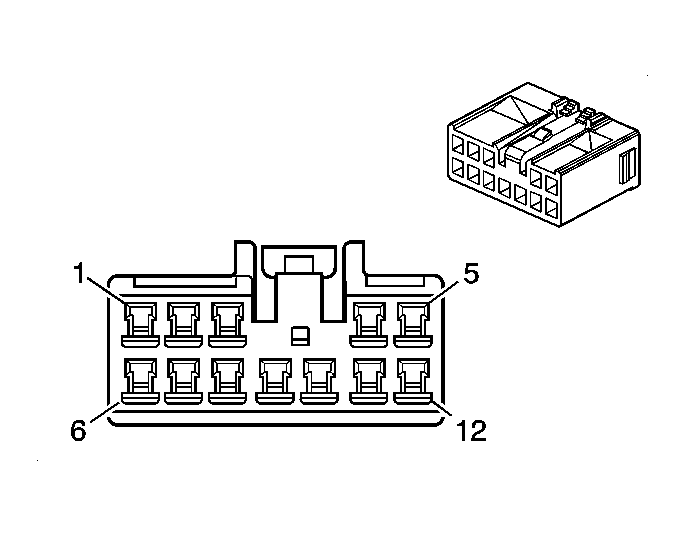

Fig 1: Master Window Switch Connector End View

GM465360

Courtesy of GENERAL MOTORS CORP.

Master Window Switch

Pin	Wire	Circuit	Function
1	0.35 D-GN	801	Retained Accessory Power Fuse Supply Voltage
2	0.35 L-GN	170	Power Window Master Switch Right Rear Up Signal (- Panel Van)
3	0.35 PU	171	Power Window Master Switch Right Rear Down Signal (- Panel Van)
4	0.35 D-GN/WH	168	Power Window Master Switch Left Rear Up Signal (- Panel Van)
5	0.35 PU/WH	169	Power Window Master Switch Left Rear Down Signal (- Panel Van)
6	0.35 BN	667	Power Window Motor Right Front Down Control
7	0.35 D-BU/BK	666	Power Window Motor Right Front Up Control
8	0.35 BK	1250	Ground
9	0.35 D-BU	1307	Power Window Master Switch Lockout Signal (- Panel Van)
10	0.35 D-BU/BK	1307	Power Window Master Switch Lockout Signal (- Panel Van)
11	0.35 TN	165	Power Window Motor Left Front Down Control
12	0.35 L-BU	164	Power Window Motor Left Front Up Control

Connector Part Information

OEM: 72831120
Service: See Catalog
Description: 12-Way F (WH)

Terminal Part Information

Terminal/Tray: 7116-4022/11
Core/Insulation Crimp: 4/A
Release Tool/Test Probe: 15315247/J-35616-18 (BK)
