Instrument Panel Cluster (IPC)
Courtesy of GENERAL MOTORS CORP. Instrument Panel Cluster (IPC)
| Pin |
Wire |
Circuit |
Function |
| 1-5 |
- |
- |
Not Used |
| 6 |
0.35 BK/WH |
651 |
Signal Ground |
| 7 |
- |
- |
Not Used |
| 8 |
0.35 D-GN/BK |
5060 |
Low Speed GMLAN Serial Data |
| 9 |
0.35 D-GN/WH |
1358 |
Driver Information Center Switch Signal |
| 10 |
0.35 D-GN |
264 |
Security Indicator Supply Voltage |
| 11 |
0.35 BN/WH |
419 |
MIL Control |
| 12 |
- |
- |
Not Used |
| 13 |
0.35 PK |
339 |
Ignition 1 Voltage |
| 14 |
0.35 RD/WH |
1440 |
Battery Positive Voltage |
| 15-18 |
- |
- |
Not Used |

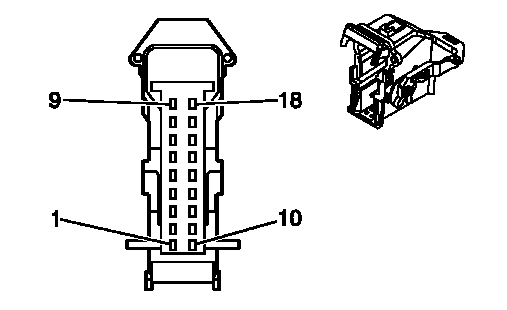

Connector Part Information
- OEM: 1326132-9
- Service: 88988783
- Description: 18-Way F 0.64 MM Lever Assist (BK)
|
Terminal Part Information
- Pins: 6, 13, 14
- Terminal/Tray: 638551-1/16
- Core/Insulation Crimp: K/K
- Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)
- Pins: 8-11
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
