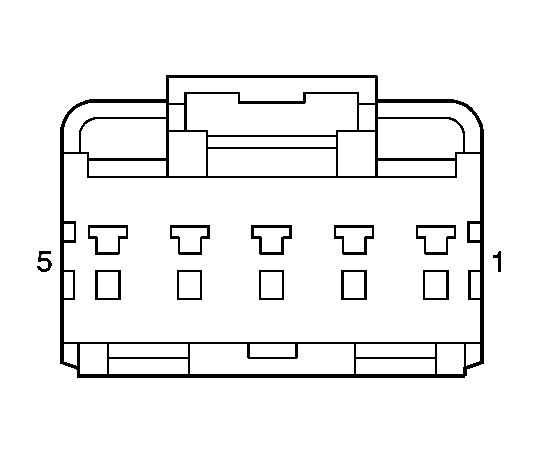

Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator
Courtesy of GENERAL MOTORS CORP. Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 TN/BK |
723 |
Passenger Air Bag On Indicator Control |
| 2 |
0.35 BK/WH |
651 |
Ground |
| 3 |
0.35 PK |
353 |
Passenger Air Bag Off Indicator Control |
| 4 |
0.35 PK |
339 |
Ignition 1 Voltage |
| 5 |
0.35 PU |
5234 |
Passenger Seat Belt Indicator |
Connector Part Information
- OEM: HCMPB-05-S
- Service: 88953369
- Description: 5-Way F (WH)
|
Terminal Part Information
- Terminal/Tray: Service with Pigtail
- Core/Insulation Crimp: N/A
- Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)
|
