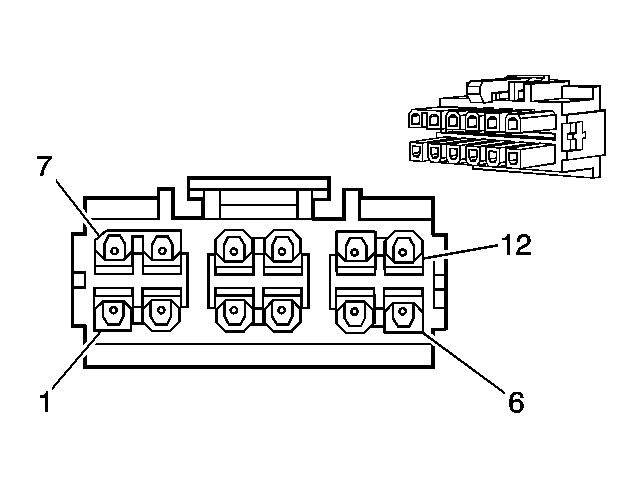

Heated Seat Control Module - Passenger (KA1)
Courtesy of GENERAL MOTORS CORP. Heated Seat Control Module - Passenger (KA1)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 D-BU/WH |
1686 |
Passenger Heated Seat Low Indicator Control |
| 2 |
0.35 BK |
1550 |
Ground |
| 3 |
0.35 PK |
1639 |
Ignition 1 Voltage |
| 4 |
0.35 BN/WH |
1685 |
Passenger Heated Seat High Indicator Control |
| 5-7 |
- |
- |
Not Used |
| 8 |
0.35 PK |
2479 |
Passenger Heated Seat Element Supply Voltage |
| 9 |
0.35 PK/BK |
1503 |
Passenger Heated Seat High/Low Signal |
| 10 |
0.35 RD/WH |
340 |
Battery Positive Voltage |
| 11 |
0.35 BK |
1550 |
Ground |
| 12 |
0.35 D-BU |
5475 |
Passenger Heated Seat Temperature Sensor Signal |
Connector Part Information
- OEM: 15-97-5121
- Service: Serviced by Complete Seat Harness
- Description: 12-Way F Mini Fit TPA (BK)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
