BCM Fuse Holder - 50 AMP

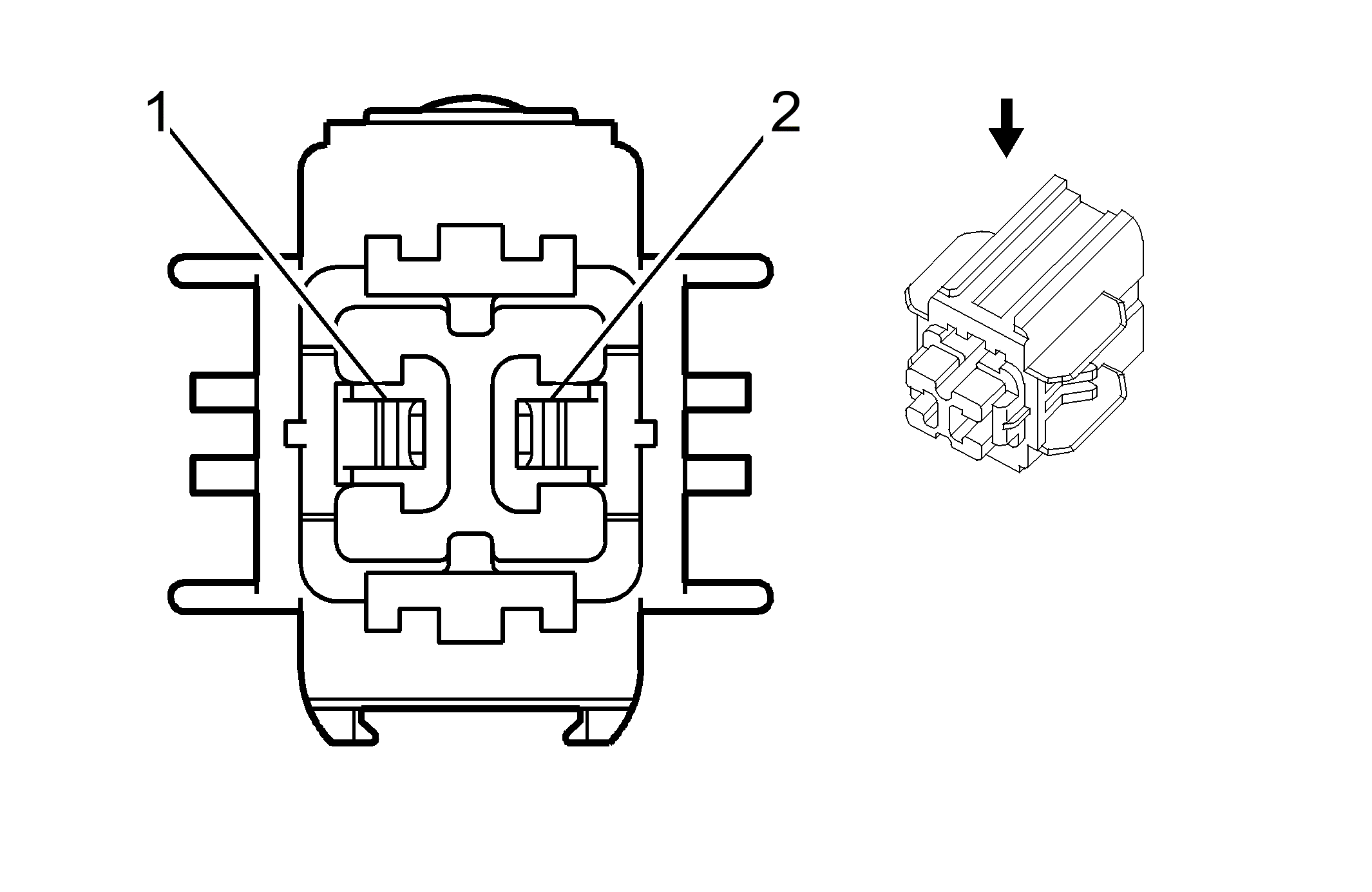

Fig 1: BCM Fuse Holder - 50 AMP Connector End View
GM1741305Courtesy of GENERAL MOTORS CORP.
BCM Fuse Holder - 50 AMP

Pin Wire Circuit Function
1 0.35 RD/BK 142 Battery Positive Voltage
2 0.35 RD 1 Battery Positive Voltage
Connector Part Information
  • OEM: E-4326
  • Service: 88988347
  • Description: 2-Way F (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
