Secondary Air Injection (AIR) Pump (K18) Connector End View

WARNING: This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

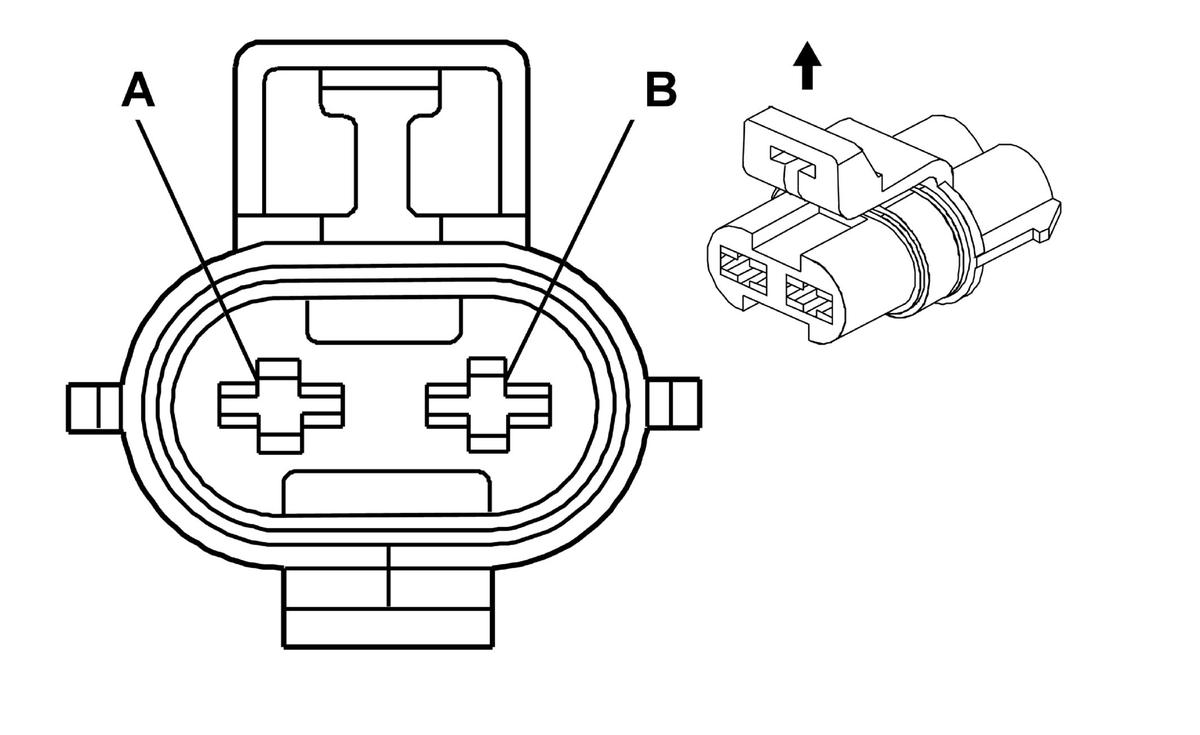

Fig 1: Secondary Air Injection (AIR) Pump (K18) Connector End View
GM1664608Courtesy of GENERAL MOTORS CORP.
Secondary Air Injection (AIR) Pump (K18)

Pin Wire Circuit Function
A 5 RD 78 Air Pump Control
B 5 BK 350 Ground
Connector Part Information
  • Harness: Engine
  • OEM: 12147067
  • Service: 89046640
  • Description: 2-Way F Ducon 6.3 Series, Sealed (GY)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-42 (RD)
  • Terminal/Tray: 12147474/24
  • Core/Insulation Crimp: G/F/3
