Radio Speaker Amplifier Replacement

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

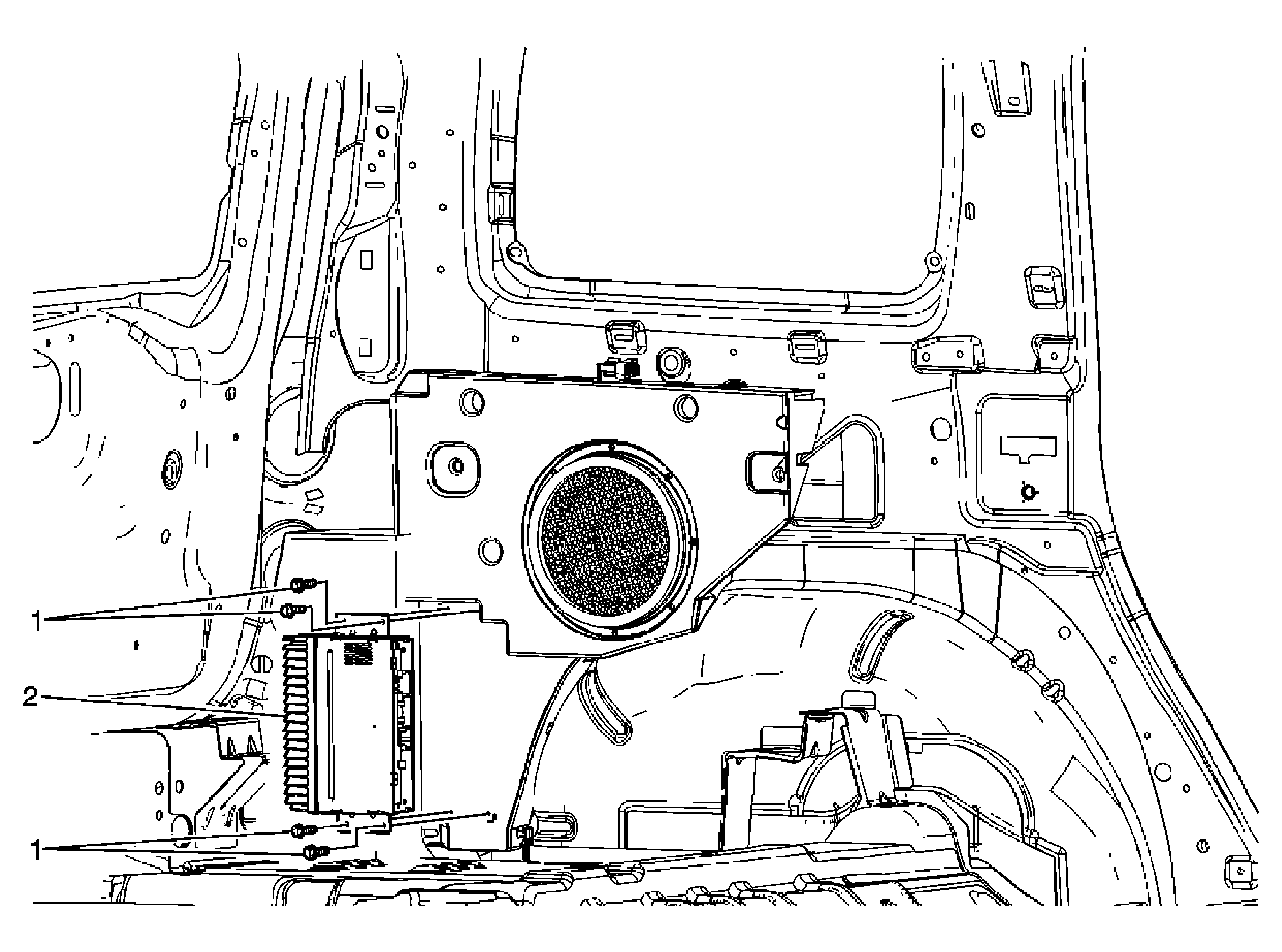

Fig 1: Radio Speaker Amplifier

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to Rear Seat Replacement . Remove the left quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
1	Amplifier Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Radio Speaker Amplifier Assembly Tip: Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedures

Remove the rear seat. Refer to Rear Seat Replacement .
Remove the left quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .

Amplifier Screw (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m (80 lb in)

Radio Speaker Amplifier Assembly
Tip: Disconnect the electrical connectors.
