Digital Radio Antenna Cable Replacement

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

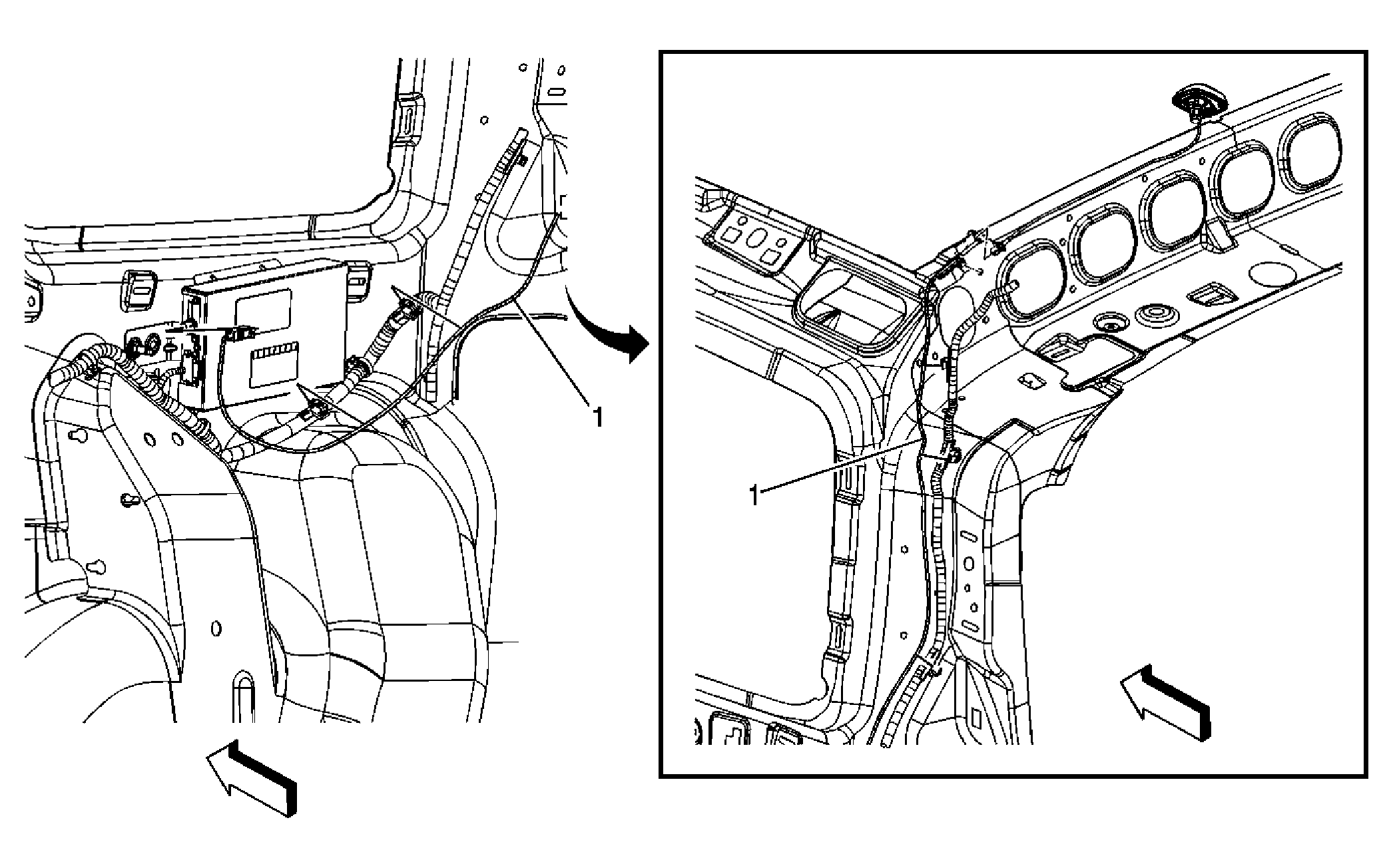

Fig 1: Digital Radio Antenna Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to Rear Seat Replacement . Remove the right rear quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement (With AXS) or Quarter Upper Trim Panel Replacement (Except AXS) . Remove the right rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement . Remove the rear door opening upper trim. Refer to Rear Door Opening Upper Frame Garnish Molding Replacement .
1	Digital Radio Cable Assembly Tip: Disconnect the cable at the digital radio receiver and at the antenna.

Callout

Component Name

Preliminary Procedures

Remove the rear seat. Refer to Rear Seat Replacement .
Remove the right rear quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement (With AXS) or Quarter Upper Trim Panel Replacement (Except AXS) .
Remove the right rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
Remove the rear door opening upper trim. Refer to Rear Door Opening Upper Frame Garnish Molding Replacement .

Digital Radio Cable Assembly
Tip: Disconnect the cable at the digital radio receiver and at the antenna.
