Chevrolet
>>
2008
>>
HHR SS, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry System & Remote Functions
>>
Schematic and Routing Diagrams
>>
Remote Function Schematics
Remote Function Schematics

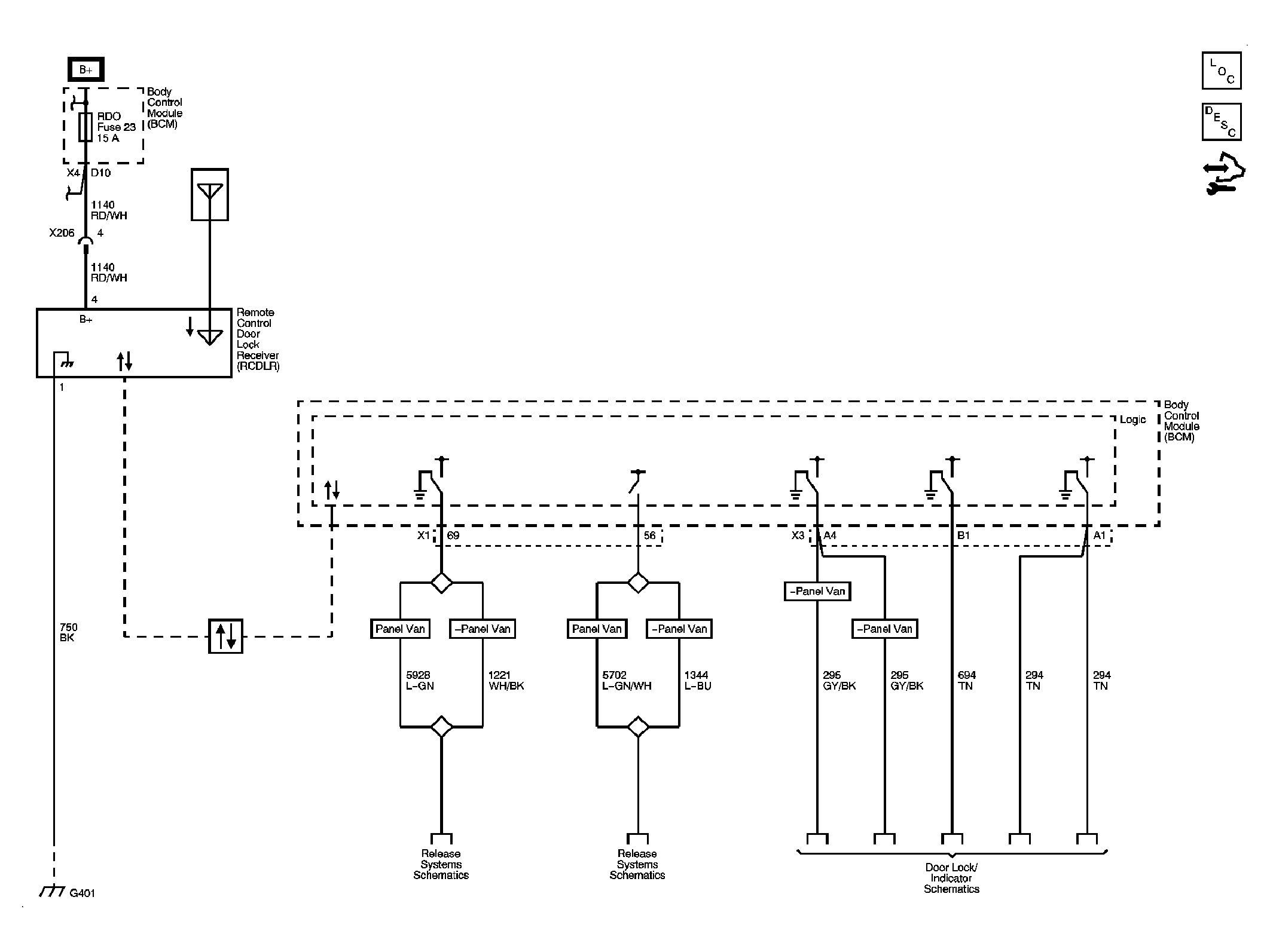

Fig 1: Keyless Entry Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
