Windshield Washer Hose Replacement

WARNING: This page is about a different car, the 2011 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

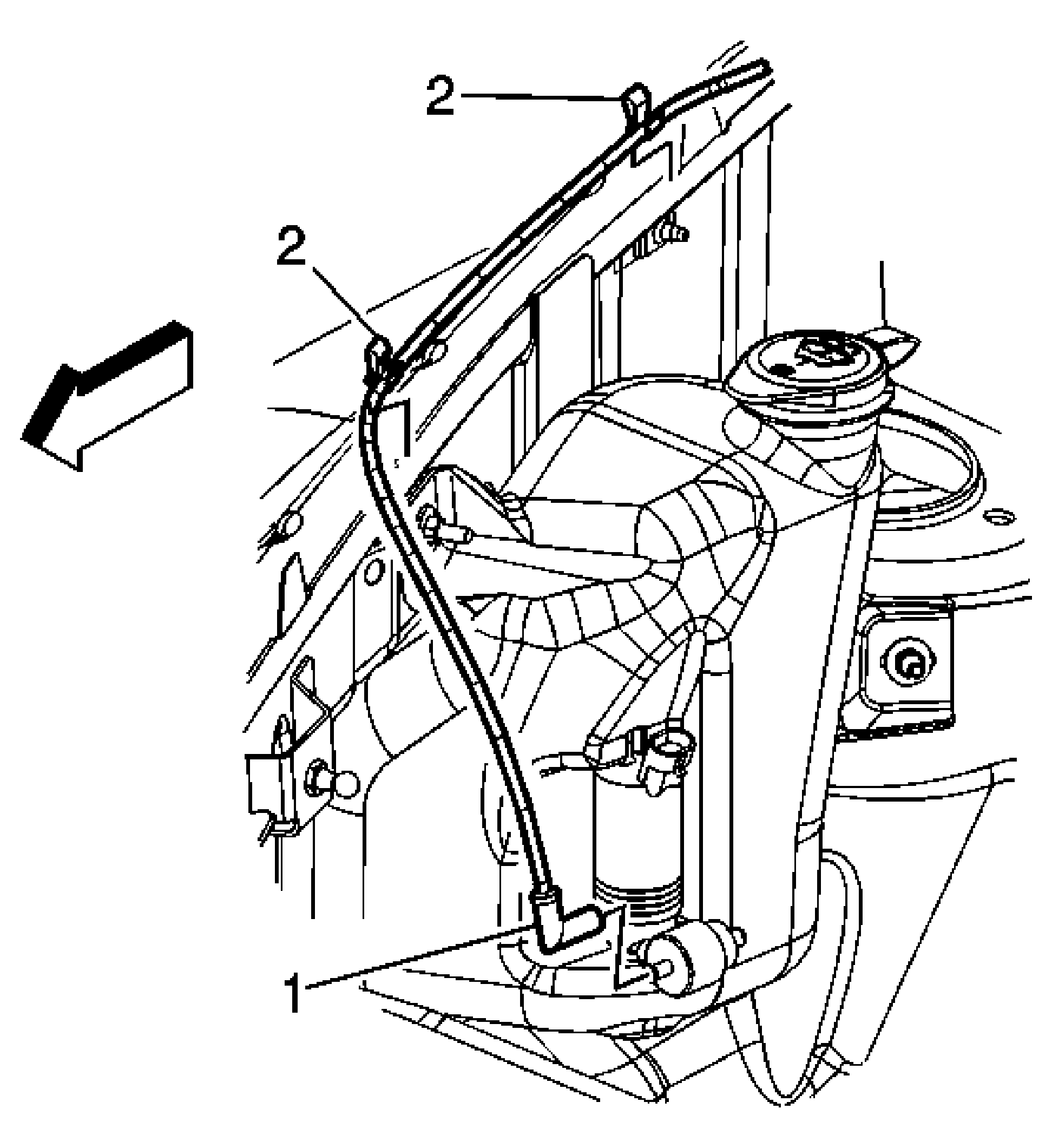

Fig 1: Windshield Washer Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Hose, Windshield Washer Pump TIP: Disconnect the hose from the pump.
2	Clip, Windshield Washer Hose (Qty: 2)
